Step-by-Step Downlight Circuit Wiring Guide and Electrical Layout
Begin by selecting 18-gauge solid copper wire for all connections–this reduces voltage drop over runs exceeding 20 metres. For a typical 12V setup, calculate the maximum wattage per run: divide the transformer’s total capacity by the number of outputs, then subtract a 10% safety margin. Example: a 150W transformer with six outputs supports 22W per run (150 ÷ 6 = 25W; 25W × 0.9 = 22.5W). Exceeding this will cause premature failure of low-voltage luminaires.

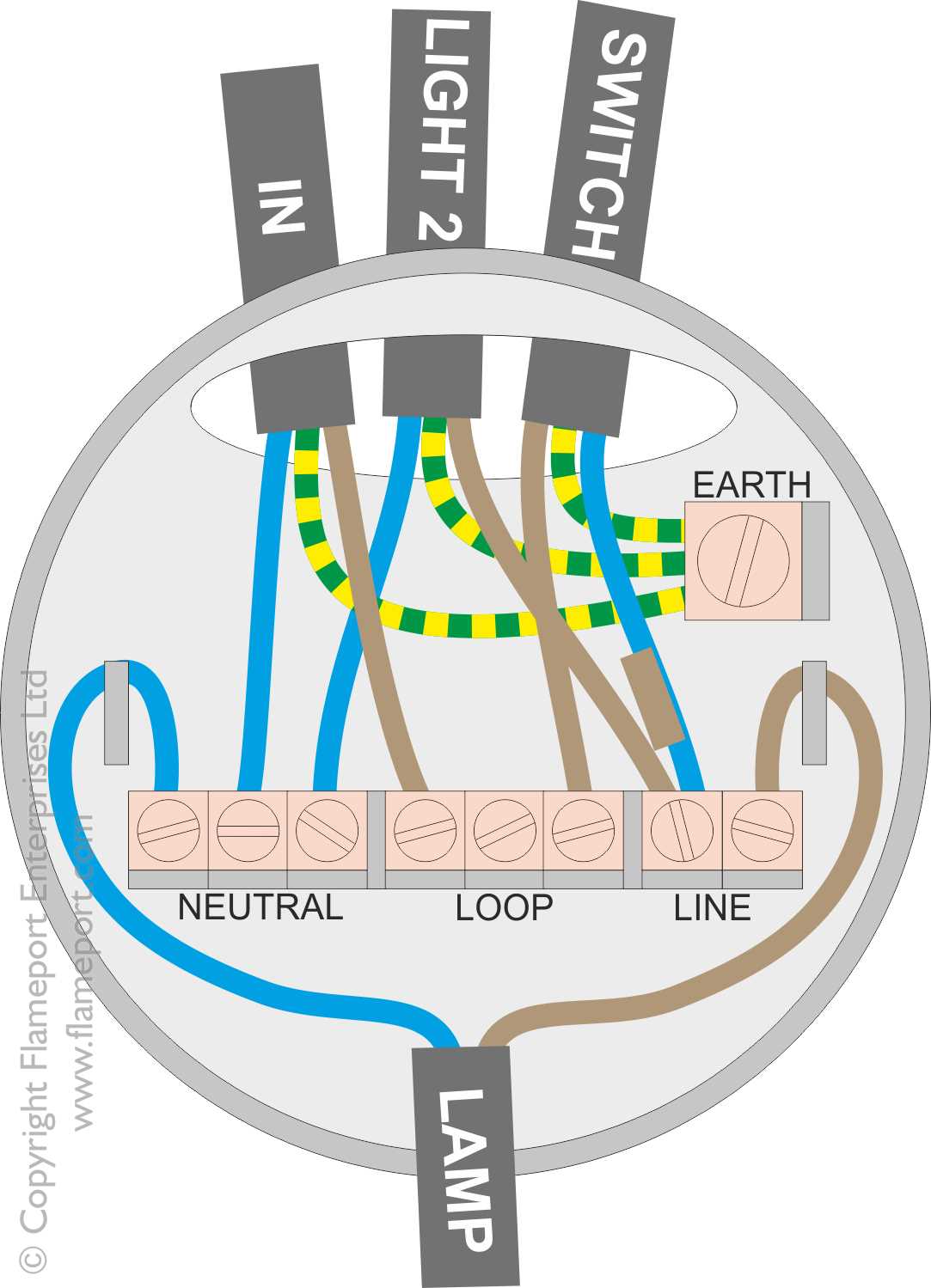

Mains-powered fittings demand a dedicated radial spur from the distribution board–never chain them with existing outlets. Use a 1mm² twin-and-earth cable for 6A circuits, protected by a 6A Type B MCB. Label each cable at both ends with its circuit reference (e.g., “DB1/SP3”) and screw-type terminal block identification (e.g., “L1-N-E”) to eliminate miswiring during maintenance.
Recessed luminaires rated for 35W or above must have integral thermal cut-offs; verify this in manufacturer specifications before purchase. For plasterboard ceilings, use spring-loaded retention clips rated to hold 5kg per fitting. If joists are spaced wider than 400mm, fix additional noggins to prevent sagging. Test earth continuity with a multimeter set to 20Ω range–readings above 0.5Ω indicate poor contact.
Position drivers at least 300mm from the first luminaire to avoid overheating. For LED arrays, connect dimmers compatible with trailing-edge waveforms to prevent flicker at low settings. Check the dimmer’s minimum load: most require at least 20W to function stably. If dimming isn’t needed, switch live feeds through a 10A rated rocker switch, not a push button.
End-of-run connections should terminate inside heat-resistant junction boxes (minimum IP54). Seal entries with compression glands for outdoor installations or areas with condensation risk. Verify polarity with a non-contact tester before energising–reverse polarity in DC systems damages the driver permanently.
How to Connect Recessed Fixtures Safely: A Practical Guide
Start by mapping out the power distribution path before cutting into ceilings–sketch a scaled layout with exact fixture positions and cable runs marked. For a 12V system, use a Class 2 transformer with appropriate wattage for the total load; overloading causes overheating. Keep cable lengths under 10 meters from the transformer to prevent voltage drop, which dims brightness unevenly. Secure connections with insulated twist-on wire connectors rated for the amperage, then wrap each joint with heat-resistant electrical tape.

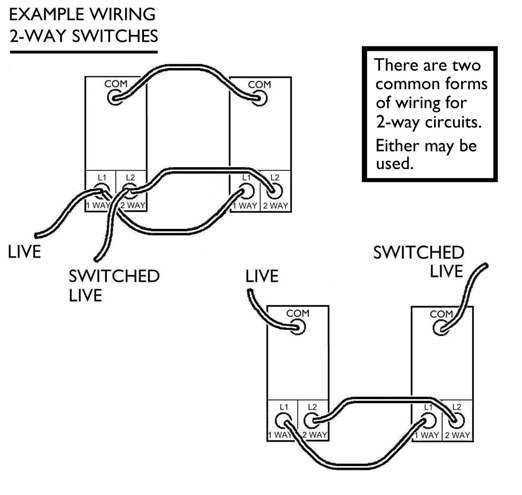

Install a separate switch for each zone to avoid flickering; groups of four to six fixtures work best per switch to balance load. For larger setups, integrate a dimmer compatible with the LED driver type–forward phase for magnetic, reverse phase for electronic. Run 1.5mm² solid-core cable between fixtures, ensuring tight stapling every 45cm to prevent sagging or rodent damage. Use a conduit for exposed runs in unfinished spaces like basements or attics, and label both ends of each cable for troubleshooting.
Test continuity with a multimeter before sealing connections–probe each wire at the fixture and switch to confirm zero resistance. For fire safety, staple cables at least 30cm away from insulation and 1.2m from heat sources like HVAC ducts. If mixing fixture types within one run, verify voltage compatibility; mixing 12V and 24V units on the same cable causes permanent damage to the lower-voltage LEDs.
Final step: cover junction boxes with fire-rated access plates and install fixtures strictly per manufacturer torque specs–over-tightening cracks housings, under-tightening risks vibration. Use a fish tape to pull cables through plaster or drywall, avoiding sharp edges that fray insulation. For outdoor soffits, switch to UV-resistant PVC-sheathed cable and waterproof gland fittings at entry points.
Selecting the Optimal Wire Thickness for Recessed Fixture Installations
For most residential recessed luminaire setups, a 1.5 mm² (16 AWG) copper conductor suffices when the run length remains under 30 meters and the total load doesn’t exceed 10 amperes. This gauge strikes a balance between safety, voltage drop, and material cost while complying with IEC 60364 and NEC 210.19 standards. Always verify local codes, as some jurisdictions mandate 2.5 mm² (14 AWG) for circuits feeding multiple units.
Avoid undersizing even for low-current LED clusters–heat buildup in junction boxes and connectors can accelerate insulation degradation over time. For installations with longer runs (50+ meters) or higher currents (above 12A), step up to 2.5 mm² (14 AWG) to prevent voltage sag exceeding 3%. Use this formula to calculate allowable drop:
- Vdrop = (2 × L × I × R) / 1000
- Where L = length in meters, I = current in amperes, R = resistance per km (Ω/km)
For commercial applications with 20+ fixtures on a single feeder, opt for 4 mm² (12 AWG) copper. This handles inrush currents from transformers and ballasts during startup, which can spike 2–3× the steady-state load. Aluminum conductors are discouraged due to oxidation risks at connection points, but if specified, increase gauge by one size and use approved antioxidants.
Connector compatibility dictates practical limits–a 1 mm² wire won’t securely terminate in most snap-lock or push-fit luminaire connectors designed for 1.5 mm²+. Confirm manufacturer specs for:
- Maximum allowable conductor cross-section
- Stranding requirements (solid vs. stranded)
- Insulation temperature rating (typically 75°C or 90°C)
For parallel runs with multiple small-gauge conductors, bundle them tightly to prevent inductive heating and ensure each carries an equal share of the load. Never exceed 80% of the cable’s ampacity rating based on the insulation type. Thinner wires (e.g., 0.75 mm²) may be used for individual fixture pigtails if the main feeder is appropriately sized.
Temperature derating applies in attics or insulated cavities–multiply the ampacity by 0.8 for 50°C ambient and 0.7 for 60°C. Verify wire color codes: brown (live), blue (neutral), green/yellow (earth) per IEC; or black/red (live), white (neutral), bare/green (earth) per NEC. Soldered joints are prohibited; use WAGO or terminal blocks rated for the current.

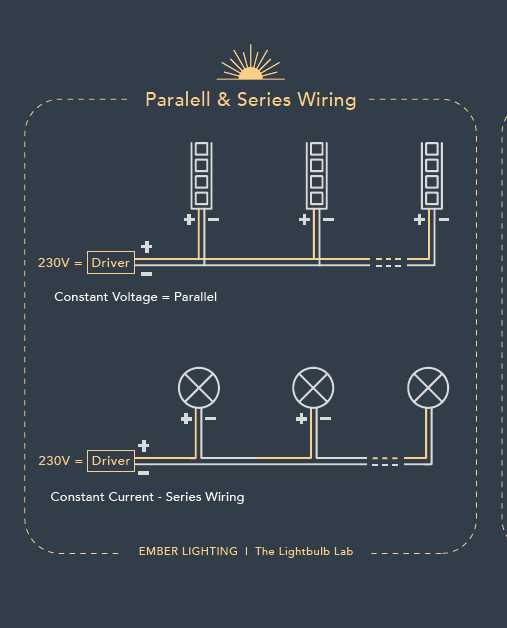

Series vs. Parallel LED Setup: Key Electrical Differences
Always wire recessed fixtures in parallel–never series. Parallel connections maintain consistent voltage (e.g., 12V or 230V) across every bulb, preventing dimming or cascading failures when one fails. Series setups drop voltage across each unit (Vtotal = V1 + V2 + …), reducing output exponentially: a 3-lamp 12V series chain with identical bulbs divides to just 4V per lamp, below typical LED threshold.
Critical Wiring Parameters
- Current (Amps): Parallel branches share the same voltage but split total current. Calculate wire gauge using sum of branch currents (e.g., three 0.5A LEDs on a 1.5A breaker require at least 18AWG copper conductor).
- Voltage Drop: Measure actual supply at furthest fixture–exceeding 3% drop (e.g., 0.36V on 12V) requires thicker cables or reducing run length below 10m for 1.5mm² wire.
- Fusing: Each parallel branch needs individual protection. A 1A fuse per 0.5A lamp prevents overload if one branch shorts.
Integrating Power Adapters and Intensity Controllers for Recessed Fixtures
Select voltage-matched transformers based on fixture specifications–low-voltage halogen spots (12V/24V) demand magnetic or electronic adapters with ≤5% voltage drop over cable runs exceeding 3 metres. LED-compatible adapters must include constant-current outputs; verify manufacturer load ranges (e.g., 3W–30W per unit) to prevent premature failure. For multi-gang installations, distribute load evenly across adapters–never exceed 80% of rated capacity to avoid overheating.
| Adapter Type | Max Cable Length (Cu 1.5mm²) | Voltage Drop Tolerance |
|---|---|---|
| Magnetic (halogen) | 5m | ≤3% |
| Electronic (halogen) | 10m | ≤5% |
| LED constant-current | 15m | ≤2% |
Pair dimmers with adapter types to prevent flicker or hum–leading-edge controllers suit traditional resistive loads, while trailing-edge variants are mandatory for LEDs (check compatibility lists from Lutron or Osram). For multi-level setups, use synchronous dimming by grouping same-brand adapters/dimmers; cross-brand combinations risk inconsistent intensity curves. Always hardwire a dedicated neutral to the controller if ambient brightness dips below 10%–some adapters require stable reference voltages for deep fading.
Key Wiring Errors That Compromise Recessed Fixture Safety
Avoid connecting more fixtures to a single transformer than its wattage rating allows–exceeding limits by even 10% causes overheating within hours. Check manufacturer specs for total load capacity before grouping; a 60W transformer shouldn’t power four 20W bulbs if it’s rated for 50W max. Use a multimeter to verify voltage stability at the last fixture in a series; voltage drops over 5V per 10 feet of cable indicate undersized wire gauge.
Bypass junction boxes entirely or install them incorrectly, and arcing becomes inevitable–always use insulated, UL-listed connectors inside metal enclosures. Seal all splices with heat-shrink tubing or silicone-filled wire nuts; exposed copper corrodes in months, especially in humid environments like bathrooms. Keep connections at least 12 inches from insulation to prevent heat buildup; fiberglass traps heat, degrading wire sheathing faster than open-air installations.
Ignore polarity, and low-voltage systems (12V/24V) will function erratically–label hot (black/red) and neutral (white) wires at every splice point. Never daisy-chain more than five fixtures without testing current draw–each additional unit increases resistance, dimming output progressively. For dimmable setups, match the dimmer type (leading/trailing edge) to the bulb technology (halogen/LED); mismatches cause flickering at 40-60Hz, audible in quiet spaces.
