How to Read and Build a Load Cell Circuit Layout Step by Step

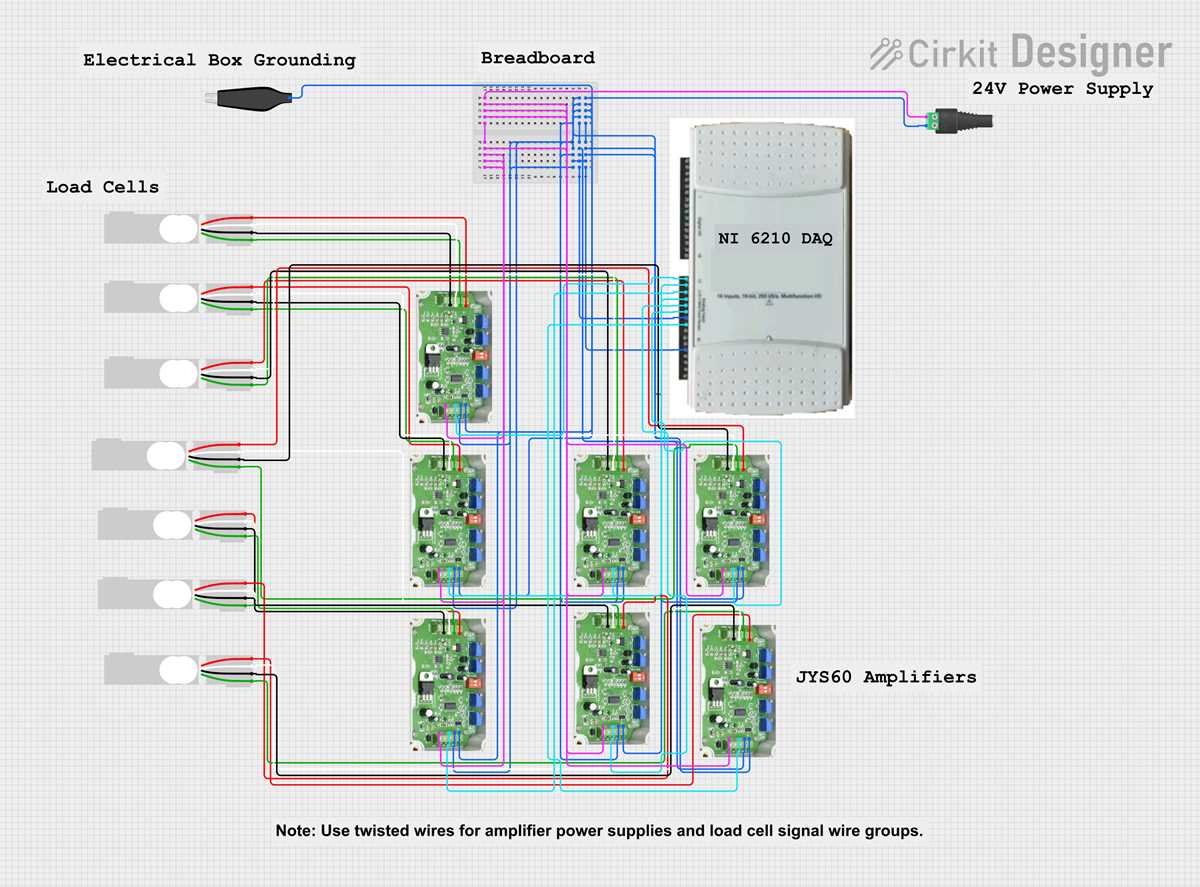

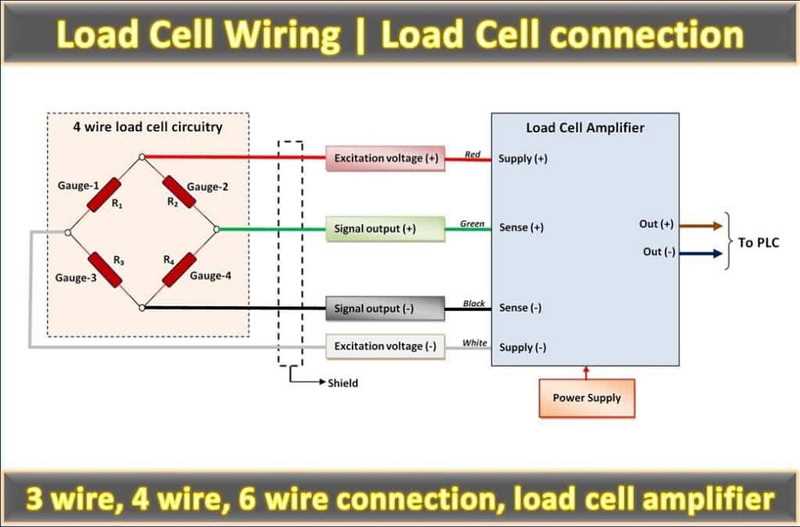

Begin by identifying the force transducer’s excitation voltage–typically 5V or 10V DC–and ensure the power source delivers stable current with ripple below 20mV peak-to-peak. Connect excitation lines directly to the sensor’s input pads, avoiding splitters or lengthy traces that introduce resistance variance. For a 4-wire configuration, route the output signals through shielded twisted pairs to minimize electromagnetic interference; ground the shield at a single point near the amplifier stage to prevent ground loops.
Place strain gauge bridges on a rigid substrate with a low thermal expansion coefficient (e.g., aluminum oxide or titanium) to reduce drift from ambient temperature shifts. Offset errors above 0.1% FS often stem from improper bonding–use a cyanoacrylate adhesive with a curing cycle of 24 hours at 60°C under 2kg/cm² pressure. Verify bridge resistance symmetry post-bonding; mismatches exceeding 0.3Ω indicate faulty installation.
For signal conditioning, select a differential amplifier with CMRR >100dB and input impedance above 10GΩ. Insert a low-pass RC filter (cutoff 10Hz) after amplification to attenuate high-frequency noise from motors or inverters. If using a 6-wire setup, include Kelvin connections to compensate for lead resistance; omit this only if cable runs are shorter than 3 meters.
Calibration requires a deadweight tester applying 120% of rated capacity in 10% increments. Log output voltages at each step, then derive linearization coefficients via least-squares regression. Hysteresis above 0.05% FS suggests mechanical binding–inspect flexure joints for deformation. Store calibration data in EEPROM if integrating with microcontrollers, ensuring firmware updates preserve cross-axis sensitivity corrections.
Understanding Strain Gauge Circuit Blueprints

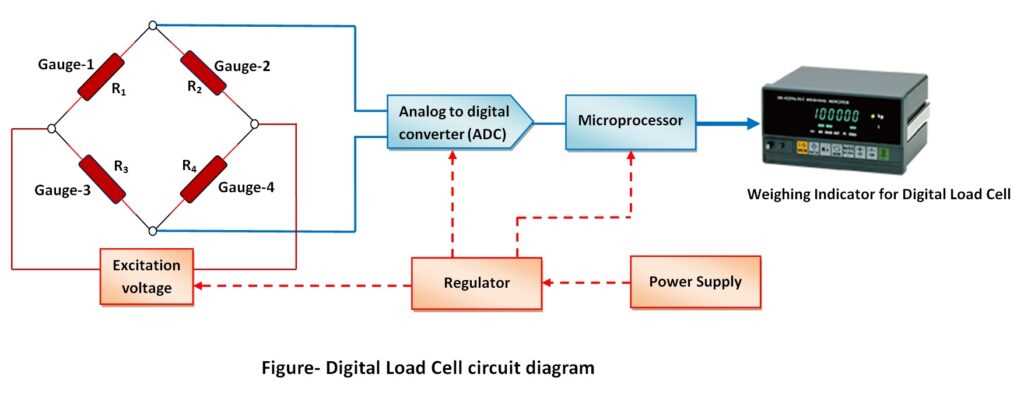

Start by identifying the Wheatstone bridge configuration at the core of most force-sensing transducers. A typical arrangement includes four resistive elements: two active and two passive gauges, or a single gauge with three fixed resistors for cost-sensitive designs. Active gauges should be mounted on opposite arms (R1 and R3) to maximize output voltage sensitivity, while passive elements (R2 and R4) serve as temperature compensation. Excitation voltage typically ranges between 5V and 10V DC–exceeding 12V risks self-heating errors in the sensing elements.
Ensure the signal conditioning path integrates precise instrumentation amplifiers with high input impedance (>1GΩ) to prevent loading effects. A gain factor of 100 to 500 is common, but adjust based on full-scale force (e.g., 10mV/V output requires ×500 gain for 0-5V ADC input). Incorporate a low-pass filter (cutoff ~10Hz) post-amplification to eliminate high-frequency noise from mechanical vibrations. For dynamic measurements, reduce the filter’s time constant but monitor phase lag–critical in real-time control loops.
Grounding practices demand separation of analog and digital grounds via a star configuration; connect all grounds at a single reference point near the power supply. Use shielded twisted-pair cables for gauge connections, grounding the shield only at one end to avoid ground loops. For extended cable runs (>10m), employ a 4-wire Kelvin connection to cancel lead resistance effects. Calibration resistors (typically 10KΩ-100KΩ) should parallel each bridge arm to simulate half-bridge output during zero-force verification.
Failure modes often stem from moisture ingress or overloading; specify hermetically sealed gauges for harsh environments and derate maximum capacity by 20% for sustained use. For multi-axis designs, isolate each bridge’s excitation with dedicated voltage regulators to prevent crosstalk. When designing PCB layouts, keep high-impedance traces short, widens, and spaced from switching circuits–capacitive coupling at picofarad levels corrupts readings. Validate circuit performance with a precision decade resistance box before gauge installation to verify linearity and hysteresis.
Core Elements of Force Measurement Circuit Architecture
Select a precision strain gauge with a resistance tolerance under ±0.1% to minimize thermal drift and nonlinearity. Polyimide-backed gauges bonded with cyanoacrylate adhesive endure cyclic stress better than epoxy, reducing hysteresis by up to 30% in high-frequency applications. Ensure gauge alignment within ±0.5 degrees of the principle stress axis to prevent cross-axis sensitivity errors exceeding 0.2% of full scale.
Signal Conditioning Amplifier Configuration
Implement a differential instrumentation amplifier with a CMRR above 120 dB to reject common-mode noise from power lines or RF interference. A three-op-amp topology using rail-to-rail input devices (e.g., LT1028) maintains linearity at low excitation voltages, critical for 3.3V systems. Add a low-pass filter (Butterworth, 4th order) with a cutoff at 10x the maximum mechanical response frequency to prevent aliasing while preserving transient accuracy.
Excitation voltage stability dictates output reproducibility: regulate supply to ±0.01% using a precision shunt reference (e.g., LM4040) paired with a low-dropout regulator. Current-limiting the gauge bridge at 25 mA prevents self-heating errors, while Kelvin sensing compensates for lead resistance variations in cables exceeding 10 meters. For dynamic applications, superimpose a 1 kHz AC excitation to decouple DC offsets from static measurements.
Temperature compensation demands a dual-element bridge configuration–one active leg and one passive dummy–both exposed to identical thermal environments. Use a PT1000 RTD adjacent to the gauge for software linearization, correcting sensitivity drift via polynomial coefficients (up to 3rd order). Embedded firmware should sample the RTD at 10x the gauge bandwidth to resolve rapid thermal transients during start-up or environmental shifts.
Noise Mitigation and Calibration Protocols
Route high-impedance traces as short, guarded pairs (
How to Choose the Right Strain Gauge Configuration for Your Application
Opt for a quarter-bridge setup if minimal precision loss is acceptable (typically 0.1–0.5% per °C temperature drift) and cost constraints demand simplicity. This configuration suits applications like basic force monitoring in static or low-dynamic environments, such as tensile testing of metals or compression checks in structural supports. Ensure the adhesive (cyanoacrylate or epoxy) matches the material’s thermal expansion coefficient–mismatches above 10 ppm/°C introduce errors exceeding 5% of full-scale output.
For dynamic or high-precision requirements, select a full-bridge arrangement. This cancels nonlinearities, common-mode noise, and temperature-induced drift, delivering sensitivity improvements of 4x over quarter-bridge. Critical for:
- Torque measurements in rotating shafts (error
- High-frequency vibration analysis (resonant frequencies up to 10 kHz)
- Microstrain (
Use Karma alloy gauges for temperatures above 200°C–they maintain ±0.5% stability over 1,000 cycles, unlike constantan (degrades at 300°C).
For asymmetric stress fields (e.g., bending in beams or pressure vessels), a rosette (three-gauge 0°/45°/90°) resolves principal strains. Calculate maximum stress using:
- εmax = (ε0 + ε90)/2 + √[(ε0 – ε90)²/4 + (ε45 – (ε0 + ε90)/2)²]
- θp = 0.5 * arctan[(2ε45 – ε0 – ε90)/(ε0 – ε90)]
Limitations: Rosettes require precise alignment (misorientation >2° skews results by 12%). For cyclic loading, verify gauge fatigue life–constantan fails at ~10⁶ cycles @ 1500 με, while Karma endures 10⁷+.
Step-by-Step Wiring Guide for Force Sensor Signal Conditioning
Begin by verifying the sensor’s excitation voltage requirements–typically 5V or 10V DC–against the power supply’s specifications. Mismatched voltages degrade precision or damage components. Use a regulated bench supply during testing to eliminate fluctuations.

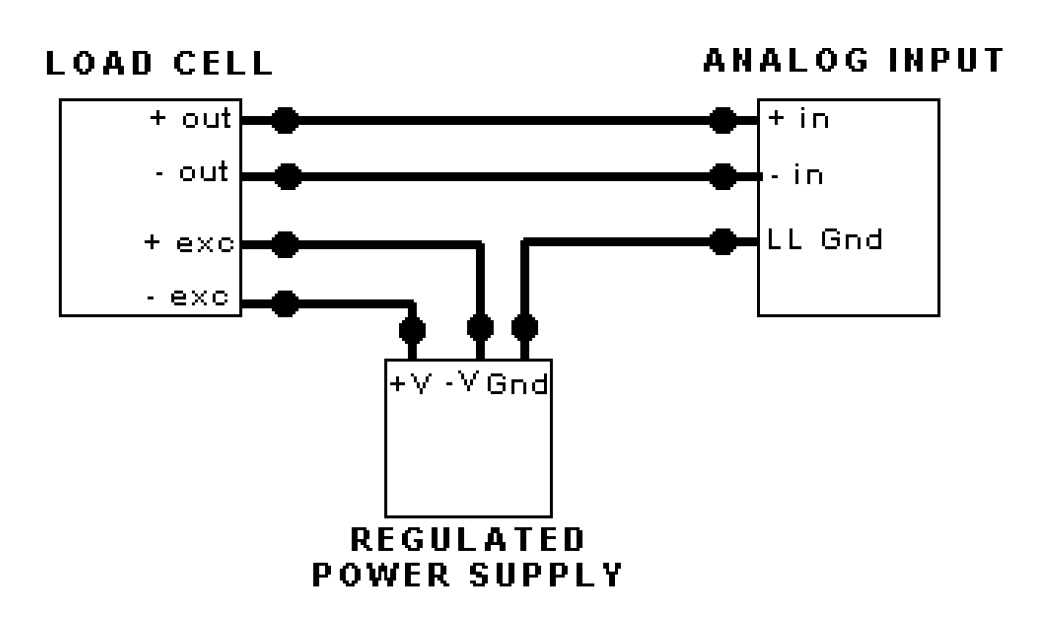

Identify the sensor’s signal outputs: often labeled as +SIG, -SIG, +EXC, and -EXC. Cross-reference these with the datasheet to confirm wiring conventions, as some models invert polarity. Miswiring can introduce noise or zero-balance errors.
Connect the excitation lines (+EXC and -EXC) to the power source, inserting a 100nF ceramic capacitor in parallel to filter high-frequency interference. Place the capacitor within 10mm of the sensor terminals to minimize inductive pickup.

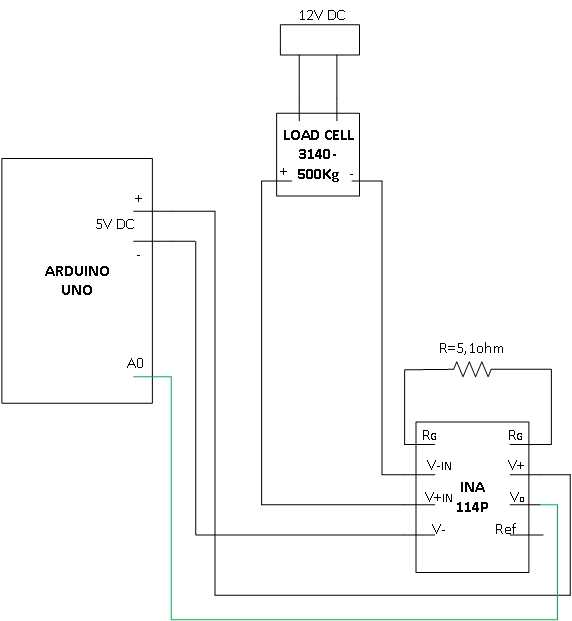

For differential signal conditioning, attach +SIG and -SIG to a precision instrumentation amplifier (e.g., AD620 or INA125) with a gain set between 100–1000, depending on the sensor’s mV/V output. The table below matches sensor ratings to recommended gain ranges:
| Sensor Capacity (kg) | Nominal Output (mV/V) | Optimal Gain |
|---|---|---|
| 10–50 | 1.0–2.0 | 800–1000 |
| 50–500 | 2.0–3.0 | 300–500 |
| 500–5000 | 3.0–10.0 | 100–250 |
Route signal wires away from AC power lines and switching circuits. Use twisted-pair cables (minimum 2 twists per inch) for +SIG and -SIG to cancel common-mode noise. Shield the cable with braided copper, grounding the shield at a single point near the amplifier’s reference ground.
Add a 10Hz low-pass RC filter (e.g., 1kΩ resistor and 10μF electrolytic capacitor) after the amplifier to attenuate vibration-induced artifacts. For dynamic applications, substitute a 100Hz cutoff; static measurements benefit from steeper roll-off.
Implement offset nulling with a 10-turn potentiometer (e.g., 50kΩ) between the amplifier’s reference pin and ground. Adjust while monitoring output with a DMM at zero force–target
Power the conditioning circuit with a dedicated linear regulator (e.g., LM7805) if the main supply has >1% ripple. Verify total current draw–typical sensor circuits consume 10–50mA–and ensure the regulator’s dropout voltage margin exceeds 1V under worst-case conditions.
