Complete Guide to Lowrance Sonar and GPS Wiring Connections

Begin by identifying the terminal block on your chartplotter’s power harness. Pin 1 typically handles the main positive feed (red wire), while Pin 2 grounds the circuit (black or yellow striped). Verify the unit’s voltage rating–models such as HDS Live demand 12V DC with a 3A fuse, while older Elite TI series tolerate up to 20V for limited durations. Omitting a fuse risks catastrophic failure during voltage spikes.

Route the NMEA 2000 backbone separately if integrating sonar, radar, or autopilot modules. Use t-connectors rated for marine-grade corrosion resistance; brass or gold-plated variants outlast bare copper in saltwater environments. Label each drop cable with heat-shrink tubing–mark the function (heading, depth, or GPS) to simplify future diagnostics.

For dual-chartplotter setups, split the power feed using a Y-splitter rated at 10A. Avoid daisy-chaining units unless the manual explicitly permits it; parasitic current draw can destabilize the entire network. Test each connection with a multimeter set to ohms–readings above 0.5Ω indicate poor contact, requiring re-crimping or soldering.

Shield signal wires (blue, white, or orange) from the engine compartment to prevent EMI interference. Run them parallel to–but never bundled with–power cables. If integrating a transducer, match the element count (single-, dual-, or triple-frequency) to the device’s processing capability; mismatch results in noisy returns or diminished target separation.

Mount the power distribution block within 6 inches of the battery to minimize voltage drop. Use tinned copper cable (AWG 10 or thicker for runs exceeding 10 feet). Secure all cables with nylon ties every 8 inches–vibration-induced abrasion is the leading cause of intermittent failures.

Connecting Marine Electronics: Installation Schematic Guide

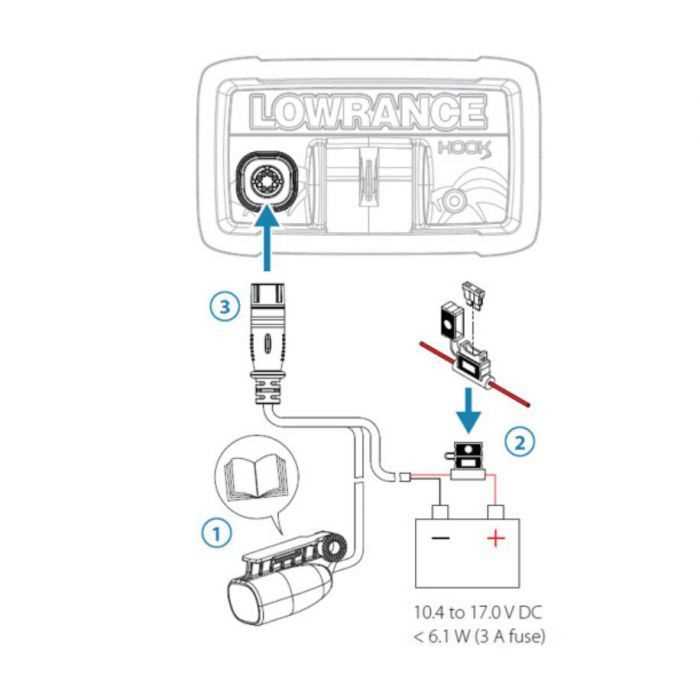

Start by matching the device’s power cables to a 12V marine battery, ensuring the red lead connects to the positive terminal and the black to negative–never reverse polarity. For GPS units with NMEA 2000 compatibility, link the drop cable directly to an existing network backbone via a T-connector; avoid splicing unless using certified terminators (120 ohms at each end). If interfacing with analog sensors (e.g., temperature or speed transducers), refer to the product’s pinout: most models use a 6-pin circular connector where pins 2 (signal) and 4 (ground) handle engine data, while pins 1 and 3 manage power (+12V and ground).

Troubleshooting Common Errors

• No signal on transducer? Verify the 3-pin connector is fully seated; incorrect seating disrupts depth readings.
• Flickering display? Check for voltage drops below 11.5V under load–marine batteries degrade faster than automotive types.
• Erratic GPS? Ensure the antenna cable is routed away from high-current lines (e.g., starter cables) to prevent EMI.

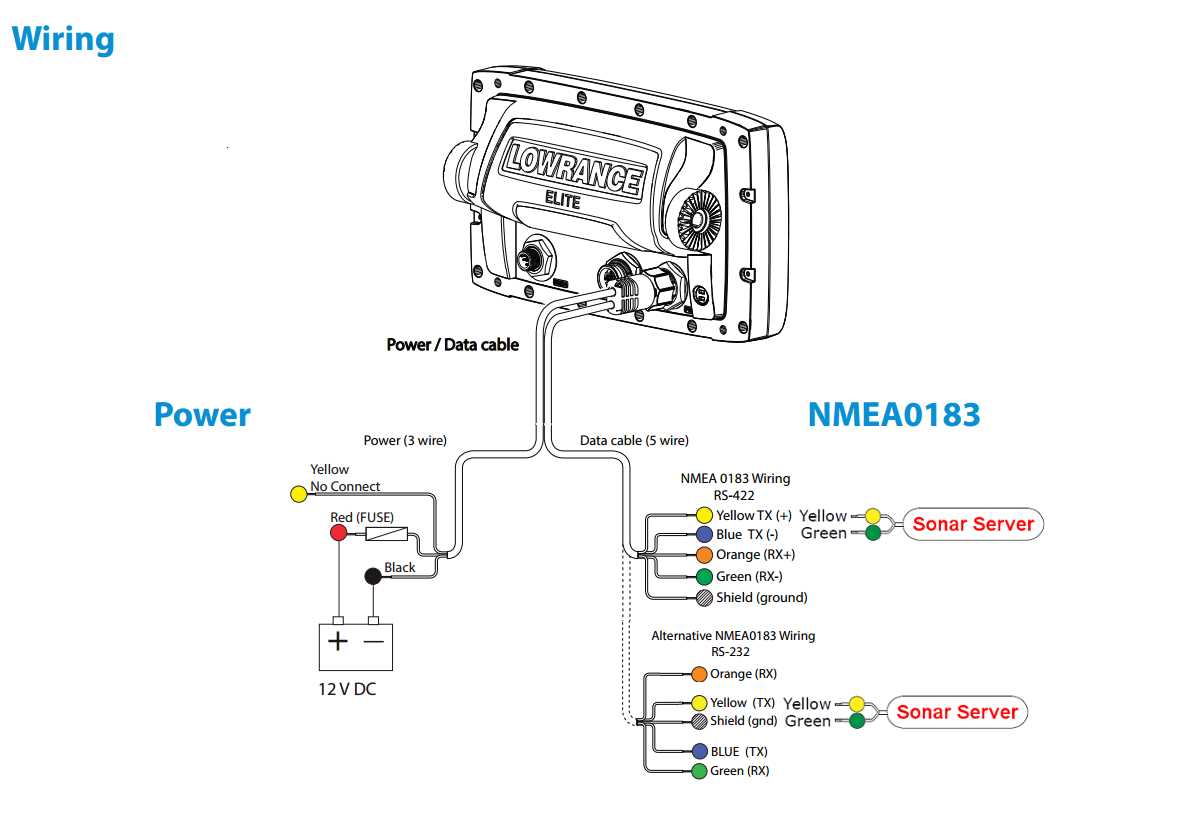

1. For NMEA 0183 setups, confirm baud rates match (4800 is default; mismatches cause data gaps).
2. Use shielded twisted-pair cables (STP) for long runs (>5m) to reduce interference.
3. If pairing radar, connect the radar overlay cable directly to the chartplotter’s dedicated port–no adapters.

Pinpointing Primary Power Hookups on Marine Navigation Devices

Locate the red (positive) and black (negative) terminals immediately–these are non-negotiable for any sonar or chartplotter setup. On most fishfinder and GPS displays, the power cable terminates in a two-pin connector labeled “+12V” and “GND” near the housing’s rear. Match polarity without exception; reversed connections can fry the internal circuitry within seconds.

Check for a fused lead, typically a 3-5 amp in-line fuse housed in a transparent or colored sheath. This component sits within 6 inches of the device’s power input. If absent, install one before proceeding–skipping this step risks shorting the entire system during voltage spikes. Verify the fuse rating against the manual; undersized fuses blow unnecessarily, oversized ones fail to protect.

Dedicated vs. Shared Battery Lines

• Dedicated line: Run a separate 10-12 AWG cable directly from the battery to the unit. Use marine-grade tinned copper wire to prevent corrosion. Length should not exceed 15 feet without a voltage drop calculation–longer runs require thicker gauge.
• Shared line: If tapping an existing circuit, ensure the combined current draw of all devices stays below 80% of the circuit breaker’s rating. Sonar transducers alone can pull 2-4 amps during active scanning. Use a multimeter to confirm steady 12.6-13.8V at the input under load.

Inspect the connector type–common variants include barrel plugs, blade terminals, or Deutsch connectors. Barrel plugs often have a 2.1mm or 2.5mm inner diameter; mismatched adapters cause intermittent power loss. Blade terminals require crimped ring lugs; soldering alone is insufficient for marine vibration. Deutsch connectors demand precise pin alignment–cross-threading damages the housing.

Grounding Best Practices

1. Attach the negative lead to the engine block or a dedicated grounding bus bar. Avoid chassis grounds prone to paint or corrosion.
2. Keep ground cables under 3 feet in length. Longer runs introduce resistance, leading to noisy screen artifacts or transducer interference.
3. Use star washers on grounding screws to penetrate surface oxidation. Apply dielectric grease to connections exposed to saltwater.
4. Test continuity with a multimeter–resistance should read less than 0.5 ohms. Higher readings indicate poor contact; disassemble, clean, and reassemble.

Hooking Up Transducer Cables to Sonar Unit Models

Begin by identifying the transducer connector type on the back of your sonar display. Most current-generation sonar units feature an 8-pin circular port labelled “TRANSDUCER.” Older units may use a 7-pin round plug. Match this to the cable end on your transducer–standard skimmer transducers typically include an 8-pin connector, while thru-hull or shoot-thru models might require an adapter.

Strip ¼ inch of insulation from each transducer wire using wire strippers, avoiding nicking the copper strands. Twist the strands lightly to maintain integrity. Inspect the color code printed in the sonar manual–usually red (positive), black (negative), blue (speed), and white (temperature). Cross-reference these against the terminal block or connector pinout to prevent misconnection that could damage internal circuitry.

Route transducer cables separately from power leads to minimize electromagnetic interference. If installing alongside engine wiring, maintain at least 12 inches of separation. Secure cables with zip ties every 18 inches, avoiding sharp edges. Never coil excess cable–this can create signal feedback loops detectable on the screen as false echoes.

For transom-mounted transducers, position the cable through the transom hole before attaching the transducer bracket. Feed the cable to an accessible entry point, such as a hull penetration fitting or gland seal. Use waterproof heat-shrink tubing over soldered connections if extending the cable. Avoid silicone sealant–it can degrade wire insulation over time.

Plug the transducer into the sonar unit while the display is powered off. Power on and navigate to the installation menu. Select “Transducer Setup” and confirm the model type–most sonar units auto-detect Airmar transducers, but manual selection may be required for third-party or older models. Check for live sonar returns; if absent, revisit the port connection and inspect for bent pins.

Ground the shield wire (typically bare copper or green) to the engine block or a dedicated ground bus if the transducer includes one. Poor grounding causes screen noise and erratic depth readings. For aluminum hulls, use a dedicated grounding plate installed below the waterline to ensure a clean signal return.

Test transducer functionality at multiple speeds. At 5 knots, depth readings should stabilize within 1-2 seconds. Above 20 knots, high-speed transducers maintain accuracy; standard models may lose bottom lock. If readings drop out, check cable routing for pinches or tight bends. Adjust transducer angle–optimal performance occurs when the face is parallel to the hull, with slight nose-down tilt for high-speed applications.

Connecting NMEA 2000 Backbone for Marine Device Integration

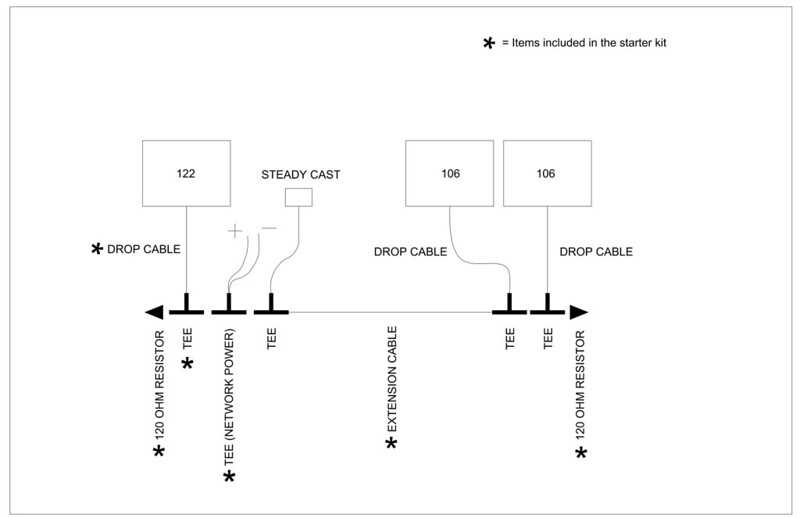

Install a 120-ohm terminator at each end of the NMEA 2000 backbone to prevent signal reflection and ensure stable data transmission. Use t-connector drops spaced no more than 6 meters apart–exceeding this distance risks signal attenuation, particularly with longer cable runs on larger vessels. Power the network via a dedicated 12V source connected mid-backbone, avoiding terminator ends to distribute current evenly and prevent voltage drop. Select cables rated for marine environments (e.g., Type B with 2-4 twisted pairs) to resist moisture, UV exposure, and electrical interference from engines or compressors.

Troubleshooting Common Setup Errors

Verify all connections snap firmly into place; loose fittings cause intermittent failures. Check for reversed polarity on power feeds–correct wiring shows ~12V between red (+) and shield/white (-) at all drops. If devices fail to communicate, measure backbone resistance with a multimeter: 60 ohms indicates proper termination, while significantly higher values point to missing or damaged resistors. For multi-sensor setups, prioritize critical nodes (e.g., GPS, autopilot) closer to the power insertion point to reduce latency.
