How to Wire a Lutron Single Pole Dimmer Switch Step by Step Guide

Start by shutting off power at the circuit breaker–test the wires with a non-contact voltage detector before handling. Identify the live (black or red), neutral (white), and ground (bare or green) conductors in the existing electrical box. If your setup lacks a neutral wire, verify compatibility with the light control model; most modern adjustable illumination devices require it for stable operation.

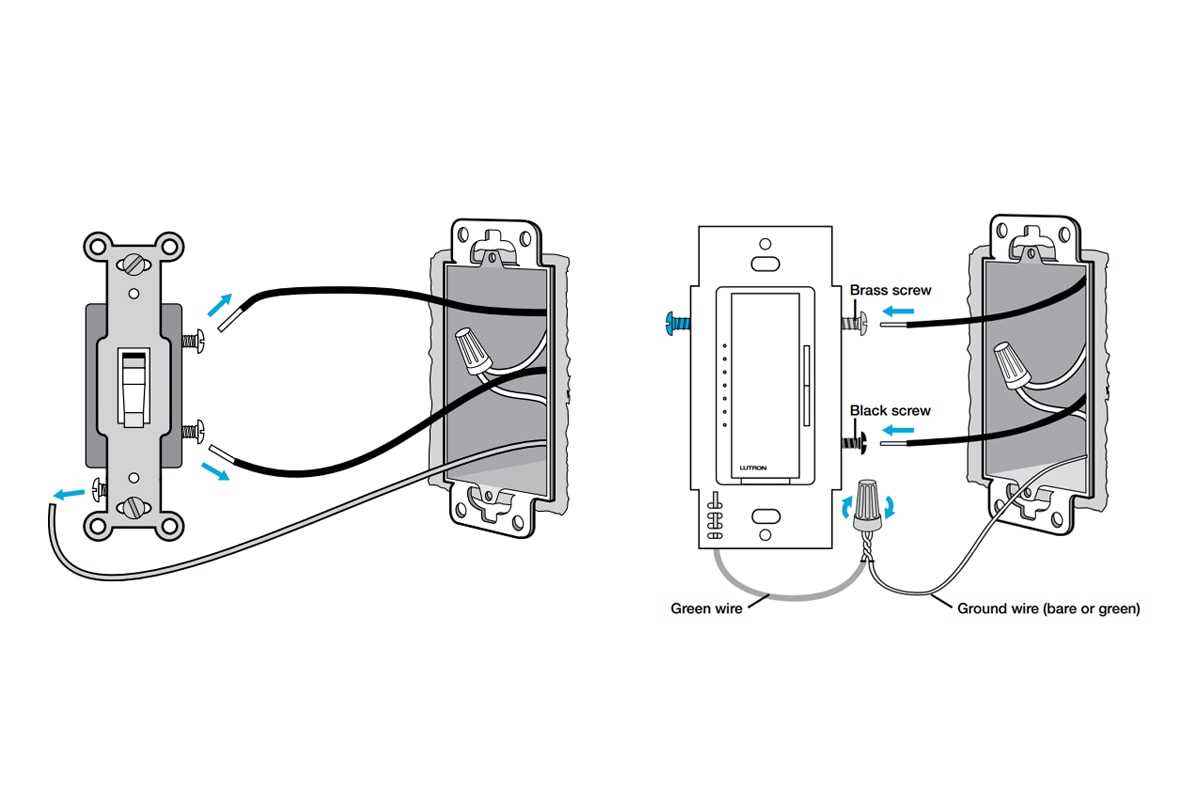

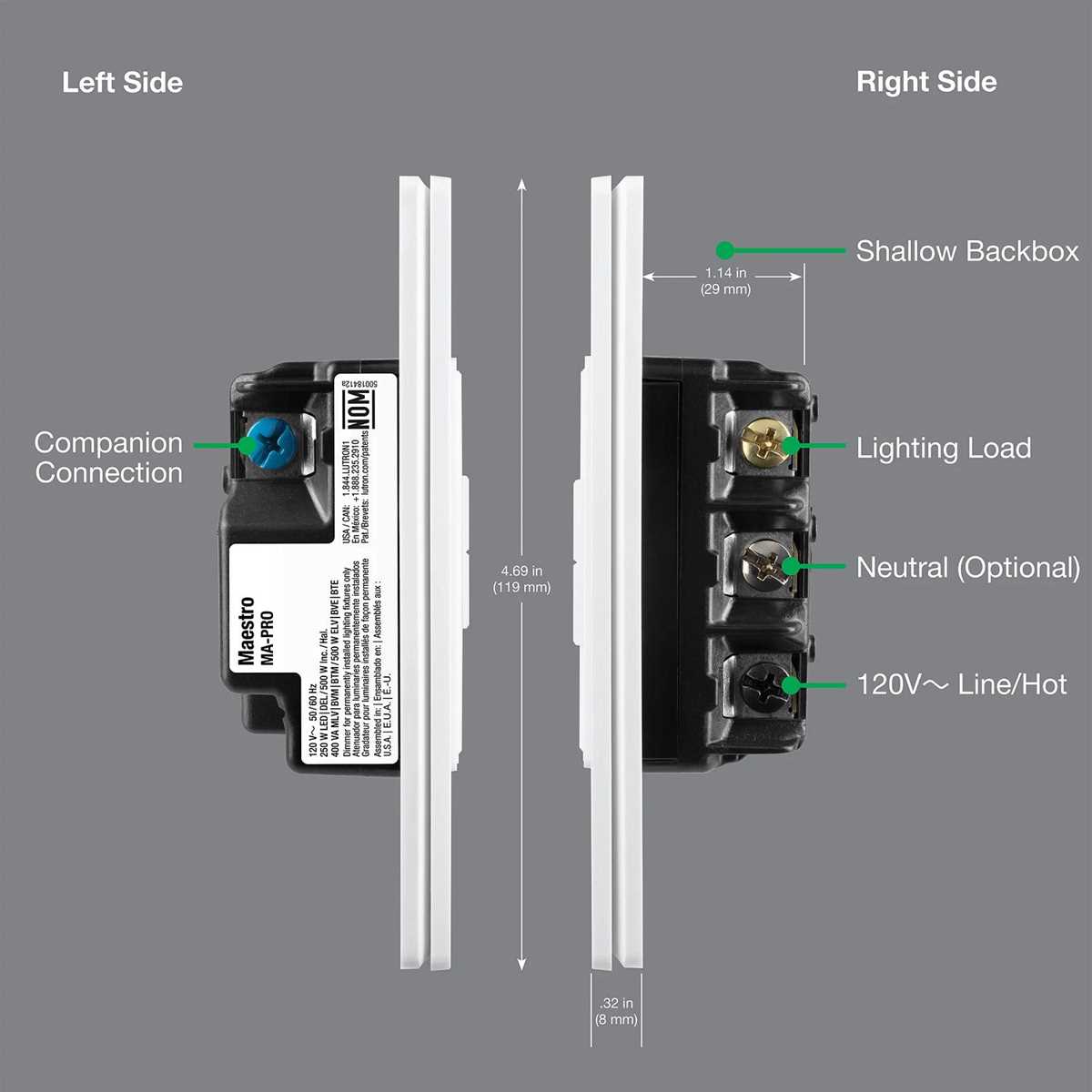

Connect the hot input (from the power source) to the copper-colored terminal on the control unit. Attach the hot output (to the light fixture) to the brass-colored terminal. Secure the neutral wire to the silver terminal if present, and fasten the ground wire to the green screw or designated ground terminal. For installations without a neutral, use a model rated for 2-wire configurations–check the manufacturer’s specifications for load limits (typically 60W–600W for incandescent/halogen).

Twist bare wire ends clockwise before tightening terminal screws–loose connections cause overheating or flickering. Fold wires neatly into the junction box to avoid pinching. Reattach the mounting bracket, ensuring it sits flush against the wall. Test the setup at multiple brightness levels before securing the faceplate. If the fixture doesn’t respond or buzzes, recheck wire polarity and ground integrity.

Load type matters: resistive (incandescent) handles full dimming range, while LED/CFL requires compatible devices to prevent strobing or early failure. Confirm the wattage rating on the light fixture matches or exceeds the control’s minimum/maximum load. For multi-location control, pair the unit with a matching accessory device–each must be wired to the same circuit for synchronized operation.

Step-by-Step Installation for Adjustable Light Control Devices

Verify the circuit breaker is off before handling any electrical connections. Use a non-contact voltage tester to confirm no current flows to the existing fixture. Identify the neutral, load, and ground wires–neutral is typically white, load is often red or black, and ground is green or bare copper. If the power feed enters the light fixture first rather than the control, reroute the supply cable to the device’s location to avoid complications.

Connect the ground wire first, securing it to the terminal or mounting bracket. Twist it tightly with the incoming ground wire using pliers and cap with a wire nut. For models requiring a neutral, join the white wires together–failure to do this with compatible units may cause flickering or improper operation. Attach the load wire to the designated terminal, ensuring no exposed copper extends beyond the connector.

For standard setups, the black supply wire connects to the remaining terminal. If the unit has a dedicated feed terminal, use that instead. Some configurations allow connecting two wires (supply and load) to a single terminal–check the manufacturer’s specifications first. Tuck all wires neatly into the electrical box, avoiding sharp edges that could damage insulation. Secure the device to the box with mounting screws, ensuring it sits flush against the wall.

Troubleshooting Common Installation Issues

Issue	Possible Cause	Solution
Light flickers	Incompatible bulb type	Use dimmable LEDs/CFLs rated for the device
Device doesn’t respond	Incorrect wire connections	Recheck load and supply wires; test continuity
Overheating	Exceeded wattage limit	Calculate total bulb wattage; do not exceed 400W for most units
Humming noise	Cheap fixture components	Replace with high-quality bulbs or add a snubber circuit

After installation, restore power and test the device with a compatible light source. Start at full brightness, then gradually reduce to the lowest setting–observe for smooth transitions. If the light cuts out before reaching the minimum setting, the installed bulbs may require replacement with lower-wattage or compatible alternatives. For multi-location control needs, pair with a matching accessory unit using the provided wiring instructions.

When replacing an existing toggle, always remove the old fixture completely before installing the new one. This prevents wire damage and ensures proper placement. If the electrical box lacks grounding, consult local electrical codes–some permitting jurisdictions allow retrofitting with a GFCI breaker instead. Always use copper conductors, not aluminum, for reliable performance and safety.

Compatibility Checklist Before Purchase

Confirm the following specifications match your installation requirements:

• Voltage rating (120V or 277V for commercial)
• Max wattage (LED: 150W–250W; Incandescent: 400W–600W)
• Bulb type (LED/CFL/halogen compatibility)
• Single- vs. multi-location capability
• Wall plate color and finish (matting, gloss, or custom)

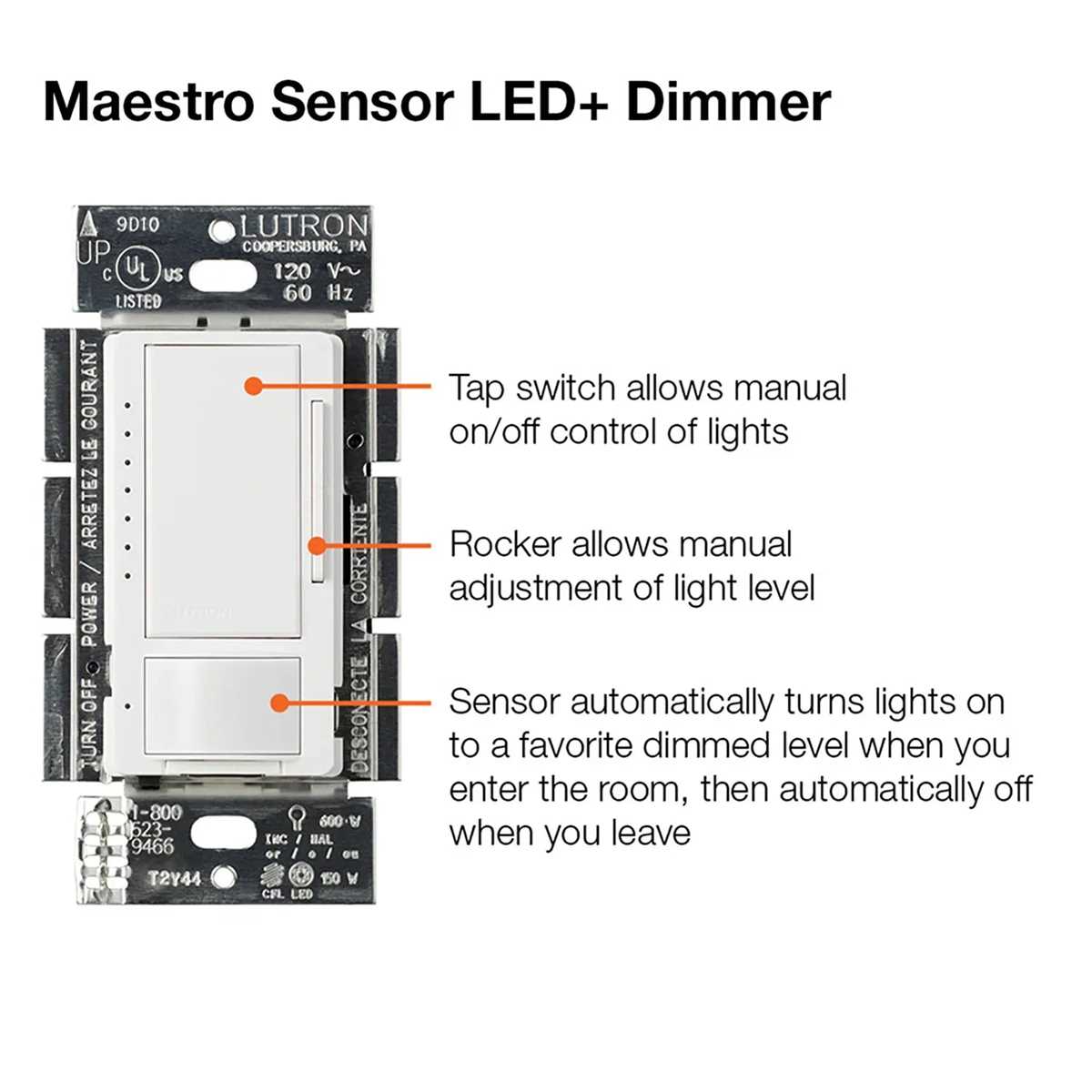

Choosing the Right Illumination Control for Your Home Circuit

Begin by verifying the load type your fixture requires. MA-LFQHW models handle 450W incandescent or halogen bulbs, while MA-LFQMW variants manage 575W for the same bulb types–opt for the latter if upgrading to higher wattage. For magnetic low-voltage systems, select models marked with MV ratings to ensure compatibility and avoid premature failure.

LED and CFL users should prioritize controls labeled with ELV or CL functionality; these designations indicate built-in circuitry to eliminate flickering and extend bulb lifespan. Check the packaging for an “LED R” symbol–this ensures the device is optimized for dimmable LEDs, preventing buzzing or inconsistent performance. For mixed loads, the MA-LFQHWCL model accommodates both incandescent and dimmable LEDs up to 400W.

Key Specifications to Match

Verify the control’s voltage rating–most residential systems operate at 120V, but commercial or specialty applications may require 277V models (marked “HV” on packaging). Exceeding voltage limits risks overheating or damage. Additionally, confirm the device’s neutral wire requirement; newer models like the Diva DVCL-153P often need a neutral connection, while older toggle-style devices (e.g., Toggler TGCL-153P) may not.

For outdoor or damp locations, choose a unit with a weather-resistant rating (look for “Wet Location” on the label). Standard models lack protective coatings, leading to corrosion in humid environments. If integrating with smart home systems, opt for controls featuring EcoSystem or RadioRA2 compatibility–these support wireless programming and remote adjustments via compatible hubs.

Always cross-reference the control’s maximum load with your fixture’s wattage. Overloading causes overheating, while underutilizing reduces efficiency. For example, a 600W-rated control running a 100W load may not dim smoothly. Consult the manufacturer’s load equivalency table–LED wattages often equate to 10% of their incandescent counterparts when calculating total capacity.

How to Correctly Connect Your Two-Way Light Control Device

Verify the circuit is dead at the breaker panel before handling any conductors. Use a non-contact voltage tester to confirm power is off–probe both terminal screws and wire nuts for residual current. If the tester beeps or lights, return to the panel and recheck the correct breaker.

Identify the existing fixture’s feed cable. Inside the junction box you’ll find:

• One black (hot) conductor
• One white (neutral) conductor
• One bare or green grounding wire

Confirm these match the cable entering the electrical box.

Prep the control unit’s leads. Strip 3/8 inch of insulation from each of the four device pigtails: two blacks, one white, one green. Twist each group of matching wires tightly–black to black, white to white, green to bare–using pliers to ensure a solid mechanical connection. Apply a small wire nut, rotating clockwise until fully seated; tug each pair to verify no slippage.

Align terminals correctly:

1. Attach the incoming hot feed (usually marked on the control itself) to one black device pigtail.
2. Connect the second black device lead to the light’s hot conductor–this completes the circuit loop.
3. Match the white device pigtail to the white neutral bundle.
4. Secure the green or bare grounding pigtail to the box’s grounding screw or bare conductor, ensuring continuity.

Tuck conductors neatly back into the box, avoiding sharp edges that could chafe insulation.

Mount the control plate. Insert screws into the threaded holes, then tighten evenly–don’t overtighten or the plate may crack. Snap the decorative cover on; verify no wire nuts protrude beyond the box edge. Restore power at the panel, then test the control by sliding the actuator up and down–brightness should change smoothly without flicker.

If flicker persists, recheck:

• Neutral bundle connection integrity–ensure no stray strands.
• Ground continuity–measure between box and device ground screw with a multimeter; should read <1Ω.
• Maximum load rating–LED loads may require a specific model, typically 450W incandescent or 150W LED equivalent.

Replace the cover only after confirming stable operation.

Critical Errors to Prevent When Installing a Standalone Illumination Regulator

Mismatching the load capacity with the controller’s rating will cause overheating or failure. Verify the device’s maximum wattage–typically 600W for incandescent or halogen–before connecting fixtures. LED-compatible models often require lower limits, such as 150W, due to their distinct power draw characteristics. Exceeding these thresholds risks damaging the unit or creating a fire hazard.

Neglecting to test the circuit’s polarity before installation leads to reverse flow issues. Use a multimeter to confirm the live (hot) conductor is correctly identified–usually the brass terminal. Reversing this connection won’t disable operation but can reduce performance or trigger erratic behavior. Ensure the neutral and ground wires remain separate to prevent electrical interference.

Skipping the ground connection is a violation of safety codes and leaves the system vulnerable to surges. Attach the bare or green wire to the grounding terminal, even if the existing setup lacks one. For retrofitting older installations without a dedicated ground, consult an electrician to evaluate alternatives like a ground fault circuit interrupter (GFCI) for added protection.

Improperly securing wire nuts or terminals results in loose connections, leading to flickering or intermittent control. Twist conductors tightly and use UL-listed connectors rated for the wire gauge (usually 14-12 AWG). Wrap connections with electrical tape to prevent accidental shorts, and avoid over-tightening screws, which can strip threads or crush conductors.

Assuming compatibility with all bulb types without verification causes premature wear or malfunction. Check the regulator’s specifications: some models support only resistive loads (incandescent), while others accommodate inductive loads (transformers) or capacitive loads (LED drivers). Incorrect pairing may void warranties or ignite bulb failure modes, such as persistent glowing when turned off.

Disregarding local electrical codes during installation can invalidate insurance claims in case of faults. Confirm whether the device requires a dedicated junction box, if AFCI/GFCI protection is mandatory, and if permits are needed. Non-compliant setups may pass functional tests but fail inspections, risking costly rework. Always prioritize safety standards over expediency.
