Complete Wiring Guide for Lutron TGCL-153PH-WH Dimmer Switch Installation
Start by ensuring the power is completely disconnected at the circuit breaker before handling any wires. This switch requires a neutral connection, which must be verified in your electrical box–older setups often lack this. If absent, consult an electrician to avoid damage or malfunction.
Identify the wires: the line (hot) (typically black or red), load (black/red to the fixture), neutral (white), and ground (bare copper or green). The dimmer’s terminals are labeled–match each wire precisely. The neutral must connect to the designated terminal, not just pigtailed with other neutrals, to ensure proper functionality.
Strip 1/2 inch of insulation from each wire end. Use wire nuts to secure connections, then tuck them neatly into the box. The ground wire attaches to the green screw or terminal; never omit this step–it’s critical for safety and compliance with code. Double-check tightness–loose connections cause arcing or failure.
For three-way setups (though this model isn’t designed for them), additional switches require a traveler wire (red or yellow). If incorrectly wired, the dimmer may not respond or could flicker. Always test with a voltage tester before restoring power.
After installation, turn the breaker back on and test the dimmer. If the light doesn’t turn on or behaves erratically, immediately cut power and recheck connections–reversed load/line wires are a common issue. The neutral must remain uninterrupted; splicing incorrectly disrupts the dimmer’s circuit.
Installation Guide for TGCL-153PH-WH Smart Dimmer: Step-by-Step Connections
Turn off the circuit breaker supplying power to the existing switch before starting. Verify the absence of voltage using a non-contact tester on both the incoming and load wires. Failure to confirm power shutdown risks electrical shock.

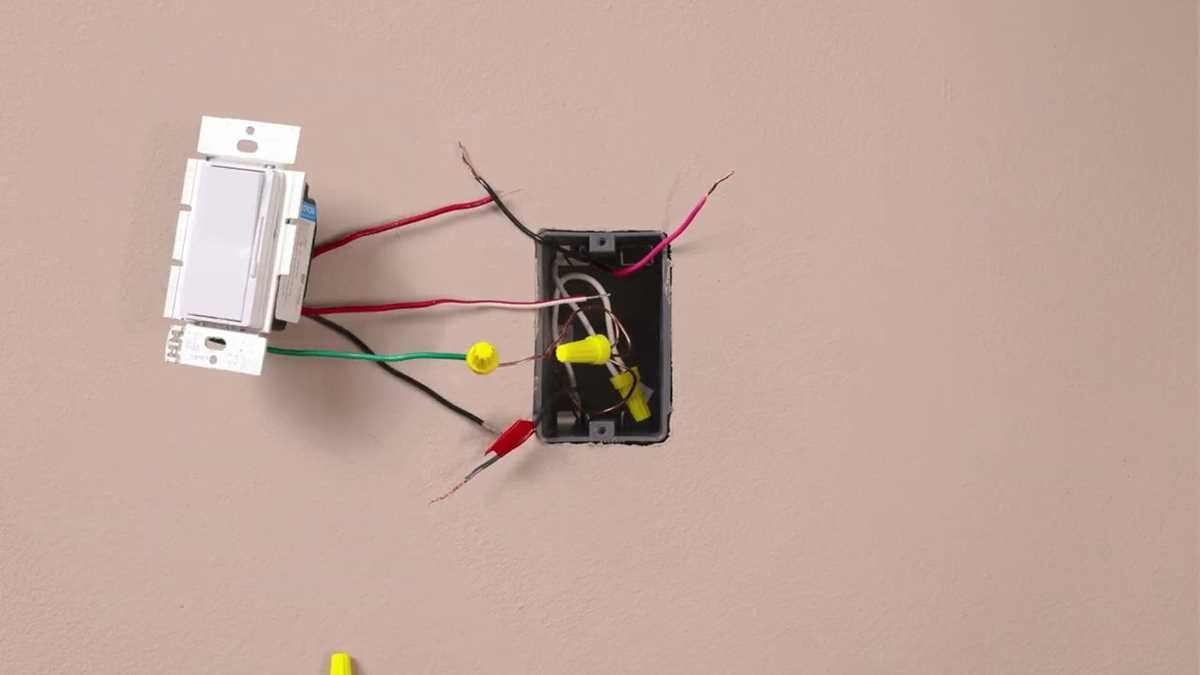

Remove the wall plate and unscrew the existing switch from the electrical box. Pull it out carefully to expose the wiring. Note the positions of each wire–use masking tape to label them if colors are ambiguous. This model requires a neutral wire; most modern homes have one, but older installations may lack it.
Match the wires to the dimmer’s terminal blocks as follows:
| Wire Color (Typical) | Terminal Label | Function |
|---|---|---|
| Black | Hot (Line) | Connects to the power source |
| Red | Load | Feeds the lighting fixture |
| White | Neutral | Complete the circuit |
| Green/Bare | Ground | Safety grounding |
Strip 5/16 inch of insulation from each wire using wire strippers. Insert the exposed copper into the corresponding terminal block. Tighten the screws firmly–loose connections cause overheating. Tug each wire gently to ensure it’s secure.
Fold the wires back into the electrical box, pressing the dimmer module in place. Align the mounting screws with the box’s tabs and tighten until snug. Avoid over-torquing; the plastic housing cracks under excessive force. Attach the wall plate last.
Restore power at the circuit breaker. Test the dimmer by toggling the switch–lights should respond smoothly. If flickering occurs, retighten all connections. For non-responsive units, recheck the neutral wire attachment; this is the most common installation error. Maximum compatible bulb wattage: 150W incandescent/halogen or 150W-equivalent LED/CFL.
Pair the dimmer with a compatible hub using the manufacturer’s app. Follow on-screen prompts to complete setup–typically a 10-second button hold on the device initiates pairing mode. Ensure the hub is within 30 feet for stable communication. Unsupported bulbs may buzz or flicker; consult the compatibility list before purchasing replacements.
For 3-way installations, connect the traveler wires to the marked terminals on the accessory switch. Both switches must be the same model series to function correctly. Adjust minimum brightness via the app to prevent low-level flickering–start at 10% and incrementally test.
Pinpointing Terminal Assignments on the TGCL-153PH-WH Illumination Controller
Locate the green grounding screw first–it’s the isolated terminal at the top, distinguishable by its hexagonal shape and screw thread. Attach the bare copper or green-insulated grounding conductor here with a torque of 12–15 in-lbs; over-tightening can strip the threads or crack the phenolic backplate. Verify continuity between this screw and the metal yoke before energizing.
Identify the common load terminal marked “COM” or left blank–it’s a brass-colored lug immediately below the grounding screw. Insert the black or red conductor from the supply side into this slot, ensuring full insertion so the insulation sits flush with the housing; partial insertion risks arcing under 120V loads. Crimp a bare copper pigtail no smaller than 14 AWG if splicing is required.
Decoding Line and Load Labels for Precise Hookup
Match the brass screw labeled “LINE” or “HOT” to the incoming power conductor; strip 5/8 inch of insulation and loop clockwise around the screw, tightening to 10–12 in-lbs. Use a voltage tester to confirm 120VAC between this terminal and the grounding point before proceeding–any deviation indicates reversed polarity or an open neutral upstream.
Attach the dimmed output wire–typically blue or striped–onto the second brass terminal marked “LOAD” or “DIMMED HOT”. Secure it identically to the line side, then cycle the trim potentiometer through its full range to confirm gradual intensity modulation without flicker; rapid brightness shifts suggest incorrect gauge or loose crimp.
Final Splices and Troubleshooting Miswired Circuits
Neutral conductors–white or gray–are not connected to this model; cap them individually with UL-listed wire nuts inside the junction box. If neutrals are inadvertently linked to the load terminal, the controller will trip GFCI devices downstream within milliseconds of activation. Swap any misplaced conductors, re-test with a non-contact probe, then restore power only after verifying zero leakage current on the grounding conductor.
Step-by-Step Power Source Connection for Single-Pole Setups
Turn off the circuit breaker supplying voltage to the installation point before handling any conductors. Use a non-contact voltage tester to confirm the absence of live current–hold the probe near the insulated wires for at least 3 seconds. Strip 5/8 inch (16 mm) of insulation from the ends of the black (hot) and white (neutral) wires using wire strippers calibrated for 14 AWG copper conductors. Loosen the terminal screws on the device’s input side just enough to insert the stripped wire ends without bending them.
- Insert the black wire into the brass-colored terminal marked “LINE” or “HOT.” Tighten the screw with a screwdriver until the wire is secured firmly–pull gently to ensure it doesn’t dislodge.
- Repeat with the white wire into the silver-colored terminal labeled “NEUTRAL.” Verify tightness as before.
- For ground connection (if applicable), attach the bare copper or green-insulated wire to the green grounding screw. Bend the stripped end into a slight U-shape for better grip before tightening.
- Fold excess wire into the electrical box, ensuring no bare conductors touch the device’s metal casing or adjacent terminals.
- Secure the device to the box with mounting screws, aligning the faceplate flush against the wall.
Restore power at the circuit breaker. Test operation by toggling the switch–if the load (e.g., light fixture) fails to respond, immediately cut power and recheck all connections. Pay specific attention to terminal tightness (minimum 1.2 Nm torque) and correct wire insertion. Miswired neutral or hot paths can trip breakers or damage components. If dimming functionality behaves erratically, confirm the load type matches the device’s specifications (e.g., incandescent, LED-compatible).
Three-Way Dimmer Installation with TGCL-153PH-WH Configuration
Begin by disconnecting power at the circuit breaker to prevent electrical hazards. Verify the breaker is off using a voltage tester on both switch locations and the light fixture terminals. This model supports a neutral wire connection, so ensure the electrical box contains one if required for your setup.
Identify the common terminal on the existing three-way switch, typically marked with a darker screw or labeled “COM.” Connect this wire to the black lead of the dimmer using a wire nut. The remaining traveler wires (usually red and black) attach to the brass-colored screws on the dimmer–match their positions to maintain functionality.
For installations without a neutral wire in the switch box, the dimmer can operate in single-pole mode by capping the neutral lead. However, this reduces compatibility with certain LED bulbs, so use a neutral wire if available. If the fixture doesn’t include a neutral, check local codes–some jurisdictions prohibit this configuration.
Grounding is mandatory. Connect the green or bare copper wire from the wall box to the dimmer’s green lead. If the box is plastic, run a separate ground wire to the fixture. Failure to ground properly can cause radio interference or inconsistent performance.
After securing all connections, fold wires neatly into the electrical box and attach the dimmer with the provided mounting screws. Align the dimmer’s faceplate flush to the wall. Restore power at the breaker and test both switch positions–each should turn the light on/off and adjust brightness independently.
If the dimmer doesn’t respond, double-check traveler wires for correct pairing. Swapping them at one location will reverse operation between the switches. Also, verify the bulb type: maximum wattage is 150W for incandescent/Halogen and 150W equivalent for LEDs, but lower-wattage bulbs may flicker without a neutral.
For multi-location control, pair this dimmer with another compatible unit (e.g., Maestro or Diva series) via wireless setup. Press and hold the top button on both devices until the LED flashes–this syncs them without additional wiring. Consult the manual for firmware-dependent variances in this process.
Troubleshoot flickering LEDs by ensuring the bulbs are dimmable and meet the wattage range (minimum 5W, maximum 150W). Non-dimmable LEDs are incompatible. If issues persist, add an inline capacitor (Lutron LUT-MLC) or use bulbs from the approved list in the product documentation.
