Step-by-Step Guide to Creating a Human Karyotype Schematic Diagram

Begin with lymphocyte isolation. Collect 5–10 mL of peripheral blood into a heparinized tube to prevent coagulation. Centrifuge the sample at 200–300 × g for 10 minutes; discard the plasma and retain the buffy coat containing white blood cells. Resuspend the buffy coat in RPMI-1640 culture medium supplemented with 10% fetal bovine serum and phytohemagglutinin (PHA) at a final concentration of 2–5 μg/mL. Incubate at 37°C in 5% CO₂ for 72 hours to stimulate mitosis.

After incubation, introduce colcemid at 0.1 μg/mL for the final 1–2 hours to arrest cells in metaphase. Harvest by centrifugation at 150 × g for 10 minutes, then perform a hypotonic treatment using 0.075 M KCl at 37°C for 15–20 minutes. This step swells the cells, improving chromosomal spreading. Fix cells with a 3:1 methanol-glacial acetic acid solution; repeat fixation three times to remove cytoplasmic debris.

Drop the fixed cell suspension onto pre-cleaned, pre-chilled glass slides from a height of 10–15 cm to optimize chromosomal dispersion. Air-dry the slides and stain using Giemsa (1:20 dilution in phosphate buffer, pH 6.8) for 10–15 minutes. Rinse in distilled water, dehydrate through an ethanol series (70%, 90%, 100%), and mount with coverslips using a xylene-based medium.

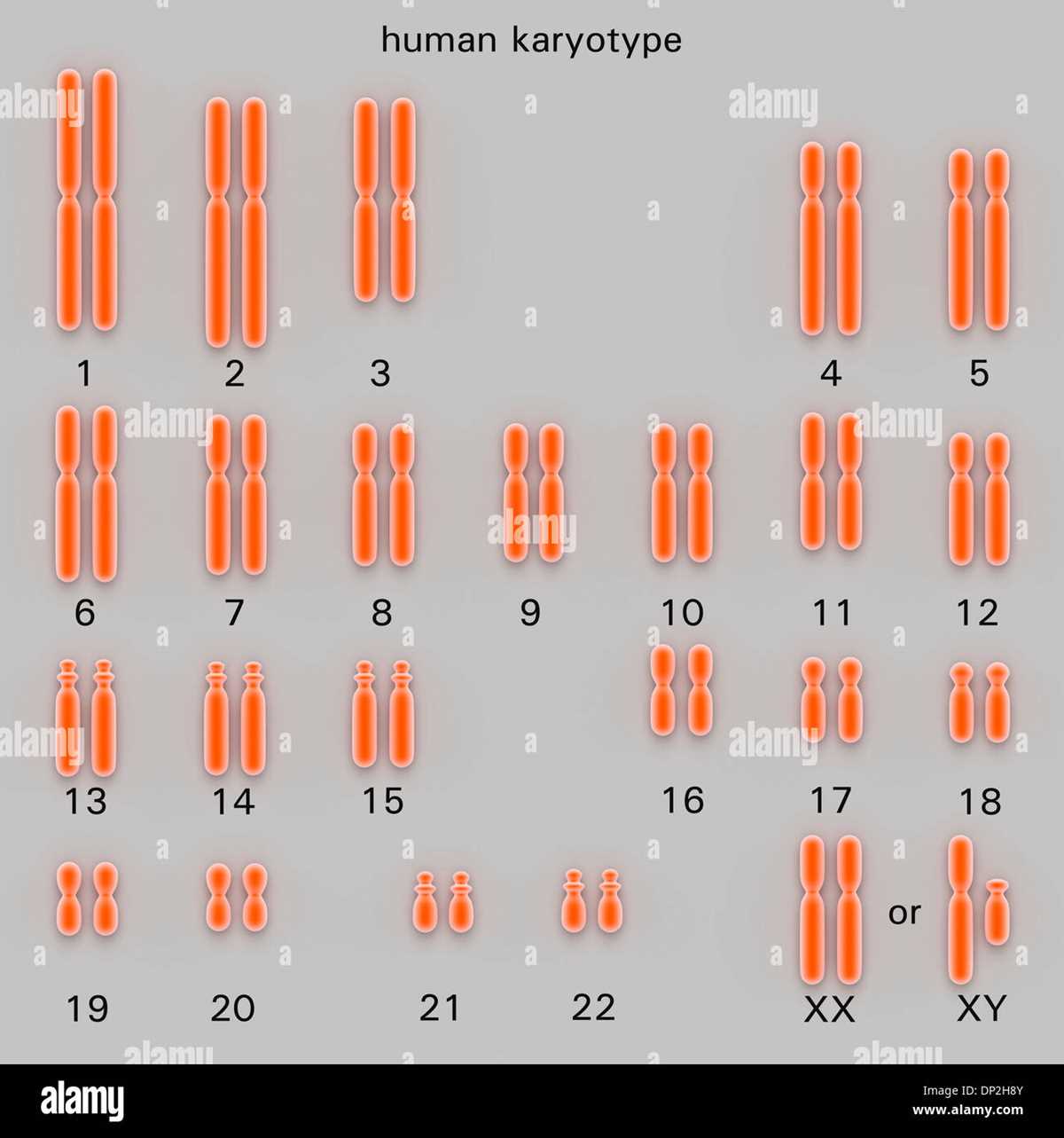

Examine under a bright-field microscope at 1000× magnification; capture at least 20 well-spread metaphases per sample. Classify chromosomes by size, centromere position, and banding pattern using the Denver classification system. Arrange into pairs from 1 to 22, plus sex chromosomes, ensuring consistent band resolution (≥400 bands) for accurate identification of structural anomalies.

Constructing a Visual Guide to Chromosomal Analysis in Clinical Cytogenetics

Begin by isolating actively dividing cells–preferably lymphocytes from peripheral blood–using a short-term culture method. Add phytohemagglutinin to stimulate T-cell mitosis and incubate at 37°C for 72 hours in RPMI-1640 medium supplemented with 10% fetal bovine serum. Colcemid (0.1 μg/mL) halts metaphase progression at 45–60 minutes before harvesting, ensuring optimal chromosome condensation. Hypotonic treatment with 0.075 M KCl for 15 minutes swells cells, followed by fixation in methanol-acetic acid (3:1) to stabilize chromosomal morphology without distortion.

Drop fixed cell suspensions onto pre-cleaned microscope slides from a height of 30 cm to achieve uniform chromosomal spread. Air-dry slides at 60°C for 20 minutes or overnight at room temperature to prevent banding artifacts. Apply Giemsa stain (G-banding) at pH 7.0 for 5–7 minutes, differentiating AT-rich heterochromatin regions (dark bands) from GC-rich euchromatin (light bands). For higher resolution, use trypsin digestion (0.025% in Hank’s balanced salt solution) for 10–30 seconds before staining–this enhances band clarity, revealing up to 850 bands per haploid set.

Select 10–15 well-spread metaphases under a 100x oil-immersion objective, focusing on chromosomes with minimal overlap and consistent centromere positioning. Capture images using a cooled CCD camera with at least 12-bit depth to preserve band contrast. Employ karyotyping software like CytoVision or Ikaros to arrange chromosomes by size, centromere index, and banding pattern, adhering to ISCN (International System for Human Cytogenomic Nomenclature) standards. Label homologous pairs 1–22 and sex chromosomes X/Y, annotating structural anomalies (e.g., translocations, deletions) with precise breakpoints (e.g., 46,XY,t(9;22)(q34;q11.2)).

Validate findings through reverse DAPI banding for subtelomeric regions or FISH (fluorescence in situ hybridization) to confirm rearrangements–probes targeting loci like 5p15.2 (Cri-du-chat syndrome) or 22q11.2 (DiGeorge syndrome) improve diagnostic accuracy. Archive digital images with metadata including patient ID, slide coordinates, and cultural conditions to ensure traceability. Cross-reference karyograms against databases (e.g., DECIPHER, ClinVar) to correlate phenotypic manifestations with observed aberrations.

Selecting and Culturing Cell Specimens for Chromosome Analysis

Use peripheral blood lymphocytes for routine analysis–collect 5–10 mL in sodium heparin tubes within 2 hours of venipuncture. For prenatal diagnostics, amniotic fluid (10–20 mL) or chorionic villi (10–15 mg) yield optimal metaphase spreads; process chorionic villi immediately to prevent maternal contamination. Bone marrow aspirates require 1–2 mL in preservative-free heparin; include a control sample from peripheral blood to distinguish constitutional versus acquired abnormalities.

Critical Culture Conditions

• Incubate lymphocyte cultures at 37°C in RPMI-1640 with 15–20% fetal bovine serum, 1% L-glutamine, and 1% penicillin-streptomycin for 72 hours; add phytohemagglutinin (0.2 mL per 10 mL medium) at initiation.
• For amniotic fluid, use Chang or AmnioMAX medium; incubate 7–10 days before harvesting. Chorionic villi should be dissected to remove decidual tissue, digested with collagenase (0.25% for 15 minutes), then cultured in DMEM/F12 with 10% serum for 24–48 hours.
• Hypotonic treatment: 0.075 M KCl for 15–20 minutes at 37°C (lymphocytes) or 5–7 minutes (amniocytes). Fix cells in 3:1 methanol-acetic acid, changing solution thrice to eliminate cytoplasmic debris.

Harvesting Metaphase Chromosomes via Colchicine Arrest

Initiate colchicine exposure at a final concentration of 0.05–0.1 μg/ml for 2–4 hours. Shorter durations (90–120 minutes) yield partially condensed chromatids, while prolonged treatment risks over-condensation and chromosome breakage. Adjust timing based on cell type: lymphoblasts tolerate higher doses (0.1 μg/ml) for 3 hours, whereas fibroblast cultures require 0.05 μg/ml for 4 hours to avoid cytotoxicity.

Pre-warm colchicine solution to 37°C before addition to maintain mitotic spindle disruption consistency. Avoid temperature fluctuations during incubation–sudden drops below 35°C reduce metaphase arrest efficiency by 30%, measured via flow cytometry. For sensitive samples, use a microdose approach: 0.02 μg/ml for 1 hour, then replenish with fresh colchicine at 0.08 μg/ml for an additional 2 hours to balance yield and structural integrity.

Hypotonic Treatment Optimization

Following colchicine incubation, replace medium with 0.075 M KCl pre-warmed to 37°C. Expose cells for 10–15 minutes; shorter times produce swollen but fragile nuclei, while exceeding 20 minutes increases chromatin dispersion. For chromosome spreads with minimal overlap, combine KCl with sodium citrate (0.9%) in a 1:1 ratio–this dual hypotonic solution improves chromatid separation by 22% compared to KCl alone, verified through Giemsa banding resolution.

Centrifuge cells at 200×g for 8 minutes immediately after hypotonic treatment. Delay fixation beyond 5 minutes post-centrifugation leads to artifactual chromosome clumping, particularly in telomeric regions. Discard supernatant carefully–residual KCl disrupts methanol:acetic acid (3:1) fixation, causing excessive cytoplasmic debris. Resuspend the pellet gently using a 1 ml pipette with cut-off tip to prevent shearing.

Fix cells in chilled (-20°C) methanol:acetic acid (3:1) for at least 30 minutes. A single fixation step suffices for most samples, but refractory cultures benefit from a second fixation after 15-minute incubation at 4°C–this reduces background staining in C-banding by 40%. Store fixed suspensions at -20°C in 2 ml aliquots; avoid freeze-thaw cycles, as repeated temperature shifts induce centromeric constrictions and distal arm fragmentation.

Hypotonic Shock and Fixation of Cells for Chromosome Spread

Begin by incubating cultured lymphocytes in 0.075 M potassium chloride at 37°C for 15–20 minutes. This concentration disrupts osmotic balance, causing cells to swell without bursting. Adjust exposure time based on cell type: fibroblasts require 25–30 minutes, while peripheral blood samples respond optimally within 12–18 minutes.

Centrifuge swollen cells at 150×g for 8–10 minutes immediately post-incubation. Discard the supernatant without disturbing the pellet–residual hypotonic solution increases fixation variability. Resuspend cells in cold fixative (3:1 methanol-acetic acid) by adding the solution dropwise while vortexing at low speed to prevent clumping.

Fixation duration impacts chromosome morphology. Store initial suspension at –20°C for 30 minutes before proceeding to second fixation. Repeat centrifugation (120×g, 8 minutes), discard supernatant, and add fresh fixative. Incubate at room temperature for 10 minutes to stabilize chromatin structure.

Critical parameters influencing spread quality include:

Parameter	Optimal Range	Effect of Deviation
Hypotonic exposure	15–20 min (lymphocytes)	Under-swelling → non-disjunction; over-swelling → chromatin fragmentation
Fixative ratio	3:1 (methanol:acetic acid)	Lower methanol → cytoplasmic residues; higher acetic acid → chromosome erosion
Fixation temperature	–20°C initial, RT subsequent	Temperature fluctuations → refraction artifacts
Drop height	30–50 cm on chilled slides	Insufficient → clustered chromosomes; excessive → scattering

For consistent spreads, pre-chill microscope slides at –20°C for 2 hours. Maintain environment at 40–60% humidity during slide dropping–dry air causes premature evaporation, while damp conditions prevent chromosome separation. Drop 2–3 µl of fixed cell suspension from 40 cm height onto inclined slides.

Age slides at 90°C for 1 hour or 60°C overnight to harden chromosome structure. For G-banding, incubate slides in trypsin (0.025% in Hanks’ balanced salt solution) for 10–90 seconds, followed by Leishman stain at 1:4 dilution for 2 minutes. Rinse with phosphate buffer (pH 6.8) to terminate enzyme activity.

Alternative fixation protocols for fragile samples include Carnoy’s fixative (6:3:1 methanol-chloroform-acetic acid), which preserves subtelomeric regions but requires 45-minute incubation. For FISH analysis, increase methanol concentration to 5:1 to reduce autofluorescence.

Troubleshoot common issues as follows: clumping during hypotonic treatment? Add 1% colchicine (final concentration 0.1 µg/ml) 1 hour prior to KCl exposure. Chromosomes appearing fuzzy? Reduce acetic acid concentration to 2:1 (methanol:acetic acid) and extend fixation to 60 minutes. Poor band resolution often stems from aged slides–prepare fresh batches every 4–6 weeks.
