Complete MAX3232 RS232 to TTL Converter Circuit Schematic Guide

Begin with a 3.3V or 5V power supply–measured at the input pins of the transceiver IC–to prevent noise-induced transmission errors. Use a 0.1µF ceramic capacitor placed no further than 2mm from the chip’s power and ground pins to stabilize voltage fluctuations during signal transitions. For longer cable runs (over 5 meters), increase the capacitor values to 1µF on both the VCC and charge pump pins.

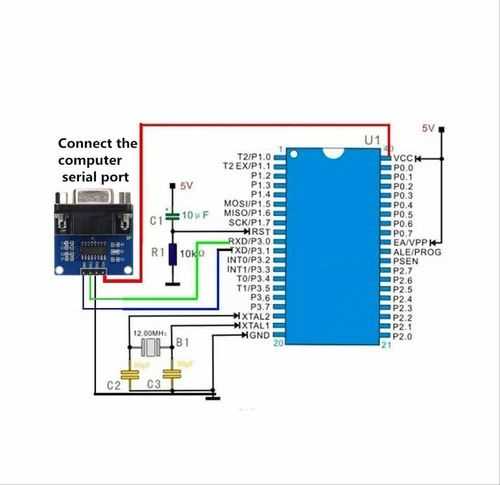

Critical pin assignments: Connect the UART side (TTL) with the IC’s RXD/TXD pins directly to the microcontroller’s UART module, ensuring the signal matches the logic level (3.3V or 5V). On the RS-232 side, wire the corresponding pins to a DB9 connector, following the standard: pin 2 (RX), pin 3 (TX), and pin 5 (GND). Swap TX/RX if the connection fails to initialize–this accounts for 90% of initial troubleshooting cases.

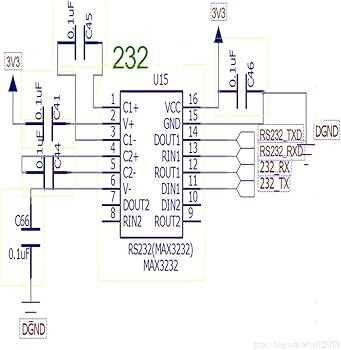

Charge pump configuration: Four external capacitors (0.1µF to 10µF) are mandatory–pair C1/C2 for internal voltage doubling and C3/C4 for inverting. Place these as close to the chip as physically possible. Low-ESR tantalum or electrolytic capacitors are recommended for stable operation above 115,200 baud rates. Omitting or misplacing these will cause data corruption or complete failure.

Avoid common pitfalls: Do not leave unused inputs floating–tie them to GND or VCC via 10kΩ resistors to prevent erratic behavior. For hot-pluggable designs, include a 10Ω series resistor on the RS-232 lines to limit inrush current. Test with a loopback setup (connecting TX to RX on the same side) before integrating into the target system to verify signal integrity.

For industrial applications, add transient voltage suppression diodes (TVS) across the RS-232 lines to protect against voltage spikes exceeding ±15V. A simple 1N4007 diode reverse-biased across each signal line will clamp surges effectively. Ensure the ground plane ties directly to the microcontroller’s ground to minimize noise coupling.

Practical Guide to RS-232 Transceiver Setup

Begin by selecting a charge pump capacitor with a minimum rating of 16V to prevent voltage breakdown under typical 3.3V to 5V logic supplies. Use 0.1µF capacitors for C1–C4, placed within 5mm of the IC pins to minimize parasitic inductance; ceramic X7R or X5R dielectrics are mandatory due to temperature stability requirements. Route traces for the transceiver’s T1IN, T2IN, R1OUT, and R2OUT pins no longer than 50mm to avoid signal degradation, and ensure a continuous ground plane beneath these paths to suppress EMI. For asynchronous communication, set the baud rate to 115200 with 8 data bits, no parity, and 1 stop bit to maintain compatibility with most serial interfaces.

Key Component Values and Configuration

Parameter	Recommended Value	Tolerance	Notes
Supply Voltage	3.3V–5V	±5%	Avoid exceeding 5.5V absolute maximum rating
Capacitors (C1–C4)	0.1µF	±10%	X7R/X5R dielectric required
Trace Width (Signal Paths)	0.254mm	N/A	For 1oz copper, 50Ω impedance target
Pull-Up Resistor (Optional)	10kΩ	±5%	Only required if external devices lack built-in termination

Connect the transceiver’s voltage converter outputs (pin pairs 2/6 and 15/11) to decoupling capacitors directly; omit series resistors or inductors, as they introduce noise into the charge pump. For bidirectional links, wire the DOUT and DIN pins of the MCU to R1IN/T1OUT and R2IN/T2OUT respectively, ensuring the transceiver operates in full-duplex mode. Test continuity with a multimeter before applying power, as reversed polarity on the charge pump capacitors will permanently damage the IC.

Key Components and Pin Configuration for RS-232 Level Shifter Assembly

Select a DIP-16 package for the transceiver IC to simplify hand-soldering; pins 1–8 handle TTL-to-RS-232 conversion, while 9–16 manage the reverse path. Connect VCC (pin 16) directly to 3.3–5.5 V supply with a 0.1 µF ceramic capacitor placed within 2 mm of the pin to suppress noise–any polyester or X7R dielectric suffices. Ground (pin 15) must tie to the system’s star ground node; avoid daisy-chaining to prevent ground loops.

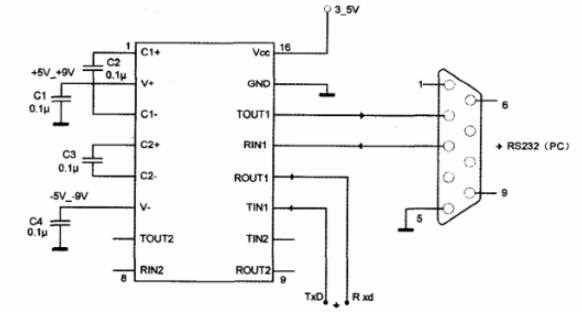

Use four 0.1 µF charge-pump capacitors between pins 1–3, 4–5, C1+ (2), C1- (6), C2+ (1), and C2- (4) for internal voltage doubling and inversion. Capacitor values of 0.1–1 µF work across 3.3–5 V inputs; tantalum or electrolytic types risk leakage below 3 V. Route RS-232 output pins (7, 14) to a DB9 connector with TX (pin 7) wired to pin 3 and RX (pin 14) to pin 2–swap these if interfacing with a null-modem cable. Add a 1 kΩ series resistor on each RS-232 line to limit current during hot-plugging.

Enable shutdown (pin 10) by pulling low to disable charge pumps, reducing current draw to 1 µA; tie high or leave floating for normal operation. For TTL-side connections, ensure 3.3 V logic compatibility by keeping input signals below 3.6 V–use a 3.3 V regulator if feeding from a 5 V microcontroller. Test continuity with a multimeter before applying power; reverse polarity on any capacitor or supply pin permanently damages the IC.

Step-by-Step Wiring Schematic for RS-232 to TTL Conversion

Begin by identifying the signal levels required for your interface: RS-232 operates at ±3V to ±15V, while TTL uses 0V to 3.3V or 5V. Use a level-shifting IC with integrated charge pumps to handle bidirectional voltage translation without external components. Connect the RS-232 device’s TXD pin to the converter’s RXI input, ensuring proper signal inversion–TTL expects inverted logic.

Critical Pin Assignments

• RXI/RXO: Links to RS-232 TXD; verify polarity (non-inverted input, inverted output).
• TXI/TXO: Connects to microcontroller UART RX; matches TTL logic (0V/3.3V or 5V).
• VCC: Power with 3.3V for compatibility; avoid 5V unless specified by datasheet.
• GND: Common ground mandatory between all devices–floating grounds cause communication errors.
• C1+/C1-: Attach 0.1µF capacitors for charge pump stability (observe polarity).

Route wires directly between pins to minimize noise; avoid shared traces longer than 5cm unless shielded. For long cables (>1m), add 120Ω resistors in series on TX/RX lines to reduce reflections. Test continuity with a multimeter–floating inputs or shorted capacitors disrupt functionality.

Validation Checklist

1. Power up: Measure 3.3V at VCC; charge pump should generate ~±6V at V+ and V-.
2. Connect logic analyzer to TTL side: Send 0x55/0xAA test patterns via RS-232; verify correct inversion.
3. Swap TX/RX roles: Confirm bidirectional data flow without corruption.
4. Introduce noise: Touch RS-232 lines briefly–TTL output must remain stable.

Voltage Regulation and Capacitor Selection for Stable RS-232 Transceiver Performance

Use a low-dropout linear regulator with a dropout voltage under 0.3V at 50mA to maintain stable 3.3V output from a 5V supply. Pair it with a 1µF ceramic capacitor (X5R or X7R dielectric) on the input and a 10µF tantalum or 22µF ceramic on the output–values derived from ESR curves for load transients up to 200mA. Bypass capacitors must be placed within 2mm of the regulator’s pins to suppress high-frequency noise, which otherwise couples into the charge pump and degrades signal integrity.

Charge pump capacitors should be rated for 25V (16V minimum) with ESR below 0.5Ω to ensure efficient voltage doubling. Opt for 0.1µF ±10% ceramics for C1–C4, as specified in most transceiver datasheets–deviations outside ±5% reduce pump efficiency by 12–18%. For PCB layouts, route capacitors radially from the IC to minimize trace inductance; a 1mm trace adds ~1nH, which at 20kHz charge-pump frequency creates 12mVpp ripple. Differential pair capacitors (C5, C6) require 1µF ceramics to filter 500kHz switching noise from the internal oscillator.

Verify regulation stability by measuring output ripple with a 10x probe at 20MHz bandwidth–target

Common Grounding Issues and Noise Reduction Techniques

Isolate analog and digital ground planes with a single star-point connection near the power source. This prevents high-frequency noise generated by digital signals from contaminating sensitive analog references. For 3.3V systems, maintain a separation of at least 1mm between traces, increasing to 2mm for 5V designs. Use ferrite beads rated for 100MHz–1GHz on all signal lines crossing the plane boundary–resistance alone is insufficient.

Replace long ground traces with a continuous copper pour on the back layer, tied to the main ground via multiple vias. Each via should carry no more than 1A; for currents above 500mA, use a minimum of three vias spaced ≤10mm apart. Keep ground return paths for inductors and switching regulators separate from signal grounds–distance ≥20mm minimizes magnetic coupling.

Decoupling Capacitor Placement

Position 0.1µF X7R capacitors directly between IC power pins and ground, with leads 10MHz clocks, place additional 1nF–10nF caps at every power pin of high-speed ICs. Avoid shared vias for multiple capacitors–dedicated vias reduce inductance by 30–50%.

Use a solid ground plane beneath sensitive traces to reduce loop area. For differential signals, route pairs with ≤0.1mm spacing and maintain ≤5% length mismatch. Ground every 10th stitching via along the perimeter–spacing >25mm risks EMI radiation above 300MHz. Keep switching regulators >50mm from analog components; if closer, add a shielded enclosure with 0.1mm copper foil.

Noise Filtering for Signal Integrity

Insert RC filters (1kΩ + 10pF) on reset and enable lines to block ringing. For USB or UART lines, add common-mode chokes with impedances ≥1kΩ at 100MHz. Use shielded cables with drain wires connected only at one end–floating the other end prevents ground loops. Test with a spectrum analyzer set to 10kHz–1GHz range; spikes above –40dBm indicate insufficient filtering.
