How to Read and Understand MCB Circuit Breaker Wiring Schematics
For accurate wiring, start by identifying the input terminals–typically marked Line (L) at the top–and the output terminals, labeled Load (T) at the bottom. Single-pole variants handle one live conductor, while double-pole units include a neutral connection, often alongside the live. Polarity matters: reversing these connections risks tripping failure or equipment damage. Verify the voltage rating (e.g., 230V AC for residential, 400V AC for industrial) before installation to prevent nuisance trips or overheating.
Thermal-magnetic trip mechanisms rely on a bimetallic strip for overloads and an electromagnet for short circuits. Overload curves (B, C, D) define response times: type B trips at 3–5× rated current, type C at 5–10×, and type D at 10–20×. Match the curve to the load–motors need C or D to avoid false trips, while lighting circuits perform best with B. Exceeding the current rating (e.g., 6A on a 4A unit) causes premature wear; undersizing leads to heat buildup.
Internal arc extinguishers direct current through a series of insulated metal plates, splitting the arc into smaller segments to cool and quench it within milliseconds. Fault currents above 6kA require reinforced contacts and grid-tied configurations. For multi-branch layouts, daisy-chaining output terminals risks voltage drop; instead, use a distribution block or individual connections. Torque specifications (e.g., 2–2.5 Nm for M4 screws) prevent loose contacts–under-tightening causes arcing, over-tightening warps busbars.
Label each unit with the connected circuit (e.g., “Kitchen Outlets,” “HVAC”) and test trip functions monthly using a primaries injection tester. For panel upgrades, space-saving DIN-rail mounts optimize density; ensure 10mm clearance behind units for heat dissipation. Phase imbalance in multi-pole setups triggers differential trips–balance loads across poles or install a dedicated imbalance relay. Trace diagrams back to the main busbar, confirming isolation before servicing to avoid arc flash hazards.
Visual Guide to Miniature Overcurrent Protection Units
Label each terminal on your schematic with precise identifiers–L1 for line input, N for neutral, and numbered outputs (e.g., 1, 2, 3) for load connections. Unequivocal marking eliminates wiring missteps during installation or troubleshooting.
Incorporate arc fault interruption symbols at critical junctions. ANSI/IEEE standard C37.20.1 mandates distinct graphical representations for thermal and magnetic trip mechanisms; these must be clearly separated to avoid misinterpretation.
Use color-coded conductors in your visual: red for live, blue for neutral, green/yellow for earth. IEC 60445 specifies these colors–deviations create non-compliance risks in regions enforcing harmonized electrical codes.
Include trip curve classification (B, C, D) adjacent to each protection device symbol. Type B trips at 3-5× rated current, Type C at 5-10×, and Type D at 10-20×–this directly impacts downstream device selection.
Measure clearances in your layout. UL 489 requires minimum 8mm air gap between open contacts; disregard this and arc tracking becomes inevitable during fault conditions.
Position transient voltage suppression diodes (if integrated) parallel to the switching mechanism. IEEE C62.41-1991 dictates TVS placement to clamp surges below 1.5× nominal line voltage, protecting sensitive loads.
Test continuity paths after drafting. A multimeter set to diode mode should confirm

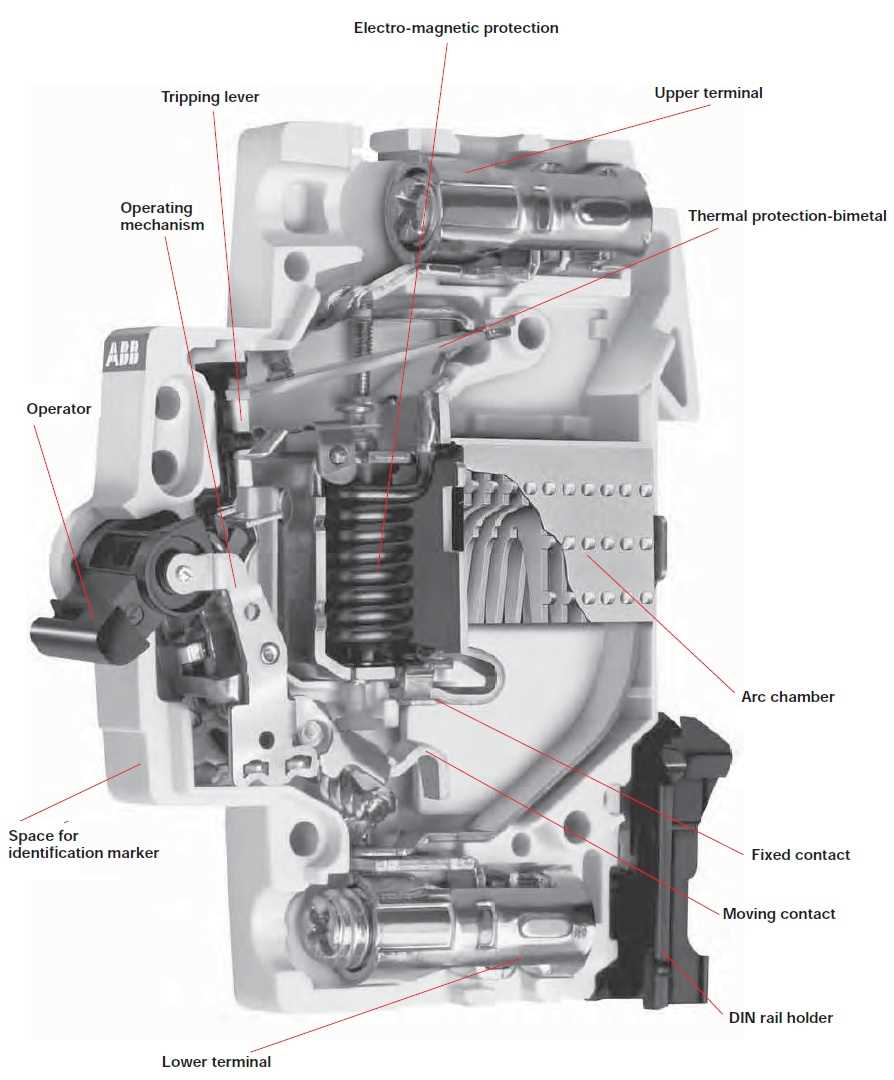

Interpreting Internal Component Interaction
Bimetallic strips must deflect toward the trip lever at 110-130% of rated current. Document this deflection point on cross-sectional schematics–ambiguity here leads to nuisance tripping or delayed response.
Step-by-Step Guide to Drawing an Overcurrent Protection Wiring Schematic
Begin with a clear grid layout on engineering paper or digital drafting software. Use a 10mm grid spacing for precision–this ensures components align neatly and wiring paths remain uncluttered. Label the top margin with the system’s voltage rating (e.g., 230V single-phase or 400V three-phase) and fault capacity (e.g., 6kA or 10kA) to contextualize the design immediately.
| Component | Symbol | Dimensions (mm) | Spacing Rule |
|---|---|---|---|
| Switch disconnector | ⎓–⎓ | 15×10 | 5mm from busbar |
| Thermal-magnetic device | –▭– | 20×8 | 3mm between phases |
| Neutral bus | –○– | 12×6 | 10mm from phase lines |
Sketch the main horizontal busbars first–they serve as the backbone. For a three-phase system, draw three parallel lines 8mm apart; add a fourth for neutral 15mm below. Above each busbar, place the corresponding switchgear symbols (line, phase, neutral) using the dimensions from the table. Ensure all symbols face the same orientation (typically left-to-right) to maintain consistency across the schematic.
Connect components with 0.5mm solid lines for power conductors and 0.3mm dashed lines for control wiring. Use right-angle bends exclusively–avoid diagonal lines to prevent ambiguity. Label each conductor with its cross-sectional area (e.g., “6mm²” for lighting circuits, “16mm²” for sockets) and color code (e.g., brown for L1, black for L2, grey for L3, blue for neutral). Annotate terminal numbers (e.g., “1-2” for input, “3-4” for output) directly on the wiring path to streamline field installation.
Key Elements and Notation in Protective Device Schematics
Always begin by identifying the thermal-magnetic trip unit–the core of any overload protection layout. Its symbols typically include a bimetallic strip (shown as two curved lines with a zigzag heater element) paired with an electromagnetic coil (a circle with a diagonal line). The strip responds to sustained current surges (typically 1.13–1.45× rated load), while the coil reacts to short-circuit faults (commonly 3–10×). Ensure the schematic marks these with distinct thresholds; IEC 60947-2 mandates clear separation between thermal delay and instantaneous trip zones.
Verify the presence of a toggle mechanism (depicted as a rectangle with an angled breaker lever), arc chute plates (stacked horizontal lines near contacts), and auxiliary contacts (small rectangles branching from the main path, labeled NO/NC). Overload protection schematics often omit these details, but missing them risks misinterpreting fault clearance paths or auxiliary signaling–critical for coordination with upstream fuses or downstream relays.

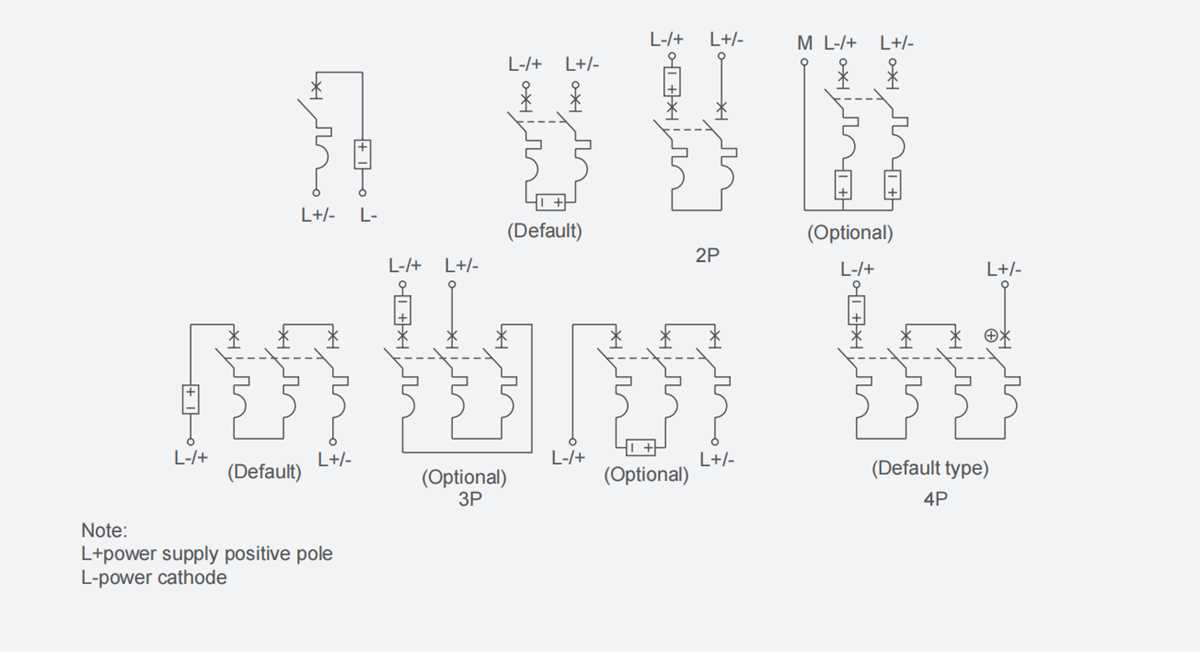

How to Read Single-Pole and Three-Pole Automatic Switch Schematics
Start by identifying the input and output terminals on the schematic. Single-pole devices show one live wire entering and exiting, marked “L” and “OUT” or with numbers like “1” and “2.” Three-pole versions display three pairs of terminals, often labeled “L1,” “L2,” “L3” for input and “T1,” “T2,” “T3” for output. Verify terminal markings against the manufacturer’s datasheet–some use “Line” and “Load” instead.
- Check for auxiliary contacts if present–these appear as smaller terminal pairs (e.g., “95” and “96”) and indicate alarm or signaling functions.
- Look for trip indicators: a red or white window near the toggle signals activation state.
- Note the current rating, usually stamped near the terminals (e.g., “16A” or “C20”).
Examine the interrupting mechanism symbols. Single-pole schematics depict a single thermal/magnetic trip coil, while three-pole diagrams show three parallel coils connected to a common trip bar. Dashed lines represent mechanical linkages between poles, ensuring simultaneous disconnection. If the schematic lacks these, consult the physical device–some miniaturized units omit internal details.
Key Symbol Decoding
Common symbols include:
- Zigzag line: Resistive thermal element for overload protection.
- Loop with arrow: Magnetic coil for short-circuit interruption.
- Switch symbol: Manual toggle–open contacts mean “off,” closed mean “on.”
- Ground symbol: Appears only in some regional schematics (e.g., IEC vs. NEMA).
For three-pole versions, confirm neutral handling. Some models integrate a neutral terminal (marked “N”), while others require an external neutral link. Schematics may show a dotted line separating neutral from live poles–this denotes isolation, not a physical connection. Misreading this could lead to improper wiring, risking damage to single-phase equipment on a three-phase system.
Compare the schematic to the device’s physical layout. Rotate the unit to match the orientation of the diagram–terminals positioned vertically on paper may appear horizontally on the actual switch. Use a multimeter to verify continuity between marked terminals if labels are unclear. Always cros-reference with the installation manual’s wiring example tables, which often include torque specifications for terminal screws (typically 2.5–3.5 Nm for copper conductors).
Common Mistakes When Interpreting Protective Device Schematics
Misidentifying input and output terminals leads to immediate failure. Many schematics use clear labeling, yet technicians often reverse connections, assuming current flows from bottom to top. Most modular safety switches designate the top as the supply side, with load wires exiting below. Verify markings–some European models invert this standard. Testing continuity before energizing prevents short circuits from improper polarity.
Overlooking trip curve classifications causes nuisance tripping or inadequate protection. A B10 curve reacts faster to small overloads, while a C20 tolerates higher inrush currents–critical for motor loads. Many mistakenly assume all units handle the same transient spikes. Always cross-reference manufacturer datasheets: a misapplied curve can void warranties or leave equipment underprotected during faults.
Ignoring Derating Factors
Installing devices in high-ambient environments without compensating for temperature reduces breaking capacity. Most thermal-magnetic units lose 1% efficiency per °C above 40°C. Enclosures with poor ventilation exacerbate this, especially in industrial settings. Use derating charts: a 16A switch in a 60°C panel may only safely handle 12A. Failure to adjust leads to overheating and premature failure.
Assuming all schematic symbols follow IEC standards creates confusion. North American diagrams often use different pictograms for disconnects versus overload relays. A square with an arrow may represent a fuse in one region, a thermal cutout in another. Always confirm legend meanings–symbol inconsistencies are a primary cause of miswiring in multinational projects. Keep reference sheets for regional standards (IEC 60617 vs. NFPA 79).
Disregarding Selective Coordination
Connecting multiple safety switches in series without time-delay sequencing risks upstream tripping during downstream faults. Feeders and subpanels must have progressively longer response times to isolate faults at the nearest point. Use selectivity tables: a 20A unit should trip before a 32A unit upstream to prevent blackouts. Neglecting this forces manual reset procedures and extended downtime. Always test coordination with a secondary injection tester before commissioning.
