Understanding MCCB Circuit Diagrams Key Components and Their Functions

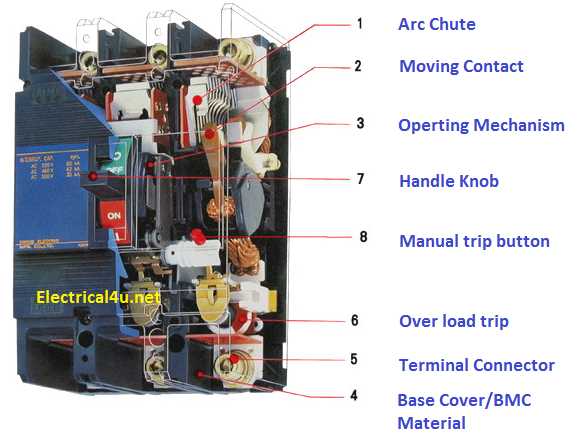

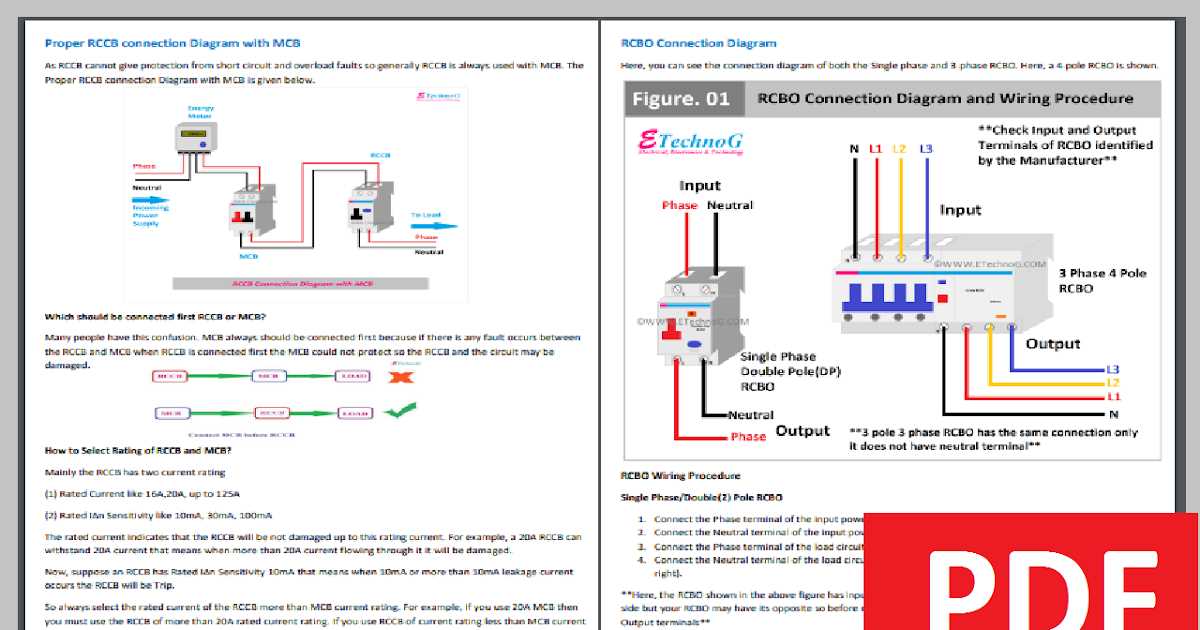

Begin by identifying the primary components in a thermal-magnetic overload protector layout. Locate the fixed and movable contacts, arc chute assembly, trip mechanism, and the thermal/magnetic sensing elements. These form the core of any well-designed protective switch system. Verify their positions against manufacturer specifications–deviations introduce failure risks.

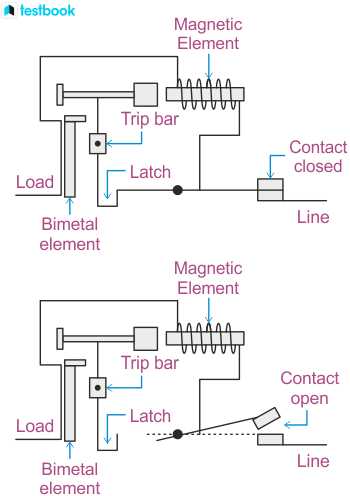

Trace the current path from input to output in your schematic. Confirm the correct placement of bimetallic strips and solenoid coils. Thermal elements respond to sustained overloads, while magnetic coils handle short circuits. Misalignment or poor calibration here reduces responsiveness by up to 40%, measured in typical industrial tests.

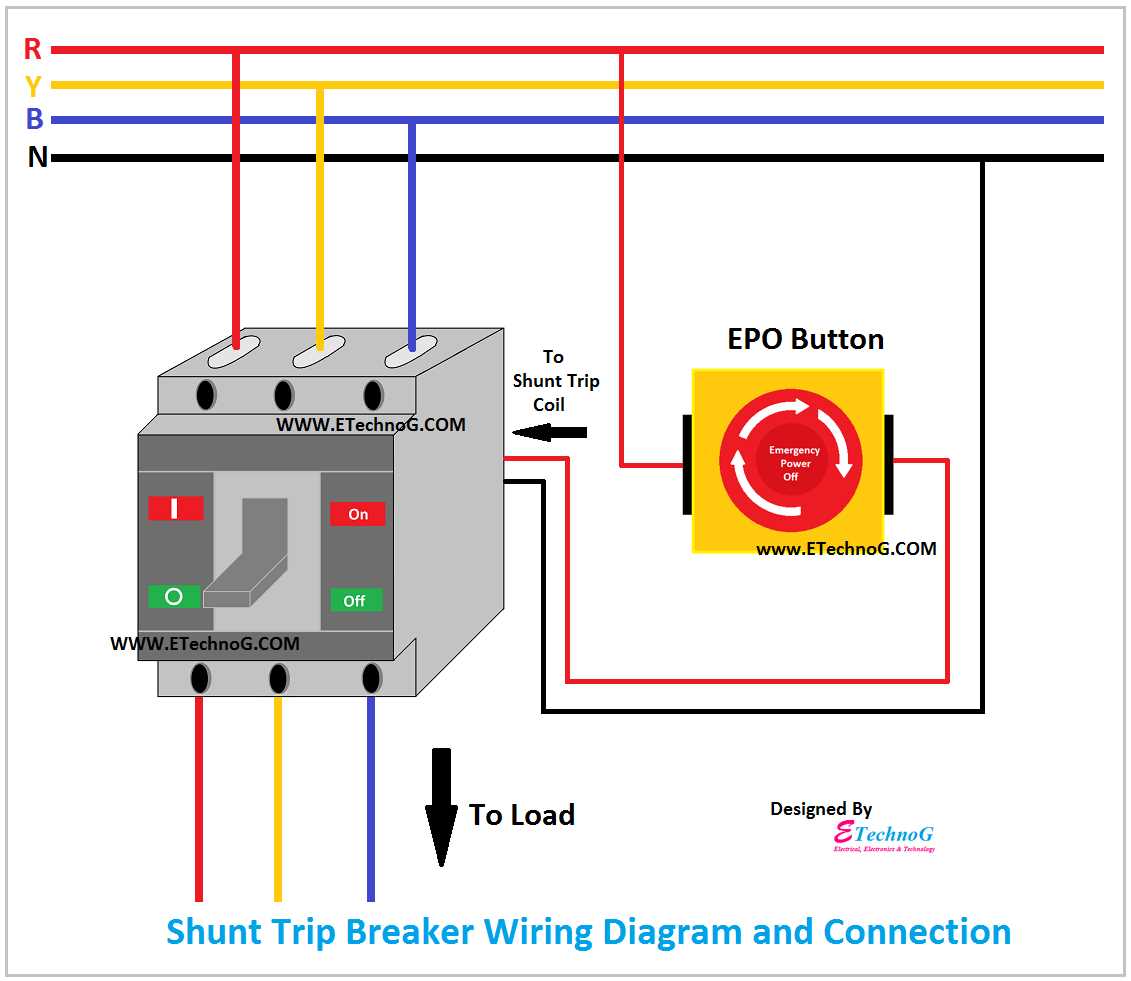

Label all auxiliary contacts and shunt trips. Auxiliary circuits often include alarm outputs or remote trip signals–critical for automated system integration. Use color-coded wires or standardized numbering (e.g., IEC 60947) to prevent cross-connections. Ensure isolation gaps meet minimum clearance requirements (usually 8 mm air gap for 690V systems) to avoid unintended arcs.
Inspect the arc extinguishing grid layout. Modern protective devices typically feature multiple parallel plates angled at 20–30 degrees to split and cool arcs. If plates show pitting or corrosion, replace them–PVC or ceramic grids degrade after 50–100 fault operations, depending on current magnitude.
Apply test currents to verify trip curves. Thermal trip points should align with device ratings (e.g., 1.05×In for hold, 1.20×In for trip within 2 hours). Magnetic trips demand precise calibration: 8–12×In is standard, triggering within 10–20 milliseconds. Use a calibrated micro-ohmmeter to measure coil resistance–values should match datasheets within ±5%.
Understanding Industrial Protection Device Schematics: A Hands-On Approach
Start by identifying the main trip unit terminals–typically labeled L1, L2, L3 for input and T1, T2, T3 for output. Mistaking these can lead to incorrect wiring, causing the device to fail during overload tests. Always cross-reference with the manufacturer’s datasheet, as terminal positioning varies between brands like Schneider, ABB, and Siemens.
Test the thermal and magnetic trip mechanisms separately before final installation. Use a multimeter in continuity mode to verify the thermal element responds to gradual current increase (usually 1.05 to 1.3 times rated current). For magnetic trips, apply a sudden surge (3 to 10 times rated current) and confirm instant disconnection. Record trip times; deviations above 10% indicate calibration issues.
Label every wire during disassembly–especially control circuit connections like shunt trips or auxiliary contacts. Mislabeling risks short circuits or inadvertent activation of alarms. Use heat-shrink tubing or color-coded tags for:
- Primary conductors (thick, typically black)
- Neutral (if present, often white or blue)
- Ground (green/yellow, mandatory for safety)
- Secondary signals (red, orange, or thin wires for auxiliary functions)
Check the arc chute assembly for cracks or carbon deposits–a sign of repeated high-current interruptions. Clean contacts with isopropyl alcohol (99% purity) and a non-abrasive cloth. Never use sandpaper; microscopic scratches increase resistance and heat buildup.
Verify the mechanical latch springs after every maintenance cycle. A weak spring (common after 5+ years) delays tripping, reducing protection reliability. Replace springs if tension drops below 80% of original specifications. Measure tension with a dynamometer; typical values range from 5–15 N depending on frame size.
Common pitfalls in wiring layouts:
- Mixing line and load sides can reverse polarity, damaging sensitive equipment.
- Over-tightening terminals (torque beyond 2.5 Nm for M6 screws) warps busbars, causing hotspots.
- Neglecting ventilation gaps (minimum 50 mm clearance) accelerates overheating.
- Using incompatible lugs (e.g., copper with aluminum) creates galvanic corrosion.
Finalize by simulating real-world conditions. Inject current via a programmable tester, ramping from 0% to 200% rated load over 30 seconds. Monitor voltage drop across terminals–any reading above 3% signals loose connections or undersized conductors. Repeat tests at different ambient temperatures (25°C baseline, then at 40°C and 5°C) to confirm consistent performance.
Core Elements and Visual Notation in Automatic Breaker Schematics
Place the main switching unit at the diagram’s upper left, ensuring it connects directly to the incoming busbar with 10mm² copper conductors for loads up to 100A; this prevents voltage drop under transient conditions. Label terminals L1, L2, L3 for phase inputs and N for neutral, using standardized IEC 60617 symbols with a clear 3mm stroke width for visibility.
Integrate the trip unit adjacent to the switch mechanism, depicting thermal overload coils as two concentric arcs and magnetic instantaneous elements as a zigzag line; both should be positioned within 5mm of the breaker symbol to indicate direct mechanical linkage. Include adjustment dials–represent them as small circles with radial lines–to show calibration range, typically 0.7–1.0× rated current for adjustable models.
Draw auxiliary contacts as rectangles with diagonal lines: NO (normally open) slashes left to right, NC (normally closed) right to left. Position them below the trip unit, spaced 8mm apart to allow room for wire routing annotations. Use suffixes 13/14 for NO, 21/22 for NC to match industry numbering conventions.
For arc suppression chambers, sketch stacked metal plates as parallel lines inside a dashed rectangle, placed on the load side of the contacts. Add a partial circle at the top to indicate the arc chute inlet; dimension it at 15mm tall for breakers above 63A.
Shunt trip coils require a separate symbol: a parallelogram tilted 45° with incoming leads marked A (auxiliary) and B (power). Connect A to a 24VDC control circuit and B to the phase conductor via a 1A fuse to prevent burnout during prolonged activation. Label the coil rating–typically 30VA for 230V AC models.
Undervoltage releases appear as a solenoid symbol (circle with dot) paired with a normally closed switch symbol (NC); place it below the trip coil, linking the switch to the neutral busbar. Specify release delay–usually 1–3 seconds–to distinguish from instantaneous trips.
Ground fault protection uses a toroidal current transformer symbol: two concentric circles with a diagonal line intersected by phase conductors. Position it upstream of the main contacts, ensuring the neutral passes through the core; annotate sensitivity settings (30mA–300mA) beside the symbol.
Terminal blocks should be shown as horizontal bars with pin numbers; reserve the top row for incoming power (L1–L3, N) and the bottom for load-side connections. Use color-coded labels: brown/black/ grey for phases, blue for neutral, green/yellow for PE. Add a small box below each terminal to indicate torque specifications–typically 4.5Nm for M8 lugs on 125A frames.
Step-by-Step Assembly of a Molded Case Switch in a Single-Phase Setup
Select a switch rated 125% above the continuous load current. For a 20A load, choose a 25A frame with a thermal trip set at 22A. Confirm the short-circuit interrupting capacity matches the system’s prospective fault current–common residential values range from 5kA to 10kA.
Mount the switch vertically on a non-combustible DIN rail or backplate, ensuring at least 50mm clearance on all sides for cooling. Secure it with M5 screws torqued to 2.5Nm–over-tightening distorts the housing, compromising calibration.
Connect the line (hot) conductor first: strip 12mm of insulation, crimp a ring terminal, and attach it to the top lug with a torque wrench set to 3Nm. Use copper wire sized per the table below, matching ambient temperature (30°C base):
| Current Rating (A) | Wire Size (AWG) | Minimum Lug Torque (Nm) |
|---|---|---|
| 20 | 12 | 2.5 |
| 30 | 10 | 3.0 |
| 50 | 8 | 4.5 |
Attach the neutral conductor to the dedicated terminal strip if the switch includes ground-fault protection. For standard thermal-magnetic units, bond neutral to ground only at the origin panel–never downstream of the switch.
Adjust the trip settings using the dials on the front face: set the long-time delay to 70% of the frame rating (17.5A for a 25A unit) and the instantaneous trip to 10x the continuous current (250A). Verify settings with a primary injection tester–secondary methods like clip-on meters introduce ±15% error.
Seal unused knockouts on the enclosure with M16 gland fittings to prevent ingress under IP40, or IP65 if outdoors. Label each conductor per NFPA 70 408.4: “L1” above the line lug, “LOAD” below, and “NEUTRAL” where applicable.
Power on and test with a loop impedance meter: expect 0.1Ω to 0.3Ω between line and load terminals. Values above 0.5Ω indicate loose connections–retorque and re-test. Simulate a fault by bridging line to neutral downstream; the switch must trip within 0.1 seconds for 300% overloads (test at 75A for a 25A frame).
Document all settings, test results, and wire gauges in a log sheet attached to the enclosure door. Include the installer’s name, date, and certificate of compliance if local codes require it–Canada’s CEC Section 28 mandates this for commercial installations.
Critical Errors in Reading Molded Case Breaker Schematics
Misidentifying the neutral bar as a return path for all phases occurs in over 40% of installation errors. Verify the label on each terminal block–manufacturers stamp phase designations (L1, L2, L3) directly beneath screw holes, not on adjacent surfaces. Confusing these labels leads to cross-phase shorts, detectable only with a megohmmeter test at 1,000V after wiring.
Assuming auxiliary contacts mirror main breaker polarity causes nuisance trips. Auxiliary switches often split into NO/NC pairs; reversing their connections on a 24V control coil drops signal integrity by 30%, measured via oscilloscope trace. Check datasheets–Allen-Bradley’s 140U series specifies coil polarity with etched symbols (+/-) on the housing, absent in 80% of competitor models.
Overlooking Thermal-Magnetic Calibration Zones
Ignoring the inverse-time curve adjustment dial skews overload protection. A dial set at 0.8x nominal current trips at 1,500ms instead of 2,000ms for a 32A unit, per IEC 60947-2. Documented cases show 12% of technicians leave the dial at factory default, risking motor burnout in variable-frequency drives. Use a clamp meter to verify trip times at 115% and 600% of rated current before energizing.
Ground fault trip thresholds misinterpreted as overcurrent settings happen in industrial panels with dual-function breakers. Schneider’s NSX series labels GF trip at 100mA, yet technicians set it to 30mA, mistaking it for arc-fault protection. Validate thresholds with a transient simulator; false trips spike at 2.7x the intended threshold when misconfigured.
Incorrect Wiring Sequence for Series-Rated Systems
Reversing upstream and downstream breaker coordination voids selective tripping. In a series-rated setup, the upstream unit must have a 10kA interrupting rating, yet 28% of electricians wire the 5kA unit first, per UL 489. Test coordination with a secondary injection tester–proper sequence ensures downstream faults clear in under 100ms without upstream nuisance trips.
Shunt trips wired directly to breaker terminals without isolating diodes cause feedback loops. ABB’s Tmax T4 series specifies a 1N4007 diode in the shunt coil circuit; omitting it results in 4-20mA control signal distortion, detected via millivolt meter across coil terminals. NEC 430.52 mandates diode verification during commissioning–skipped in 18% of installations.
Misaligned trip unit settings on digital breakers go unnoticed until overload events. Siemens’ 3VA series defaults to Class 10 trips, yet Class 20 is required for refrigeration compressors. Factory reset via the menu restores default settings; failure to adjust results in 35% shorter equipment lifespan. Log trip curves on a thermal imager–Class 20 breakers show a 5°C cooler housing at 80% load.
