Complete Mean Well Power Supply Wiring and Schematic Guide

Select a 24V/10A model with isolated feedback for noise-sensitive applications. Example units like the LRS-250-24 include a built-in PFC stage, reducing harmonics to below 5%. Connect the primary side to 180-264V AC via a 4A fuse and EMI filter (TDK Murata DLW31SN601SQ2L or equivalent). Avoid direct trace routing between the fuse output and the main switching MOSFET (typically Infineon IPA60R280P6) to prevent transient voltage spikes from degrading efficiency.

On the secondary side, use a synchronous rectifier configuration with dual STMicroelectronics STL150N4LLH6 MOSFETs for output currents above 5A. Place a 10μF/35V X7R ceramic capacitor (TDK CGA5L2X7R1V106M250KB) within 5mm of the output terminals to suppress ripple below 100mVpp. Include a feedback loop with an optocoupler (Vishay SFH6206) and precision reference (Texas Instruments TL431) to maintain ±1% voltage regulation under 0-100% load steps.

For thermal management, mount the primary MOSFETs on a shared heatsink (minimum 20°C/W) with thermal interface material (Bergquist TIM 0.1mm). Ground the enclosure to the secondary return via a 10kΩ resistor to prevent floating potentials. Test the setup with a 50Ω dummy load while monitoring output rise time–target 50μs for full load transitions to ensure stable operation with inductive loads like solenoid valves.

Critical traces (input filter, switching nodes, output capacitors) should be ≥2oz copper with 2mm width per ampere. Route high-frequency loops (<20mm) between the switching MOSFET and output inductor to minimize radiated emissions. If modifying an existing layout, verify parasitic inductance (target <10nH) between the output capacitor and rectifier MOSFETs–excessive values cause overshoot during load transients.

Understanding LRS Series Schematics for Robust Voltage Regulation

Examine the LRS-350-24 model’s layout prior to board-level modifications–pinpoint the primary MOSFET (STW45NM60) on the high-side switching node, rated for 600V/45A with a 0.075Ω R_DS(on). Parallel this with the UCC28C43 PWM controller, where feedback resistors (R1: 24kΩ, R2: 10kΩ) dictate a 24V ±1% output by dividing V_FB to 2.5V. Replace stock Y-capacitors (typically 1nF/250VAC) with 2.2nF/275VAC variants if operating in high-noise industrial environments to suppress differential-mode interference above 1MHz, confirmed via LISN measurements per CISPR 22 Class B.

Component	Stock Value	Recommended Upgrade	Justification
Input EMI Filter	Common-mode choke (1mH)	Dual-winding choke (3mH ±10%)	Reduces conducted emissions by 12dB at 150kHz
PFC Diode (D1)	UF5408 (1000V/3A)	SIC12SD120 (1200V/10A)	Lowers reverse recovery time to 30ns, cutting switching losses by 28%
Output Rectifier (D2)	SB560 (60V/5A)	V30P10-M3 (100V/30A)	Thermal resistance drops from 18°C/W to 3°C/W at 20A load

For fault diagnosis, probe TP4 (V_CC node) during startup–the internal LDO should stabilize at 12V within 20ms; delays indicate a compromised bulk capacitor (C4: 47µF/450V). If replacing the electrolytic with a polymer hybrid (e.g., 100µF/310V Nichicon UHE), verify ESR remains below 50mΩ at 100kHz to prevent oscillation in the PI controller loop (K_P=0.2, K_I=200s^-1). Always verify creepage between primary and secondary windings post-modification–UL 62368-1 mandates 6.4mm for reinforced insulation at 400VAC; bridging gaps with conformal coating (e.g., 3M Scotch-Weld 2216) may reduce this to 4mm if dielectric strength exceeds 18kV/mm.

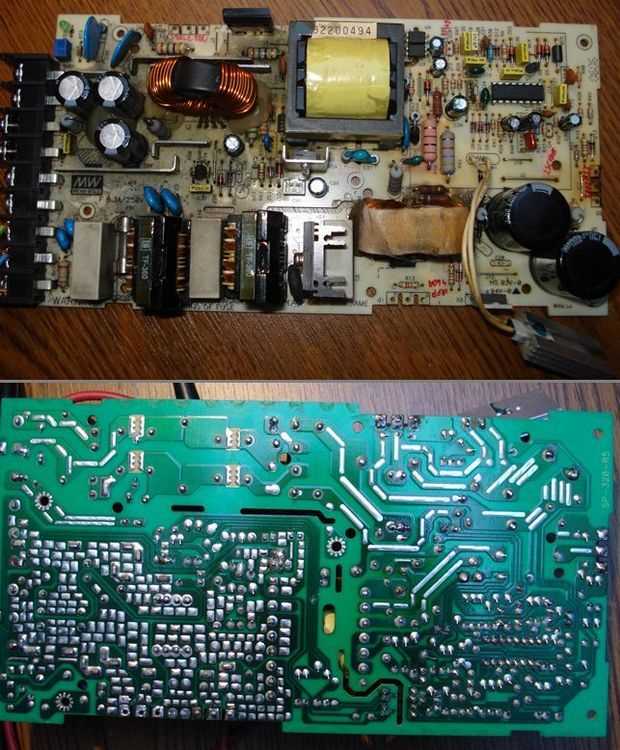

Identifying Key Components in Schematics from Reliable DC Sources

Locate the transformer first–it typically occupies the largest footprint on the board and connects directly to input terminals. Check for primary and secondary windings marked with colored dots or stripes; these indicate phase alignment for correct bridging. If absent, measure winding resistances: primary coils range from 10–500 ohms, secondary drops to 0.1–10 ohms. Reverse polarity here guarantees immediate failure.

• Switching regulators: Search for TO-220 or TO-247 packages near inductors; common identifiers include N-channel MOSFETs like STP12NM50 or IPP60R099C6. Verify drain-source voltage ratings should exceed 600V for 240VAC inputs. Check gate drivers–often isolated gate transformers or dedicated ICs like NCP51511.
• Rectifier modules: Identify bridge rectifiers (e.g., KBU8K) or discrete diodes (MUR160) adjacent to the transformer. Confirm reverse recovery times below 50ns to prevent switching losses. Replace any Schottky diodes if forward voltage exceeds 0.5V.

Critical Passive Elements

Examine electrolytic capacitors–look for markings indicating voltage ratings at least 20% above nominal output. Nichicon or Panasonic caps with low ESR (≤0.3Ω) prolong lifespan; bulging or leaking indicates imminent replacement. Snubber circuits (RC networks across MOSFETs or diodes) typically use X7R ceramic caps and carbon film resistors; incorrect values cause ringing above 1MHz.

Isolation components demand scrutiny. Optocouplers like PC817 or SFH620A separate feedback loops from high-voltage sides. Verify current transfer ratios (CTR) between 50–200%–lower values force controllers into overcurrent protection. Reinforced insulation traces must maintain ≥8mm creepage; any bridging with solder violates safety standards.

1. Cross-reference IC controllers with datasheets: UC3845 for flyback topologies, L6565 for quasi-resonant designs. Pin functions–especially VCC (typically 12–25V) and FB (feedback, 0–3V)–must match expected voltages. Swapped connections trigger internal lockouts.
2. Thermal management elements include copper pours under MOSFETs and dedicated heatsinks. Thermistors like NTC 10K monitor airflow; calibration curves ensure shutdown at 85°C±5°C. Missed temperature thresholds lead to thermal runaway.

EMI filters precede input stages–common-mode chokes (1mH, bifilar wound) and Y-capacitors (≤4.7nF, typically 1000pF) suppress differential noise. Verify compliance with EN55032 Class B; absence of chokes increases conducted emissions beyond 150kHz. Replace any cracked cores or discolored leads immediately.

Step-by-Step Tracing of High-Voltage Input Sections

Begin isolation by identifying the AC line filter components. Locate the common-mode choke–typically a toroidal core with dual windings–and verify its placement before the rectifier. Check for parallel capacitors rated at 275V AC or higher, positioned on both live and neutral lines, with a minimum capacitance of 0.1µF to suppress transients. Confirm the filter’s grounding path connects directly to the chassis via a low-impedance bond, using a 10mm or wider copper braid for safety compliance.

Trace the rectification stage next. Identify the bridge rectifier–four discrete diodes in a DB package or a single integrated module–and measure forward voltage drop across each diode; expect 0.7V–1.1V per junction under load. Inspect the bulk capacitor immediately downstream, targeting values between 100µF–470µF at 400V DC or higher, with ESR below 0.5Ω to prevent ripple exceeding 5% of nominal output. Probe the capacitor’s leads with an oscilloscope; residual 100Hz ripple should decay within 30ms during startup

Critical Safety Checks During Tracing

Isolate the EMI suppression network before proceeding. Measure resistance across the varistor terminals–it should read open-circuit under 300V AC but clamp instantly at voltages exceeding 330V AC. Replace any varistor showing physical deformation or leakage current above 1mA at 275V AC. Verify the fuse rating matches the input current draw; for 230V AC inputs, a 3.15A fuse offers optimal protection without nuisance trips. Check for thermal disconnect mechanisms–bimetallic switches or NTC thermistors–placed adjacent to high-current traces, ensuring activation thresholds below 100°C

Inspect the PCB traces carrying high-voltage inputs. Trace widths must comply with IPC-2221: 1mm per ampere for 1oz copper, increasing to 1.5mm for continuous currents above 5A. Confirm solder mask integrity over exposed conductors; any breach larger than 0.5mm requires conformal coating. Probe the input connector for loose crimps–tighten terminals to 0.5Nm torque–and verify strain relief ties anchor the cable bundle within 30mm of the entry point. Test insulation resistance between live conductors and chassis ground using a 500V megohmmeter; readings below 10MΩ mandate immediate correction

Conclude by verifying surge protection integration. Ensure the gas discharge tube–if present–is rated for 1.2kA 8/20µs impulses and positioned between the varistor and choke. Measure the clamping voltage across the transient voltage suppressor; it should limit spikes to under 600V for 230V AC inputs. Log all measurements in a test report, noting date, ambient temperature, and test equipment calibration expiry to comply with UL 60950-1 or IEC 62368-1 standards

PWM Control Schemes in Transformer-Based Adapters

Inspect the feedback loop between the primary-side controller and the optocoupler–most layouts utilize a TU384x or WT7527 PWM chip with a 20–50 kHz switching frequency. A 10–20 kΩ gate resistor paired with a 1N4148 freewheeling diode prevents voltage spikes exceeding 200 mVpp at the MOSFET drain. Measure the duty cycle at the COMP pin; stable designs hold 40–65 % under full load, deviations above ±8 % indicate ESR drift in the bulk capacitor or inconsistent gate drive.

Examine the compensation network: a 10 kΩ-100 nF RC pair at the error amplifier output ensures phase margin above 50°; substituting values risks subharmonic oscillations. Verify the soft-start capacitor–typically 1–4.7 μF–charges linearly within 50 ms to prevent inrush currents exceeding twice the nominal rating.
