Complete Mercury Outboard Wiring Harness Diagram Guide for Repair and Troubleshooting
Locate the primary power feed–typically a red or yellow cable–originating from the battery’s positive terminal. Trace this conductor to the ignition switch before it branches into the main control module. Verify the connection at the solenoid to prevent voltage drops; corrosion here disrupts signal integrity. Use a multimeter to confirm 12V+ at the switch when engaged; readings below 12V indicate resistance points requiring immediate attention.
Inspect the ground distribution next. The engine block’s grounding lug should link directly to the battery’s negative post via a minimum 6-gauge wire, stripped of paint and free of oxidation. Check for continuity between the block and negative terminal–intermittent readings warn of loose connections. For models with trim and tilt functions, ensure the purple and brown wires connect to the actuator’s motor windings; failing voltage here causes erratic operation.
Follow the throttle position sensor wiring: a gray wire carries signal voltage, while the black serves as ground. Disconnect the harness plug and probe pin terminals–expected values range from 0.5V at idle to 4.5V at wide-open throttle. Deviations beyond ±0.2V necessitate sensor recalibration or replacement. For ignition coils, the blue/white wire supplies 12V pulsed voltage; monitor with an oscilloscope to confirm consistent spark timing waveforms.

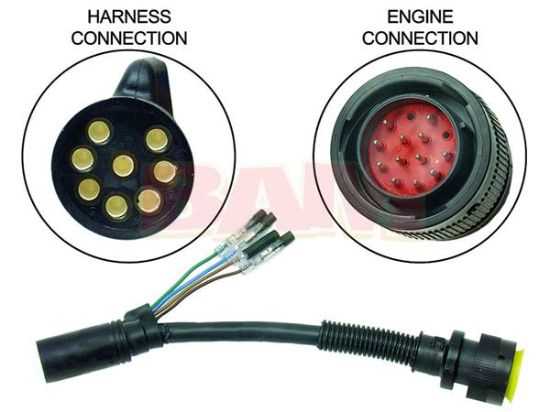

Harness connectors often corrode internally. Depress the locking tabs, separate halves, and inspect terminal pins for pitting or green residue. Apply dielectric grease sparingly–excess attracts debris. Replace damaged connectors with OEM-specified parts; aftermarket equivalents may lack proper sealing. Label each wire during disassembly using heat-shrink tubing or adhesive tags to avoid misrouting during reassembly.
Understanding Marine Engine Electrical Connector Layouts
Start by locating the main power distribution block near the motor’s control box–this is typically a rectangular or cylindrical component with multiple terminals. Identify the color-coded cables: red for primary voltage input, black for ground, yellow for ignition, and striped variants for sensors. Missing or reversed connections here will cause erratic startup behavior or complete failure.

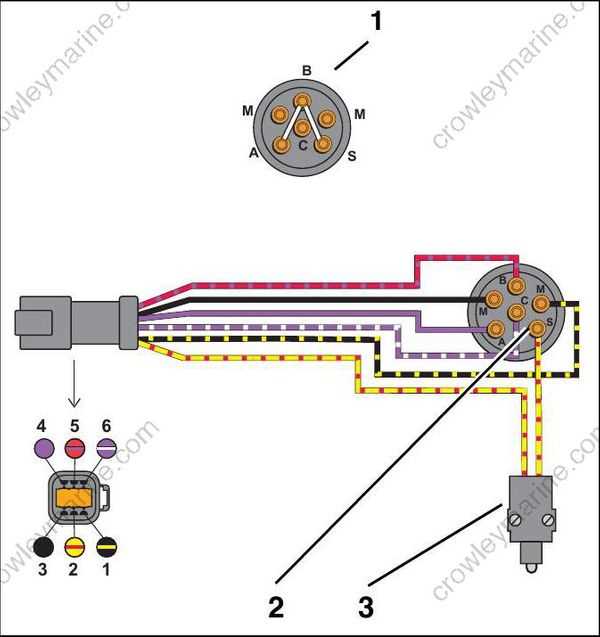

The ignition switch circuit often includes a kill switch lead, usually brown with a white stripe, that must connect directly to the engine’s safety cutoff. If this link is absent, the motor may crank but fail to fire due to an open safety loop. Verify continuity with a multimeter set to 200 ohms.
- Inspect all connectors for corrosion–white or green deposits on pins signal moisture ingress.
- Use dielectric grease on mating surfaces to prevent future oxidation.
- Check for frayed conductors, especially near the engine cowling where vibrations accelerate wear.

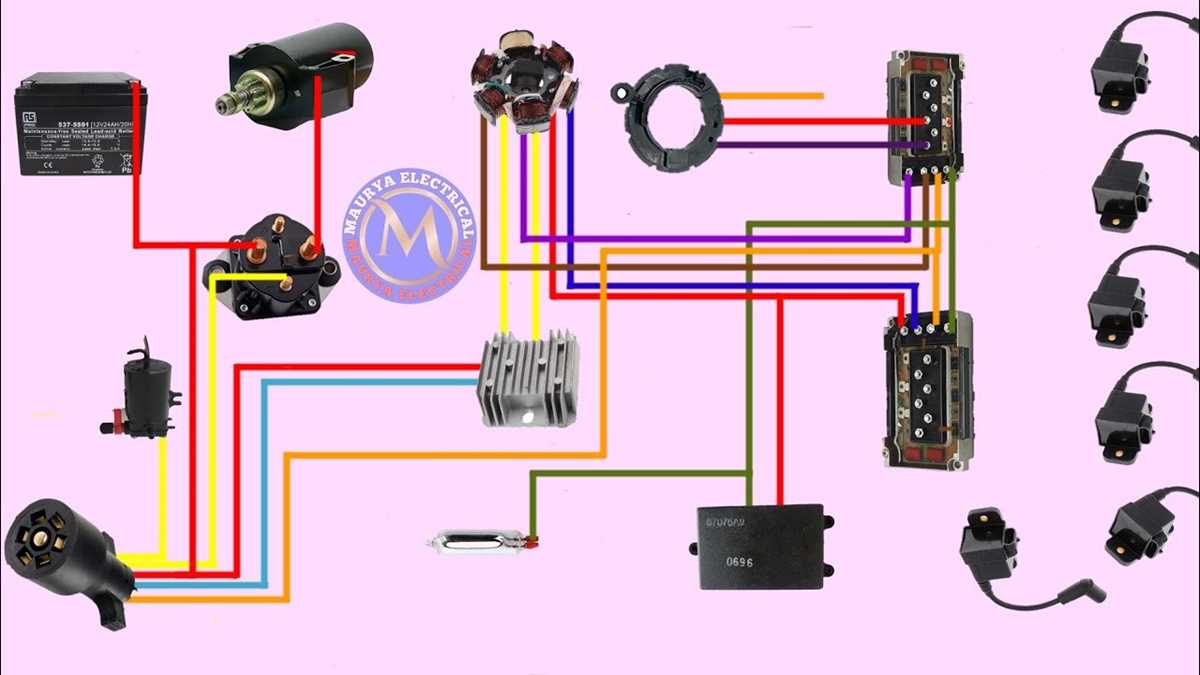

For models with electric start, the 12V solenoid should have two thick cables: one from the battery and one to the starter motor. A clicking sound without cranking indicates a weak solenoid or poor ground contact. Bypass the solenoid temporarily with a screwdriver to isolate the fault.
Sensor circuits, like the oil pressure or temperature probes, use thin gauge wires–usually blue with stripes–that terminate at the engine’s ECM. Disconnecting these leads before removal prevents accidental short circuits. Reinstall with the exact orientation; reversed plugs can trigger false error codes.
- Label each wire before disassembly using masking tape.
- Refer to the engine’s serial number plate for model-specific color deviations.
- Test all circuits with the engine off before final assembly.
Charging system checks require measuring voltage at the alternator output–expect 13.8–14.2V under load. A reading below 12.6V suggests a faulty regulator or broken stator winding. Swap components if readings remain low after cleaning connections.
Ground paths are critical: ensure the engine block and Battery Negative (-) terminal share a heavy gauge link. Corroded or loose grounding straps cause dim lights, erratic tachometer readings, and intermittent power loss. Upgrade to marine-grade tinned copper cable if original wiring shows signs of degradation.
Selecting the Right Electrical Connector Kit for Your Marine Propulsion System
Begin by locating the serial number plate on the motor’s powerhead. Models manufactured after 1990 typically emblazon this identifier on a stainless steel tag near the flywheel housing, while earlier variants may have it stamped into the exhaust housing flange or adjacent to the mounting bracket. Jot down the full alphanumeric sequence–prefixes like “OB,” “ELPT,” or “OptiMax” denote distinct electrical architectures, each requiring a bespoke connector kit.
Cross-reference the serial code against the manufacturer’s official parts catalog–available either as a printed manual (section 6-E for pre-1998 units, 8-C for later models) or via their online engine lookup tool. Look for three critical match points: voltage rating (12V vs. 24V), cylinder configuration (inline 2/3/4/6 or V6), and emission control label (CARB vs. EPA). Mismatching these can fry the ignition module or starve the fuel injectors.
Key Differentiators Between Connector Kits
Resistance-coded plug terminals distinguish older carbureted motors from their EFI successors–the former use spade connectors measuring 0.250” wide, whereas the latter demand micro-blade terminals (0.187” or 0.110”) with gold-plated contacts. Additionally, verify the color-coded loom branches: black with yellow tracer (CDI trigger), red solid (main battery feed), and purple (trim sender) must align exactly. Transposing these can trigger catastrophic spark advance or kill the ECM.
If the original loom exhibits brittle insulation or corroded crimps, opt for a pre-assembled replacement kit featuring Teflon-jacketed conductors and weatherproof Deutsch connectors. Aftermarket suppliers often bundle exact pinouts for specific horsepower ranges–always demand the test report showing ISO 6892 tensile certification. Secure the new harness with anti-vibration clamps at 8-inch intervals, ensuring no loop exceeds 1.5” to prevent chafing against the cowling lip.
How to Interpret Marine Engine Connection Schematics
Locate the color-coding legend first. Every manufacturer assigns specific hues to circuits–black typically grounds, red handles power, and yellow or blue may signal ignition inputs. Cross-reference these with the schematic’s margins to avoid misconnections that could short components. Ignoring this risks damaging sensors or the electronic control module.
Identify the main power distribution node, usually depicted as a thick horizontal line at the top or center. Branches stemming from this line feed secondary systems like fuel injectors, tachometer feeds, and starter relays. Trace each branch downward; solid lines denote direct links, while dashed or dotted lines indicate switched or intermittent paths, such as alarm circuits or trim solenoids.
Focus on symbol shapes next. Circles mark plug connectors; triangles represent sensors; rectangles signal relays or resistors. A zigzag denotes fuses–verify their amperage rating against the schematic’s callout labels. Components sharing a common symbol cluster often belong to the same subsystem; isolate these groups to simplify troubleshooting.
Check voltage drop annotations. Numbers beside lines specify expected readings–12V for battery feeds, 5V for sensor inputs, or variable pulses for engine control units. Probe these points with a multimeter if readings deviate by more than 0.5V; deviations often reveal corroded terminals or broken conductors hidden beneath insulation.
Testing Continuity Without Disassembly
Use the schematic’s connector pinouts to probe without removing housings. Insert a needle probe through the wire jacket at accessible junctions, referencing the pin number sequence on both the schematic and the physical plug. This method pinpoints open circuits in cables buried under engine cowlings without unnecessary dismantling.
Compare the schematic’s wire gauge labels against physical strands. Thicker wires (10-14 AWG) handle starter current, while thin strands (20-22 AWG) connect sensors. Substituting mismatched gauges during repairs risks overheating or signal loss in data lines. Upgrade splices with marine-grade heat-shrink tubing to seal connections against moisture ingress.
Typical Electrical Connection Problems and Diagnostic Steps
Inspect connectors for corrosion first–visible white or green deposits indicate oxidation, which disrupts signal flow. Use a wire brush or electrical contact cleaner to remove buildup, then apply dielectric grease to prevent recurrence. Resistance testing with a multimeter should show values under 0.5 ohms for intact circuits; readings above this suggest broken strands or poor crimping. Solder joints, though durable, can fail if subjected to vibration–look for hairline cracks near terminals.
Intermittent faults often stem from chafed insulation or pinched cables. Route bundles away from sharp edges, pulleys, or moving parts, using split loom tubing for protection. For wires rubbing against metal, reinforce with heat-shrink tubing or spiral wrap. Check ground connections carefully–loose or corroded grounds create voltage drops that mimic sensor failures. A dedicated ground wire directly to the engine block ensures stable reference points.
Voltage drop tests reveal hidden resistance in circuits. Probe across terminals while activating the component–drops exceeding 0.3V in 12V systems signal poor connections. For sensors, verify signal wire continuity with engine running; a fluctuating voltage below expected ranges (e.g., 0.5-4.5V for RPM sensors) indicates a short or open circuit. Replace any wire showing exposed copper, regardless of visible damage.
Melted or discolored insulation points to overheating, often from undersized wires or overloaded circuits. Compare wire gauge to manufacturer specifications–undersized conductors generate excessive resistance under load. Thermographic cameras or infrared thermometers pinpoint hotspots, but thermal damage is irreversible and requires full segment replacement. For critical paths, use tinned-copper wire to resist corrosion in humid environments.
If a fuse blows repeatedly, isolate the circuit by disconnecting components one by one until the fault clears. Bypass switches or relays temporarily to test their contacts. For relay-controlled circuits, swap with a known-good unit to confirm failure. Always replace fusible links with the exact amperage rating–never substitute with higher values as this risks fire. After repairs, recheck all connection points with a torque wrench to avoid overtightening, which can strip threads or crack terminals.
