How to Wire a Micro Switch Step-by-Step Connection Guide

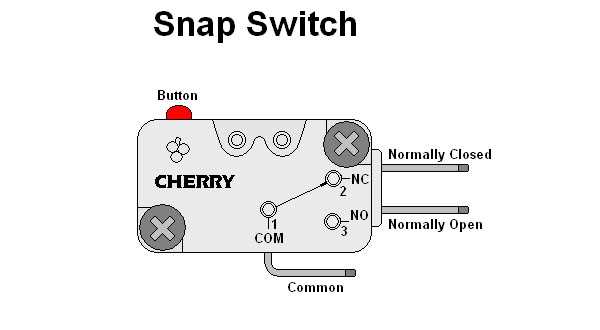

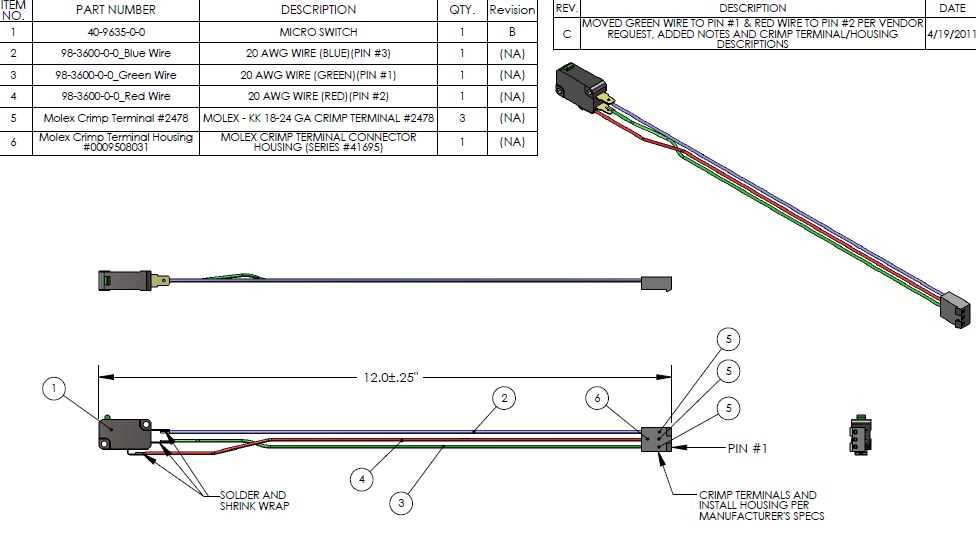

Begin by identifying the common terminal–this is the central contact that toggles between the normally open (NO) and normally closed (NC) sides. Most precision snap-action devices use a brass-colored or gold-plated pin marked “C” or left unlabeled; refer to the datasheet if the marking is unclear. A multimeter in continuity mode will confirm this point when the actuator is depressed.

Attach the input voltage lead to the common terminal. For low-voltage applications (3V–24V DC), use 22–26 AWG stranded copper wire; solid core can stress the delicate springs. Strip only 3–4 mm of insulation–excess length risks shorting against adjacent leads when the lever pivots. Crimp a ferrule or tin the exposed copper if vibration is present, as oxidation will degrade signal integrity over time.

Route the NO and NC wires to their respective loads. Always insert a flyback diode (1N4007) across inductive loads like relays or solenoids; reverse voltage spikes during state changes can arc contacts internally. For AC circuits (120V/240V), use a varistor rated 10–20% above the line voltage to clamp transients before they reach the snap-action mechanism. Keep wire runs under 30 cm to minimize noise pickup–twist pairs if running alongside high-current conductors.

Secure connections with solder or a spring-loaded terminal block. Avoid direct screw clamping on the device’s pins; thread torque above 0.5 Nm can crack the phenolic housing. If soldering, preheat the pin for 2 seconds to prevent cold joints–lead-free alloys require 350°C to flow properly without damaging the actuator’s pivot geometry.

Test operation before final assembly. Apply 50% of the rated load current and actuate the lever 100 cycles; if contact resistance exceeds 50 mΩ (measured with a milli-ohmmeter), recheck for flux residue or improper wire gauge. For high-cycle applications (>10⁶ operations), apply a light coat of contact lubricant (Dow Corning 4 or equivalent) to the movable blade–this prevents galling but does not attract dust.

How to Connect Tiny Contact Sensors Properly

Start by identifying the common (COM), normally open (NO), and normally closed (NC) terminals on your miniature contact device. COM always connects to the power source–either a battery or a low-voltage supply–while NO or NC routes to the load. For momentary activation, wire the load to NO; for default-on operation, use NC. Ensure the voltage rating matches the component specs–typically 5V DC for logic circuits or 24V DC for industrial controls–to avoid overheating or false triggers. Use 22-28 AWG stranded copper wire for flexibility and secure each splice with a solder joint or crimp connector to prevent intermittent disconnections.

Safety and Troubleshooting Checklist

• Isolate power before connecting or modifying any circuit elements.
• Verify continuity with a multimeter after installation–NO should show infinite resistance when inactive, NC should read near zero.
• Avoid exceeding the maximum current rating (usually 5-10A for small devices).
• If using in a motor or solenoid circuit, add a flyback diode (1N4007) across the coil to prevent voltage spikes.
• For high-vibration environments, apply thread-locking adhesive to terminal screws to prevent loosening.

For applications requiring multiple states, combine two contact devices in parallel: one wired NO for latching and the second NC for reset. In robotics, attach a debounce capacitor (0.1µF) across the contacts to filter mechanical bounce, ensuring clean signal transmission. When integrating with programmable logic, label each lead clearly–solder a colored heat-shrink tube (red for power, black for ground, yellow for signal) to simplify future maintenance. Always test the circuit under real operating conditions–simulate expected loads and vibrations to confirm reliability before deployment.

Core Terminal Link-Ups and Conductor Arrangement in Precision Button Units

Begin by identifying the three primary contact posts on the miniaturized control element: common (C), normally open (NO), and normally closed (NC). Standard configurations pair the power source to the common terminal, while the output load attaches to either NO or NC based on activation logic. For momentary operation, route the conductor to the NO post; for latching behavior, shift it to the NC post instead. Verify manufacturer datasheets–some variants invert these labels despite identical physical layouts.

Use 18-22 AWG solid-core conductors for reliable signal transmission in low-current applications (under 5A). Stranded wire risks frayed strands bridging adjacent posts, causing erratic behavior. For high-current circuits (up to 10A), upsize to 16 AWG and apply crimp terminals with heat-shrink insulation to prevent oxidation at connection points. Avoid solder-only joints; mechanical stress from vibration can fracture solder over time.

Implement a pull-up or pull-down resistor (1k–10kΩ) when interfacing with logic-level inputs like PLCs or microcontrollers. Connect the resistor between the output post (NO/NC) and the positive rail for pull-up, or between the output post and ground for pull-down. This prevents floating states during transitions, which can trigger false readings in digital systems. Omit resistors only in purely mechanical circuits where indeterminate states pose no risk.

Polarity and Voltage Considerations

DC circuits require strict polarity adherence: reverse connection on polarized loads (LEDs, relays) will damage components. For AC applications (up to 250V), polarity is irrelevant, but ensure the peak voltage does not exceed the rated 125V/250V AC limit. When switching inductive loads (motors, solenoids), add a flyback diode (1N4007) across the load terminals to absorb voltage spikes, oriented cathode-to-positive. Absent this, transients will degrade internal contacts within 1,000–10,000 cycles.

For dual-throw configurations, wire both NO and NC posts to separate loads. Example: use NO to drive a green “active” LED and NC to power a red “standby” LED. This dual-indication setup requires a three-conductor cable (common + two outputs) and is incompatible with single-throw variants. Confirm terminal spacing–some compact models (

Shield signal conductors in electrically noisy environments (industrial machinery, variable-speed drives). Use twisted-pair wire for differential signals and ground the shield at one end only to avoid ground loops. For high-frequency switching (>100Hz), select units with gold-plated contacts to resist oxidation and maintain low contact resistance (typically

Test continuity with a multimeter before energizing. Place probes on the common and NO posts; actuation should close the circuit (0Ω). Release should open it (OL). Repeat for the NC post–actuation should now open the circuit. Deviations indicate miswiring, damaged internal springs, or a faulty actuator pin. Replace units showing erratic resistance values (>100mΩ) to prevent arcing and premature failure.

Step-by-Step Guide to Connecting a Single-Pole Tiny Mechanism

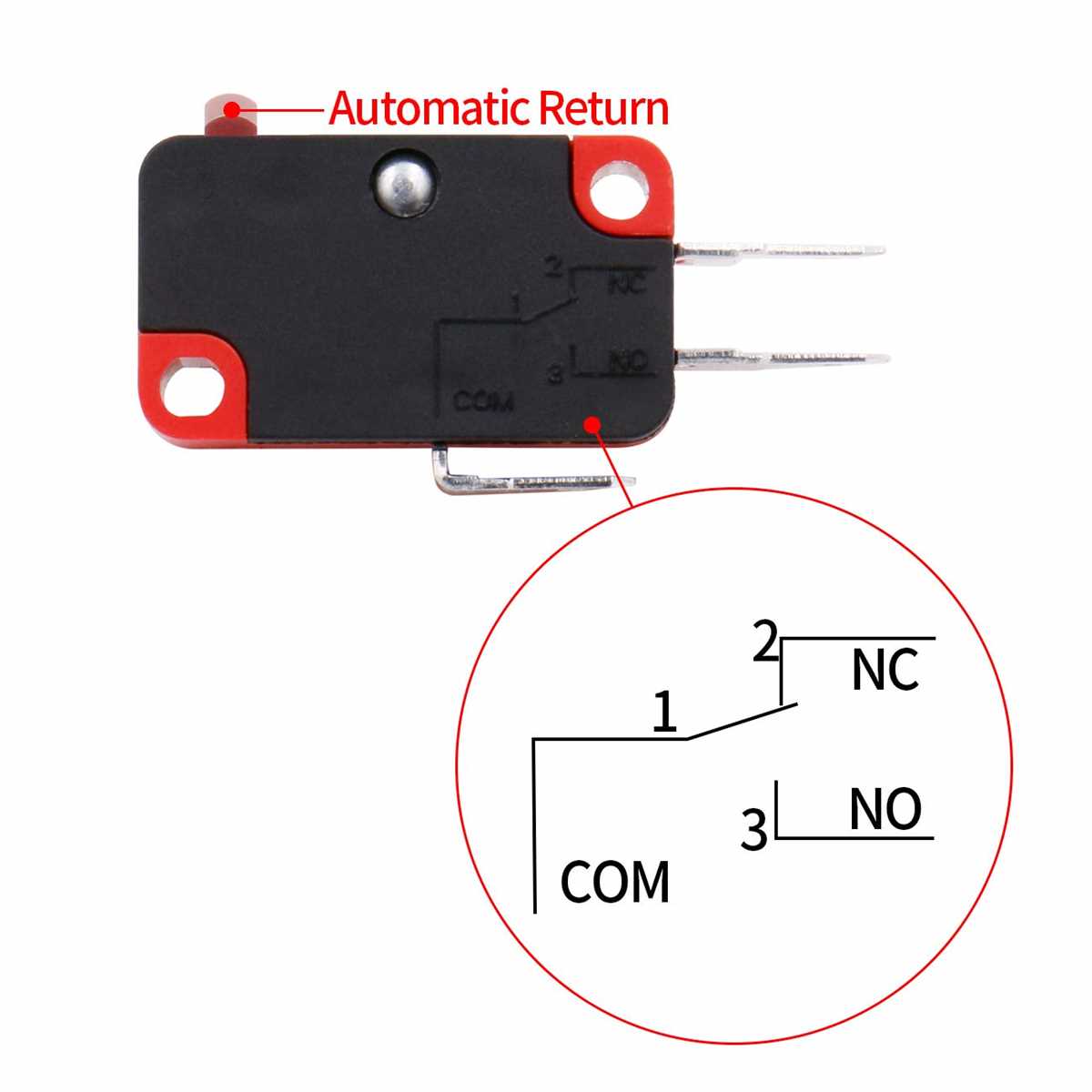

Begin by identifying the common, normally open (NO), and normally closed (NC) terminals on the compact device. Most models label these as C, NO, and NC, but confirm with the datasheet–some manufacturers use numerical markings like 1, 2, and 3. Use a multimeter in continuity mode to verify contact behavior before proceeding.

Select a power source matching the mechanism’s voltage rating. For low-power applications (5V–24V DC), a regulated supply prevents damage. If integrating into an AC circuit (e.g., 120V or 230V), use appropriately rated wire gauges:

Voltage	Min. Wire Gauge (AWG)
5V–24V DC	22–24
120V AC	18
230V AC	16

Strip insulation back by 5–7mm, ensuring no exposed strands extend beyond the terminal.

Attach the common terminal (C) to the power source’s positive or hot line. For NO configurations, wire the load (e.g., LED, relay) between the NO terminal and ground or neutral. For NC setups, reverse this: connect the load between NC and ground, allowing it to deactivate when the actuator engages. Secure connections with solder or crimp connectors–avoid twisting wires alone, as vibrations can loosen them over time.

For momentary operation, align the actuator with the triggering object (e.g., a door lever, limit arm). Preload the button by 10–30% of its travel to ensure consistent activation. Test the action by manually pressing it–a crisp click confirms proper alignment. If misaligned, adjust mounting screws or shim with washers until contact is reliable without excessive force.

In high-current applications (>2A), add a flyback diode (for DC) or snubber circuit (for AC) across inductive loads like motors or solenoids. Omitting this risks arcing at the contacts, reducing lifespan. Use a 1N4007 diode for DC or an RC snubber (100Ω resistor + 0.1µF capacitor) for AC, connecting them directly to the load’s terminals.

Insulate exposed joints with heat-shrink tubing or electrical tape rated for the voltage. Route wires away from sharp edges or moving parts–use grommets when passing through metal enclosures. Label each wire near the connection point for future troubleshooting. Final verification requires cycling the mechanism 10–20 times under load to confirm no intermittent faults exist.

Document the setup with a simple schematic noting:

• Power source specs (voltage, current)
• Wire gauges and colors
• Terminal assignments (C/NO/NC)
• Load type and ratings
• Any protective components added

Store this with the equipment to streamline repairs or modifications later.
