Complete Guide to Mid-Run Dual Outlet Wiring for Electrical Circuits

Use a 12-gauge copper conductor for standard 15-amp circuits when installing a mid-span power tap configuration. This prevents voltage drop exceeding 3% across a 50-foot span, ensuring stable performance for connected devices rated up to 1800W.

Connect the neutral conductor first by stripping 5/8 inch of insulation and securing it under the silver screw terminal. Twist the exposed copper strands clockwise to match the screw rotation for a gas-tight joint that resists loosening from thermal cycling.

For the ungrounded conductor, attach the black wire to the brass screw terminal using the back-wire clamp method where the terminal block permits. Apply 12 in-lbs of torque with an insulated screwdriver–overtightening risks conductor deformation while undertightening leads to high-resistance joints.

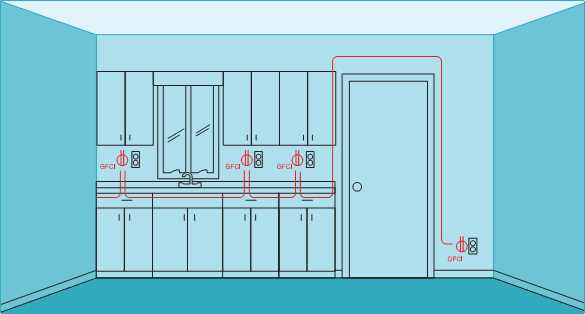

Install a GFCI breaker upstream if the circuit serves wet locations, even if the downstream taps are not GFCI-protected outlets themselves. Test trip functionality with a plug-in GFCI tester before closing the wall plate to verify proper ground-fault sensing.

The grounding conductor must bond to both the metallic outlet box (if present) and the receptacle’s green screw terminal. Use a pigtail splice with a listed wire nut when splitting the ground path to multiple devices–never daisy-chain grounds through terminal screws.

When splitting a circuit at an intermediate point, maintain color-coding consistency: white for neutral, black for line, red for switched or secondary phase, bare or green for equipment grounding. Label all conductors with heat-shrink tubing or self-laminating wire markers within 3 inches of termination.

Before energizing, verify continuity with a low-impedance ohmmeter set to 200Ω range. A reading above 0.5Ω between neutral and ground indicates a loose connection requiring immediate correction–such faults generate localized heating and potential arc fault hazards.

Dual Socket Split Configuration for Intermediate Positions

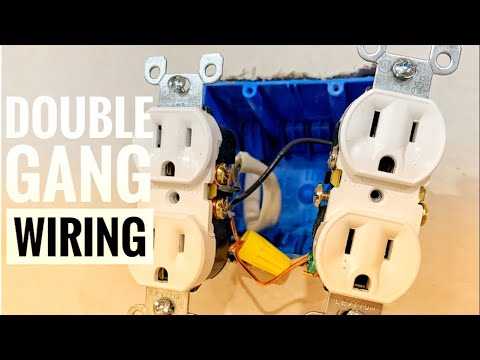

Connect the incoming hot conductor to the brass-colored screw on the first terminal block, ensuring it bridges both sockets without interruption. Use a short pigtail wire (12 AWG for 20A circuits, 14 AWG for 15A) to link the outlet pair–attach one end to the same screw as the feed and the other to the corresponding terminal on the second unit. Grounding follows a similar path: bond the bare or green wire to the green screw on the initial device, then extend another pigtail to the adjacent one. Neutral wires must remain unbroken, secured to silver screws–never split them unless using a tamper-resistant model requiring isolated neutrals.

Label each conductor before termination to prevent reversal errors: black (live), white (return), and green/bare (earth). For installations under 6 AWG wire, strip insulation precisely–3/4 inch for solid copper, adjusting for stranded variants to avoid loose strands causing shorts. Test continuity with a multimeter before energizing: probe between live and neutral screws (~0 ohms expected), live to ground (OL), and neutral to ground (OL). If resistance exceeds 1 ohm between live terminals, recheck crimps or replace damaged devices.

For switched layouts, route the control wire to the bottom socket’s live terminal first, then splice to the upper unit–never daisy-chain through neutral or ground. GFCI protection requires pigtailing the line side for both outlets; load terminals must remain unused in split arrangements. Secure all connections with torque screwdrivers (1.2–1.6 lb-in for 15–20A devices) and wrap terminals clockwise with a plastic insulator to prevent accidental contact with junction boxes.

Decoding Electrical Cable Hues for Split Receptacle Configurations

Start by locating the bare copper or green wire–this is the ground conductor. Its sole purpose is safety: it provides a direct path for stray current in case of faults, preventing shocks. Ensure it’s securely fastened to the green terminal screw on both halves of the receptacle and continues uninterrupted through the circuit if branching to additional fixtures.

Next, identify the white (neutral) wires. These connect to the silver terminals on the device. In split installations, neutrals from all branches must be spliced together with a pigtail leading to the receptacle. Never break the neutral continuity between devices, as this violates code (NEC 300.13) and can cause erratic voltage.

For hot conductors, look for black, red, blue, or occasionally yellow wires. In a standard dual-socket arrangement, one hot wire powers the top socket while the other energizes the bottom. The first hot (typically black) connects to the brass terminal on one side; the second (often red) connects to the opposite brass terminal. Verify voltage between each hot and neutral with a non-contact tester–both should read ~120V.

• Black: Primary supply line, often fed from the panel’s circuit breaker.
• Red: Secondary supply, commonly split from the same breaker pair for multi-wire branch circuits (MWBC).
• Blue/Yellow: Rare in residential setups; usually indicate three-phase or specific industrial applications.

When reconfiguring, confirm the breaker handles both hots. A 20-amp MWBC uses a two-pole breaker ensuring simultaneous disconnection. Failure to synchronize risks overloading the neutral. Use a clamp meter to check for balanced current on both legs–differences exceeding 0.5A suggest a wiring error.

Avoid assuming wire roles based on color alone. In older constructions, colors may deviate: black might serve as neutral, red as ground, etc. Always test with a multimeter. Probe between suspected hots–if the reading exceeds ~240V, both wires are live but on separate phases. If ~0V, they’re likely on the same phase and unsuitable for split feeding.

1. Turn off power at the main panel.
2. Remove the receptacle cover plate.
3. Pull the device gently from the box, exposing wires.
4. Label each wire with masking tape before disconnecting.
5. Test each conductor with a multimeter in voltage mode (hot to neutral: 120V; hot to ground: 120V; neutral to ground: 0V).
6. Reconnect wires to the new receptacle, matching labels to terminals.
7. Secure the device back into the box, ensuring no bare wire is exposed.
8. Restore power and verify functionality with a plug-in tester.

Mixing up colors in split receptacles can create hazardous conditions. A reversed neutral (white on brass terminal) may cause phantom voltage on grounded surfaces. A swapped hot (black on silver terminal) energizes the neutral, risking shock when plugging in devices. Double-check connections against a schematic specific to your region–codes vary (e.g., Canada’s red/black usage differs from the US in some provinces).

How to Properly Link Conductors at an Intermediate Electrical Point

Turn off the circuit breaker supplying the segment where you’ll work. Use a non-contact voltage tester to confirm power is inactive at both the supply and downstream ports before proceeding.

Strip 12 mm of insulation from each conductor end using wire strippers, ensuring copper strands remain intact. Twist strands clockwise for solid contact when inserting into terminal clamps.

Identify the feed cable entering the first device box–its black (hot), white (neutral), and bare (ground) wires connect directly to matching screws on the primary receptacle. Loop each conductor clockwise around its screw, tighten to 12 inch-pounds torque, then fold excess length neatly into the junction space.

For the downstream segment, cut three 20 cm lengths of matching gauge wire–one black, one white, one green–and strip both ends. Link one end of each jumper wire to the respective screw on the first receptacle, then route the other end to the secondary device box via conduit or cable. Secure these jumpers with wire nuts rated for 14 AWG minimum, twisting clockwise before capping.

At the subsequent device box, connect the jumper wires to the corresponding screws: black to brass, white to silver, green to green. Ensure all screws are torqued identically to prevent overheating. Label the feed cable side “Line” and the downstream side “Load” on both receptacle faces with permanent marker for future reference.

Restore power and verify operation with a plug-in tester. If lights indicate reversed polarity or open ground, recheck connections in reverse order–beginning with the most downstream box and progressing toward the feed source.

Key Errors in Splitting a Branch Circuit for Dual Socket Installation

Connecting the neutral pigtail to the wrong terminal–typically the brass screw–creates a parallel path that violates NEC 300.13(B). This mistake allows current to split between two neutrals, overheating wires and tripping AFCIs prematurely. Verify the neutral lead is secured under the silver screw only, using a torque screwdriver set to 12 lb-in.

Backfeed Hazards from Improper Disconnects

Skipping the circuit breaker off before splicing risks backfeed through connected devices. A meter reading above 1 volt between the hot wire and ground at the junction box confirms residual current. Encase exposed conductors in approved splice connectors; twist-on caps lacking internal spring tension fail within months under thermal cycling.

Fault Type	Symptom	Test Method	Remedy
Neutral on hot terminal	Breaker trips on switch	Non-contact tester flashes both conductors	Relocate neutral to silver terminal
Missing strain relief	Outlet face wobbles	Pull test at 4 lb force	Install clamp rated for 14 AWG
Reversed hot/neutral downstream	Dim LEDs on GFCI protected load	Plug-in polarity checker	Reposition wires after breaker lockout

Loose terminal screws on continuous runs drop voltage under load, measured at 3.2V sag across a 15 W load. Pre-strip wires 0.75″ to match receptacle depth, bend hooks clockwise under screws, and tighten to 15 lb-in regardless of listed rating. Aluminum wires require antioxidant paste; neglecting this step raises resistance by 40% after one year.

Misidentifying Feed Direction

Tapping into the wrong side of the feed sends power upstream, energizing abandoned cables behind drywall. Label each conductor with heat-shrink tubing–black/red for feed, blue/yellow for downstream–before stripping. Verify feed continuity by disconnecting both sockets and confirming zero volts downstream with a multimeter; any reading indicates improper tap location.
