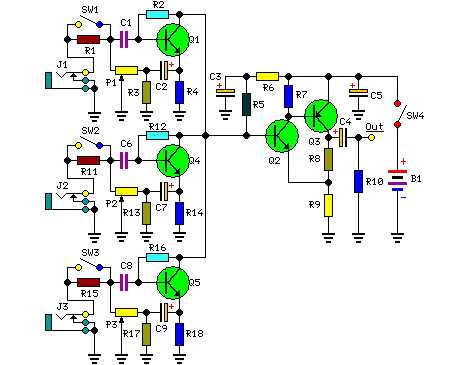

Building and Analyzing a Precision Audio Mixer Circuit Schematic

Start with a passive configuration when handling multiple input sources for minimal signal degradation. A well-designed network of resistors–typically 10kΩ for line-level signals–ensures proper isolation while preventing impedance mismatches. Active topologies introduce noise and require power, so reserve them for cases where gain or buffer stages are mandatory. For balanced connections, use an operational amplifier arranged in a summing stage, maintaining phase coherence with 1% tolerance precision resistors.

Ground loops disrupt clarity, so separate analog and digital reference planes. A star grounding layout minimizes interference–route all grounds to a single point near the power supply. Use shielded twisted pairs for critical paths, grounding shields at one end only to avoid hum. For RF interference suppression, incorporate ferrite beads or small-value capacitors (100pF) across transformer windings or sensitive nodes.

Test every stage with a 1kHz sine wave at -10dBV to verify linearity. Observe output levels on an oscilloscope–distortion below 0.1% indicates proper operation. Adjust resistor values if clipping occurs before expected voltage thresholds. For variable signal levels, a potentiometer wired as a voltage divider allows attenuation without introducing phase shifts. Avoid carbon-track trimmers in high-impedance paths–they degrade over time and introduce noise.

Incorporate a muting relay for silent switching between inputs. The relay should engage before signal paths reconfigure to eliminate pops. Use a debounce circuit with a 10µF capacitor and 10kΩ resistor to ensure stable operation. For headphone outputs, add a series resistor (47Ω) to prevent high-frequency oscillations from inductive loads.

Designing an Audio Blending System: Key Schematics and Practical Tips

Start with a balanced input stage using operational amplifiers like the NE5532 or TL072. These components minimize noise and distortion while maintaining signal integrity. Configure each channel with a 10kΩ resistor on the non-inverting input and a 47kΩ feedback resistor to set the gain at approximately 4.7x–ideal for line-level signals while preventing clipping.

For signal routing, incorporate SPDT switches (e.g., Omron G6K) at each input to toggle between high-impedance sources like guitars (1MΩ) and line-level devices (5kΩ). Use shielded twisted-pair cables for internal connections between the preamp and summing section to reduce electromagnetic interference, keeping runs under 30cm where possible.

Summing Network and Output Stage

Build the core combining network with precision 1% metal-film resistors (e.g., Vishay CMF55). Values between 4.7kΩ and 10kΩ per channel will provide adequate isolation while preserving stereo separation. Avoid carbon resistors–they introduce thermal noise and degrade high-frequency response.

Place a 1µF polypropylene coupling capacitor after the summing node to block DC offset. Follow this with a unity-gain buffer (e.g., OPA2134) to drive low-impedance loads like headphones (32Ω) or powered monitors (10kΩ). Include a 10kΩ potentiometer at the output for master level adjustment, ensuring it’s logarithmic to match human hearing perception.

Power Supply and Grounding

Use a dual-rail supply (±15V) with low-dropout regulators (LT1085) to maintain stable voltage under varying loads. Implement star grounding: connect all signal grounds to a single point near the power supply to eliminate ground loops. Add 10nF decoupling capacitors between the positive/negative rails and ground at each IC to filter high-frequency noise.

• Test signal paths individually with a 1kHz sine wave at -20dBu to verify frequency response (20Hz–20kHz, ±0.5dB).
• Measure crosstalk between channels–target below -80dB at 1kHz.
• Check for DC offset at the output: it should not exceed ±50mV.
• Use a spectrum analyzer to confirm harmonic distortion stays below 0.05% THD+N at 1V RMS.

Mount all components on a double-sided PCB with ground plane fills to reduce interference. Route high-current traces (power supply) away from sensitive signal paths. For external enclosures, use a Faraday cage configuration with aluminum sheets (2mm thick) to shield against RF interference from Wi-Fi or mobile devices.

Core Elements of a Signal Combiner Schematic

Begin with a local oscillator (LO)–its stability dictates harmonic suppression. A crystal-based source at 10–20 MHz ensures minimal phase noise, while RC or LC-tuned variants introduce drift but simplify design. Prioritize shielding for LO traces; even 50 mm of exposed copper can induce parasitic coupling at 1 GHz.

Select nonlinear components based on frequency range. Schottky diodes (e.g., HSMS-285x) excel below 1.5 GHz due to low barrier voltage (0.2–0.3 V) and fast recovery, but degrade above 2 GHz. For microwave bands, GaAs FETs (NE3210S01) offer higher 1 dB compression points (12 dBm) at the cost of complex bias networks.

Attenuation pads between stages prevent overload. A π-network with 3 dB stepped pads at the RF and IF ports maintains impedance matching while absorbing mismatches. Use thin-film precision resistors (0.1% tolerance) to avoid thermal drift; carbon composition types drift ±100 ppm/°C, rendering them unsuitable for sub-1 kHz accuracy.

Coupling capacitors determine low-end response–10 nF ceramic chips roll off at 100 Hz, while 1 µF electrolytics extend to 10 Hz but inject ESR-induced distortion above 100 kHz. For balanced designs, a trifilar-wound transformer (Mini-Circuits T1-6T) reduces common-mode noise by 40 dB at 50 MHz versus bifilar types.

Grounding paths must segregate analog, digital, and power planes. Star-point grounding at the central capacitor (tantalum, >220 µF) eliminates ground loops; a single-point junction near the LO minimizes return current paths. Avoid via clusters–each adds ~0.5 nH inductance, shifting ground reference by 3 mV at 100 MHz.

Output filters dictate spectral purity. A 5-pole Chebyshev LC network (0.1 dB ripple) attenuates spurs by 60 dB at 3× LO frequency, whereas a 7-pole elliptic type achieves 80 dB but introduces 0.5 dB passband ripple. For wideband applications, active filters (MAX275) provide tunable cutoff but clip at ±5 V rails.

Testing requires a differential probe (1 GHz bandwidth) to measure LO leakage at the IF port–typical values should remain below −40 dBm for a 0 dBm LO drive. Thermal validation uses a Peltier plate (−40°C to +85°C); components shifting ±0.5%/°C (e.g., NP0 capacitors) outperform X7R (±15%) in stability-critical stages.

Step-by-Step Guide to Sketching a Basic RF Frequency Converter Layout

Start by selecting a double-balanced switching architecture for optimal signal isolation. Place the local oscillator (LO) input at the top-left corner of the page, using a standard RF connector symbol (e.g., SMA or BNC). Ensure the LO trace width is 1.5× the signal traces to handle higher current–typically 0.5mm for 50Ω impedance on FR-4 substrate. Label the port with its expected frequency range (e.g., 1–3 GHz) in small text underneath.

Position the RF input port diagonally opposite, at the bottom-right, maintaining a 120-degree separation from the LO for minimal coupling. Connect both ports to a quad ring of discrete diodes (e.g., Schottky HSMS-2852 or similar) arranged in a diamond formation. Space each diode 5–7mm apart for clarity and ease of routing. Use short, straight lines for connections to minimize parasitics–bend traces only at 45-degree angles to avoid impedance discontinuities.

Route the intermediate frequency (IF) output to the center of the layout, using a balanced pair of traces for differential signals. Keep the IF traces symmetrical and at least 10mm away from the LO and RF paths to prevent unintended mixing products. Add a low-pass filter directly after the IF port: use two shunt capacitors (10pF each) and a series inductor (22nH) spaced 3mm apart. Specify component values in clearly marked boxes adjacent to each part.

Include DC bias points with 1kΩ resistors connecting to a 3.3V rail for each diode pair, ensuring consistent forward conduction. Use decoupling capacitors (100nF) at the rail entry and exit points to suppress noise. Ground symbols should be placed beneath each capacitor, connected via thermal vias (0.3mm diameter) to reduce ground loops. Verify the layout symmetry by folding the schematic along its vertical axis–mirrored tolerances should be within ±1mm.

Annotate critical nodes with designators (e.g., LO+, LO–, RF+, RF–, IF+, IF–) and voltage/current ratings. Use uppercase letters for port labels and lowercase for internal nodes (e.g., “v_bias1”). Add small circles at trace intersections to denote unconnected crossings, avoiding accidental shorts. For simulation-ready schematics, append Spice directives in a corner (e.g., “.model HSMS2852 D (Is=3e-8 Rs=6 N=1.08)”).

Finalize the drawing by replacing generic symbols with vendor-specific footprints (e.g., Infineon BAT15 for diodes) if PCB transfer is planned. Export the layout in SVG or DXF format with a 0.1mm grid to preserve precision during fabrication. Validate the schematic against a known configuration (e.g., Mini-Circuits MCA1–50+) by comparing conversion loss–target

Common Pitfalls in Signal Blending System Construction and Prevention Strategies

Avoiding inadequate ground plane separation often leads to crosstalk between high-gain and low-level stages. Separate analog and digital grounds at a single star point near the power supply, using a 10-20Ω resistor or ferrite bead for decoupling. Measure ground impedance with a network analyzer–keep it below 0.1Ω at 1 MHz.

Improper component placement causes parasitic oscillations. Keep feedback paths under 1 cm, and shield sensitive traces with a grounded copper pour. Use surface-mount components (1206 or smaller) to minimize lead inductance, especially for caps near op-amps. Test stability by injecting a 1 kHz sinewave and observing output phase margin; aim for >45°.

Neglecting power supply rejection ratio (PSRR) degrades performance. Choose operational amplifiers with PSRR >90 dB at 100 kHz, like the OPA2188. Add a ferrite bead (Murata BLM18PG121SN1) in series with supply lines, followed by a 10 μF tantalum and 0.1 μF ceramic cap. Verify ripple suppression with an FFT analyzer; reduce supply noise below 1 μV/√Hz.

Overlooking thermal drift introduces gain errors. Match resistor temperature coefficients (TC) within 25 ppm/°C–use thin-film arrays (Bourns CAT16). For critical stages, select op-amps with offset drift

Trace Routing and Decoupling Missteps

High-speed signals require controlled impedance traces. Calculate trace width for 50Ω using a PCB calculator: 0.18 mm wide on a 0.16 mm FR4 core with 35 μm copper. Route differential pairs with

Decoupling capacitors lose effectiveness if placed incorrectly. Mount 0.1 μF ceramics within 2 mm of each IC pin, using 0402 packages to reduce ESR. Add a 10 μF polymer cap (Nichicon F921A) for low-frequency stability. Measure capacitor self-resonance with an impedance analyzer; ensure it exceeds the highest signal frequency by 2x.

Ignoring signal chain bandwidth limits introduces distortion. Bandwidth must exceed the highest frequency by 10x–use op-amps with GBW >100 MHz for 10 MHz signals. Test with a two-tone input (1 MHz + 1.1 MHz) and measure third-order intercept (IP3) with a spectrum analyzer. Target IP3 >20 dBm to prevent intermodulation.

Failure to account for electromagnetic interference (EMI) corrupts measurements. Place a 1 mm guard trace around sensitive inputs, tied to the ground plane. Use shielded inductors (Coilcraft 0603HP) for switching regulators. Test radiated emissions with a near-field probe–reduce peaks below 30 dBμV/m at 100 MHz by adjusting return paths.
