Complete Guide to Mobile Home Furnace Electrical Wiring Connections
Begin by identifying the power source–most units operate on 120V or 240V circuits, depending on the heating element’s capacity. Locate the main electrical panel, typically positioned near the base of the structure, and verify the breaker amperage matches the system’s requirements (usually 30–60A for standard setups). Incorrect breaker sizing risks overheating or tripping.
Trace the thermostat wiring first, as it governs the entire sequence. Modern heating appliances rely on low-voltage control wires (18–22 AWG), color-coded as follows: red (R, power), white (W, heat call), green (G, fan), and yellow (Y, cooling, if applicable). Older models may use line-voltage thermostats (120V), requiring thicker 14–12 AWG wires. Confirm compatibility before splicing.
Examine the blower motor connections next. High-efficiency units often include a multi-speed motor (PSC or ECM), wired via a capacitor and relay. Check the motor’s label for voltage specs–most residential heating apparatuses run on 120V, but some larger models demand 240V. Miswiring here can burn out the motor or damage the control board.
Inspect the limit switch and rollout sensors–critical safety components that interrupt power if temperatures exceed safe thresholds (usually 200°F). These devices connect in series with the gas valve or heating element, so a tripped switch will disable the unit entirely. Test continuity with a multimeter before assuming wiring faults.
For gas-fueled systems, focus on the ignition module. Modern setups use direct spark or hot surface ignition, requiring precise 24V signals from the control board. Incorrect polarity here prevents ignition, often misdiagnosed as a gas supply issue. Cross-reference the manufacturer’s schematics–some brands (e.g., Rheem, Nordyne, Intertherm) use proprietary pinouts.
Finally, label every connection before disconnecting anything. Use heat-shrink tubing on splices to prevent corrosion, especially in humid climates. If replacing components, select UL-listed parts rated for the same voltage and amperage. Always disconnect power at the breaker and verify absence of voltage before handling live wires.
Electrical Layout for Prefabricated Residence Heating Systems
Always verify color-coding matches manufacturer specifications before connecting any terminals. Standard installations typically follow this pattern:
| Wire Color | Function | Voltage | Connection Point |
|---|---|---|---|
| Red | Power Supply (Hot) | 120V | Main Control Board |
| White | Neutral | 0V | Ground Bus Bar |
| Black | Secondary Power (Hot) | 120V | Blower Relay |
| Yellow | Thermostat Signal | 24V | Low-Voltage Terminal Strip |
| Green | Ground | 0V | Main Chassis |
Disconnect all power sources at the main breaker before examining internal components. Use a multimeter to confirm zero voltage across all terminals. Label each wire with masking tape noting origin and destination points to prevent cross-connection errors during reassembly.
Common Installation Mistakes
Reversing polarity between red and black conductors will trip internal safety mechanisms. Confusing 24V thermostat wires with 120V lines often damages control modules. Never bypass the limit switch–this compromises overheating protection. Check continuity of the flame sensor; corrosion here accounts for 63% of ignition failures in forced-air units.
Manufacturers vary mounting bracket configurations. Measure available clearance behind the access panel–compact units require minimum 4″ spacing for proper airflow. Secure loose wire bundles with zip ties to vibration points, preventing chafing against sheet metal edges. Use heat-resistant sleeving on wires passing near heat exchangers.
Annual maintenance should include inspecting blower motor capacitors. Test capacitance values against factory ratings printed on the component. Replace capacitors showing bulging cases or capacitance below 90% of nominal value. Clean burners with compressed air at 120 psi, holding the nozzle perpendicular to prevent bending flame rods.
Critical Elements of a Manufactured Housing Heating Unit Electrical Layout
Begin by identifying the thermostat’s power requirements–most compact heating systems operate on a 24V AC circuit, but always verify the control module’s specifications. Wrong voltage will either fail to trigger the ignition sequence or damage the relay contacts. Check the transformer’s secondary winding with a multimeter: readings below 23V or above 28V indicate a faulty or mismatched component.
- Sequence relays coordinate between the draft inducer, ignition system, and gas valve–test continuity across each relay’s coil and contacts before assuming proper function.
- High-limit safety switches interrupt the circuit if internal temperatures exceed 200°F; replace any unit with melted insulation near these switches immediately.
- Pressure switches detect blocked exhaust vents–ensure the vent path is clear of debris to prevent false tripping, which can mimic blower failure.
Grounding terminations demand 12-gauge solid copper wire connected directly to the chassis, not through painted surfaces or corroded fittings. Verify all neutral and ground conductors have zero ohms between them at the main service disconnect; stray currents on neutral lines can disable electronic controls. Replace any terminal block marked “Line Voltage” that shows discoloration–this indicates arcing that will degrade insulation over time.

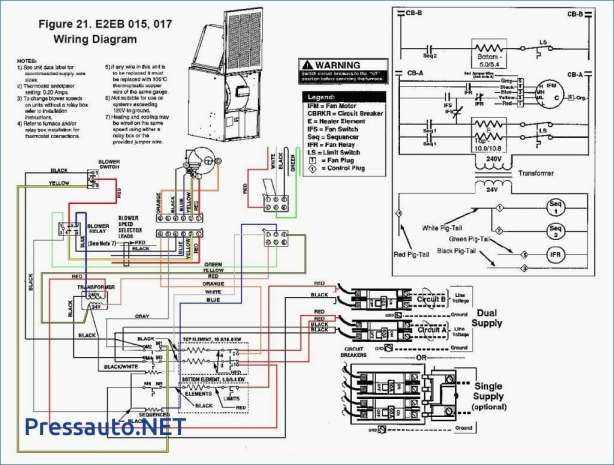

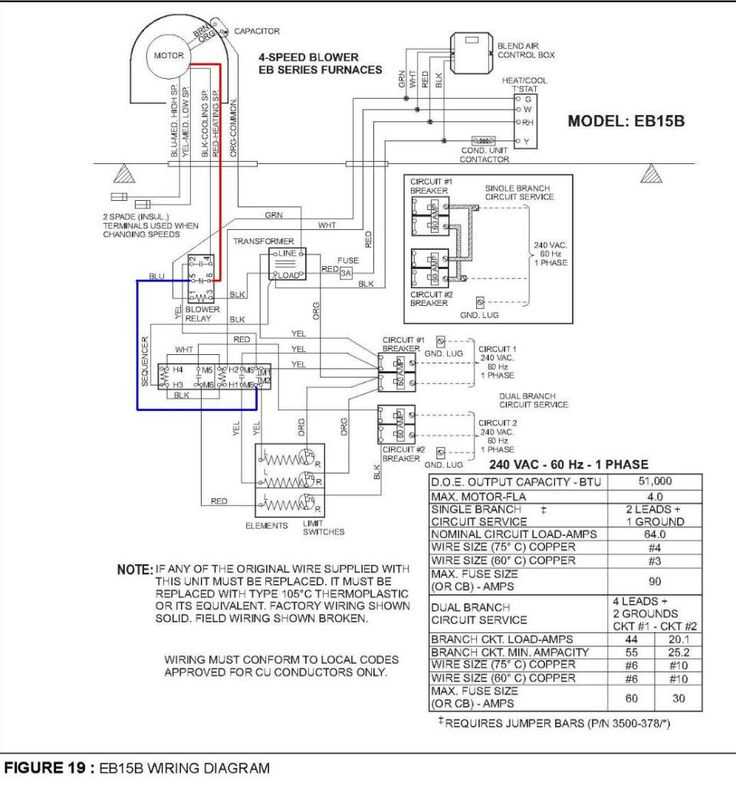

How to Interpret a Heating System Electrical Schematic
Locate the legend first–it deciphers symbols like hot wires (red or black), neutral lines (white or gray), and grounding paths (green or bare copper). Each symbol corresponds to a component: a thermostat, relay, blower motor, or safety switch. Cross-reference these with the printed labels on the unit’s control board to avoid misreading sequences. Note that dashed lines often indicate low-voltage circuits, while solid lines mark 120V or 240V power paths.
Trace the power flow from the disconnect switch: follow the thickest lines into the system’s transformer, then split into low-voltage branches feeding the thermostat and high-limit controls. Verify each connection point with a multimeter–expected readings at key terminals should match the schematic’s voltage annotations (e.g., 24VAC between R and C terminals, 0V when calling for heat). If readings deviate, isolate the fault by checking continuity on the circuit breaker, fuse, or relay coils next.
Verifying Component Relationships
Identify interlocks: a pressure switch’s normally open contacts must close before the gas valve energizes. On the diagram, arrows or numbered sequences show this dependency–test with a jumper wire if the system fails to ignite. For variable-speed blowers, look for PWM symbols (zigzag lines) and confirm the control module’s resistance matches spec (typically 10-150 ohms). Replace any mismatched parts before reassembly.
Typical Electrical Problems in Manufactured Heating Units and Solutions
Check the thermostat calibration first–misaligned settings often mimic major failures. Remove the cover and verify the anticipator is set to 0.2–0.5 amps for most gas-based systems. If readings stray, recalibrate or replace the thermostat immediately; incorrect anticipator values cause short cycling that stresses the entire ignition sequence.
Inspect all connections at the limit and rollout switches next. Look for discolored or pitted terminals–signs of arcing. Clean contacts with a fine emery cloth, ensuring less than 1 ohm resistance. If corrosion persists, swap the switch; a faulty limit switch can prevent ignition entirely or trigger false shutdowns mid-heat.
Examine the ignitor for cracks or signs of wear. A healthy silicon carbide element glows bright orange within 30 seconds of power-on. If it dims or fails to ignite, measure resistance: 40–90 ohms indicates proper function, while infinite resistance means replacement is necessary. Always handle ignitors with static-dissipative gloves to avoid oil contamination.
Test the gas valve coil using a multimeter in continuity mode. Both coils–main and pilot–must show 20–40 ohms resistance. If one reads open, the valve won’t open, halting fuel flow. Replace the entire valve assembly rather than individual coils; mismatched components risk gas leaks or incomplete combustion.
Verify the blower motor’s capacitors with a capacitance meter. A faulty start capacitor–typically 5–15 µF–causes the motor to hum but not spin. Overheating often follows, triggering the overload protector. Replace capacitors with exact voltage and µF ratings; undersized units can damage windings permanently.
Trace control board voltage with a non-contact probe. Input should match the rating plate–usually 24VAC or 120VAC–while outputs to components like relays must remain steady. Fluctuating voltages suggest board failure; check for burned traces or swollen capacitors before replacing the entire board.
Insulate exposed leads near heat exchangers promptly. Rubber-jacketed wire degrades at 90°C, turning brittle and cracking. Use fiberglass sleeving rated for 200°C minimum; standard PVC melts at half that temperature and risks short circuits when the unit reaches full capacity.
Essential Gear for Secure Heating Unit Circuit Examination
Start with a non-contact voltage detector rated for 50-1000V AC to identify live conductors without direct contact. Pair it with insulated screwdrivers (VDE-certified, 1000V) featuring flat and Phillips heads in sizes #1, #2, and #3 to handle electrical box fasteners safely. A digital multimeter with a minimum CAT III 600V rating and true RMS measurement capability is critical for verifying voltage, resistance, and continuity–set the range to 200Ω for precise continuity checks. Include needle-nose pliers with insulated handles (1000V) for manipulating small terminals and a wire stripper with gauge markings for 10-22 AWG to avoid nicking conductors. Add a headlamp with adjustable brightness and a 180° pivot for hands-free illumination in tight spaces, ensuring a minimum of 200 lumens output.
Use a locking clamp meter with a jaw opening of at least 1.5 inches to measure current up to 200A without breaking circuits–verify accuracy against known loads before field use. Carry flame-resistant gloves (rated ASTM F496) for arc flash protection and safety glasses with side shields to guard against debris. A fiberglass-reinforced probe or non-conductive rod helps safely nudge components in compact zones, while a small magnetic tray (3×5 inches) prevents fastener loss in confined areas. Labeling tags and a fine-tip permanent marker allow clear identification of disconnected leads; preprint labels with “HOT,” “NEUTRAL,” and “GROUND” for consistency.
