How to Wire a Moto Horn Complete Connection Guide and Diagram

Connect the relay terminal 85 directly to a switched 12V source–use the fuse box tap labeled “ACC” or an ignition-controlled wire. Avoid splicing into high-load circuits like headlights or cooling fans; voltage drops will trigger erratic operation. Terminal 86 grounds to the chassis using a ring terminal secured with a 6mm bolt–clean paint or corrosion from the mounting surface first for reliable contact.

For the trigger wire (relay terminal 30), run 14-gauge cable from the device switch to the relay, keeping it away from sharp edges or moving parts. Use heat-shrink tubing or loom to protect exposed sections near the engine bay. The output (relay terminal 87) connects to the sound emitter with 12-gauge wire–thicker gauge handles inrush current when pressed.

If integrating with a factory system, locate the existing signal wire at the steering column connector (often green/white or blue/red for Asian makes, brown or purple for European). Test for voltage (0.5–1.0V) when the original control is activated before tapping. For standalone setups, install a dedicated push-button switch on the handlebar or dash; use a 3A fuse inline with the positive wire to prevent short circuits.

Polarity matters for piezoelectric units–reverse connections may cause permanent damage. For air-driven compressors, mount the relay within 30cm of the pump to minimize voltage loss. Always verify circuit continuity before final assembly to avoid intermittent faults.

Connecting Acoustic Signal Components: A Practical Guide

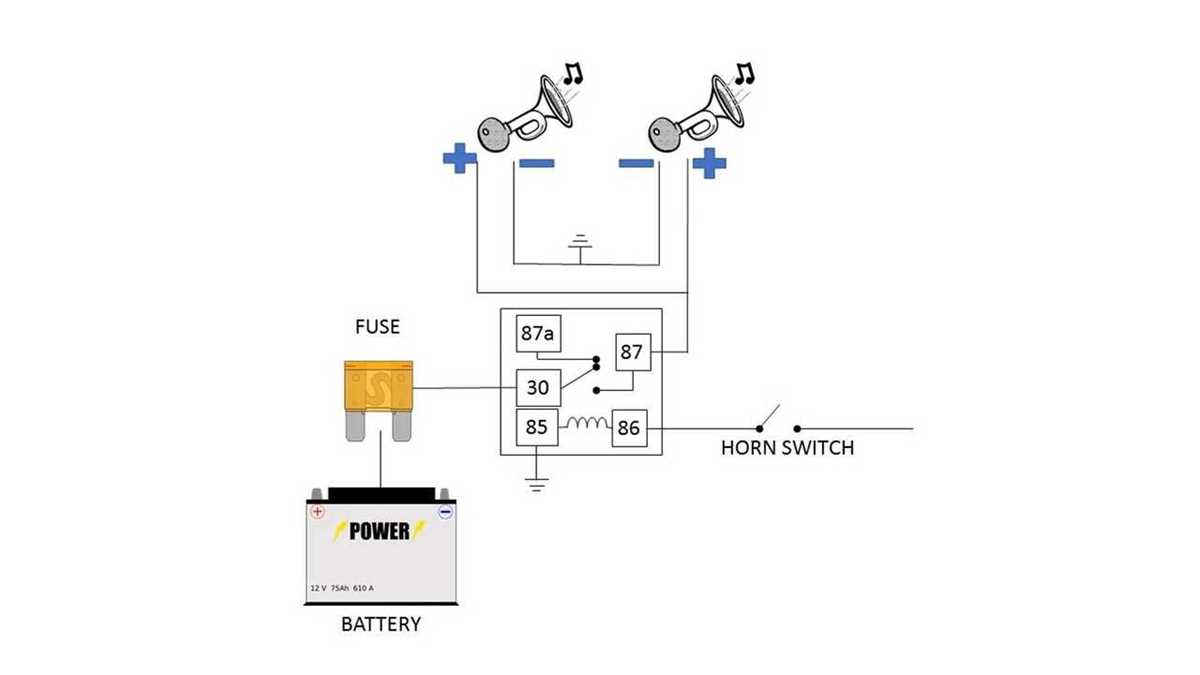

Start by identifying the power source terminals–typically a 12V battery lead–and the ground point on the vehicle’s frame. Use a relay if the current exceeds 5 amperes to prevent overheating in the control switch. The relay’s 85 pin connects to the switch, 86 grounds to the frame, 30 attaches to the battery via a fuse (10-15A recommended), and 87 routes to the acoustic device. For direct wiring without a relay, ensure the switch can handle the load (check the component’s specifications, e.g., 3-8A for most compact signals). Avoid splicing into existing circuits like headlights or ignition systems–dedicated wiring reduces voltage drop and interference.

Component	Wire Gauge (AWG)	Fuse Rating (A)	Notes
Relay coil (85-86)	18-20	N/A	Low-current trigger
Power feed (30-87)	14-16	10-15	Fuse as close to battery as possible
Ground (frame)	14-16	N/A	Sand paint for clean contact
Control switch	18	N/A	Momentary or latching types compatible

Troubleshooting Common Issues

If the acoustic device fails to activate, first check for 12V at the power input using a multimeter. Voltage below 11V suggests a weak battery or excessive resistance–clean corroded terminals or upsize the wire gauge. No voltage? Trace the circuit back to the fuse: a blown fuse often indicates a short circuit (inspect wires for chafing against sharp edges). If the relay clicks but the device doesn’t sound, measure continuity between the relay’s 30 and 87 pins–no continuity means a faulty relay. For intermittent operation, secure all connections with heat-shrink tubing to prevent vibration-induced failures.

Pinpointing Critical Elements in a Bike Alert System

Begin by locating the signal actuator button near the handlebar controls–most models integrate it with the turn indicator or headlight switch. Verify its mechanical condition: corrosion on contacts often disrupts current flow, mimicking a faulty unit when the issue lies in connectivity. Use a multimeter set to continuity mode to test button functionality; press the actuator while observing the reading–a consistent beep confirms operational contacts.

Trace the first conductive path from the actuator to the relay module, typically housed beneath the seat or fairings. Modern dual-tone systems employ a compact relay box containing two distinct electromagnetic switches, each governing a separate acoustic emitter. Identify the relay by its four-pin configuration: two terminals for control (85 and 86) and two for load (30 and 87). Label each connection before disassembly to avoid cross-wiring during reassembly.

Inspect the relay’s internal coil and contacts using a 12V test light. Connect the light’s clip to the battery’s positive terminal, then probe relay terminal 85–illumination indicates proper ground signal from the button. Next, switch the light probe to relay terminal 87; activation of the acoustic device confirms the relay’s ability to carry current. If testing fails, replace the relay rather than attempting repairs–diaphragm fatigue or overheating commonly degrades internal components beyond practical service.

Examine the acoustic emitters themselves, noting their mounting orientation. Single-disc units produce 90-110 dB, while dual-disc configurations reach 115-125 dB through synchronized oscillation. Check for physical damage: cracked casings or loose mounting brackets reduce sound pressure output. Measure emitter resistance with the multimeter; values outside 1.5-3.0 ohms suggest internal short or coil failure. Replace units pair-wise to maintain consistent tonal quality.

Analyze the power distribution network, focusing on the fuse holder. Most bikes incorporate a dedicated 10-20 amp fuse for the alert system, separate from lighting circuits. Locate the fuse block near the battery or under the instrument cluster–corrosion here mimics system-wide failure. Test the fuse with a multimeter; resistance readings above 0.1 ohms indicate degradation. Always replace with the manufacturer-specified rating; substituting higher-value fuses risks overheating wiring harnesses.

• Battery terminals: Clean oxidation with a wire brush and apply dielectric grease to prevent future buildup.
• Ground connections: Sand the chassis mounting points to bare metal before reattaching emitter brackets.
• Conductive paths: Route wires away from exhaust components and sharp edges to avoid chafing.
• Voltage drop testing: Connect the multimeter in-line during system activation–readings below 11.5V suggest corroded junctions.

Step-by-Step Guide to Locating Your Bike’s Signal Circuit Path

Start by identifying the sound emitter’s power source. Disconnect the battery terminal first to prevent short circuits. Use a multimeter set to continuity mode to probe the lead running from the relay to the emitter–it’s typically a 14–16 AWG wire, color-coded yellow or black with a stripe. Trace the conduit from the relay housing, often mounted near the steering column or under the tank, following the harness until you reach the emitter’s connector. If the wire disappears into a loom, gently separate the sheathing with a plastic pry tool to avoid damaging insulation.

Check for voltage drops at key junctions. Reconnect the battery and switch the ignition to the “on” position. With the multimeter in DC voltage mode (set to 12V range), touch one probe to the relay’s output terminal and the other to a known ground–chassis bolts or the battery’s negative terminal work best. A healthy circuit should read near 12V; readings below 10.5V indicate corrosion or a frayed conductor. Move systematically: test the relay input, then the fuse block, and finally the emitter’s connector pins. Replace any fuse showing resistance above 0.5 ohms.

Isolating Intermittent Failures

Press the signal button while observing the multimeter. If voltage appears momentarily then drops, the issue lies in the switch or relay contacts. Remove the switch assembly–most press-fit into the handlebar–disassemble the unit, and clean the contacts with 1000-grit sandpaper, followed by electrical contact cleaner. Reassemble and test; if the problem persists, swap the relay with a known-good unit from another system (e.g., headlight). Avoid reusing relays older than five years–their internal coils degrade.

For hidden breaks, use a tone generator (Never exceed 5V output) clipped to the suspect line. Run the pickup probe along the harness; a sudden drop in tone signals a break or chafed spot. Repair by splicing in new wire using solder (not crimp connectors), heat-shrink tubing, and dielectric grease. Secure the repair with spiral wrap every 15 cm to prevent vibration damage. After reassembly, test ride at low speed, activating the signal every 30 seconds to confirm consistent operation–erratic behavior suggests residual corrosion or a mislocated ground.

Standard Signal Wire Color Schemes in Two-Wheeler Audible Devices

Most Japanese manufacturers follow a consistent color standard for alarm systems: blue wires typically carry the positive feed, while brown or black stripes denote ground connections. Yamaha and Honda often pair blue with green/white stripes for relays, though Suzuki occasionally swaps this to solid yellow for the power lead. Always verify the bike’s service manual–aftermarket kits frequently mislabel these, leading to weak output or short circuits.

European brands like BMW and Ducati use reversed polarity more commonly than Asian models. The main power wire is usually red with a thin blue tracer, while the ground may appear as pure black or brown with a white stripe. KTM stands out with orange cables for the main circuit, a holdover from their automotive division’s early wiring conventions. When splicing these, avoid twisting; crimp connectors rated for 16-18 AWG prevent voltage drop under load.

Royal Enfield keeps wiring simple: solid red for the feed and black for earth. The Classic series sometimes adds a fused red/black pair for accessory circuits–never assume these are interchangeable. Triumph uses purple for accessory power but retains red for high-current feeds, often splitting the circuit with a diode to prevent backfeed. Always test for continuity before connecting; a multimeter set to 200Ω confirms proper contact.

Avoid relying on universal color charts for older models. Harley-Davidson, for instance, switched from orange to violet for power leads in 2007 but maintained black for ground across all years. Aprilia’s RSV4 uses a two-wire system–red for positive, black/yellow for ground–while their smaller bikes adopt a red/black pair. When retrofitting, replace stock connectors with waterproof terminals; standard bullet connectors corrode within months in coastal climates.

Regional Variations and Aftermarket Pitfalls

Brazilian and Indian-built bikes often deviate from global standards due to local regulations. Hero and TVS frequently use blue for ground and red for power, directly contradicting Japanese norms. Chinese manufacturers (CFMoto, Zontes) mix colors unpredictably–white may serve as positive, black as negative, or vice versa. Third-party alarm kits exacerbate this by using thin-gauge wires (22 AWG) prone to melting under sustained current. Always upsize to 18 AWG silicone-insulated wire if adding a relay.

Diagnosing miswired setups requires a systematic approach: disconnect the battery first, then probe each lead with a 12V test light. If the light fails to illuminate on the presumed power wire, toggle to the next candidate. Shorts often occur where wires bend near the fork or headlight–inspect these points for chafing before reinstalling trim. For integrated ECU systems (e.g., Kawasaki H2), consult the dealer for pinouts; aftermarket diagrams omit critical fuse ratings or diode placements.

Critical Checks Before Final Connection

Never assume the fuse box accommodates additional loads. Most stock fuses handle 10A; exceeding this risks blowing the circuit under peak draw. Install an in-line fuse holder with a 15A fuse near the battery for standalone alarms. For multi-function devices (siren plus flasher), split the circuit using a relay–coil wires should be 20 AWG, while output cables require 14 AWG to handle 20A surge. Double-check insulation integrity after routing; exposed strands near metal edges cause intermittent failures.
