Step-by-Step Guide to Designing a Reliable Motor Control Circuit
Begin with a half-bridge configuration for bidirectional actuator management. Use MOSFETs (e.g., IRF540N) instead of bipolar transistors for lower gate drive requirements and faster switching. Tie the high-side transistor’s gate to a bootstrap capacitor (100 nF) to eliminate the need for an isolated power supply. Ensure the capacitor’s voltage rating exceeds the supply voltage by at least 20% to prevent breakdown during transient spikes.
Incorporate current sensing via a shunt resistor (0.01 Ω, 1 W) placed on the low-side path. Pair it with an operational amplifier (LM358) configured for a gain of 20–50 to amplify the signal for microcontroller analog inputs. Avoid placing the resistor on the high side–common-mode voltage fluctuations introduce measurement errors. Add a small bypass capacitor (1 nF) across the resistor to filter high-frequency noise without impacting low-speed response.
Isolate feedback loops using optocouplers (HCPL-3120) if the power stage operates at voltages above 48 V. Keep trace lengths under 2 cm between the drive IC and transistor gates to minimize inductance–longer traces cause ringing and increase switching losses. For PWM frequencies above 20 kHz, use a dead-time generator (e.g., UC3843) set to 2–5 μs to prevent shoot-through during commutation.
Decouple the power rail near each active component with both a bulk capacitor (100 μF electrolytic) and a ceramic capacitor (0.1 μF). Place the ceramic capacitor within 5 mm of the transistor’s drain-source terminals. If thermal conditions permit, derate all passive components by 30% to extend operational lifespan under continuous loads.

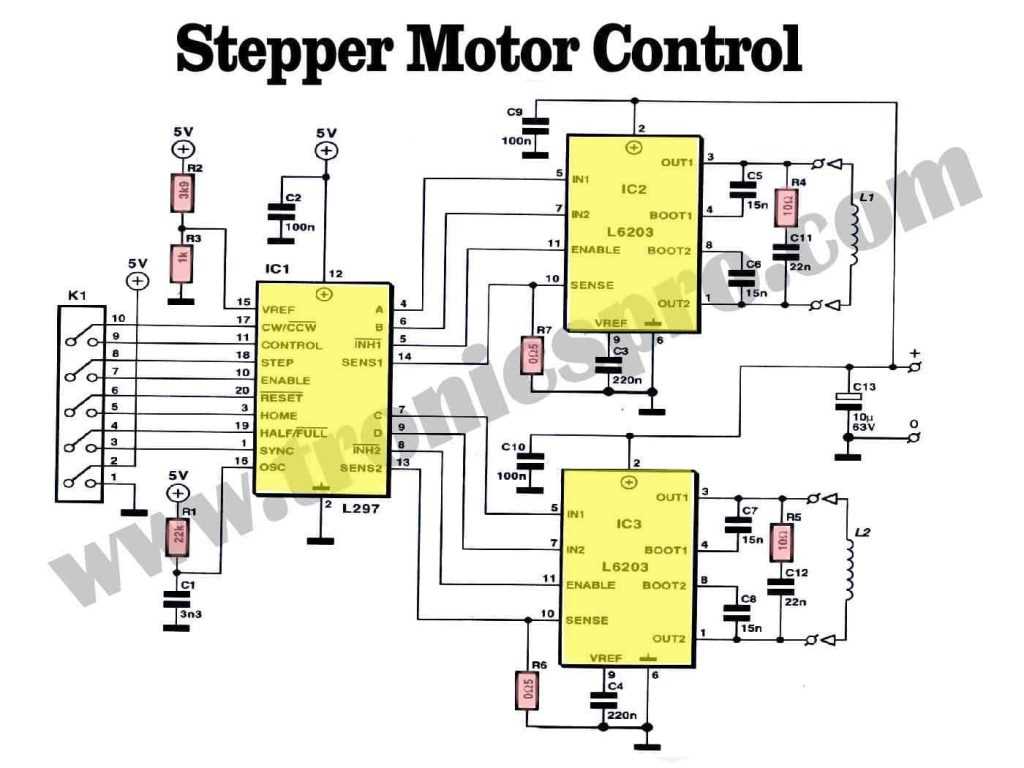

When integrating microstepping, use a dedicated driver IC (DRV8825) with built-in current regulation. Set microstep resolution via resistor dividers–higher resolutions demand lower inductance coils (≤1 mH) to prevent torque ripple at low speeds. For closed-loop applications, embed an encoder (AS5600) with a resolution of at least 10 bits, ensuring the feedback signal is sampled at 1 kHz or faster to maintain stability during dynamic loads.
Designing a Reliable Power Drive Schematic
Start by selecting a solid-state relay with a switching capacity exceeding the drive’s peak current by at least 30%. For a 10A actuator, opt for a 13A or higher relay to prevent overheating under transient loads. Use twisted-pair wiring between the relay and the logic board to minimize electromagnetic interference–ground both ends at a single point near the power source. Place a flyback diode directly across the actuator terminals, reverse-biased to the supply voltage, to protect the relay contacts from voltage spikes during operation.
For precise operation, integrate a pulse-width modulation (PWM) source capable of 20 kHz or higher to reduce audible noise and improve response time. Ensure the gate driver for the switching element has a propagation delay under 50 ns to maintain accurate timing. Include a 100 Ω resistor in series with the gate to dampen oscillations and prevent false triggering. Verify the entire layout with a thermal camera after 30 minutes of continuous use–hotspots exceeding 60°C indicate insufficient heat dissipation or overloaded traces.
Key Components Selection Checklist
- Relay: 30% above peak current, optocoupler isolation for logic safety
- Flyback diode: Schottky type (e.g., 1N5822) for faster recovery
- PWM frequency: ≥20 kHz, linear ramp for smooth acceleration
- Gate resistor: 100 Ω carbon film, low inductance
- Heat management: Aluminum heatsink with 5°C/W rating or better
Testing and Validation Protocol
- Measure supply voltage stability under full load–variations above ±2% require bulk capacitance adjustment
- Monitor relay coil current–spikes over 50 mA suggest poor contact alignment
- Record actuator response time with a dual-channel oscilloscope, targeting ≤10 ms rise/fall for 90% duty cycles
- Perform 1,000 on/off cycles at 80% load to verify relay longevity–replace if resistance exceeds 0.5 Ω
- Cross-check logic inputs with an 8-bit analyzer; glitches shorter than 1 μs should not trigger unintended actions
Critical Elements for a Foundational DC Actuator Regulation Setup
Begin with a switching element capable of handling the actuator’s stall current–typically an H-bridge or a solid-state relay. For a 12V DC setup drawing 2A under normal load, select a MOSFET like the IRF540N (100V, 33A rating) or a relay with a 5A contact rating. Avoid undersized components; thermal runaway occurs swiftly under sustained high currents.
Voltage regulation demands precision. A linear regulator (e.g., LM317) suffices for low-power applications, but switch-mode power supplies (SMPS) dominate for efficiency. For a 12V input, use a buck converter module (MP2307) with adjustable output–set it 0.5V above nominal actuator voltage to compensate for wire resistance. Below are key parameters for common setups:
| Actuator Voltage | Input Range | Recommended SMPS | Efficiency Target |
|---|---|---|---|
| 6V | 7-24V | XL6009 (boost/buck) | ≥85% |
| 12V | 12-36V | MP2307 (buck) | ≥90% |
| 24V | 18-48V | LM2596 (buck) | ≥88% |
Fuse placement is non-negotiable. Insert a slow-blow fuse rated at 150% of the actuator’s maximum continuous current before the switching element. For 2A systems, use a 3A fuse. Place it adjacent to the power source to isolate faults rapidly. PolySwitch resettable fuses (e.g., RXEF025) offer reusable protection but add 0.5-1Ω resistance–account for voltage drop in calculations.
Feedback mechanisms refine operation. A potentiometer (10kΩ linear taper) or Hall-effect sensor (e.g., Allegro A1324) monitors shaft position, while a current-sense resistor (0.1Ω, 5W) tracks load conditions. Connect the sense resistor in series with the actuator’s negative terminal; amplify the voltage drop using an op-amp (LM358) configured for differential measurement. Scale readings to 0-5V for microcontroller inputs.
Transient suppression protects against voltage spikes. Install a flyback diode (1N4007) across the actuator terminals, cathode to positive. For inductive loads above 1A, add a snubber circuit (0.1µF capacitor + 10Ω resistor in series) parallel to the diode. In PWM-driven setups, decouple the switching element’s gate with a 10kΩ resistor and a 1µF capacitor to ground to prevent high-frequency oscillations.
Step-by-Step Wiring Guide for a Single-Phase AC Drive Assembly
Verify the power source voltage matches the device label–most residential units require 230V, but industrial variations may use 115V or 400V. Use a multimeter to confirm live wires before proceeding.
Identify the main coil terminals: the run winding typically connects to terminals labeled U1 and U2, while the start winding links to U1 and a auxiliary terminal, often marked Z1 or V1. Cross-reference with the manufacturer’s data sheet if markings are unclear.
Attach a thermal overload protector in series with the supply line–position it between the power source and the run winding. Select a protector rated for 1.15 times the drive’s full-load current to prevent false tripping.
Connect a centrifugal switch or relay to the start winding if the device lacks one. Wire the switch so it opens at 75-80% of synchronous speed, cutting power to the start winding to avoid overheating. For capacitor-start units, place the capacitor in series with the start winding, ensuring microfarads match the spec sheet (usually 50-400µF for fractional horsepower assemblies).
For reversible operation, add a double-pole double-throw switch to swap the start winding connections relative to the run winding. Label switch positions clearly–incorrect switching can damage components.
Ground the metal housing using a 10-gauge green wire to a dedicated earth terminal, avoiding shared neutrals. Test continuity between the housing and ground with the multimeter set to ohms.
Use crimp connectors and heat-shrink tubing on all terminals to prevent corrosion–solder alone is insufficient for vibration-prone environments. Torque terminals to manufacturer specifications (typically 7-10 lb-in for 14-10 AWG wire).
Before energizing, spin the rotor by hand to check for mechanical binding. Apply power and monitor initial current draw–it should peak briefly then settle near the nameplate amps. If humming persists beyond 3 seconds, disconnect immediately and recheck start winding components.
Frequent Errors in Relay-Driven Actuator Wiring Schematics
Reverse polarity connections on switching coils destroy relays within seconds. Ensure the coil’s positive terminal aligns with the power source’s positive–most datasheets specify this, yet improper installation persists. Test continuity first; a single miswire wastes components and time.
Neglecting suppressor diodes across inductive loads triggers voltage spikes that erode relay contacts. Attach a flyback diode directly across the coil terminals, cathode to positive. Ignoring this shortcuts relay lifespan and causes intermittent failures.
Misapplied Contact Configurations
Using normally open contacts for latching hold-in paths traps operators–momentary start buttons become stuck. Implement a separate auxiliary relay with normally closed contacts for the hold-in path, releasing only on stop command or overload trip.
Overloading contacts shortens life expectancy. Check the relay’s resistive and inductive ratings; exceeding them pits contacts and invites welding. Replace undersized relays or redistribute load across multiple contacts–parallel switching reduces arc erosion.
Improper wire sizing introduces voltage drop that weakens actuator torque and overheats conductors. Follow the National Electrical Code ampacity tables for copper and aluminum; undersized wires fail before relays do.
Grounding and Noise Pitfalls
Floating neutral returns on single-phase setups cause unpredictable relay behavior. Bond the neutral to ground at the panel–ignoring this induces transient currents that toggle relays erratically.
Inductive load kickback radiates interference that falsely triggers adjacent relays. Separate control and power segments with shielded cable; ground shields only at one end to prevent ground loops.
Daisy-chaining multiple actuators through serial relay networks creates cumulative voltage drop. Wire each load directly from the power bus or use heavier gauge conductors instead of multiple splices.
