Step-by-Step Guide to Building a Motor Direct Online Starter Wiring Layout
Begin by ensuring the supply lines connect through a thermal overload relay before reaching the contactor coils. A 3-phase 400V configuration demands 2.5mm² cross-section wires for currents up to 16A to prevent voltage drop under startup surges. Position the main contactor adjacent to the overload relay–distance exceeding 30cm increases resistance in the control loop, risking delayed activation.
Wire the start pushbutton in parallel with the contactor’s auxiliary NO contact (typically terminal 13/14) to maintain the latch after release. Use a 24V DC control circuit if the system includes PLCs or relays with lower voltage ratings–mixing 230V AC with DC coils causes arcing at the contacts. For motors above 7.5kW, include a pre-charge resistor (10Ω, 50W) across the contactor’s main terminals to soften inrush current.
Ground the motor frame directly to the panel’s earth busbar with a 10mm² green/yellow cable. Avoid daisy-chaining grounds–each component’s earth connection must terminate at a single point to eliminate stray voltages. Test the schema with a multimeter in continuity mode before powering on: verify 0Ω across the contactor coil when the start button is pressed, and open-circuit when released.
For delta-wired machines, use a dual-contact schema–one contactor for line switching, another for winding closure. Label wires with heat-shrink sleeves (not tape) to withstand vibration. Store a spare 10A fuse and contactor coil in the panel door for rapid replacement during faults.
Direct Online Activation Scheme for Electrical Drives
Use a three-phase contactor rated for 120% of the drive’s full-load current as the primary switching device. The contactor must include a 24VDC or 230VAC coil compatible with standard control voltage supplies. Verify the contactor’s thermal withstand capacity matches the drive’s locked-rotor current, typically 6–8 times the rated current for 10 seconds.
Connect overload relays in series with each phase between the contactor and the drive terminals. Select relays with Class 10 trip characteristics to interrupt faults within 10 seconds at 6 times the current. Ensure the relay’s current range aligns with the drive’s nameplate current, allowing ±10% adjustment for fine-tuning. Bypass any auxiliary contacts on the relay unless sequencing with external timers.

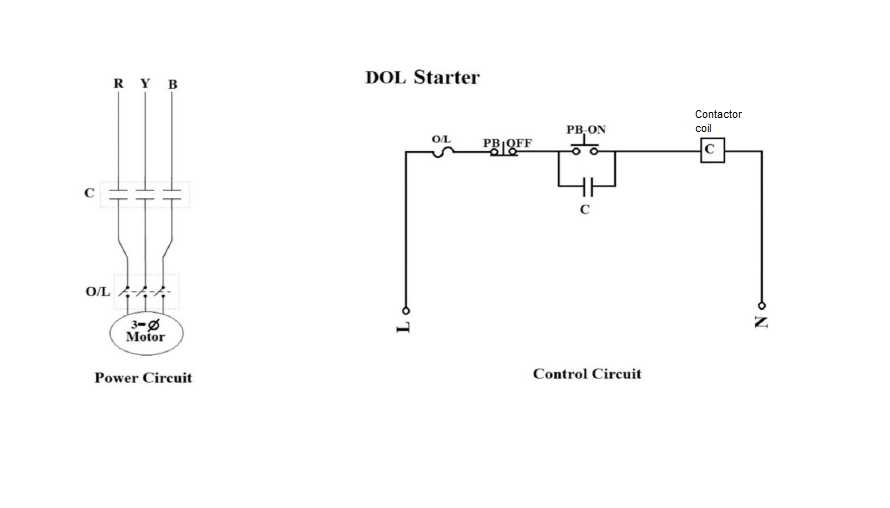

Wire the control circuit with NO pushbutton switches: one for activation, another for deactivation, and a hold-in contact across the activation switch. Use 1.5 mm² copper cables for control wiring to minimize voltage drop. Include a 2A fuse in the control circuit to protect against short-circuits without nuisance tripping. Mount the fuse holder within 1 meter of the power source for accessibility during maintenance.
Test the scheme by applying power and briefly pressing the activation switch. The contactor should energize immediately, and the hold-in contact must latch the circuit. Measure phase voltages at the drive terminals with a True RMS meter–each reading should deviate no more than ±5% from the supply voltage. If imbalance exceeds 2%, recalibrate the overload relays or inspect cable termination tightness.
Document the final configuration with phase colors (L1: brown, L2: black, L3: gray), terminal labels, and a legend for relay settings. Store this record inside the control panel door to expedite troubleshooting. Replace all cover screws after testing to prevent dust ingress, which degrades contact reliability over time.
Core Elements Needed for Direct-On-Line Activation Setup
Select a contactor rated 20-30% above the driven equipment’s full-load current to handle inrush surges without premature failure. Schneider LC1D contactors or Siemens 3RT series offer reliable thermal resilience for frequent starts.
Incorporate overload relays calibrated to trip at 110-120% of nominal current, ensuring thermal protection while allowing temporary overloads. Thermal models like ABB TA25DU or Omron K8AK provide adjustable class 10/20/30 settings for diverse duty cycles.
Fuse or circuit breaker selection must align with the contactor’s interrupting capacity–typically 10kA for industrial applications. Use Type D or gG fuses for time-delay characteristics, preventing nuisance tripping during transient spikes.
Control Circuit Essentials
Pushbuttons–momentary NO/NC types–must withstand 10,000+ operations under AC-15 duty (IEC 60947-5-1). Industrial-grade buttons from Eaton or Weidmüller feature IP65 enclosures for dust/moisture resistance.
Auxiliary contacts on the contactor should match the coil voltage–usually 220VAC or 24VDC–to ensure consistent hold-in. Verify contact ratings exceed control circuit current to avoid pitting or welding.
Lamp indicators (24V/220V) clarify operational states: red for running, green for standby. LED variants reduce power consumption by 80% compared to incandescent, extending lifespan to 100,000 hours.
For three-phase systems, ensure phase sequencing relays (e.g., Carlo Gavazzi PR36) prevent reverse rotation, which can damage pumps or compressors. Install before the power disconnect for immediate fault detection.
Wiring gauges must comply with IEC 60228–typically 1.5mm² for control circuits and 4-6mm² for power lines–based on conductor length and voltage drop limits. Tinned copper enhances corrosion resistance in humid environments.

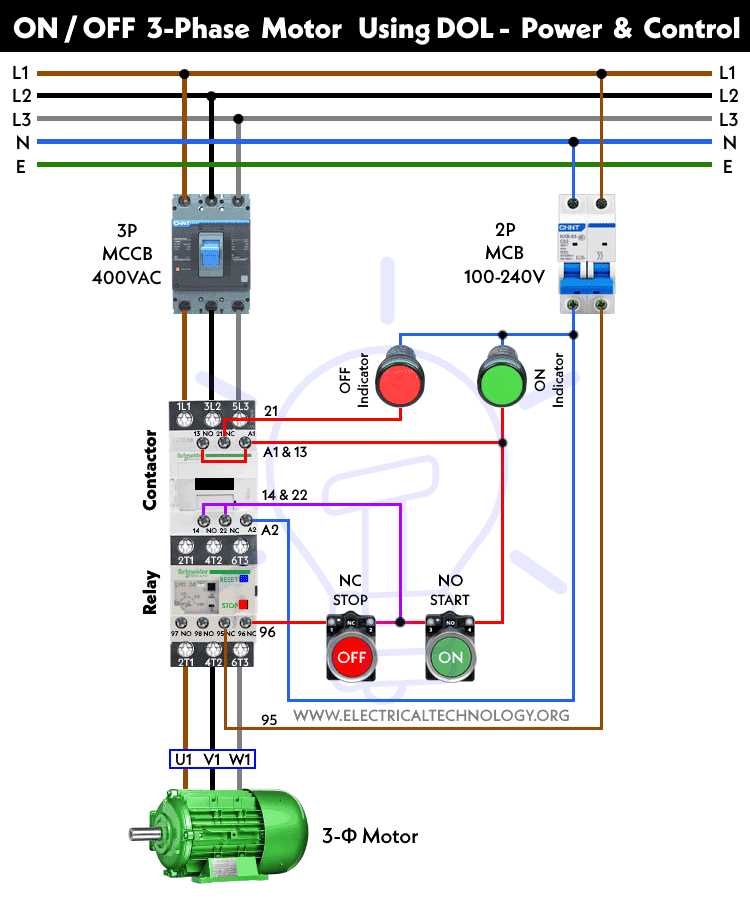

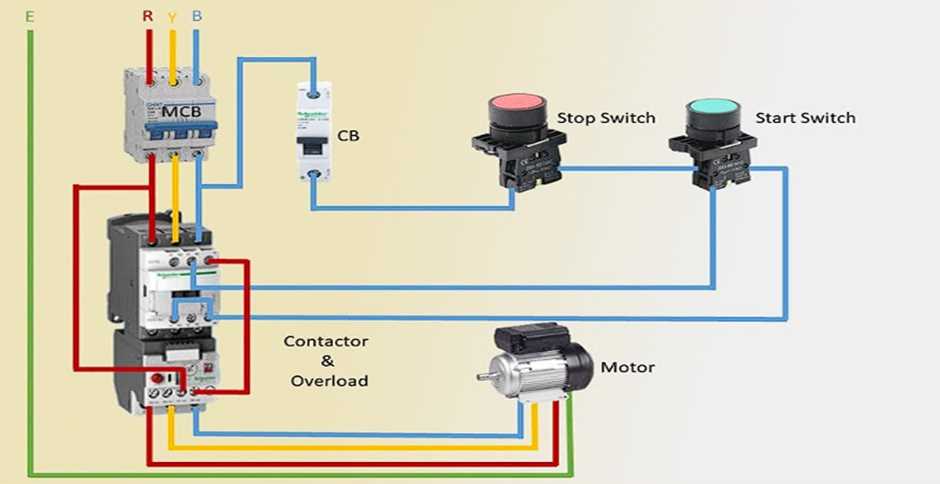

Step-by-Step Wiring Guide for a Direct-On-Line Activation Assembly
Begin by securing the power supply lines to the main contactor’s top terminals–connect L1, L2, and L3 to screws labeled 1, 3, and 5 respectively. Verify voltage compatibility: for 400V systems, ensure the thermal overload relay is set between 1.05x and 1.2x the full-load current of the driven equipment. Tighten terminals to 2.5Nm using a calibrated torque screwdriver; loose connections increase resistance, risking overheating.
- Route the output from the contactor’s bottom terminals (2, 4, 6) directly to the load’s input leads–polarity must match the supply.
- Attach the overload relay’s output terminals (T1, T2, T3) to the contactor’s coil; the coil voltage (24V, 110V, or 230V) dictates the auxiliary circuit wiring.
- Wire the start/stop pushbuttons in series: connect the normally open (NO) start button to the coil circuit, then bridge the stop button’s normally closed (NC) contacts across the start button to maintain the holding path.
- Ground all metallic enclosures using 4mm² green-yellow insulated cable, terminating at the nearest earth bar or designated grounding point.
Test sequence: depress the manual reset on the overload relay, press the start button, and confirm the contactor engages audibly–timestamp the initial inrush current surge (typically 6-8x running current) using a clamp meter. If the holding path fails, recheck the stop button’s NC contacts for continuity with a multimeter. For three-phase imbalance exceeding 3%, recalibrate the overload relay or inspect motor windings for partial shorts. Label all leads immediately with heat-shrink tubing or legible tags to prevent cross-phase errors during future maintenance.
Critical Errors in Direct-On-Line Power Unit Assembly
Incorrect wire sizing tops the list of preventable failures. Use conductors rated for 125% of the full-load current. For example, a 10 HP drive (40A FLC) requires at least 10 AWG copper wire (55A ampacity). Undersized cables overheat, degrading insulation and tripping protective devices prematurely. Verify local codes–some regions mandate 150% derating for ambient temperatures above 30°C.
Skipping contactor coil voltage verification causes immediate malfunction. Match the coil rating to the control voltage (e.g., 120V, 230V, 400V). A 230V coil energized at 400V burns out in seconds; conversely, 400V coils at half-voltage fail to pull in reliably. Measure before connection–transformer taps often differ from nominal labels.
Improper phase sequence leads to reverse rotation, damaging pumps, compressors, or conveyors. Test with a phase rotation meter before final connection. For three-phase systems, swap any two lines to correct direction. Label terminals permanently to prevent future errors during maintenance.
Overcurrent Device Misconfiguration
| Load Type | Recommended Fuse/MCB Rating | Notes |
|---|---|---|
| General industrial load | 200-250% FLC | Avoid time-delay types for resistive loads |
| High-inertia drives (crushers, centrifuges) | 275-300% FLC | Class 20 or Class 30 fuses required |
| Frequent start/stop applications | 175-200% FLC | Require oil-immersed or semiconductor fuses |
Grounding omissions create shock hazards and nuisance tripping. Connect the equipment grounding conductor (EGC) to both the load frame and the starter’s metal enclosure. Use green/yellow striped wire sized per NEC Table 250.122. A missing ground on a 50A system violates minimum 10 AWG requirements–corrosion at termination points worsens resistance.
Install auxiliary contacts incorrectly to prevent run feedback loops. Use normally open (NO) contacts for pilot lights/signals; normally closed (NC) for fault alarms. A common error: wiring NO contacts for stop signals renders emergency stops ineffective. Test each contact with a multimeter before energizing.
Control Circuit Pitfalls
Low-voltage control circuits (below 50V) need isolated transformers to prevent interference. Capacitors across stop/start buttons suppress transients that cause false triggering. For 48V systems, ensure button voltage ratings match–some industrial switches are only rated for 24V AC.
Final inspection must include torque verification. Loose terminals cause arcs and thermal runaway. Use a calibrated torque wrench: 9 Nm for 10-25A terminals, 15 Nm for 40-100A. Document torques in commissioning logs–vibrational loosening occurs within 200 hours if untightened.
