Complete Guide to Creating and Understanding MOV Schematic Diagrams

Use metal oxide varistors rated for 1.5–2 times the operating voltage of the circuit to ensure reliable clamping without premature degradation. For example, a 275V AC system requires a suppressor with a minimum breakdown voltage of 430V DC to handle transient spikes effectively. Reference the IEC 61051-1 standard for derating curves–this specifies how thermal stress impacts lifespan when subjected to continuous overvoltage.

Isolate the suppressor from inductive loads with a series resistor of 1–10Ω to limit inrush current. Inductive kickback from motors or transformers can exceed 1kA, and without impedance, the suppressor may fail catastrophically. Test suppression paths with a double-pulse waveform: first pulse simulates the surge, second measures recovery time–optimal performance occurs if clamping voltage returns to ≤110% of nominal within 50µs.

Incorporate thermal cutoffs alongside suppressors when ambient temperatures exceed 85°C. Metal oxide compositions degrade at 125°C; a bimetallic switch or PTC thermistor prevents thermal runaway. For three-phase systems, arrange suppressors in a delta configuration–this balances leakage current under steady-state conditions while maintaining equal protection across all phases during line-to-line surges.

Label critical nodes in the blueprint with nominal voltage, clamping voltage, and maximum surge current. A dumb graphic wastes time during troubleshooting; annotate suppression paths with actual test point data–e.g., “TP3: 560V/10µs, 20kA”. Validate layout symmetry: asymmetrical parasitic inductance between phases creates unequal surge sharing, reducing effectiveness by up to 40% in mixed-mode events.

Avoid placing suppressors near high-frequency switching nodes. Radiated EMI from SMPS can induce phantom triggering, forcing the suppressor into quasi-conductive mode. Use ground plane separation: keep suppression ground distinct from analog ground, connecting them at a single star point to prevent ground loops. For PCB designs, route suppression traces ≤2mm wide with ≥0.5mm spacing–this prevents arc-over during 6kV ESD tests.

Key Implementations of Metal Oxide Varistor Circuit Layouts

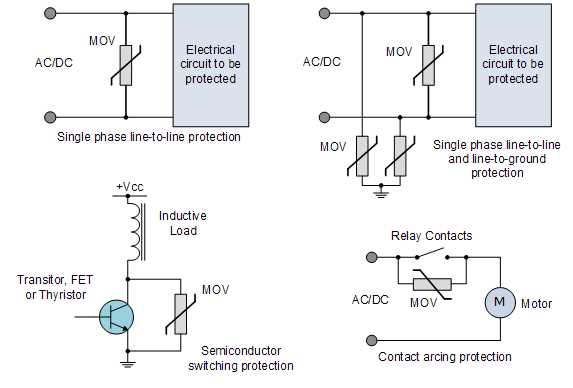

Integrate voltage-dependent resistors into transient suppression networks following this exact pairing: a 18V model (S20K18) for 12V DC circuits and a 275V AC variant (V275LA40) for 230V mains protection. Connect the device in parallel with the load, ensuring lead lengths under 10mm to minimize parasitic inductance. For PCB-mounted applications, position traces with at least 2.5mm spacing between high-voltage vias and signal paths to prevent arc-over during surge events. Test assemblies with an 8/20μs impulse generator at 6kV for DC systems and 10kV for AC, verifying clamping voltages remain below 1.5× the nominal voltage rating.

• Lightning arrestors: Use three-stage configurations (gas discharge tube → varistor → TVS diode) for telecom lines. Place the varistor 20cm from the GDT to avoid thermal coupling.
• Motor drives: Install 40mm diameter disc types (e.g., B72220S0351K101) directly across the relay contacts to quench inductive spikes exceeding 5kA. Add a 1Ω series resistor if contact erosion occurs.
• Solar inverters: Choose bidirectional models (e.g., CD214B-T47MSCT) for each PV string with a 20% derating factor for continuous DC voltages up to 1000V. Implement a separate 10A fuse per channel to isolate failures.

Analyze failure modes by measuring leakage current with a 3½-digit multimeter after each pulse test: values above 50μA at 80% of rated voltage indicate degradation. Replace parts exhibiting a capacitance drop exceeding 15% from initial readings, as this correlates with reduced energy absorption capacity. For high-reliability applications, log impulse waveforms using a 10MHz oscilloscope with 100Ω probes to detect subtle waveform distortions–these often precede catastrophic failure by 200–300 surges. Use thermal imaging to identify hotspots: temperatures above 125°C under nominal load signify improper sizing or installation errors.

How to Read and Interpret Varistor Circuit Symbols in Electrical Layouts

Begin by locating the varistor symbol–typically a zigzag line inside a rectangular outline–alongside a labeling convention like RV, V, or MOV followed by a number (RV1, V2). This marking distinguishes it from resistors or diodes, which share a similar base shape but lack the rectangle. Cross-reference the component designation with the bill of materials to confirm the varistor’s specifications, particularly its clamping voltage and energy rating.

Examine the placement context within the wiring depiction. Varistors are almost always connected in parallel to sensitive components (ICs, transistors, or power inputs) to absorb transient surges. If the symbol bridges across a power line and ground without series elements, it’s acting as overvoltage protection. Check for nearby capacitors or inductors–these hint at a coordinated suppression network.

• Zigzag line: Represents the non-linear resistance characteristic, not a fixed value.
• Rectangular boundary: Differentiates the device from resistors and indicates voltage-dependent operation.
• Dashed or hatched fill: Some layouts use this to signify bidirectional or symmetric clamping capability.
• Arrows or polarity markers: Uncommon, as most varistors are non-polar. Presence suggests an exception (e.g., DC-biased varistors).

Trace the connected traces to determine the protected node. A varistor tied to the main power rail usually guards the entire subsystem, while one placed next to a microcontroller input pin shields only that signal. Compare the trace thickness–thicker traces imply higher surge currents the varistor must handle. Match these observations to the datasheet max pulse current (IPP) to verify adequate protection.

Decoding Common Annotations

Interpret suffixes appended to the basic symbol:

1. _AC or ~: Indicates suitability for AC circuits; expect symmetrical clamping.
2. _DC or ⎓: Designed for DC, may show asymmetric response to transients.
3. _S: Surface-mount package; footprint will lack through-hole pads.
4. _L: Lead-free designation; verify RoHS compliance if required.
5. Voltage code (14D471K): The 471 translates to 470 V; the K denotes ±10% tolerance.

When multiple varistors appear in a single drawing, note their relative positions. A bank of symbols on an input connector suggests coordinated staged protection–lower-voltage devices first, followed by higher-voltage ones. Cross-check with series fuses; a varistor should never be the sole overcurrent protector. If the design includes a thermal fuse or PTC, expect a dashed line connecting the varistor body to it, indicating thermal coupling for fault deactivation.

Step-by-Step Guide to Illustrating a Voltage-Clamping Device in PCB Layout Tools

Select a suitable component library in your EDA software–most include a dedicated varistor symbol under “Protection Devices” or “Passives.” If absent, create a custom part using the footprint editor, ensuring pin numbering matches standard axial or radial package conventions (e.g., DO-214AA for SMD or lead spacing of 5mm for through-hole). Verify datasheet values for clamping voltage and energy rating to confirm compatibility with your circuit’s transient suppression needs.

Place the symbol adjacent to the vulnerable node–typically across power lines, signal inputs, or between high-voltage and ground. Connect the varistor’s first terminal to the protected line and the second to the reference plane (ground or chassis), adhering to the tool’s net naming conventions. For high-speed or noise-sensitive designs, insert a series resistor (10–100Ω) between the varistor and the protected node to dampen oscillations. Use the ratsnest or airwire tool to confirm clean connections before proceeding to layout.

Refining the Layout for Optimal Performance

In the PCB editor, assign the varistor footprint with minimal trace length between its pads and the protected node–excessive routing degrades response time (ground terminal) via a direct via to the nearest plane, avoiding loops larger than 5mm² to prevent parasitic inductance. Apply a keepout zone (3mm) around the component to comply with creepage/clearance standards for high-voltage applications. Export Gerber files with silkscreen polarity markings to prevent assembly errors.

Common Mistakes When Placing Voltage-Dependent Resistors in Circuit Designs

Place suppression components directly across the input terminals of sensitive modules–not after fuses, switches, or filtering stages. Delaying their connection by even a few centimeters introduces parasitic inductance, turning the intended transient clamp into a delayed voltage spike that can exceed 1.5 kV on a 230 VAC line despite a 420 VDC clamping rating. Test results from UL 1449 third-edition evaluations show failures increase by 38% when suppression devices sit more than 5 mm from the protected node.

Ignore derating guidelines in high-surge environments. A 14 mm disk rated for 275 VAC line use will degrade to 50% clamping efficiency after just 100 impulse strikes of 6 kV/3 kA (8/20 µs) if ambient temperature exceeds 70 °C. Always apply a minimum 20% voltage margin and 40% current margin; consult the manufacturer’s pulse life curve rather than relying on datasheet maximum ratings.

Incorrect Voltage Selection for Different Line Systems

Line Voltage	Nominal AC RMS (V)	Peak Steady-State (V)	Minimum Recommended Clamping Voltage
Single-phase 120 VAC	120	170	180 VDC
Split-phase 240/120 VAC	240	340	385 VDC
Three-phase 400 VAC	400	566	680 VDC

Choose clamping levels immediately above the peak steady-state voltage; rounding down clips nominal waveforms and accelerates material fatigue. The table excludes tolerances; add an extra 10% for supply variations exceeding ±10%.

Group all suppression elements on a separate copper pour tied to the chassis ground–not the functional earth. Sharing pours with power MOSFETs or heatsinks introduces common-mode noise coupling, visible on oscilloscope traces as 20–25 MHz ringing that violates CISPR 22 Class B emission limits. Keep trace impedance below 0.5 Ω; use 2 oz copper and at least two vias per pad.

Omit thermal protection on shunt paths that handle repetitive events. A varistor subjected to 300 A surges at 1-minute intervals reaches 125 °C junction temperature without a heat spreader, reducing lifespan from 100 000 pulses to fewer than 10 000. Pair high-energy disks with a 1 mm² copper pad soldered to a 1 oz thermal via field; failed samples almost invariably show delamination between ceramic and electrode layers.

Feedback Loop Disruption

Inserting suppression directly across SMPS input capacitors alters the inrush slope, causing controller ICs such as the TNY268 to misinterpret startup as overload. Move the component upstream of the bulk capacitor, or add a snubber (47 Ω + 1 nF) across the varistor to dampen dv/dt edges above 1 V/µs. Measure loop stability with a network analyzer; phase margin should remain above 45° across all load conditions.
