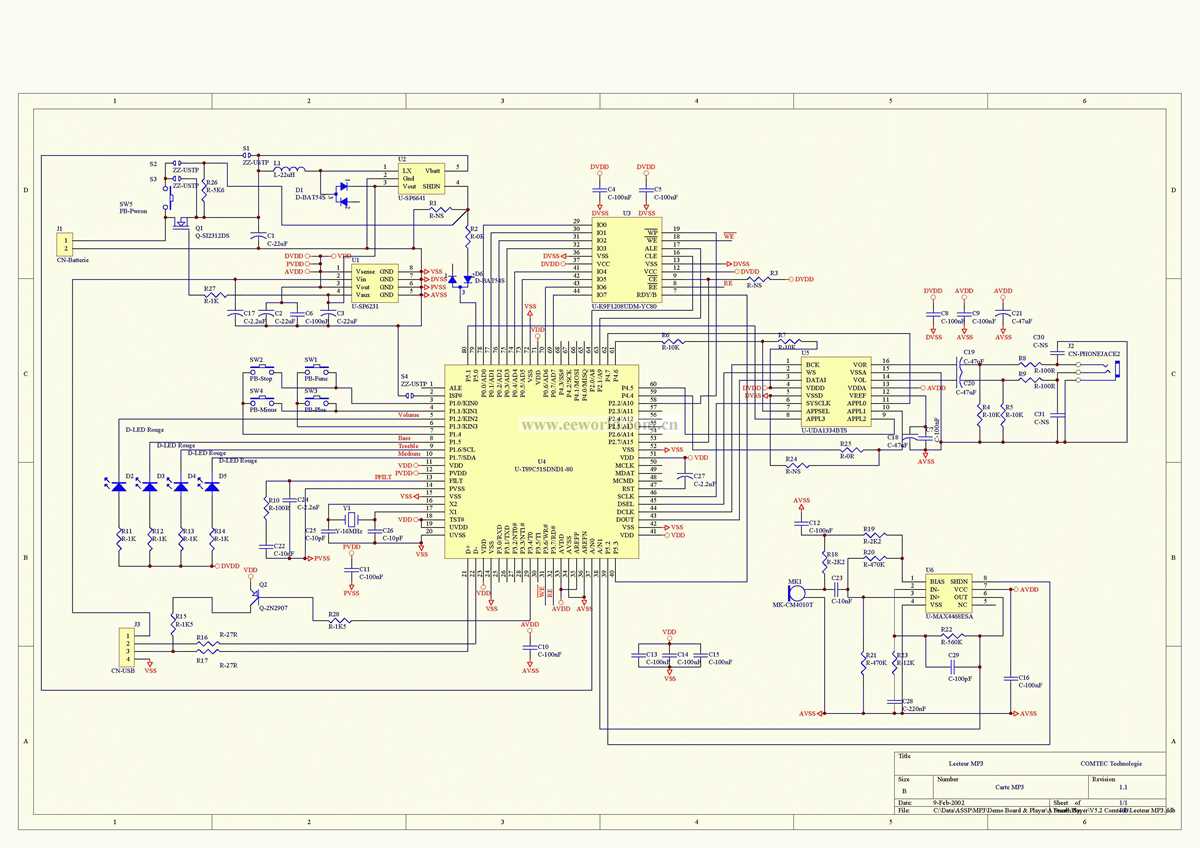

Complete MP3 Player Circuit Schematic and Component Guide

Start with the VS1053b or VS1003 decoder IC–these handle most compressed audio formats directly, eliminating the need for separate DACs. Power the chip with a regulated 3.3V supply; linear regulators like AMS1117-3.3 work, but switchers (TPS62743) improve efficiency for battery-powered builds. Keep traces under 50mm from the IC to the SD card slot to prevent signal degradation.

Use a 100nF ceramic capacitor within 2mm of each power pin (VDD, CVDD, IOVDD) on the decoder IC. Omitting these causes audible pops, particularly during playback start/stop. For the clock source, a 12.288MHz crystal (load capacitance 12pF) paired with two stabilizing capacitors (18-22pF) ensures stable operation without drift.

Route the left/right audio outputs through 1kΩ resistors to a 3.5mm jack; this protects the IC from short circuits. If adding an amplifier, the PAM8403 (2.5W stereo) requires minimal external components but has a high quiescent current–switch to the MAX98357A for lower power drain in sleep mode.

For storage, a microSD card slot with pull-up resistors (10kΩ) on data lines (MOSI, MISO, SCK, CS) prevents floating inputs during hot-swapping. Avoid SPI speeds above 10MHz unless using high-quality cards rated for UHS-I–cheaper options will drop frames. Debug with a logic analyzer; check for missing clock pulses or corrupted data packets.

Ground planes must separate analog audio paths from digital sections to reduce noise. Use a two-layer PCB with the bottom layer as a solid ground reference. Keep digital traces at least 3mm away from the analog output traces–cross-talk manifests as high-frequency whine during playback.

Building a Digital Audio Playback System: Step-by-Step Wiring Guide

Select an audio decoding IC like the VS1053B or STA013–both support Ogg Vorbis, WMA, and baseline formats with minimal external components. Power the IC via a 3.3V linear regulator (e.g., AMS1117), placing 10µF tantalum capacitors on input/output pins to stabilize voltage during bitrate spikes. Route I²S signals from the IC to a 32-bit MCU (ARM Cortex-M4 recommended) via short impedance-matched traces (keep below 20mm; use 50Ω controlled impedance). Connect the MCU’s SPI peripheral to the IC’s control interface, clocking at ≤1 MHz to avoid data corruption with slower flash memory. For storage, wire a microSD slot directly to the MCU’s SPI bus with pull-up resistors (10kΩ) on CS, MOSI, and CLK lines to prevent floating states.

Component Placement for Signal Integrity

Separate analog and digital ground planes, joining them only at the IC’s AGND/DGND pin via a 0Ω resistor or ferrite bead. Keep digital traces (MCU, SPI) >2mm from analog traces (DAC output, headphone amp) to reduce crosstalk. Use a PAM8403 Class-D amplifier for headphone output, coupling its input with a 1µF capacitor to block DC offset. Add a 10kΩ potentiometer between the DAC and amplifier input for volume control. Terminate unused GPIO pins on the decoder IC to ground via 10kΩ resistors to minimize noise pickup. Test power consumption: VS1053B draws ~15mA idle, spiking to 80mA during 320kbps playback; ensure your regulator supports 150mA+.

Key Parts of a Portable Audio Device Schema

Start with a high-quality decoder IC like the VS1003 or STA013. These chips handle compressed audio streams, converting them into analog signals. Ensure proper 3.3V power regulation–fluctuations cause distortion. Use a LM1117 or equivalent LDO for stable voltage. Bypass capacitors (10µF + 0.1µF) near the IC’s power pins filter high-frequency noise.

Storage requires a microSD slot or embedded NAND flash. For microSD, use a 4-bit SDIO interface for faster data transfer (up to 25 MHz). Include pull-up resistors (10kΩ) on data lines to prevent floating inputs. For NAND flash, verify compatibility with the controller–SPI mode is simpler but slower (10 MHz max). Always add a write-protection circuit to avoid corruption during power loss.

• Amplifier: Choose a Class D chip (e.g., PAM8403) for efficiency. It dissipates less heat than Class AB. Bridge-tied load (BTL) configuration doubles output power (e.g., 3W into 4Ω). Use 100nF coupling capacitors on output to block DC offset.
• User interface: Tactile buttons need debounce circuits (RC network: 10kΩ + 100nF) to prevent false triggers. For LCD/OLED, use I²C or SPI for reduced pin count. Keep traces short () to avoid signal degradation.
• Battery management: A TP4056 module charges Li-ion cells safely. Add a MOSFET (AO3400) for overload protection. Monitor voltage with an ADC pin on the microcontroller–shut down at 3.2V to prevent deep discharge.

Grounding is critical–use a star topology to connect all grounds to a single point. Separate analog and digital grounds with a ferrite bead to reduce noise. Test signal paths with an oscilloscope: 1kHz sine wave at 0.7Vpp should show minimal distortion () before amplification. For firmware, prioritize low-power modes–disable unused peripherals (UART, ADC) during playback to extend battery life by 30-40%.

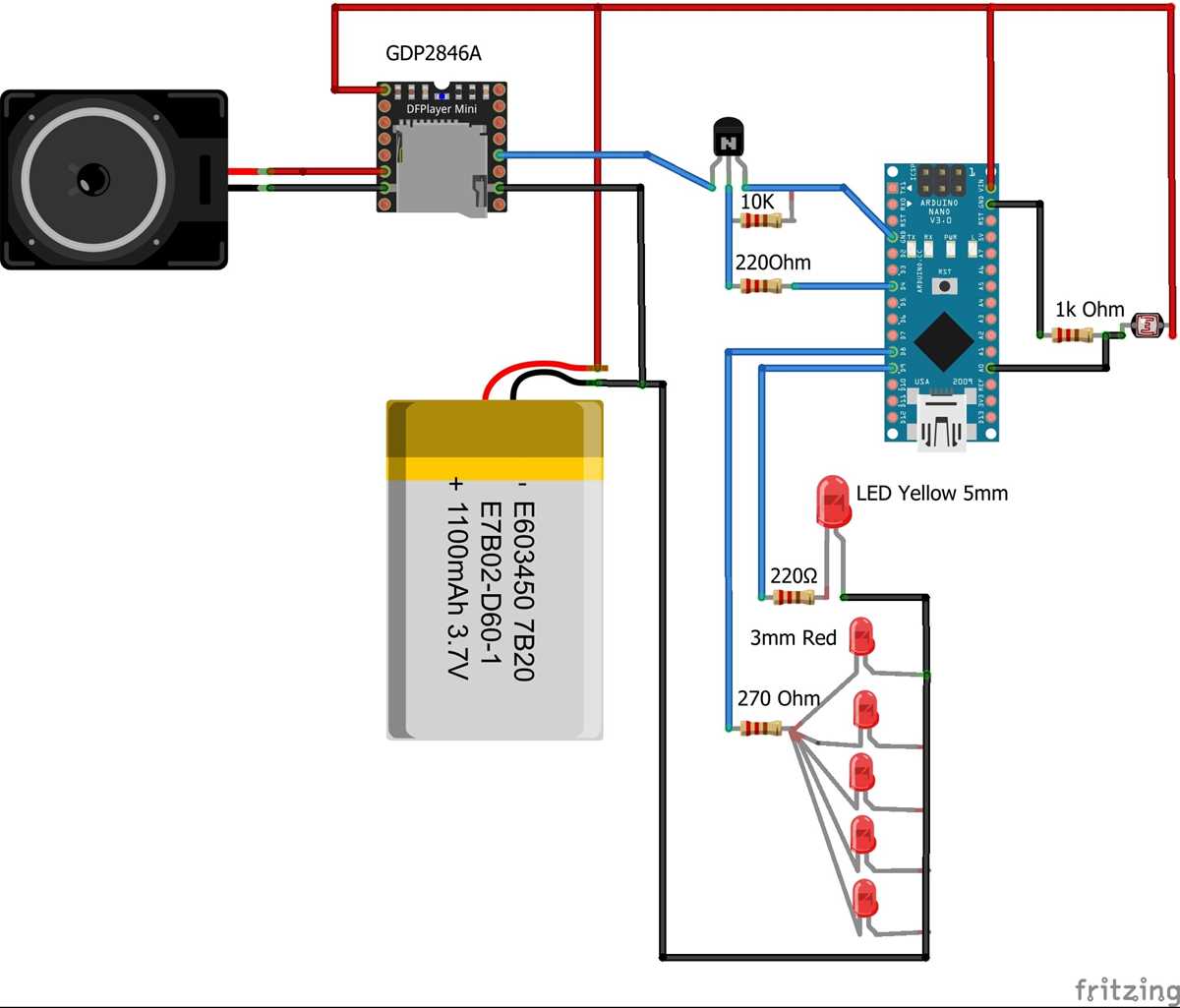

Step-by-Step Wiring for Audio Decoder Integrated Chips

Begin by connecting the power supply pins of the decoder module to a stable 3.3V or 5V source, depending on the chip’s datasheet specifications. Use a low-dropout regulator if the input voltage exceeds the recommended limit to prevent overheating or damage. Verify the ground connection is shared with the rest of the system to avoid signal interference.

Attach the audio output pins to a suitable amplifier stage or directly to a speaker if the module integrates a built-in amplifier. For line-level outputs, ensure impedance matching with the connected audio device–typically 32Ω for headphones or 4-8Ω for small speakers. Bypass capacitors (0.1µF ceramic) should be placed close to the chip’s power pins to filter high-frequency noise.

Wire the serial interface pins (I2C, SPI, or UART) to a microcontroller following the module’s communication protocol. For I2C, pull-up resistors (4.7kΩ) on SDA and SCL lines are mandatory. If using SPI, confirm the correct polarity of clock and data lines; some chips require specific configurations like mode 0 or mode 3.

Connect the storage medium–whether an SD card or flash memory–via the designated pins. For SD cards, use a 3.3V logic level and ensure proper grounding to avoid data corruption. If the chip supports FAT32, format the storage prior to wiring to prevent compatibility issues. Check the datasheet for minimum required read speeds to avoid playback stuttering.

For clock synchronization, attach an external crystal oscillator (commonly 12MHz or 16MHz) to the designated pins if the chip lacks an internal clock. Load capacitors (typically 22pF) should be connected to each crystal pin and ground. Omit this step if the module uses a self-contained oscillator, as forced external clocks can disrupt timing.

Test the wiring progressively. Power the system and check for excessive current draw (a multimeter in series helps). If static or distorted audio occurs, troubleshoot by rechecking solder joints, verifying correct pin assignments, and confirming the storage medium’s formatting. Isolate sections (e.g., power, audio out, data lines) to pinpoint failures efficiently.

Finalize the build by enclosing the components in a grounded enclosure if operating in noisy environments. For portable applications, use ferrite beads on power lines to suppress EMI. Document the exact pinout used–including alternative configurations–for future reference, as some chips support multiple operational modes (e.g., slave vs. master for I2C).

Power Supply Design for Low-Voltage Audio Playback Systems

Use a linear regulator like the LM1117-3.3 for 3.3V outputs when noise sensitivity is critical. Switching regulators introduce ripple typically between 20-50mV, which distorts codec analog stages. The LM1117’s dropout voltage of 1.1V at 800mA load allows reliable operation with a 5V input while maintaining

For battery-powered designs, calculate runtime using the formula: Runtime (hours) = Capacity (mAh) / Load Current (mA) × 0.8. A 1000mAh Li-ion cell feeding a 150mA load delivers ~5.3 hours. Avoid fully discharging Li-ion batteries below 3.0V to prevent capacity loss; implement a cutoff using a TLV431 reference diode set to 3.05V.

When space constraints rule out large capacitors, parallel multiple smaller ones. Two 10µF 0805 ceramic capacitors mounted back-to-back reduce ESR and improve high-frequency response compared to a single 22µF capacitor. X5R or X7R dielectric materials perform best for decoupling, offering stable capacitance across temperature variations (±15% at -40°C to +85°C).

Input Protection Measures

Place a 1A PTC resettable fuse (e.g., RGEF110) on the input line to prevent overcurrent damage during accidental short circuits. Follow with a TVS diode (SMBJ5.0A) to clamp transients exceeding 7V, protecting downstream components. Ensure the TVS diode’s breakdown voltage is ~10-15% higher than the nominal input voltage to avoid false triggers.

Component	Part Number	Key Specification	Recommended Placement
LDO Regulator	LM1117-3.3	3.3V, 1.1V dropout, 800mA	Output stage
TVS Diode	SMBJ5.0A	5V breakdown, 214W peak power	Input line
Low-ESR Capacitor	GRM21BR71C106KE15	10µF, 16V, X5R, 0805	Decoupling near regulator
Current-Limiting Fuse	RGEF110	1A hold current, resettable	Power entry

For dual-rail systems (+5V/-5V), use an inverting charge pump like the TPS60400. It generates -5V from a 5V input with minimal components: a 1MHz switching frequency reduces the required output capacitor to 1µF, compared to 10µF for 100kHz alternatives. Validate stability with a load step test–apply a 0-50mA transient while monitoring output for overshoot exceeding 2%.

Grounding Techniques

Separate digital and analog grounds, tying them together at a single point near the power source. Route analog ground under sensitive sections like DACs and amplifiers, avoiding high-current paths. Use a 4-layer PCB with dedicated ground and power planes to minimize inductance; if constrained to 2 layers, employ a star topology with wide traces (≥25 mil for 1A currents).

For USB-powered units, add a 500mA polyfuse and a Schottky diode (1N5817) to block reverse current. The diode’s forward voltage drop (~0.3V) reduces available headroom, so use a 6V regulator (e.g., AMS1117-5.0) instead of 5V to compensate. Test output under full load (e.g., peak codec + amplifier currents) to confirm dropout remains below 0.5V, critical for maintaining headphone drive levels of 1V RMS.
