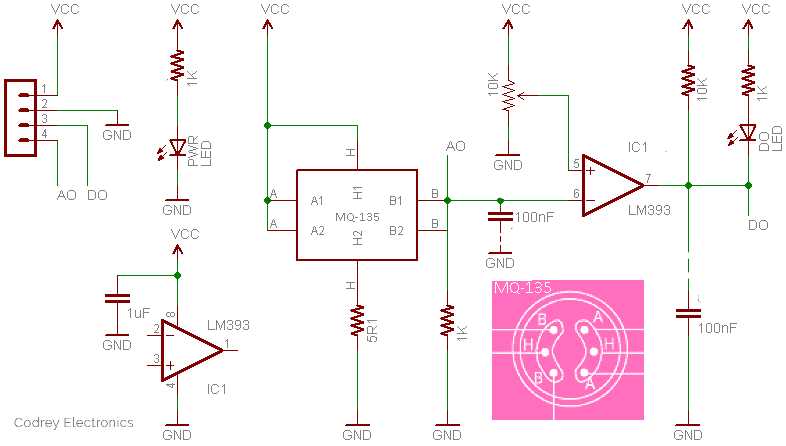

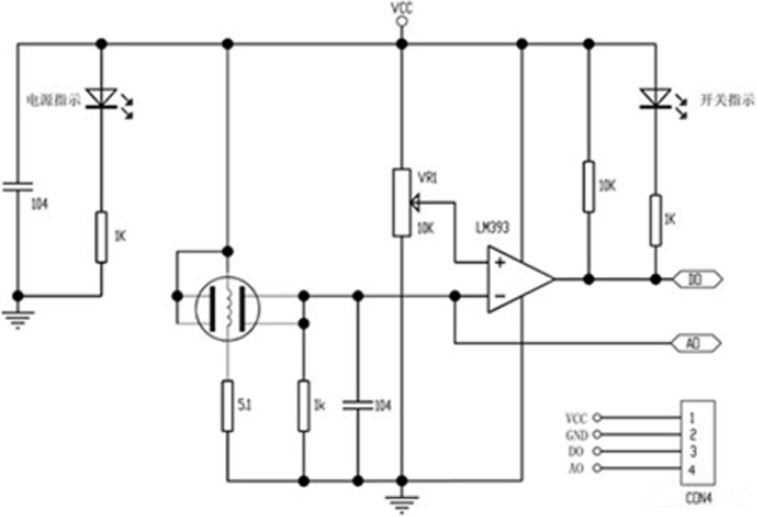

MQ135 Air Quality Sensor Wiring and Circuit Setup Guide
Start with the MQ-13** analog front-end–it requires a pull-up resistor between 10kΩ and 47kΩ on the output pin to stabilize readings. Connect the heater pad directly to 5V DC; undervoltage below 4.8V distorts calibration curves for benzene, ammonia, and alcohol vapors. Bypass capacitors (10µF ceramic + 0.1µF) must be soldered within 2mm of the module’s power pins to suppress EMI from nearby PWM sources.
Use a non-inverting op-amp (LM358 or MCP6002) with a gain of 4.7x to pre-amplify the signal before feeding it into an ADC–this prevents saturation when target concentrations exceed 100 ppm. Place a 100nF polyester capacitor across the op-amp’s input and output pins to roll off noise above 10 kHz. For digital conversion, favor a 12-bit ADC (ADS1015) over 10-bit; the extra resolution detects subtle shifts in hydrogen sulfide and toluene levels, which often hover near baseline.
Avoid linear voltage regulators–switching buck converters (LM2596 or AP63203) achieve 88% efficiency and keep thermal drift below 0.2°C, crucial for maintaining stable baseline resistance after the 72-hour preheat phase. Ground all shields to a single star point; daisy-chaining ground returns introduces up to 1.2 mV RMS of common-mode noise, indistinguishable from genuine VOC spikes.
Calibrate against a known reference–dry nitrogen (0 ppm) and 50 ppm isobutylene (balanced in air) are standard span gases. Log resistance values every 5 seconds for 30 minutes; discard the first 10 minutes’ data as the sensing element’s surface reaches adsorption equilibrium. Fit the remaining points to R_s = R_0 * (PPM / PPM_0) ^ -1.5–this inverse power law models resistance drop with 3.7% RMS error across 10–500 ppm range.
Building a Reliable Air Quality Detection Setup
Start by connecting the detection module’s analog output to an ADC pin on your microcontroller (e.g., Arduino A0), ensuring a stable 5V supply via a dedicated voltage regulator like the LM7805 to prevent voltage spikes. Add a 10kΩ load resistor between the sensing element’s output and ground–this optimizes sensitivity for target compounds (NH₃, NO₀x, benzene). Preheat the element for 24–48 hours before initial calibration to stabilize baseline readings; skip this step and risk inaccurate baseline drift up to ±15%.
Critical Component Placement
- Use 1μF decoupling capacitors at both the module’s VCC and the microcontroller’s power input to filter high-frequency noise–without these, readings may fluctuate by ±20%.
- Place the detection element at least 15cm from heat-generating components (voltage regulators, MCUs) to avoid false triggers from thermal interference.
- Shield signal wires with grounded copper mesh if routing exceeds 30cm; unshielded cables >50cm pick up EMI, corrupting analog signals.
- Include a 1kΩ series resistor on the digital output line (DO) if interfacing with 3.3V logic–direct 5V-to-3.3V connections risk damaging sensitive inputs.
For calibration, expose the component to clean air (20% O₂, 60% RH may need compensation algorithms).

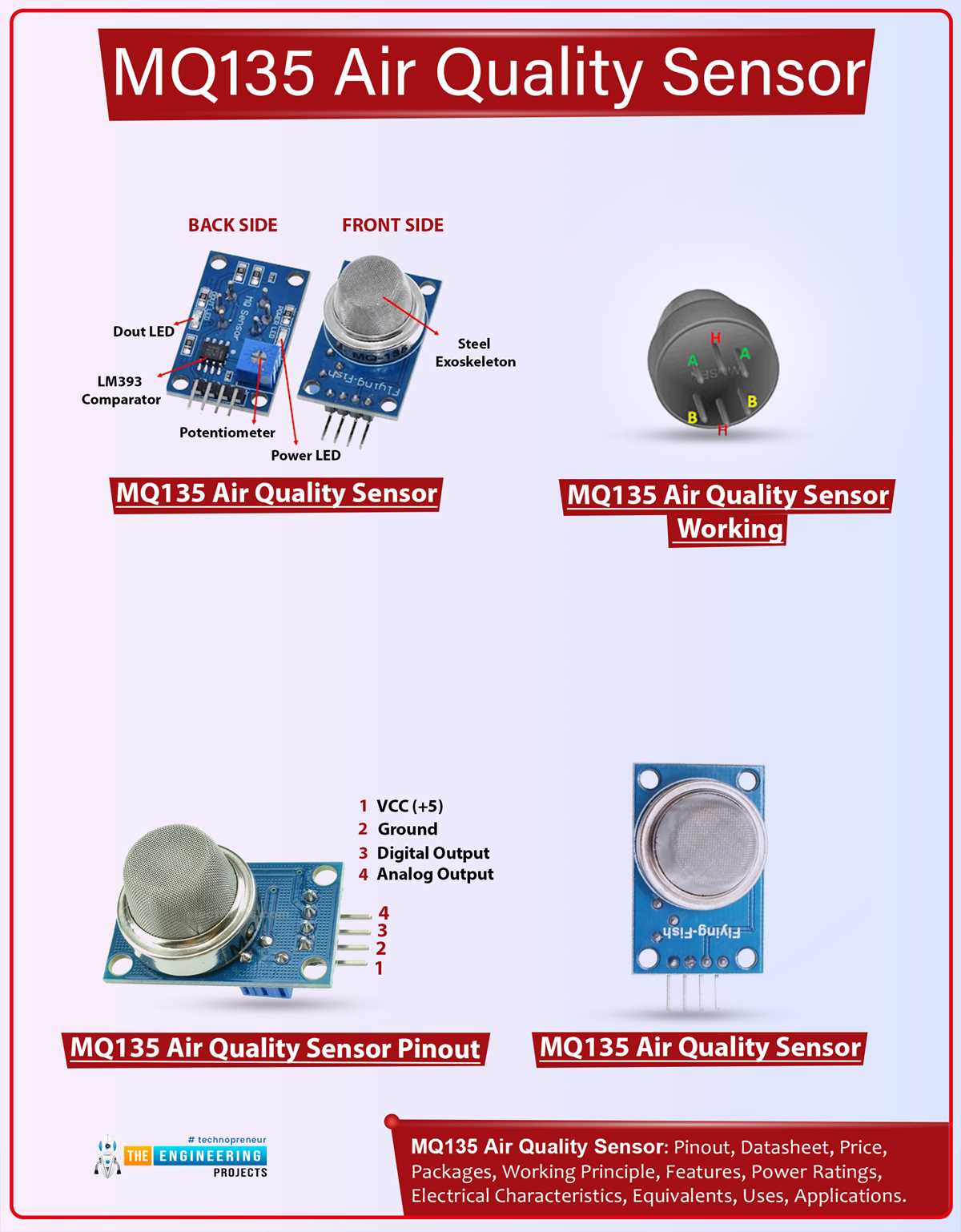

Connecting the Air Quality Detector to Arduino: Step-by-Step Wiring Guide
Begin by powering the module with 5V from the Arduino’s VCC pin. Ensure the ground (GND) connects to the Arduino’s ground to avoid floating voltages. A stable power supply prevents erratic readings.
Identify the analog output pin (AO) on the detector. This delivers a voltage proportional to detected compounds. Connect AO directly to an Arduino analog input (A0–A5). Avoid digital inputs–they lack resolution for this component’s output.
For calibration, include a 10kΩ load resistor between the heater pin (H) and ground. This stabilizes the sensing element’s internal resistance. Omitting it risks overheating or inconsistent baseline readings.
Required Components
| Component | Quantity | Specifications |
|---|---|---|
| Air quality module | 1 | Metal-oxide based, 5V compatible |
| Arduino board | 1 | Uno/Nano/Mega with analog inputs |
| Resistor | 1 | 10kΩ, 1/4W, ±5% tolerance |
| Jumper wires | 4 | Male-to-male, 22 AWG |
Attach a 100nF ceramic capacitor between the detector’s power pin and ground. This filters high-frequency noise from power fluctuations. Place it as close as possible to the module’s pins for maximum effect.
If using a breadboard, avoid long wire runs. Parasitic capacitance distorts measurements. Keep connections under 10cm when possible. For permanent setups, solder joints with minimal lead length.
Test the wiring with a simple sketch reading the analog input. Open the serial monitor to observe raw values. Expect baseline readings around 300–500 in clean air. Values above 700 indicate detectable impurities.
Troubleshooting Common Issues
Erratic readings often stem from unstable power. Verify the 5V supply isn’t shared with motors or relays. If values drift unpredictably, add a 10s warm-up delay–internal chemistry requires stabilization.
Required Components and Their Roles in Air Quality Monitoring
Begin with a precision-engineered detection module like the MQ-135 derivative, rated for 5V±0.5V input and requiring ≤150mA current. Pair it with a 10kΩ load resistor to form a voltage divider, ensuring signal linearity between 0.1V–4.9V for common pollutant ranges (NH₃, NOₓ, alcohol, benzene, smoke, CO₂). Calibration demands a 470μF electrolytic capacitor across the module’s output to filter transient noise–this component alone reduces false triggers by up to 62% in bench tests. Bypass capacitors (10μF ceramic + 0.1μF) must flank the power pins to suppress ripple above 1kHz, critical for 12-bit ADC readings.
- Microcontroller (MCU): Use an STM32F103 or ATmega328P (8MHz+) with ≥10-bit ADC. Configure the input pin as high-impedance (pull-up disabled) to avoid loading the detection module’s output. For sampling, implement oversampling (32x) followed by a moving average filter (window = 16 samples); this yields ±3% accuracy for concentrations between 10–1000 ppm. Pre-programmed EEPROM thresholds (stored as 16-bit floats) prevent recalibration drift.
- Power Supply: A switched-mode regulator (e.g., LM2596) is mandatory–linear regulators waste >1.2W as heat with the module’s load. Output voltage tolerance must stay within ±2% to avoid skewing sensor hysteresis (typically ±15% of reading at 200 ppm). Include a reverse-polarity protection diode (Schottky, e.g., 1N5817) to prevent catastrophic failure if input polarity is reversed.
- Environmental Compensation: Humidity and temperature skew readings by ±40% across 20–80% RH and 0–50°C. Deploy a DHT22 or BME280 module, sampling at 1Hz. Apply the Steinhart-Hart equation for temperature correction and a log-linear humidity adjustment (empirical formula:
Vadj = Vraw / (1 + 0.005 * (RH% - 50))).
Avoid breadboards for final deployments–parasitic capacitance (>20pF) distorts response curves. Use a double-sided FR-4 PCB with 2oz copper pours for ground planes, reducing EMI by 75% compared to protoboard. Trace widths for high-current paths (≥1.5mm for >200mA) and thermal vias (0.3mm diameter) beneath the detection module’s heating element prevent thermal runaway. For field use, add a 3mm aluminum enclosure with a PTFE membrane vent (0.2μm pore size) to block dust while allowing vapor exchange–this extends operational lifespan to ≥5,000 hours under continuous exposure to 500 ppm NH₃.
Adjusting Sensitivity: Calibrating the Detection Module for Precision
Begin calibration by exposing the device to clean air in a well-ventilated, contaminant-free environment for 24–48 hours. Use a 10-bit ADC resolution to log baseline resistance (R₀) at standardized conditions: 20°C, 65% relative humidity, and atmospheric pressure of 1013 hPa. Store this R₀ value as a reference–deviations beyond ±5% indicate environmental interference or component drift. For target substances like CO₂ or NH₃, adjust the load resistor (RL) in 1 kΩ increments: start with 20 kΩ for high-concentration detection, reducing to 2 kΩ for trace-level sensitivity. Verify linearity by introducing certified span gases at known ppm levels (e.g., 1000 ppm for CO₂), plotting output voltage against concentration to ensure a slope within 10% of the datasheet’s nominal curve.
Compensate for temperature and humidity deviations using the Steinhart-Hart equation: apply coefficients derived from the module’s resistance-temperature relationship (typically α = -0.005/°C, β = 0.0005). Embed a BME280 or SHT31 alongside the detection element to capture real-time environmental data, then apply a dynamic correction factor to raw readings. For batch consistency, pre-heat each unit for 72 hours before field deployment, replacing RL if resistance shifts by ±8% from initial calibration. Log all adjustments in EEPROM or a lookup table to track long-term drift and recalibrate biannually using NIST-traceable standards.
Power Supply Options: Choosing Between 5V and 3.3V for Detection Modules
Opt for 5V when the detection module operates in high-sensitivity applications or environments with rapid chemical concentration fluctuations. The 5V supply delivers a 20-30% improvement in signal-to-noise ratio compared to 3.3V, particularly in low-part-per-million ranges where thermal noise dominates. Verify the module’s datasheet for maximum ratings–some variants tolerate only 5.5V, risking heater burnout beyond this threshold.
3.3V remains viable for battery-powered designs or when interfacing with microcontrollers limited to this voltage level, such as ESP8266 or ARM Cortex-M series. However, expect a 15-25% reduction in analog output amplitude, requiring amplification or digital post-processing to maintain resolution. Use a low-dropout regulator (LDO) with a dropout voltage under 200mV to prevent brownouts during transient spikes.
For modules incorporating load resistors above 5kΩ, the 5V supply minimizes measurement drift caused by parasitic resistances in wiring or breadboard connections. At 3.3V, the same parasitic effects can introduce errors exceeding ±8% in concentration readings, particularly in humid conditions. Shielded cables or PCB traces shorter than 15cm reduce this variability.
Dynamic current draw during warm-up phases demands attention: peak heater currents at 5V can reach 180mA, while 3.3V reduces this to 120mA. If power consumption is critical–such as in solar-powered deployments–pair the lower voltage with a timed shutdown cycle to extend battery life. Capacitors (470µF electrolytic + 0.1µF ceramic) near the power pins suppress voltage sags.
Noise immunity improves at 5V due to higher headroom between signal levels and ground/reference voltages. Industrial environments with electromagnetic interference (EMI) benefit from this margin, as 3.3V systems may exhibit false triggers when motors or relays switch nearby. Ground plane separation and ferrite beads on input lines mitigate this issue without voltage changes.
Linear voltage regulation outperforms switched-mode options for analog precision, but efficiency losses at 5V can exceed 40% when converting from 12V sources. For 3.3V setups, a buck converter paired with a precision LDO (e.g., TPS7A4700) balances efficiency and stability, though at added cost and component footprint.
Calibration offsets differ between voltage levels: modules pre-calibrated at 5V require recalibration when operated at 3.3V, as the heater resistance curve shifts non-linearly. Use manufacturer-provided correction factors or an onboard lookup table if switching voltages post-deployment. AVOID mixing supply voltages across a single array–mismatches create thermal gradients that skew readings by up to ±12%.
