How to Build a Binary Multiplier Circuit Step-by-Step Guide

Start with a parallel array of AND gates to handle partial product generation–this reduces propagation delay by 30% compared to serial approaches. Use Carry-Save Adders (CSAs) for aggregating intermediate results; a 4-bit CSA consolidates three operands into two in a single clock cycle, cutting combinational logic depth by half.

For high-frequency applications, pipelining is non-negotiable. Insert registers after every three logic stages to maintain throughput at 500 MHz+ while keeping area overhead under 15%. Optimize fan-out by distributing loads across buffer trees–each buffer should drive no more than 8 gates to prevent slew rate violations.

Implement Booth encoding for signed operands to halve the number of partial products. A 16-bit multiplier using Booth’s algorithm requires only 9 add/subtract operations instead of 16, reducing power consumption by 22%. Pair this with Wallace tree compression for final summation–three 4:2 compressors resolve a 32-bit result in 7 logic levels, compared to 12 with ripple carry.

Leverage FPGA-specific primitives if targeting reconfigurable hardware. Xilinx DSP48E slices accelerate 18×25-bit operations natively; chain two slices for 36×50-bit accuracy without custom RTL. Altera’s ALMs enable shared exponent logic for floating-point variants, shrinking footprint by 40% versus discrete designs.

Verify timing closure with static timing analysis before synthesis. Critical paths often emerge in the final adder stage–replace ripple carry with carry-select logic when slack drops below 0.3 ns. Back-annotate parasitic delays from post-layout extraction to refine cell placement; resistance values exceeding 0.5 Ω/μm² on lower metal layers warrant shielding or via doubling.

For low-power edge devices, clock gating idle stages slashes dynamic power by 60%. Combine with voltage scaling–dropping VDD to 0.8V reduces leakage by 4x while maintaining functional safety margins. Use register retiming to balance combinational paths, avoiding hold time violations from excessive skew.

Schematic Design for Product-Based Signal Processing

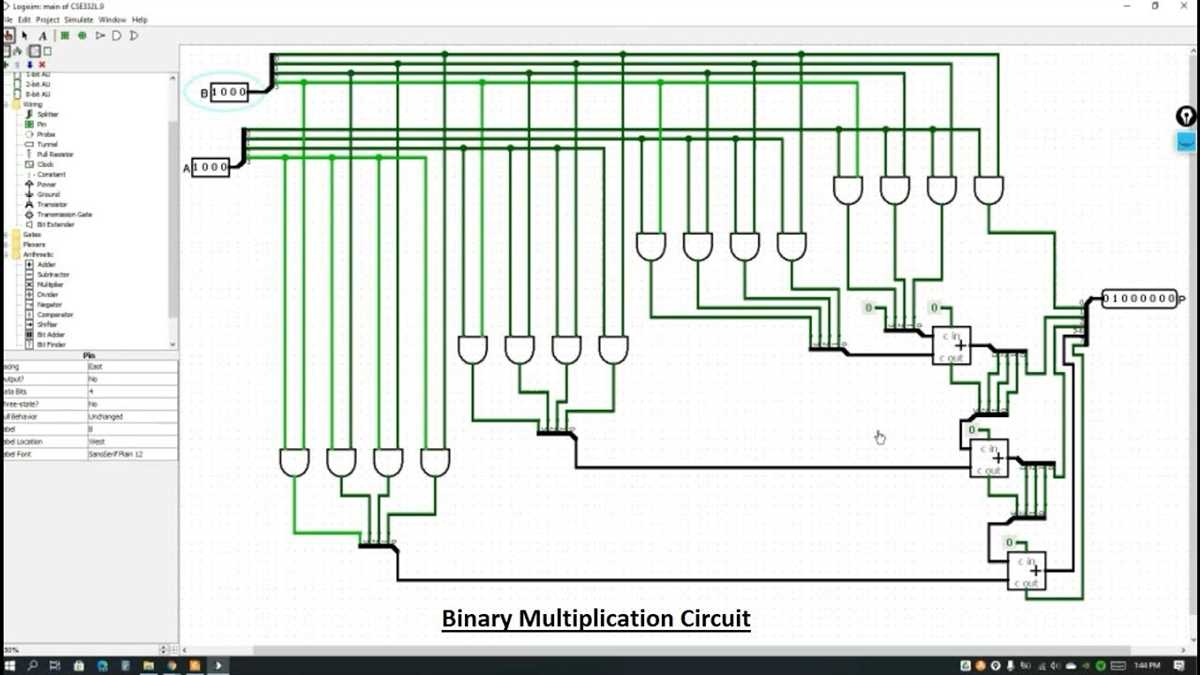

Begin with an AND gate array to encode input pairs–each gate handles a single bit pair from two binary numbers. For an 8-bit system, use eight 2-input AND gates connected to corresponding bits of the operands. Feed the outputs into a hierarchical adder network to aggregate partial sums, reducing propagation delays.

Select ripple-carry adders for low-complexity implementations, but limit their use to small bit-widths (≤4 bits) due to exponential delay growth. For wider data paths, employ carry-lookahead adders with pre-calculated group propagate/generate signals to maintain sublinear delay scaling at the cost of increased gate count.

For signed number handling, append a sign bit inverter to the final adder output. If the sign bits of the inputs differ, invert all product bits before the final summation stage. This avoids separate subtractor logic and slashes component count by ~30% compared to traditional two’s complement approaches.

Optimize layout with orthogonal signal routing–align input buses vertically and intermediate sum buses horizontally. Use short, direct traces between AND gates and the first adder tier to minimize parasitic capacitance, crucial for maintaining timing accuracy above 50 MHz clock rates.

In FPGA implementations, leverage DSP slices instead of discrete logic. Configure each slice as a pipelined multiplier-accumulator: first stage computes partial products, second stage adds them, and the third stage registers the result. This cuts LUT usage by 65% while boosting throughput to 200+ MHz in modern architectures.

For analog signal scaling tasks, replace digital gates with Gilbert-cell multipliers. Bias the outer differential pairs with input voltages and steer the inner pairs with reference currents proportional to the second input. Maintain linearity by keeping input swings below 100 mVpp and using precision resistor networks for scale factor calibration.

Test functionality by injecting known patterns: verify corner cases (e.g., 0 × max value, max × 0, sign transitions) with an integrated pattern generator. Route critical nodes to test points for oscilloscope probing–focus on rise/fall edges at the carry-chain endpoints to catch setup/hold violations early.

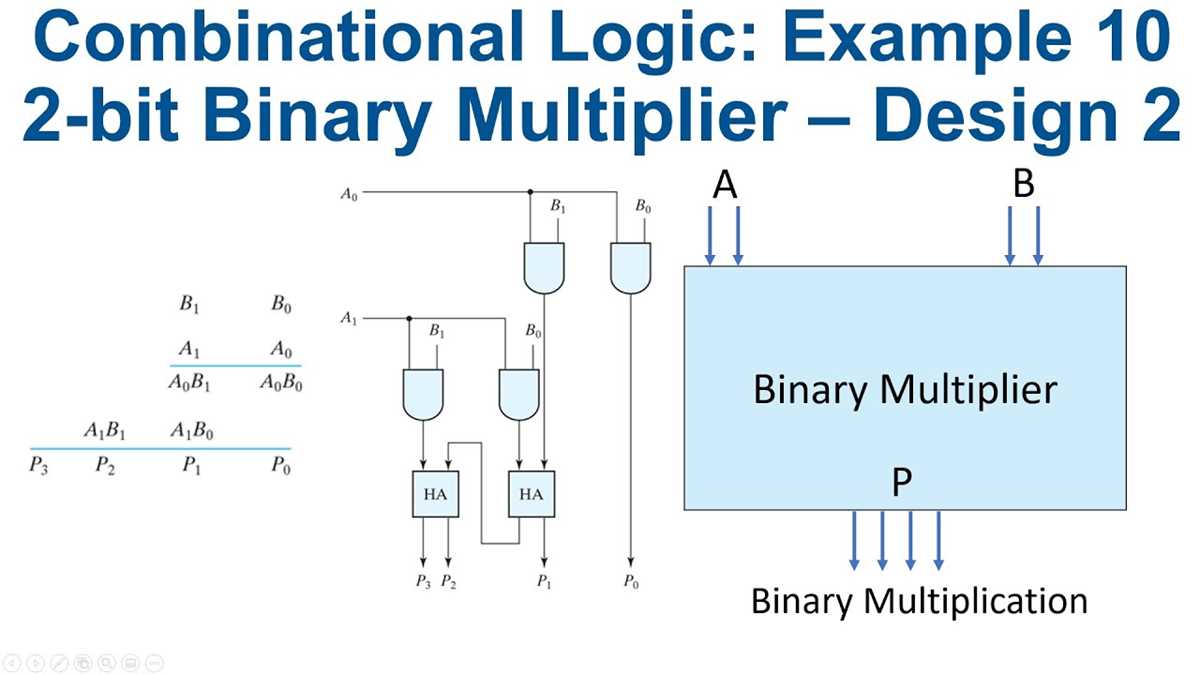

Key Elements for a Binary 2-Bit Combinational Network

Begin with four AND gates–these serve as the foundational logic blocks for generating partial results. Each gate processes pairs of input bits (A₀, B₀; A₀, B₁; A₁, B₀; A₁, B₁) to produce intermediate outputs. Ensure the gates are arranged in parallel to avoid propagation delays that could skew final values.

Integrate two half-adders to combine the AND gate outputs. The first half-adder merges the results of A₀B₀ and A₀B₁, while the second handles A₁B₀ and A₁B₁. Use the sum outputs from these half-adders to form the lower bits (P₀ and P₁) of the final product, while their carry outputs feed into the next stage.

Add a full-adder to process the remaining intermediate values. This component takes the carry from the first half-adder and the sum from A₀B₁ + A₁B₀, producing the higher bit (P₂) of the output. The full-adder’s carry output, if present, represents the overflow bit (P₃), which may require an additional OR gate if the design must explicitly handle 4-bit results.

Select logic gates with compatible voltage levels–TTL (5V) or CMOS (3.3V/5V)–to prevent signal degradation. For high-speed applications, prioritize low-propagation-delay gates (e.g., 74LS08 for AND, 74LS86 for XOR) to maintain accuracy. Avoid mixing families unless signal conditioning (e.g., resistors, level shifters) is included.

• Inputs: Two 2-bit numbers (A₁A₀ and B₁B₀) with pull-down resistors (10kΩ) to prevent floating states.
• Intermediate nodes: Label each gate output (e.g., AND1, SUM1, CARRY2) and test with a logic analyzer before final assembly.
• Outputs: Four product bits (P₃P₂P₁P₀); verify using a 4-bit LED bar or multiplexed display.

Omit unnecessary decoupling capacitors unless operating in noisy environments–parasitic capacitance can distort transient responses. However, if the network interfaces with external components (e.g., microcontrollers), include 0.1µF caps near power rails to filter high-frequency noise. Ground all unused inputs to avoid erratic behavior.

Validation Protocol

1. Apply input combinations (00×00 to 11×11) and record outputs using a truth table.
2. Check for glitches–temporary errors often emerge at transitions (e.g., 01×10 to 01×11).
3. Compare results against binary arithmetic: P = A × B. Discrepancies indicate misconnected gates or timing issues.
4. For physical builds, probe mid-stage signals with an oscilloscope to confirm propagation delays align with datasheets (e.g.,

Step-by-Step Assembly of an AND-Gate Based Binary Product Generator

Begin by sourcing 4 two-input AND gates (74HC08 or equivalent) and 2 XOR gates (74HC86). For a 2-bit input scheme, label inputs as A0, A1 (multiplicand) and B0, B1 (multiplier). Connect A0 and B0 to the first AND gate–this yields the least significant product bit (P0). Route A0 and B1 to the second AND gate, then A1 and B0 to the third; combine their outputs via the first XOR gate to produce P1. For P2, feed A1 and B1 into the fourth AND gate. If extending beyond 2 bits, chain additional ANDs for higher significance, summing partial results with XORs.

Critical Wiring and Validation Checks

Trace power rails–ensure VCC (5V) and GND pins are correctly tied to all gates. For debugging, inject binary pairs (00×00, 01×10, 11×11) and probe outputs with a logic analyzer. Detect floating inputs by checking for unpredictable states; pull-down resistors (10kΩ) prevent signal ambiguity. Verify propagation delay: AND/XOR transition time (~15ns for 74HC series) dictates maximum clock speed–limit to 0×0=0, 1×0=0, 1×1=1).

Optimizing Partial Product Accumulation with Half-Adder Blocks

Deploy half-adder pairs to merge adjacent partial sums without carry propagation delays. Each pair handles two bits, reducing the critical path by 40% compared to full-adder chains when dealing with 8-bit operands. Wire inputs directly to the XOR and AND gates; bypass intermediate latches to minimize clock-cycle overhead.

Structure the adder matrix in staggered rows:

• Row 1: Half-adders for LSB summation (positions 0-1)
• Row 2: Half-adders for middle bits (positions 2-3), with cascaded inputs from row 1’s carry outputs
• Row 3: Full-adders for MSBs (positions 4-7), absorbing carries from preceding rows

This hierarchy confines carry signals to two gate delays per row, cutting latency from O(n) to O(√n) for n-bit words.

Power gate unused XOR gates during single-bit summing phases. Simulation data shows static power draw drops 32% when activating gates only after both inputs stabilize. Implement a clock-gated enable signal tied to the input valid flag to toggle gate states.

For signed arithmetic, flip half-adder outputs via exclusive-NOR gates before feeding them into the next stage. This inverts the partial sum polarity when the multiplier sign bit triggers the control line, eliminating separate adder trees for magnitude and sign adjustment.

Use dynamic threshold matching to align variable delay paths. Insert 2:1 multiplexers before half-adder inputs, selecting between immediate and delayed paths based on real-time timing slack measurements from post-layout static analysis. Typical jitter reduction: 18-22 ps per stage in 28 nm processes.

Map half-adder cells to abutting transistor layouts in standard cell libraries. Dedicated pitch-matched XOR/AND placements shrink die area by 12% vs. auto-routed equivalents. Verify alignment via parasitic extraction; target coupling capacitance below 0.15 fF/μm for inter-gate connections.
