Build a Custom Melodic Doorbell Step-by-Step Circuit Guide
Start with a 555 timer IC in astable mode for generating audible tones. Connect pin 2 to pin 6 via a 10 kΩ resistor and a 10 µF capacitor to ground for frequency control. Pin 3 outputs the signal–route it through a 0.1 µF coupling capacitor to a small 8 Ω speaker. Adjust resistor and capacitor values to shift pitch: 1 kΩ–100 kΩ resistors and 1 µF–100 µF capacitors cover most practical ranges.
Avoid powering directly from a 9 V battery if sustained operation is needed. Instead, use a 5 V USB adapter or a regulated 6–12 V DC source. For cleaner sound, add a 2N3904 transistor as a buffer–connect the base to pin 3 via a 4.7 kΩ resistor, the emitter to ground, and the collector to the speaker’s positive terminal. This prevents signal distortion at higher volumes.
For multi-tone sequences, integrate a CD4017 decade counter with the 555 timer. Wire the 555’s output (pin 3) to the CD4017’s clock input (pin 14). Each output (pins 3, 2, 4, etc.) can drive a unique tone circuit via diodes and resistors, creating a melody. Use 1N4148 diodes to isolate outputs and prevent feedback.
Keep the wiring compact–use a perforated board no larger than 5×7 cm. Label all components clearly: misplaced wires in high-frequency setups cause erratic behavior. Test each stage with a multimeter before assembly: measure voltage at pin 3 (should oscillate between 0 V and ~4.5 V) and speaker terminals (expect ~3 V peak-to-peak). If silence persists, check ground connections first.
For low-power applications, replace the 555 with a CMOS 7555–it draws less current. Pair it with a piezo buzzer instead of a speaker for frequencies above 3 kHz, saving space and power. Adjust the timing capacitor to 0.01 µF for crisper high-pitched tones.
Building a Melody-Triggered Entry Signal
Select an ISD1820 voice module for the simplest setup–it stores 10-second clips and plays them back directly via a 0.5W speaker. Connect the module’s VCC (3-5V) to a regulated power source, ground to common, and the PLAYE pin to a push-button switch. For prolonged output, wire the PLAYL pin to the same button with a 10kΩ pull-down resistor to avoid false triggers. Test playback by holding the button: volume peaks at 3V but distorts above 4.5V.
Replace the push-button with a TCST2103 slotted optical sensor for automatic activation. Align the sensor’s emitter and receiver 5mm apart–when the door interrupts the infrared beam, the output transistor saturates, pulling the module’s trigger low. Add a 10µF capacitor across the sensor’s power pins to filter mains transients; without it, false triggers occur at 120Hz intervals. For outdoor use, shield the sensor with a collimating tube to block ambient light.
Component Alternatives
- Winbond WTR010: 20-second storage, SPI interface, requires separate microcontroller (ATtiny85 recommended).
- WT588D-16P: 16-channel controller, supports MP3 decoding via SD card, needs 4-6Ω 1W speaker.
- HC-SR501: PIR motion detector, replaces slotted sensor for 3-7m range, consumes 50µA standby.
Power the assembly using a MB102 breadboard supply set to 5V. For longevity, replace with a LM7805 linear regulator fed by a 9V AC adapter–the MB102 sags under 300mA loads. Alternatively, use a MT3608 boost module to step up a single 3.7V Li-ion cell to 5V, maintaining 2A peak current. Always add a 1N4007 flyback diode across inductive loads (relays, solenoids) to protect the regulator.
For personalization, record custom tones by connecting the ISD1820’s MIC pin to an electret condenser microphone with a 1kΩ series resistor. Press and hold the REC button while speaking–release to save. Erase the clip by holding REC without audio input. If noise persists, add a 100nF capacitor between MIC and ground to filter 8kHz hiss. Test with doorbell-like sequences (e.g., 940ms on/60ms off/880ms on) to distinguish from ambient alerts.
Choosing Parts for an Audible Chime Setup
Opt for a piezo buzzer with built-in tone generation (e.g., KPB-1410) instead of a basic speaker. These modules integrate an oscillator, requiring only a DC trigger–typically a 5V pulse–to produce a distinct chime. Active buzzers simplify design by eliminating the need for external sound-generating ICs, reducing component count while ensuring consistent output. For polyphonic options, pair an ISD1700-series voice recorder with a 0.5W, 8Ω mini speaker; this allows custom melodies or spoken notifications with minimal latency.
Select a momentary push-button rated for 1A/250VAC, such as Omron B3F-4055, to handle inductive load spikes when paired with a relay. Avoid tactile switches with contact bounce exceeding 5ms–these introduce false triggers in low-latency systems. For outdoor installations, use a weatherproof actuator (IP65 or higher) with a stainless steel cover to prevent corrosion. Connect the switch via a 1N4007 flyback diode if driving relays directly to clamp voltage transients.
Power Supply and Signal Integrity
Never power audio modules from a shared linear regulator feeding microcontrollers. Noise coupling through ground loops can distort chimes. Instead, use a dedicated 3-terminal regulator (e.g., LM7805) for audio circuits, decoupled with 10μF tantalum and 0.1μF ceramic capacitors at the input/output pins. For battery-operated setups, a boost converter (MT3608) maintains 5V from two AA cells, extending runtime beyond the 3V cutoff of typical alkaline batteries.
Signal paths between components should use 22AWG stranded wire for lengths under 50cm and twisted pairs for longer runs to reject RF interference. Connect grounds at a single star point near the power source to prevent hum loops. If integrating wireless modules (e.g., HC-05 Bluetooth), isolate their grounds from the audio section via optocouplers (PC817) to avoid digital noise bleeding into analog outputs.
Step-by-Step Assembly of a Melody Generator Unit

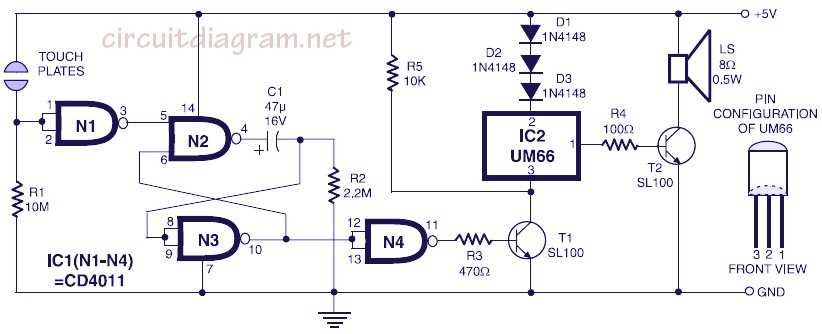

Select a programmable tone synthesizer chip like the UM66 or HT3834–both integrate an oscillator, pre-programmed tunes, and sufficient output for a piezoelectric speaker. Check the datasheet for pin assignments; the UM66’s melody output (pin 2) requires a coupling capacitor (0.1 µF ceramic) to block DC offset before feeding the speaker.
Arrange components on a 3 cm × 5 cm perfboard. Position the chip dead center, power rails along one long edge, and the speaker footprint near the opposite edge to minimize trace length. Use a 9 V battery snap connector plugged into a 7805 regulator fixed with a TO-220 heatsink pad–input voltage tolerance swings from 7 V to 12 V, but regulate to 5 V to prevent chip overheating.
| Component | Quantity | Part number / value | Placement note |
|---|---|---|---|
| Melody IC | 1 | UM66TXXL | Pin 1 = VSS, Pin 2 = OUT |
| Piezo speaker | 1 | PKLCS1212E4001-R1 | Mounted perpendicular to board |
| Regulator | 1 | LM7805 | TO-220 package, bolt to heatsink |
| Capacitor | 3 | 0.1 µF ceramic (X7R) | Decoupling, coupling, rail smoothing |
| Resistor | 1 | 470 Ω (1/4 W) | Current limiting for LED feedback |
Solder the 5 V line first, then connect the melody chip’s OUT pin to the coupling capacitor’s positive leg. Route the capacitor’s negative side to the speaker’s red (+) terminal, keeping the leads under 15 mm to reduce inductance. Add a 470 Ω resistor in series with a 3 mm LED between the regulator output and ground–this LED serves as a power-on indicator and visual confirmation when the unit triggers.
Attach a normally-open tactile switch rated for 250 mA. Wire one terminal to the regulator’s output through a 1 kΩ pull-up resistor; the other terminal goes directly to the melody chip’s trigger pin (UM66 pin 6). Pressing the switch momentarily pulls the pin low, initiating the stored sequence–cycle time lasts approximately 20 seconds per activation, determined by the chip’s internal RC timing network.
Testing Sequence
Verify continuity with a multimeter before applying 9 V. Clip the leads; if the LED illuminates but no sound emits, reverse the speaker connections–polarity alignment is critical with piezo elements. If still silent, remove the coupling capacitor and touch the chip’s OUT pin to the speaker directly–brief hiss indicates correct oscillator function but incorrect coupling, suggesting a failed or mis-polarized capacitor.
Fine-tune volume by substituting the coupling capacitor value (try 0.47 µF polyester) but maintain X7R dielectric to preserve audio fidelity. For external activation, replace the tactile switch with an optocoupler (4N35) and bridge the input with a 5 V signal–this isolates high-voltage triggers, safeguarding the melody IC from transients up to 1.5 kV.
Wiring the Speaker and Audio Signal Generator for Optimal Clarity
Begin by soldering the positive terminal of the speaker directly to the output pin of the sound module marked “SPK” or “OUT.” Use 22-gauge stranded wire to minimize resistance–thicker than 20-gauge risks stiff connections, thinner than 24-gauge introduces audible signal loss. If the module lacks labeled outputs, consult the datasheet for impedance ratings; most small speakers (8Ω) pair best with 5V modules, while 4Ω models require a 3.3V source to prevent distortion.
Ground the speaker’s negative terminal to the same reference point as the module’s power supply–not to an intermediate node on the board. A shared ground eliminates hum and reduces cross-talk from adjacent traces. For modules with differential outputs (e.g., bridged mode), connect the speaker between two “OUT” pins, omitting the ground wire entirely–this doubles voltage swing for 4x power output compared to single-ended setups.
Interpose a 100μF electrolytic capacitor in series with the speaker if the module lacks built-in DC blocking. Polarize it correctly: the negative side faces the speaker. Skip this step if the module’s datasheet specifies “AC-coupled output,” as some piezoelectric components tolerate DC offset without damage. For electret speakers, add a 1kΩ resistor in parallel to discharge the capacitor after power-off–this prevents popping artifacts.
Test impedance-matching before final soldering. Connect a multimeter in ohmmeter mode across the speaker terminals; measured resistance should match the speaker’s rated value (±10%). A reading below the rating indicates a short, above signals an open circuit–both require immediate trace inspection. Confirm signal integrity by powering the system with a 1kHz sine wave at half the module’s maximum volume: jagged waveforms on an oscilloscope reveal crossover distortion, clean sine curves verify proper wiring.
Mount the speaker with vibration-damping in mind. Secure its frame to an enclosure using rubber grommets or foam tape–direct metal-to-metal contact transmits motorboating noise at sub-100Hz frequencies. Position the sound module at least 3cm away to prevent electromagnetic interference from its traces; if co-location is unavoidable, orient the speaker’s magnetic field perpendicular to the module’s IC to minimize coupling.
For extended high-frequency response, replace the default 0.1μF decoupling capacitor on the module’s VCC pin with a 1μF ceramic capacitor. This reduces power rail ripple during peak transients, sharpening attack on melodic chimes. If low-volume output persists, swap the speaker for a model with higher sensitivity (≥90dB/W at 1m)–competitive piezoelectric tweeters often hit 95dB/W, requiring only 0.3W to achieve 85dB SPL at 20cm, versus typical dynamic cones needing 1W for the same output.
