Simple and Reliable NE555P Timer Circuit Design Guide for Beginners
Start by configuring the 8-pin timing chip in astable mode for reliable oscillation. Connect pin 7 (discharge) to the junction of two resistors–one between VCC and the capacitor, the other between the capacitor and pin 7. The output frequency follows the formula f = 1.44 / ((R1 + 2R2) * C). For a 1Hz signal, use R1 = 10kΩ, R2 = 68kΩ, and C = 10µF. Bypass VCC (pin 8) to GND (pin 1) with a 0.1µF ceramic capacitor to prevent noise-induced errors.
For precision, replace R2 with a 100kΩ potentiometer–this allows fine-tuning of duty cycle without recalculating values. Keep traces between the timing network and control voltage (pin 5) short to avoid false triggers. If stability is critical, add a 10nF capacitor from pin 5 to GND. Avoid electrolytic capacitors in the timing network; their leakage current distorts waveforms.
Monostable operation demands different rules. Trigger the chip via a T = 1.1 * R * C. For 1-second delays, pair a 91kΩ resistor with a 10µF capacitor. Ensure the reset pin (4) ties to VCC unless intentional disabling is needed–floating it invites erratic behavior.
Power the chip with 4.5V–15V; below 4.5V, the internal comparators falter. At higher voltages, monitor heat–dissipation isn’t critical under 100mA loads, but heat sinks become necessary above 200mA. For low-power designs, use CMOS variants like LMC555; they draw microamps but lack the bipolar chip’s drive strength (200mA vs. 2mA).
Debugging? Probe the threshold (pin 6) and trigger (pin 2) inputs with an oscilloscope–discrepancies between expected and measured voltage levels reveal faulty components or incorrect connections. Check trigger pulses; if longer than 1µs, the output won’t latch. Replace leaky capacitors first–they’re the most common failure point in timing networks.
Practical Guide to Building a Timer IC Layout
Start with a stable power supply–5V to 15V DC–using a 7805 regulator if needed. Pin 8 (VCC) must connect directly to the positive rail, while Pin 1 (GND) grounds to the negative. For reliable operation, add a 0.1µF decoupling capacitor between VCC and GND, placed as close to the chip as possible. This prevents voltage spikes and ensures consistent performance, especially in precision applications like pulse-width modulation or frequency generation.
- Astable mode requires two resistors (R₁, R₂) and one capacitor (C). Connect R₁ between Pin 7 (Discharge) and VCC, R₂ between Pin 7 and Pin 2 (Trigger). Place C between Pin 2 and GND. Output frequency follows: f = 1.44 / ((R₁ + 2R₂) × C). For example, R₁=1kΩ, R₂=10kΩ, C=100nF yields ~680Hz.
- Monostable mode uses one resistor (R) and one capacitor (C). Connect R between Pin 7 and VCC, and C between Pin 6 (Threshold) and GND. Pulse duration: t = 1.1 × R × C. A 1MΩ resistor and 1µF capacitor produce ~1.1 seconds.
- Bistable mode ignores timing components. Use Pins 2 (Trigger) and 6 (Threshold) as set/reset inputs, with output toggling on low pulses.
For low-power designs, replace R₁ with a 10kΩ potentiometer to fine-tune frequency without recalculating components. Avoid electrolytic capacitors in high-frequency setups–ceramic or film types (

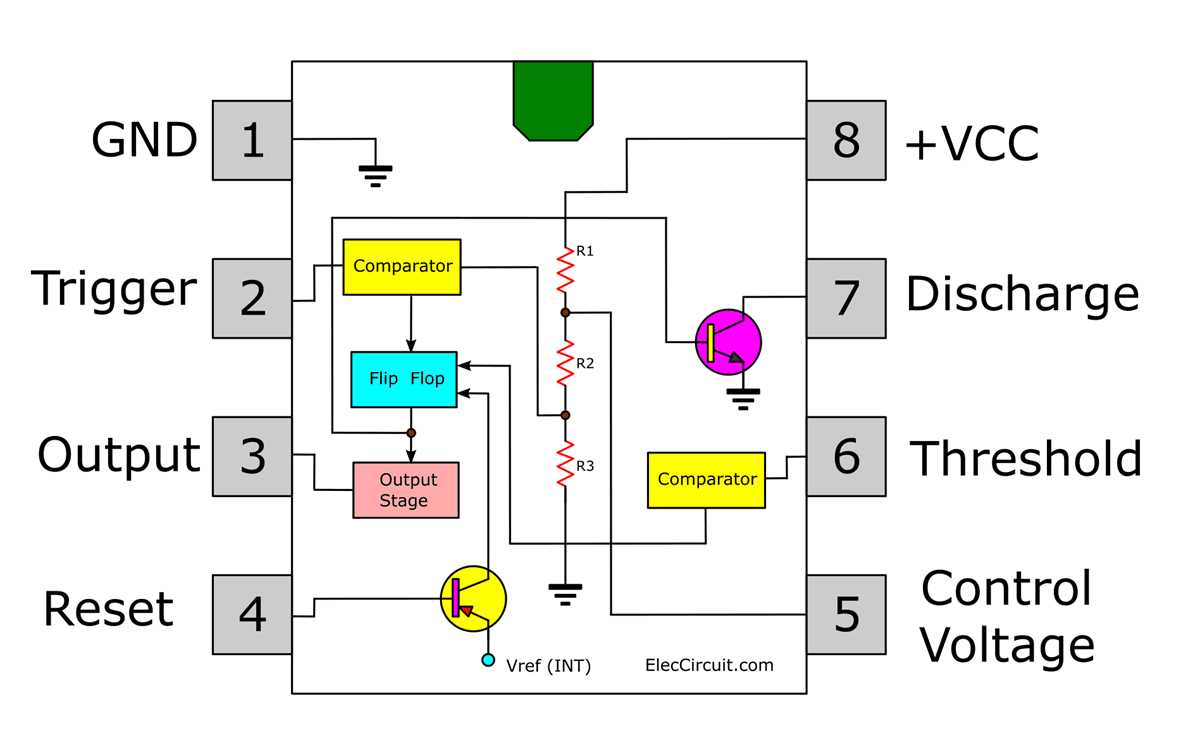

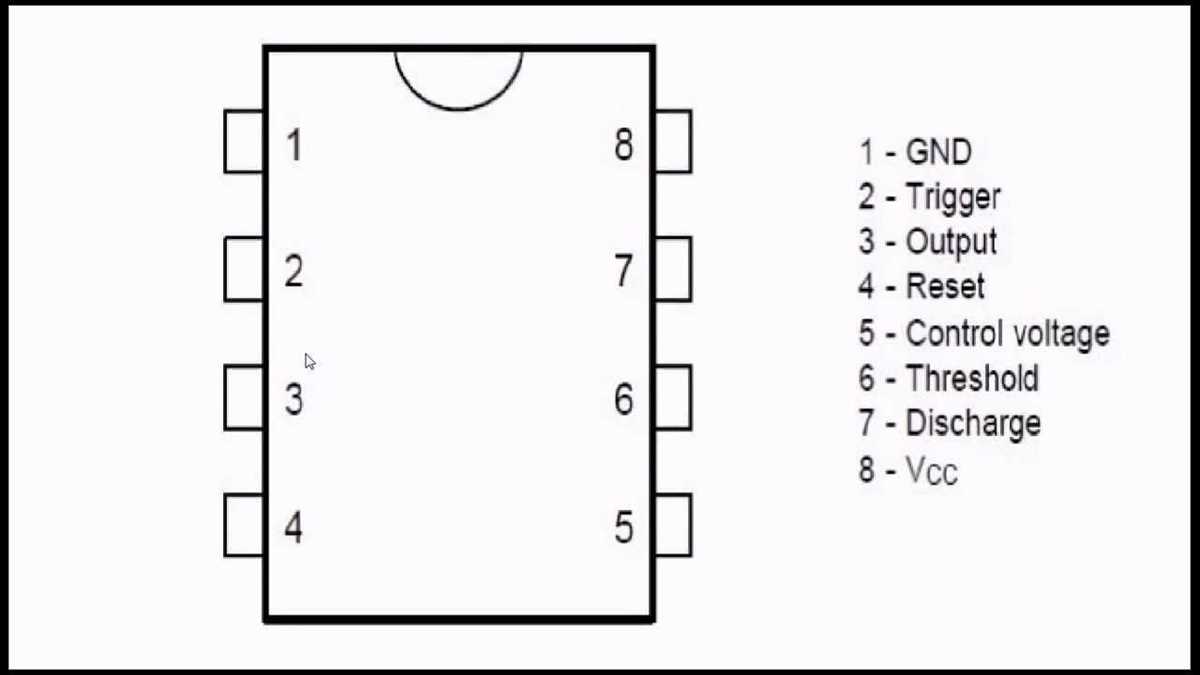

Basic Pin Configuration and Functionality of the 555 Timer Integrated Chip
Begin wiring by connecting the control pin (5) to a 0.01μF decoupling capacitor grounded directly to stabilize voltage fluctuations–this step prevents erratic timing behavior and ensures consistent output. Pin 1 must always terminate to the lowest potential point in the system; failure here introduces noise susceptibility and unpredictable reset conditions. For astable mode, prioritize a low-tolerance resistor pair (R₁, R₂) between pins 7–8 and 2–6 to avoid drift exceeding 5% from calculated frequencies. Values below 1kΩ risk overheating the discharge transistor (internal to pin 7).
The trigger input (pin 2) demands a negative pulse below one-third of VCC for activation, typically 50–100ns duration to reliably latch the internal flip-flop. Avoid floating inputs; tie unused trigger or threshold pins (6) to VCC via a pull-up resistor (10kΩ minimum) if not in use. When driving inductive loads, insert a flyback diode (1N4007) across output (pin 3) poles to clamp voltage spikes exceeding VCC + 0.7V, preserving the chip’s 200mA current sourcing/sinking capability. Output rise/fall times degrade above 15V supply, limiting practical square-wave edges to ~100ns without additional buffering.
Critical Pin Interactions and Precautions
| Pin | Label | Primary Function | Absolute Maximum Rating | Design Recommendation |
|---|---|---|---|---|
| 4 | Reset | Disables output when pulled below 0.4V | -0.3V to VCC + 0.3V | Use open-collector pull-up ≥4.7kΩ for remote reset |
| 5 | Control Voltage | Modulates threshold comparator (default 2/3 VCC) | VCC – 0.3V to 0V | Decouple with 0.1μF ceramic capacitor to GND |
| 6 | Threshold | Resets output when voltage exceeds control pin level | -0.3V to VCC | Avoid parasitic capacitance >10pF on trace routing |
| 7 | Discharge | Open-collector output to sink timing capacitor current | Short-circuit current: 200mA | Parallel R₂ with diode for fast capacitor discharge |
Pin 8 (VCC) operates from 4.5V to 16V, but thermal considerations cap continuous dissipation at 600mW; derate linearly above 25°C. For monostable configurations, calculate timing interval (T = 1.1 × R × C) using R ≤ 10MΩ and C ≥ 100pF to mitigate leakage-induced errors. The threshold comparator (pin 6) exhibits 3mV/°C drift, necessitating temperature-compensated resistor networks (e.g., NTC thermistors) for precision applications. Avoid exceeding 18V on any pin, including during power transients, as latent ESD protection diodes clamp but degrade over repeated events.
Grounding pin 1 through a low-impedance path (100mA. The discharge transistor (pin 7) saturates at ~200mV when sinking current, so external transistors or MOSFETs are required for higher loads. For frequency modulation via pin 5, scale input signals to 0–VCC range–exceeding this range distorts output or latches the chip. Always verify oscillator startup by monitoring pin 3 for rail-to-rail transitions within 1ms of power application; slower responses indicate excessive load capacitance or insufficient R-C values.
Common Pitfalls in Pin Usage
Leaving pin 5 unfiltered in high-noise environments couples switching harmonics into the threshold comparator, causing jitter up to ±10% in astable mode. The reset pin (4) registers false triggers if connected via long traces (inductance >1μH); use a 1kΩ series resistor to damp ringing. Output current (pin 3) should never reverse-bias internal circuitry; violating this (e.g., with improperly sized inductive loads) risks permanent damage. For duty cycles >50%, swap the timing capacitor’s charging/discharging paths by inserting a diode in series with R₂, bypassing the internal transistor. Always simulate timing networks in SPICE before prototyping–real-world component tolerances (±5% resistors, ±20% electrolytic capacitors) skew calculations substantially.

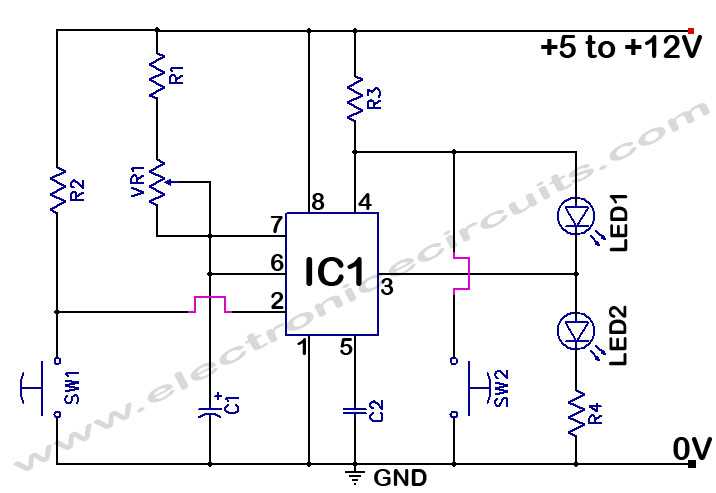

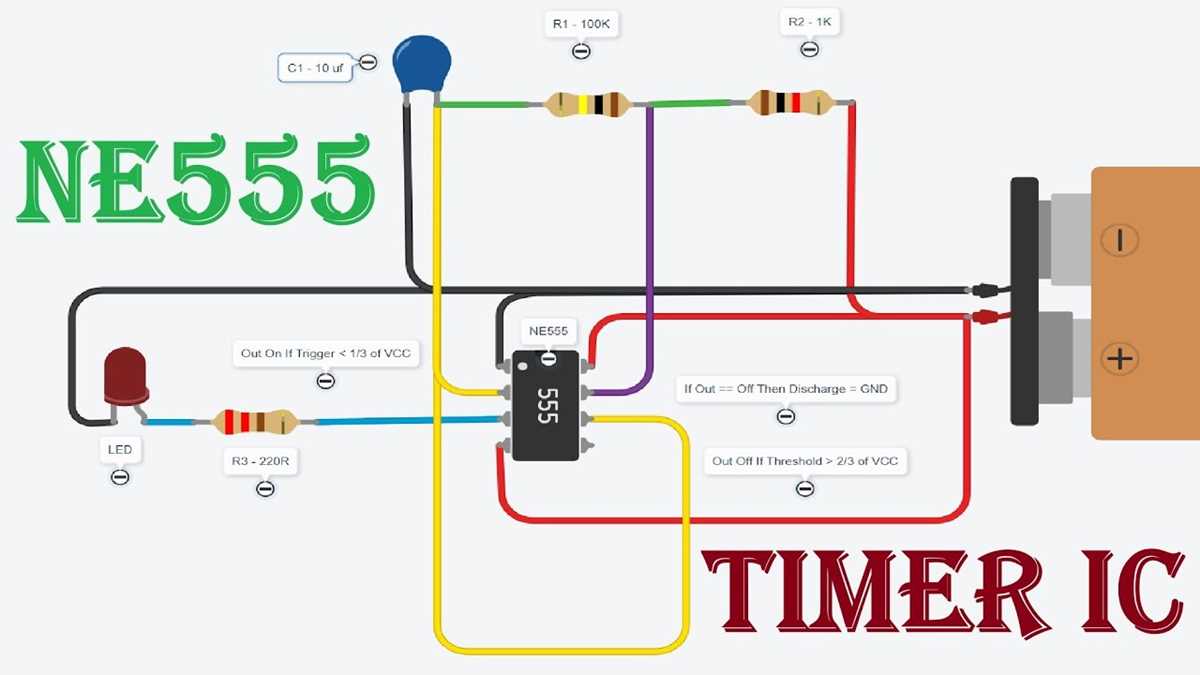

Step-by-Step Assembly of a Monostable Timing Module with 555 IC
Begin by connecting pin 8 (Vcc) to a 5V power supply through a 10μF decoupling capacitor to ground–this stabilizes voltage fluctuations during operation. Attach pin 1 (GND) directly to the negative rail. For the trigger input (pin 2), solder a 10kΩ resistor from Vcc to create a pull-up configuration, then add a momentary switch to GND. Pressing it momentarily pulls the input low, initiating the timing cycle. Pin 4 (reset) should tie to Vcc unless active-low reset functionality is required; in that case, use a 1kΩ resistor to Vcc with a switch to GND.
Configuring the Timing Elements
Insert an 8-pin socket first to avoid IC damage during soldering. Connect a 100kΩ resistor between pins 7 (discharge) and 8 (Vcc). From pin 6 (threshold), link a 1μF capacitor to GND–this pair determines the output pulse duration (T = 1.1 × R × C). For adjustable timing, replace the fixed resistor with a 500kΩ potentiometer wired in series with a 10kΩ limiting resistor to prevent zero resistance. Ensure the capacitor’s polarity matches the schematic: positive lead to pin 6, negative to GND. Verify component values with a multimeter before powering on.
Complete the setup by connecting the output (pin 3) to a load–a 220Ω series resistor and LED to GND works for testing. Power the board and press the trigger switch. The LED should illuminate for approximately 0.11 seconds (100kΩ × 1μF) before extinguishing. If the duration is inconsistent, check for cold solder joints, parasitic capacitance on the breadboard, or incorrect component orientation. For longer pulses, scale the resistor or capacitor proportionally (e.g., 470kΩ + 10μF extends output to ~5.2 seconds).
Designing an Astable Multivibrator with the Bipolar Timer for Adjustable Frequency Output
Select a timing capacitor between 10 nF and 100 µF based on the target frequency range. Higher capacitance reduces frequency but increases stability, while lower values push output into the kilohertz or megahertz spectrum. Pair it with resistors in the 1 kΩ to 1 MΩ range–precision here dictates waveform consistency. For fine-tuning flexibility, replace one resistor with a trimpot (e.g., 100 kΩ linear) to calibrate duty cycle without recalculating components.
Connect the timing elements to pins 2 (trigger), 6 (threshold), and 7 (discharge), forming a closed loop with the output (pin 3). To prevent thermal drift, use 1% tolerance metallized film resistors and a polypropylene or C0G ceramic capacitor for frequencies above 1 kHz. Below 100 Hz, polarized electrolytics work but require a reverse-voltage protection diode (e.g., 1N4148) across the capacitor to avoid leakage-induced frequency errors.
Frequency Calculation and Component Optimization
Use the formula f = 1.44 / ((R1 + 2R2) × C) to determine frequency, where R1 is the resistor between discharge (pin 7) and power, R2 spans discharge to threshold (pin 6), and C is the timing capacitor. For a 50% duty cycle, set R1 (e.g., R1 = 1 kΩ, R2 = 100 kΩ) and add a diode parallel to R2, allowing the capacitor to charge through R1 and discharge through R2. Without this diode, duty cycle skews above 50%, especially at higher frequencies.
For sub-hertz operation (e.g., 0.1 Hz), increase C to 470 µF and use a 1 MΩ trimpot for R2–verify stability with an oscilloscope, as leakage currents in large electrolytic capacitors can disrupt timing. To interface with logic-level systems, buffer the output (pin 3) via a BC547 transistor or a 74HC14 Schmitt-trigger inverter to sharpen edges and isolate load capacitance, which otherwise degrades waveform integrity.
