How to Wire a Nest Thermostat Step-by-Step Connection Guide
Before modifying any electrical setup, confirm the power is fully disconnected at the circuit breaker. A non-contact voltage tester will verify absence of current–this prevents short circuits and accidental damage to components. Locate the breaker panel and switch off the dedicated line supplying the heating/cooling unit; label it if unclear. Failure to do so risks equipment failure or injury.

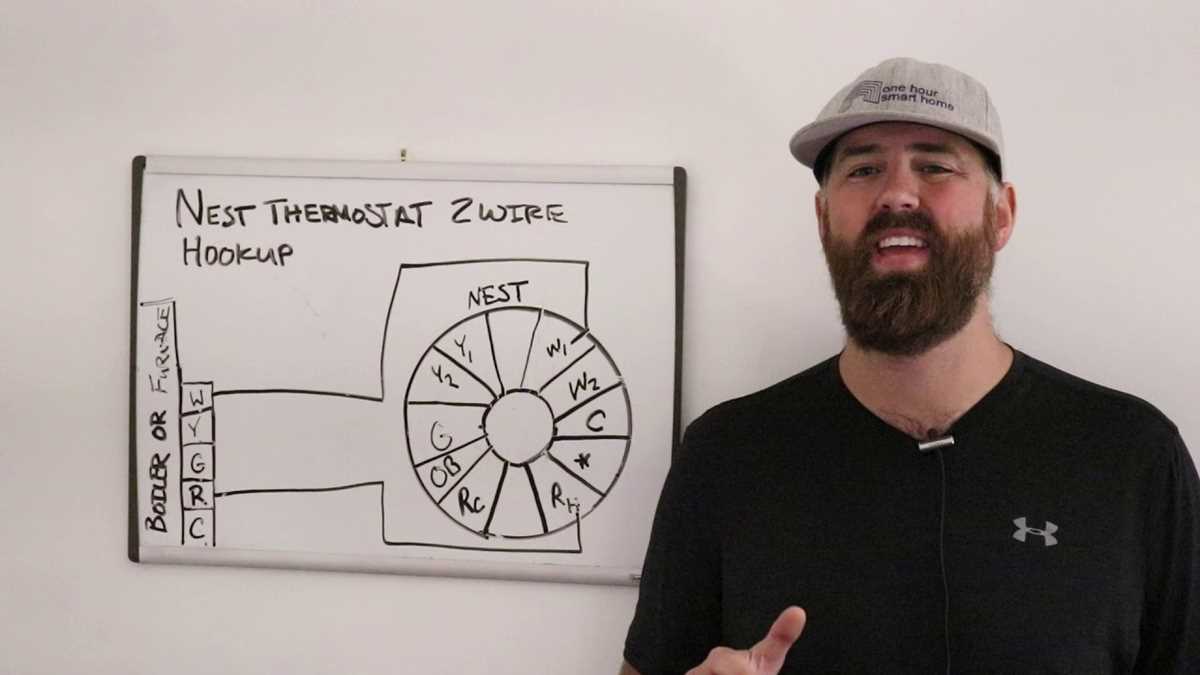

Identify the control board terminals on your HVAC system first. Standard configurations use Rc (cooling power), Rh (heating power), W (heat call), Y (cooling call), G (fan), and C (common/neutral). Newer models may include O/B (heat pump changeover) or E (emergency heat). Document each wire’s current terminal with a photograph or labeled diagram–colors vary by manufacturer and should never be assumed.
For single-stage systems, connect the Rc/Rh wires together if coming from a single power source. Split systems require separate Rc (cooling) and Rh (heating) inputs. The C terminal is mandatory for Wi-Fi-enabled climate controllers–without it, the device won’t power consistently. Double-check screw tightness; loose connections cause intermittent operation or overheating. Use 18-gauge solid copper wire for extensions if terminals are distant.
Heat pumps with auxiliary heating use E for backup coils. Connect this only if your system has a secondary heat source–improper wiring forces the unit into emergency mode, spiking energy use. For dual-fuel setups (gas furnace + heat pump), wire the W terminal to the furnace relay, not the heat pump’s auxiliary output. Miswiring here cancels energy-saving features and may violate local building codes.
After securing all wires, restore power and observe the display. If it fails to initialize, recheck the C terminal and ensure no bare copper touches casing. Measure voltage between R and C–expect 24V AC; readings below 20V indicate transformer issues. Test functionality by adjusting temperature settings; listen for relay clicks from the HVAC unit. No response suggests a wiring error or faulty control board.
Connecting Your Smart Climate Controller: Step-by-Step Guide
Before handling any connections, power down the HVAC system at the circuit breaker to prevent short circuits or damage. Match each terminal on the backplate with the corresponding wire using the color-coded labels: Rh/Rc (power, red), W1 (heating, white), Y1 (cooling, yellow), G (fan, green), and C (common, blue). For heat pump setups, identify auxiliary wires like O/B (orange) for reversing valves and emergency heat (often brown). Strip no more than 1/4 inch of insulation from each wire and insert firmly into the correct slot–loose connections cause intermittent failures. If replacing an older unit, photograph the existing configuration first; legacy systems may have non-standard colors like pink or black for specialized functions.
Verify compatibility by checking the system’s voltage (24V for most residential units, 120V/240V for high-voltage setups) and confirming the controller supports dual-fuel systems if combining a furnace with a heat pump. Label each wire with masking tape during disassembly to avoid confusion during reinstallation. Post-installation, restore power and run a system test: activate heating, cooling, and fan modes sequentially, monitoring for correct responses and error codes like E74 (power loss) or E95 (wiring issue). For optimal performance, adjust the anticipator settings if the old unit had manual calibration.
Identifying Compatible Cable Colors for Smart Climate Control Setup
Start by locating the central heating and cooling control panel. Standard low-voltage connections follow a consistent color scheme across most HVAC systems. The red cable (typically labeled R, Rh, or Rc) carries power from the system’s transformer–this must connect to the corresponding terminal on your new device. Blue or green (marked C) provides a continuous power return path, critical for Wi-Fi and display functionality. Yellow (Y) handles cooling activation, while white (W) triggers heating; ensure these match the original setup to avoid system errors.
Common Variations and Troubleshooting
| Cable Color | Primary Function | Alternative Labels | Compatibility Note |
|---|---|---|---|
| Red (R, Rh, Rc) | 24V power supply | Hot, Power | Split systems use separate Rh (heating) and Rc (cooling) |
| Blue/Green (C) | Common/Neutral | B, X | Required for modern smart devices; may not exist in older installs |
| Yellow (Y) | Cooling call | Y1, Y2 (two-stage systems) | Verify compressor compatibility with multistage output |
| White (W) | Heating call | W1, W2 | Heat pumps may use orange (O/B) for reversing valve |
For heat pumps, the orange or dark blue cable (O/B) controls the reversing valve–connect this only if your setup includes both heating and cooling modes. Brown or black (often labeled E or Aux) typically manage emergency heat on dual-fuel systems. Verify these connections against the existing control’s labels; mismatches risk damaging components. If the manual labels differ from the cable colors, prioritize the printed terminal designations over color alone. Use a multimeter to confirm 24V between R and C before proceeding–values outside 20-30V indicate potential transformer issues.
How to Install Your Smart Climate Controller to Your Heating and Cooling Unit
Turn off the power at the circuit breaker before touching any connections. Verify the system is off by adjusting the old control panel to activate heating or cooling–if nothing happens, proceed. Label each existing wire with masking tape near the terminal using the letters marked on the original device. This avoids errors when reconnecting the new setup.

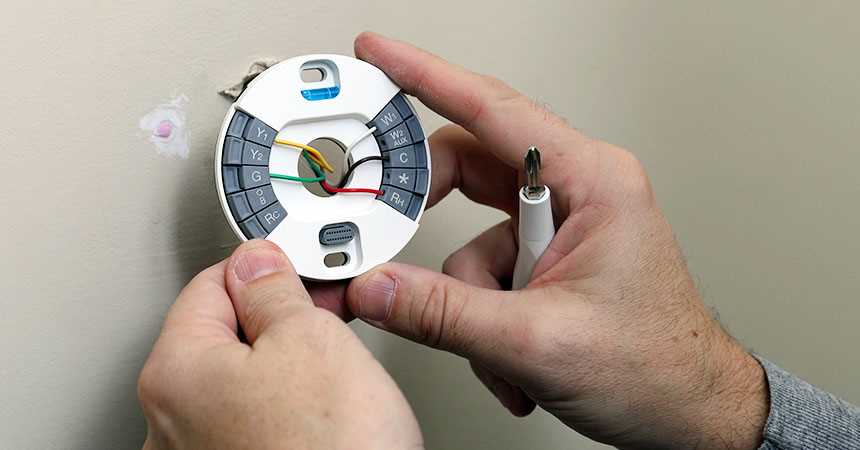

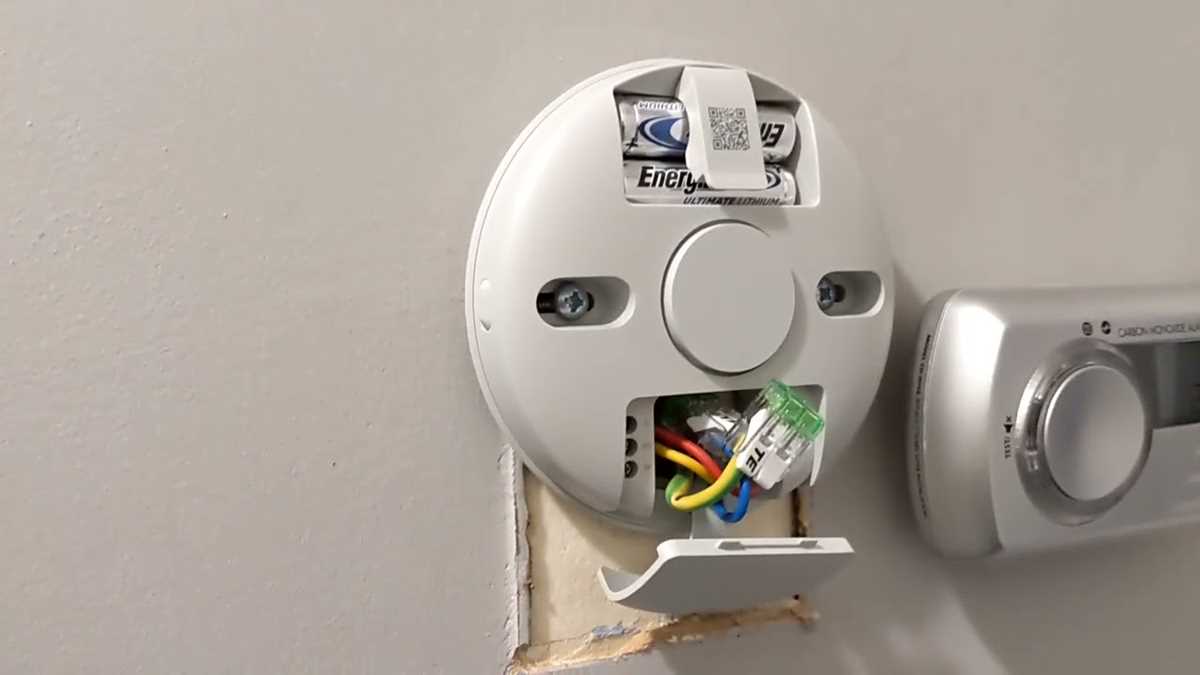

Remove the base of the new device by pressing the clip at the bottom and lifting upward. Thread the labeled wires through the corresponding openings in the mounting plate. Match each wire to the correct terminal on the connector board:
- Rc or Rh (red, 24V power) – connects to the transformer.
- W1 (white, heat) – links to the furnace relay.
- Y1 (yellow, cool) – attaches to the air conditioner compressor.
- G (green, fan) – joins the blower motor.
- C (blue or black, common) – completes the circuit for continuous power.
Tighten screws securely to prevent loose connections causing intermittent failures.
Align the mounting plate with the wall anchors and drive screws until snug. Snap the front panel onto the base, ensuring it clicks into place. Restore power and follow the on-screen prompts to configure settings. Check each mode (heat, cool, fan) by setting temperature differentials–listen for relay engagement and airflow changes within 30 seconds to confirm proper linking.
If the display remains blank, recheck the Rc/C circuit path for continuity. A multimeter should show ~24V AC between these points. Loose strands or crossed wires often cause silent failures. Reconnect any misplaced leads and retest before closing the panel. Keep the old diagram nearby as reference–some systems require jumper placements between Rc and Rh for dual-transformer setups.
Frequent Installation Errors with Smart Climate Controllers
Mismatching wire labels between the existing control unit and the new device causes instant failure. Older HVAC systems often use non-standard color coding–verify each terminal’s function with a multimeter before connecting. Red wires labeled “R” (power) must never touch “C” (common) or “W” (heat) terminals, as this creates a direct short, tripping breakers or damaging the board.
Ignoring voltage requirements leads to unreliable operation. Check if the system supplies 24V AC–any deviation outside 20-30V may prevent startup or cause intermittent functionality. Low-voltage circuits (below 18V) frequently trigger “No Power” errors, while high-voltage surges (above 32V) risk frying internal circuits. Use a transformer if the voltage strays beyond safe limits.
Skipping jumper removal on dual-fuel setups forces incompatible heating modes. If the old controller used a jumper between “W” and “Y” terminals, remove it before attaching the new device. Leaving jumpers in place tricks the system into believing both heating and cooling are active simultaneously, wasting energy or causing overheating. Label jumpers before removal to avoid confusion during reinstallation.
Critical Oversights During Setup
- Forgetting to turn off power at the breaker before handling wires risks electrical shock and component damage. Even “low-voltage” circuits carry enough current to arc if shorted.
- Over-tightening terminal screws strips wires or cracks the housing, leading to loose connections or exposed conductors. Apply firm but controlled pressure when securing wires.
- Mixing up “O” (heat pump reversing valve) and “B” (alternate reversing valve) wires results in reversed heating/cooling cycles. Refer to the HVAC manufacturer’s manual to confirm the correct terminal.
Incorrect placement of the “C” wire disrupts continuous power delivery. Many installers mistakenly connect the “C” wire to the wrong transformer terminal, causing the device to reboot randomly or drain batteries. Verify the “C” wire’s origin–it must come from the transformer’s secondary side, not from a floating ground or shared neutral.
Failing to label unused wires creates future headaches. Even if not immediately connected, unused wires (like “E” for emergency heat) should be capped and marked. Overlooking this step complicates troubleshooting or system upgrades later. Use wire nuts or electrical tape to insulate loose ends, preventing accidental shorts during maintenance.
