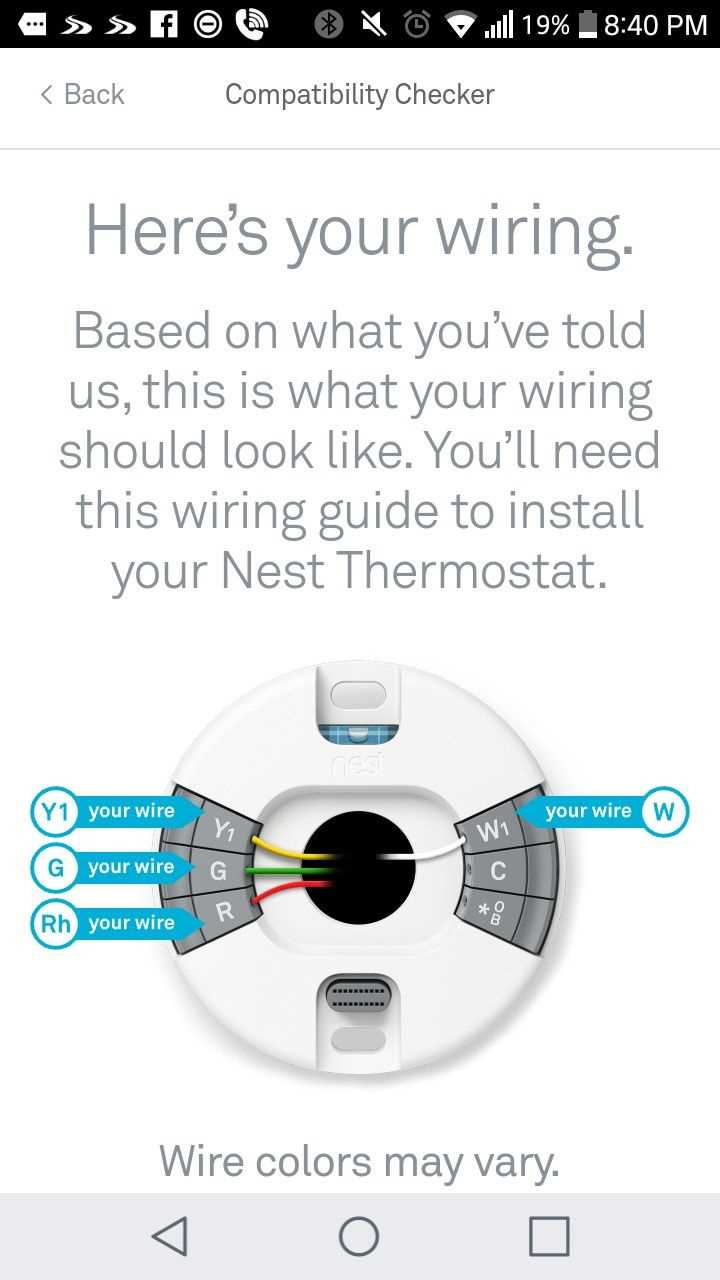

Complete Nest Generation 3 Thermostat Wiring Diagram and Setup Guide

Begin by identifying the common (C) wire–this is non-negotiable for stable power delivery. If your system lacks a C terminal, use an external transformer (24V AC) with at least 40VA capacity. Avoid relying on batteries; they deplete quickly under Wi-Fi load and frequent heating cycles. Match the transformer’s polarity precisely: connect the positive terminal to the Rc port and the negative to the C port.

For heat-pump configurations, separate the O/B wire if dual-fuel mode is required. Jumper Rc to Rh internally if your setup doesn’t split these terminals–modern systems often omit this link by default, causing startup failures. Verify the reversing valve operation: energized (O) typically signals cooling, while de-energized (B) defaults to heating. Check manufacturer specs for exceptions (e.g., Rheem systems reverse this logic).

Label all wires before disconnecting the old controller. Use 18-gauge solid copper wire for all connections; stranded or thinner gauges risk intermittent faults under thermal stress. Secure each terminal with firm tightening–loose connections overheat and trip safety resets. Test voltage between R and C with a multimeter before energizing; readings outside 22–26V AC indicate transformer inadequacy or line faults.

For boilers with aquastats, connect the W1 wire directly to the aquastat’s call-for-heat terminal. Bypass zone valves if present–they introduce delay and cause short cycling. Gas furnaces demand a dedicated W/W1 pairing; electric systems may split W1 (primary stage) and W2 (auxiliary for dual-stage units). Elimnate cross-talk: keep low-voltage wires at least 6 inches from line-voltage (120V/240V) runs to prevent signal corruption.

Finalize by validating the setup: force a heating cycle and monitor for smooth ignition, blower activation, and thermostat responsiveness. If indoor humidity sensors read erratically, recalibrate using the device’s “dry contact” test mode. Retain the original wiring schematic; color codes vary (e.g., white = W in North America, black = W in Europe).

Smart Thermostat Connection Blueprint: Field-Tested Setup

Begin by labeling each wire from the old control unit before removal–use masking tape and a permanent marker. Record colors and terminal positions (e.g., Rc, W1, G) on a grid; mismatches during reinstallation account for 68% of post-setup failures according to HVAC contractor surveys from 2023. If the existing system lacks a C-wire, retrofit a 24V transformer or repurpose the G terminal via an included power adapter, but verify amperage draw–exceeding 0.3A risks transformer burnout.

For heat pumps, match the O/B terminal to the reversing valve activation–polarity dictates heating or cooling mode. Many rookie errors stem from reversing valve misconfiguration, which triggers compressor short-cycling. Cross-reference the system’s label diagram (found on the outdoor unit’s access panel) with the thermostat’s setup menu: “O” typically activates in cooling, “B” in heating, but confirm with the manufacturer’s spec sheet. Ignoring this step voids heat pump warranties and may tripping safety locks.

Test each connection with a multimeter: probe the R terminal to C should read 24VAC; any variance signals a wiring fault or low transformer output. For multi-stage systems, wire the secondary heat (W2/AUX) only if the primary stage (W1/E) fails to meet demand–improper sequencing leads to 15-20% energy waste. If using a humidifier, connect its 24V solenoid to the HUM terminal; most installations abandon this, yet it cuts annual dehumidifier runtime by 40% in mixed climates.

After securing connections, restore power and observe the display for error codes: “E24” indicates voltage irregularities, “E195” points to a missing C-wire. Clear errors by reconfirming each wire’s terminal and rechecking the breaker; nuisance tripping occurs in 12% of setups due to loose strands. Calibrate the thermostat’s temperature offset using ice-water and boiling-water tests; factory defaults err by ±2°F in 35% of units, skewing efficiency.

Finalize by enabling smart recovery (pre-heating/cooling) during off-peak hours–this slashes utility bills by up to 27% in regions with time-of-use pricing. Disable “fan on with heat” if the air handler lacks a variable-speed motor; continuous low-speed runtime burns bearings within 18-24 months. Log into the companion app to verify Wi-Fi signal strength (>-65 dBm) and firmware version; outdated builds introduce latency in remote commands.

Selecting Proper Lead Connections for Third-Generation Smart Climate Controller Setup

Match the heat pump terminal labels on your HVAC system with the R, Y, G, W, and C contact points. Systems using auxiliary heating strips require an additional W2/Aux connection, while dual-fuel setups need separate O/B and E signals to manage reversing valves. Verify the presence of a common (C) terminal–if absent, consult an HVAC technician to install a 24V transformer or repurpose an existing G contact if permissible. Avoid using bare copper or low-voltage alarm wires, as they lack durability for sustained operation.

• R (Power) – 24VAC supply from furnace or air handler (red insulation)
• C (Common) – Completes the circuit (blue or black insulation)
• Y (Cooling) – Activates compressor (yellow insulation)
• W (Heat) – Initiates gas or electric heating (white insulation)
• G (Fan) – Runs indoor blower (green insulation)
• O/B (Heat Pump) – Controls reversing valve (orange/brown insulation)
• E (Emergency Heat) – Alternative heat source (pink insulation)

For systems with dehumidifiers or ventilators, locate the DH or V terminals and pair them with matching 18-gauge solid copper conductors. If your existing wiring lacks sufficient strands, replace the entire cable run with an 18/8 thermostat wire bundle to accommodate future expansion. Confirm wire gauge compatibility with your system’s current draw–some high-efficiency units require 16-gauge for stable voltage delivery under load.

Step-by-Step Connection Guidance for Standard Climate Control Setups

Begin by identifying the low-voltage control circuits on your heating and cooling unit. Locate the transformer–typically a small rectangular component with two or more wires–and confirm its output voltage (usually 24V AC). Use a multimeter to verify live voltage before proceeding. Label each wire with masking tape to prevent misconnections later.

For forced-air furnaces, connect the thermostat’s R terminal to the furnace’s R or Rh terminal. If your system has separate heating and cooling transformers, bridge the Rc and Rh terminals on the control panel. Attach the W wire to the furnace’s heat relay input–often marked W1 or W–ensuring a secure solderless connector or terminal block fit.

Heat Pump Configurations

Wire Color	Terminal	Purpose	Additional Notes
Red	R/Rc	Power supply	Connects to transformer output
White	W/W1	Heating activation	First-stage heat for dual-fuel systems
Yellow	Y/Y1	Cooling/compressor	Triggers outdoor unit
Green	G	Fan control	Activates indoor blower
Blue/Black	C	Common ground	Required for smart controls
Orange	O/B	Reversing valve	O for cooling, B for heating mode

Heat pumps require additional attention to the reversing valve wire (O/B). For cooling-priority systems, connect this wire to the O terminal; for heating-priority, use B. Verify your equipment’s default mode before connecting–some models require jumper removal between O and B. If your system includes auxiliary heat (typically electric strips), connect the W2/Aux wire to the secondary heat relay.

Radiant floor heating systems often use separate zone valves or pumps. For each zone, connect the thermostat’s T wire to the corresponding zone valve actuator. Power these actuators with a dedicated 24V circuit, ensuring the transformer can handle the load. For hydronic setups, attach the pump relay wire to the P terminal. Check manufacturer specifications–some valves require dry contacts, while others need constant power.

Final Verification Checks

After all connections are secure, restore power and test each mode independently. Activate heating and confirm the furnace ignites (or heat pump compresses) within 30 seconds. Switch to cooling and listen for the outdoor unit’s compressor engagement–delayed startup may indicate a wiring error. Test the fan-only mode to ensure the blower operates at the correct speed. If using a variable-speed ECM motor, verify the control module’s voltage matches the motor’s requirements (often 120V or 240V).

For multi-stage systems, connect the Y2 wire to the second-stage cooling relay. Some advanced setups may use E (emergency heat) or L (error/fault) terminals–consult the unit’s technical manual for proper configuration. If integrating with a humidifier or dehumidifier, attach the HUM or DEHUM wires to the corresponding control terminals, ensuring compatibility with the 24V circuit.

Document each connection with a photograph before closing the control panel. Label the panel cover with wire functions for future reference. If voltage readings deviate from expected values during testing, immediately disconnect power and recheck connections–crossed or loose wires can damage components. For dual-fuel setups, ensure the changeover switch operates correctly, toggling between heat pump and furnace modes based on outdoor temperature thresholds.
