Understanding the Core Components of a Nuclear Power Plant Layout

Begin by identifying the reactor vessel as the central component–its design dictates pressure boundaries, coolant flow paths, and structural integrity. Ensure the primary circuit incorporates at least three redundant cooling loops to mitigate thermal stress and prevent overpressure scenarios. Each loop should integrate a steam generator with secondary containment rated for 150% operational pressure to handle transient loads.

Position the turbine assembly downstream of the steam separator to optimize energy conversion efficiency. A condensing unit with vacuum maintenance below 0.05 bar reduces backpressure losses, directly improving net output by 2-3%. Locate the generator adjacent to the turbine, aligning rotor axes within a ±0.2 mm tolerance to minimize vibrational fatigue over a 40-year lifespan.

Mandatory safety layers include a drywell enclosure capable of withstanding 1.5 MPa internal pressure and a filtered containment venting system set to activate at 20% above design limits. Integrate boron injection points in both primary and shutdown circuits, with response times under 5 seconds to suppress reactivity spikes. Electrical distribution must separate Class 1E circuits from non-essential loads, using segregated busbars and ground fault detection.

Thermal hydraulics require precise flow balancing–primary loop velocities should stay between 4-6 m/s to prevent erosion while maintaining heat transfer coefficients above 5 kW/m²K. Secondary circuit steam quality must exceed 99.7% to avoid blade erosion in the turbine. Exhaust steam should be routed through moisture separators with less than 0.1% carryover to protect downstream equipment.

Control systems demand redundancy: employ triple-modular logic processors with diverse software coding (C++ and FORTRAN) to eliminate common-cause failures. Human-machine interfaces must display critical parameters (core temperature, pressure, flux levels) within a 2-second refresh rate. Emergency diesel generators should reach full load in under 10 seconds, with on-site fuel storage sufficient for 7 days of continuous operation.

Key Components of a Fission Energy Facility Layout

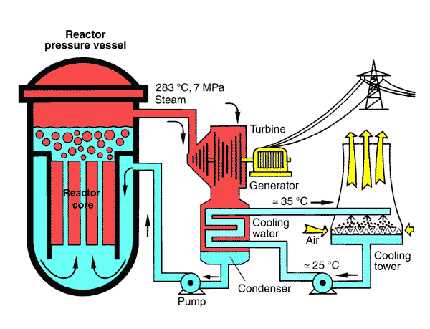

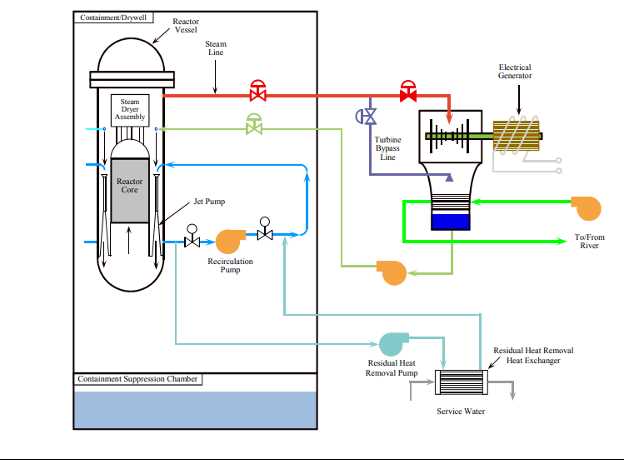

Begin by identifying the primary coolant loop as the foundation of thermal regulation. In pressurized water reactors (PWR), the loop operates at ~15 MPa to prevent boiling, while boiling water reactors (BWR) allow steam generation directly in the core at ~7 MPa. Locate the reactor vessel centrally–its walls, typically 20–25 cm thick carbon steel with a stainless-steel lining, must be annotated for seismic and pressure containment requirements. Include the steam generators (for PWR) or steam separators (for BWR) as distinct modules; their failure modes (e.g., tube rupture) should be linked to emergency feedwater systems in your drawing.

Critical System Interconnections

Subsystem	Operating Parameters	Safety Interface
Reactor coolant pumps	Flow rate: 20,000–25,000 m³/h Motors: 6–8 MW	Loss of flow trip at <85% nominal
Containment spray	Spray heads: 1,200–1,500 units Borated water: 2,000 ppm	Activates at 150°C containment temp
Emergency diesel generators	Capacity: 5–7 MW Start-up time: <10 seconds	Seismic qualification: 0.3g acceleration

Isolate the electrical bus configuration–separate vital and non-vital loads. Vital buses (e.g., reactor protection system, instrumentation) must have redundant DC power (125V or 250V) and two independent AC feeds. Non-vital buses can share a single transformer but require automatic load shedding protocols. Label cable trays for radiation shielding (lead or concrete) and fireproofing (typically mineral-insulated copper cable for high-heat zones). Turbine hall layouts demand clarity on condenser vacuum systems (absolute pressure ≤ 5 kPa) and feedwater heater stages (6–8 preheaters for optimal efficiency).

Mark auxiliary buildings with precision: spent fuel pools (boron concentration: 2,000–2,500 ppm) require active cooling lines connected to residual heat removal systems. Waste processing facilities should differentiate between liquid (evaporators, ion exchangers) and solid (compactors, cementation) streams. Use standardized symbols (IEC 60617 or ANSI Y32.14) for pumps, valves, and sensors, but override defaults for proprietary components–e.g., Westinghouse’s “can” type reactor coolant pumps or GE’s jet pumps in BWRs–. Annotate seismic supports, pipe whip restraints, and hydrogen recombiners (passive catalytic type for advanced designs).

Key Elements of a Pressurized Water Energy Facility (PWR)

Prioritize a reactor vessel design rated for 15.5 MPa pressure and 325°C operating temperature to ensure structural integrity under thermal stress. Opt for low-carbon steel with stainless steel cladding (minimum 3 mm) to resist boric acid corrosion–critical for primary coolant systems holding 20–40 m³ of borated water.

Select steam generators with U-tube configurations featuring Inconel 690 tubing (0.9–1 mm wall thickness) for superior heat transfer efficiency. Models like AREVA’s 51M or Westinghouse’s Delta-125 deliver 1,000+ MWt thermal output while maintaining

Pressurizers must incorporate dual heater systems: proportional heaters (1–2 MW) for baseline pressure control and backup immersion heaters for rapid response. A 60 m³ pressurizer with 26 MPa safety relief valves ensures system stability during load transients–integrate redundant level sensors (±0.5% accuracy) to prevent overfill or dryout.

Implement reactivity control rods made of Ag-In-Cd alloy (80-15-5 wt%) for optimal neutron absorption kinetics. Cluster designs with 16–20 rods per assembly achieve shutdown margins of 3–5% Δk/k within 1.5 seconds–verify gripper mechanisms every 5,000 cycles to prevent sticking in high-temperature boron environments.

For coolant pumps, vertical centrifugals with canned motors (rated 6,000–10,000 hp) eliminate shaft seal leaks common in traditional designs. Ensure impellers feature stellite coatings to withstand cavitation from 12–15 m/s flow velocities–specify vibration monitoring with

Step-by-Step Heat Transfer Process from Reactor Core to Turbine Assembly

Ensure primary coolant remains within 290–325°C under 15–16 MPa to prevent boiling while maximizing thermal efficiency. High-pressure liquid exits the core via reactor vessel outlets, flowing through hot leg piping–typically 70–90 cm in diameter–to the steam generator’s tube bundle. Here, heat exchange occurs across a 0.8–1.2 mm thick nickel-chromium alloy barrier, transferring ~1,000 MW thermal energy to the secondary circuit without mixing fluids.

Secondary-side water enters the steam generator at ~220°C, absorbing heat until reaching saturation (~285°C at 6.9 MPa), where it flashes into dry steam. Equip moisture separators downstream to eliminate entrained droplets; target steam quality ≥99.95% to prevent turbine blade erosion. Steam exits through 1.2–1.5 m diameter headers, routed to the high-pressure turbine via insulated pipes to minimize enthalpy loss–typically

Adopt impulse-reaction turbine staging with 6–8 expansion stages. First-stage nozzles accelerate steam to ~Mach 0.9, converting thermal energy to kinetic energy before striking rotor blades. Maintain blade tip clearances at 0.5–0.8 mm to balance efficiency and stress limits–exceeding 1 mm reduces output by ~1.5%. Post-first expansion, steam exhausts at ~1 MPa; reheat in dedicated steam generator coils to 250–260°C before low-pressure turbine admission.

• Monitor secondary loop pressures every 30 seconds–fluctuations >±1.5% may indicate tube leakage or pump cavitation.
• Replace steam generator tubes if wall thinning exceeds 40% of original thickness (0.9 mm nominal).
• Calibrate turbine governor valves seasonally to ensure ±0.3% load following accuracy.

After final turbine expansion, exhaust steam condenses in shell-and-tube condensers at ~30–50 mbar. Cooling water–drawn at 5–30 m³/s from external sources–absorbs latent heat, with temperature rise limited to 10–12°C to meet environmental discharge regulations. Install auxiliary condensate polishers to remove corrosion products like iron oxides (

Feed the condensed fluid through low-pressure feedwater heaters, then high-pressure units, boosting temperature sequentially from ~45°C to 220–240°C before re-entering steam generators. Use extraction steam from turbine stages (3rd and 6th typically) for regenerative heating. Verify heat exchanger functionality via ΔT logging–target ≥15°C approach temperature in LP heaters, ≥5°C in HP heaters. Any deviation >±2°C warrants tube inspection for fouling or blockage.

Critical Safety Mechanisms and Their Positions in the Reactor Layout

The emergency core cooling system (ECCS) is integrated within the primary containment structure, adjacent to the reactor vessel. Locate the high-pressure injection pumps in the auxiliary building–these activate within seconds of a coolant loss to maintain fuel rod coverage. Passive accumulator tanks, connected via dedicated piping, provide immediate coolant delivery without external power, reducing reliance on active components.

Control rod drive mechanisms (CRDMs) are positioned atop the reactor pressure vessel, allowing rapid insertion to halt fission reactions. Verify the redundant hydraulic and magnetic actuation paths in the schematic–failure of one should not delay shutdown. Secondary shutdown systems, such as neutron-absorbing liquid injection (e.g., borated water), are housed in separate storage tanks linked to the primary circuit via fail-safe valves.

Containment spray systems, critical for pressure suppression, are situated above the drywell in the wetwell (torus or suppression pool). Check the layout for dual spray headers and independent pumps, ensuring full coverage of the containment atmosphere. The schematic must show isolation valves for steam lines to prevent uncontrolled release paths–locate these at interface points between primary and secondary circuits.

Diesel generators, essential for backup electricity, are typically installed in a seismically isolated structure away from the main facility. Confirm their fuel storage capacity aligns with regulatory requirements (e.g., 7+ days of autonomous operation). Battery banks for critical instrumentation should be distributed across multiple rooms, with each powering redundant sensor loops to prevent single-point failures during blackouts.

Filtered venting systems, a last-resort safety feature, are installed in the upper containment walls. Their filtration units (sand-bed or metal-fiber) must be clearly marked on the layout, with flow paths avoiding recirculation back into occupied areas. Examine the schematic for automatic depressurization system (ADS) valves–these bypass the main turbine and redirect steam to the suppression pool when primary relief fails.
