Complete Guide to Designing and Building an Ohmmeter Circuit with Schematic

Start with a Wheatstone bridge configuration–it delivers accuracy down to milliohms when properly balanced. Use a 1.5V AA battery as the power source to avoid overloading low-resistance components. For unknown resistors below 1kΩ, add a shunt resistor in parallel to protect the microammeter: a 100Ω, 1% tolerance part keeps current under 15mA even at full scale.

Select a 10μA moving-coil meter as the readout element–its linear response eliminates calibration complexity. Include a multiturn potentiometer (10kΩ) for fine zero adjustment, wired in series with a 1kΩ fixed resistor to stabilize sensitivity. Add a push-button switch to disconnect the test probes during adjustments, preventing false readings from probe resistance.

For ranges above 1MΩ, switch to a FET-input op-amp (e.g., TL071) in voltage-follower mode. Feed the unknown resistor into the non-inverting input and ground the inverting input–output voltage scales linearly with resistance, measurable with a standard digital voltmeter. Use shielded cables to connect probes, minimizing stray capacitance interference that distorts readings above 10MΩ.

Add a range selector using rotary switches: 10Ω–100kΩ spans standard carbon-film resistors, while 1MΩ–10GΩ covers isolation testing. Each range shifts a different precision resistor into the test path, scaling the meter’s sensitivity. Protect the meter with a Schottky diode across its terminals, clamping voltage spikes when switching ranges with inductive loads connected.

Validate the setup with verified resistors: a 1.2kΩ 0.1% metal-film part checks midrange accuracy, while a 47MΩ through-hole resistor verifies high-end performance. Store the device with leads shorted to discharge any residual capacitance–this prevents drift during the next measurement cycle. For consistent results, recalibrate after every 50 uses using a NIST-traceable decade box.

Building a Precision Resistance Measurement Tool: A Hands-On Approach

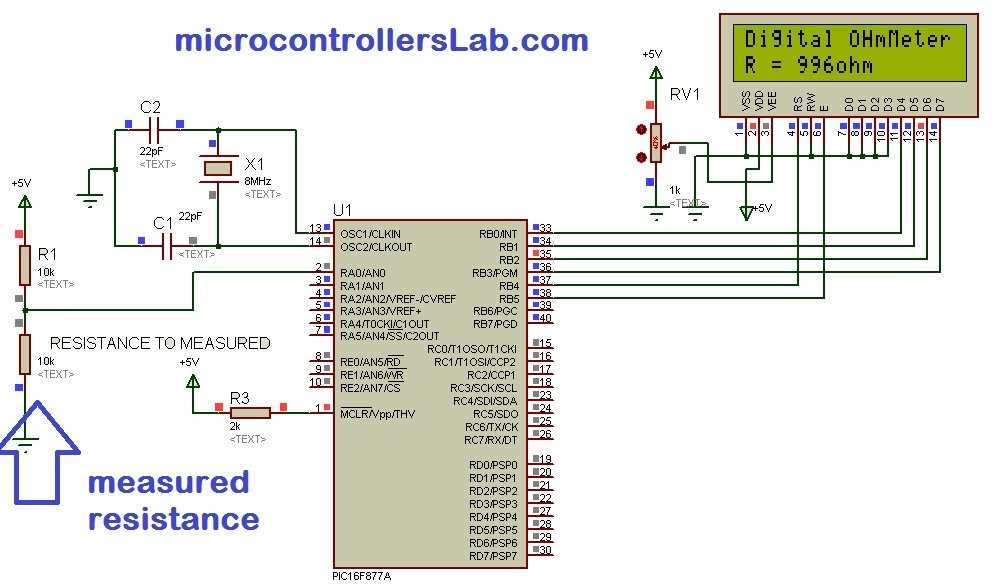

Start with a stable 5V DC power source–linear regulators like LM7805 work best to eliminate ripple that skews readings. Connect a 1kΩ reference resistor in series with the unknown component, forming a divider. The voltage drop across the unknown resistor follows Ohm’s law: V_x = 5V × (R_x / (1kΩ + R_x)). Use a microcontroller’s 10-bit ADC (e.g., ATmega328P) to sample this voltage, ensuring the input impedance exceeds 10MΩ to avoid loading effects.

Select a low-leakage analog switch (MAX4610) for range switching. For sub-ohm measurements, shift to a Kelvin connection: separate current-injection and voltage-sensing leads to eliminate contact resistance errors. Inject a controlled 1mA current via an op-amp current source (LT3092), then measure the voltage drop directly. Calibrate at three points–0Ω (short), mid-scale, and open–to compensate for offset drift.

For high-resistance targets (1MΩ+), reverse the topology: apply a known voltage and measure the current through a transimpedance amplifier (LTC6078). Configure gain via feedback resistors in decade steps (10kΩ, 100kΩ, 1MΩ) to maintain SNR above 60dB. Shield the input traces with guard rings connected to the amplifier’s output to minimize leakage currents.

Component-Specific Guidelines

Choose a 0.1% tolerance reference resistor to limit absolute error. For dynamic measurements, add a 100nF polypropylene capacitor across the unknown resistor to stabilize readings during transient events. When testing inductive loads, insert a 1N4148 diode in parallel to clamp back-EMF and protect the ADC. For capacitance-heavy targets, implement a settling delay of 5× the RC time constant before sampling.

Use a 4-wire measurement for components below 1Ω. Drive 100mA through the outer leads, then sense the voltage drop on the inner leads with an instrumentation amplifier (INA828). Set its gain to 100 to achieve 1µV resolution. For noisy environments, average 32 readings and apply a 2nd-order Butterworth filter in firmware to reject 50/60Hz interference.

Store calibration constants in EEPROM (e.g., 24LC64) to compensate for thermal drift. Update coefficients every 1°C change using a look-up table. For portable devices, power the reference from a supercapacitor (1F, 5.5V) to maintain stability during battery swaps. Log raw data via UART at 115200 baud for post-processing, including timestamp and ambient temperature from an LM35 sensor.

Isolate digital grounds from the analog section with a 10µH ferrite bead. Route high-impedance traces as short as possible, on the inner layers of a 4-layer PCB, to reduce parasitic capacitance. For surface-mount components, use 0603 or smaller packages–their lower inductance improves response below 10Ω. Test continuity of the guard traces with a 100Hz square wave, ensuring ringing amplitude stays below 5mV.

Validation and Error Handling

Cross-check readings against a Fluke 87V multimeter; deviations above 0.5% indicate miscalibration. Detect open circuits by toggling a 1µA pull-down current through the measurement path–if voltage exceeds 4.9V, flag as “infinite”. For intermittent faults, implement a moving average filter (sliding window of 8 samples) to smooth spikes. Store error codes in a circular buffer (256 entries) with timestamps for diagnostics.

Key Elements for Building a Resistance Measurement Tool

Begin with a precise analog meter movement, preferably a 50 µA or 100 µA DC panel meter. Select models with clear, linear scaling to ensure accurate readings across different resistance ranges without recalibration. Pair this with a stable 1.5 V or 3 V battery–alkaline cells are preferred over zinc-carbon for consistent voltage output over time. For low-resistance ranges, include a 10-turn potentiometer rated at 1 kΩ to fine-tune zero adjustment, compensating for meter movement tolerances and lead resistance.

A bank of precision resistors–typically 1%, metal-film types–is critical for range selection. Use values like 1 Ω, 10 Ω, 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ, and 1 MΩ to cover common measurement spans. The lowest range should incorporate a 1 Ω resistor in series with test leads to minimize errors from contact resistance. For higher ranges, add a 10 MΩ resistor in parallel with the meter to prevent overload during open-circuit checks. Ensure all resistors are soldered directly to a rotary switch with gold-plated contacts to reduce oxidation-related drift.

Shielded test leads with banana plugs or Kelvin clips reduce noise and improve repeatability, especially below 100 Ω. For battery-powered designs, integrate a momentary push button to limit power consumption when not in use. Avoid using carbon-composition resistors, as their resistance drifts with temperature and humidity, skewing readings. Verify all connections with a high-impedance voltmeter before operation to confirm correct polarity and absence of short circuits between ranges.

Building a Series Resistance Meter: Practical Assembly Guide

Select a 1.5V AA battery as the power source for stability–its consistent voltage ensures accurate low-range readings. Secure a 10kΩ trimpot (multiturn preferred) for fine calibration; this value balances sensitivity without excessive current draw. Mount the trimpot on a small perforated board, soldering its outer pins first to avoid thermal damage. Use a 1mA analog panel meter with a 0–100µA movement; verify its internal resistance (typically 500–2000Ω) with a multimeter to calculate shunt requirements.

Connect the battery holder’s negative terminal to the meter’s negative lead, then wire the positive battery terminal to the trimpot’s first pin. Link the trimpot’s wiper (center pin) to the meter’s positive lead–this forms the zero-adjustment path. Attach test probes to the meter’s negative lead (common) and the trimpot’s unused pin; use 22AWG silicone wire for flexibility. For high-range testing, include a 100kΩ precision resistor in series with the probes, soldered directly to avoid loose connections.

Critical calibration steps: Short the probes and adjust the trimpot until the needle rests at full scale (rightmost position). This compensates for battery voltage drop, a common source of error. To verify linearity, measure known resistors (e.g., 1kΩ, 10kΩ, 100kΩ) and note deviations–expect ±5% accuracy for values below 1MΩ. For microscale measurements, replace the panel meter with a 200µA unit and recalculate shunt values using Ishunt = Imeter × (Rmeter / (Rshunt + Rmeter)).

Component Placement and Safety

Arrange components to minimize lead length; a compact layout reduces parasitic inductance, which distorts readings above 100kHz. Isolate the assembly in a plastic enclosure to prevent accidental shorts–exposed traces near the battery risk reverse polarity damage. For probe tips, use gold-plated banana plugs or crocodile clips; oxidization on copper probes adds 1–2Ω error. Ground the enclosure if testing circuits with floating grounds to avoid capacitance effects.

Test the device before final assembly: power it on, then immediately measure current draw across the probes (should be

Calculating Resistor Values for Accurate Measurements

Select a reference resistor within 10–100× the expected unknown resistance to minimize error. For instance, if measuring a 470Ω component, use a 4.7kΩ–47kΩ reference to keep the current divider’s output within 1%–10% of the supply voltage. Below 1% loading, linearity degrades; above 10%, resolution drops. Test accuracy by swapping known resistors (1%, 0.1% tolerance) and logging voltage deviation–±0.5% variance confirms stable calibration. Avoid carbon-film resistors; metal-film or wirewound types reduce thermal drift below 50 ppm/°C.

Target Range	Optimal Reference	Max Error @25°C	Temperature Coefficient (ppm/°C)
1Ω–10Ω	100Ω–1kΩ	±0.8%	25–50 (wirewound)
100Ω–1kΩ	10kΩ–100kΩ	±0.3%	15–30 (metal film)
10kΩ–100kΩ	1MΩ–10MΩ	±0.1%	5–10 (thin film)

For sub-ohm precision, employ a 4-wire Kelvin setup: inject 10–100mA through separate force leads, measure voltage drop across sense leads with 0.2% nonlinearity in low-resistance ranges.
