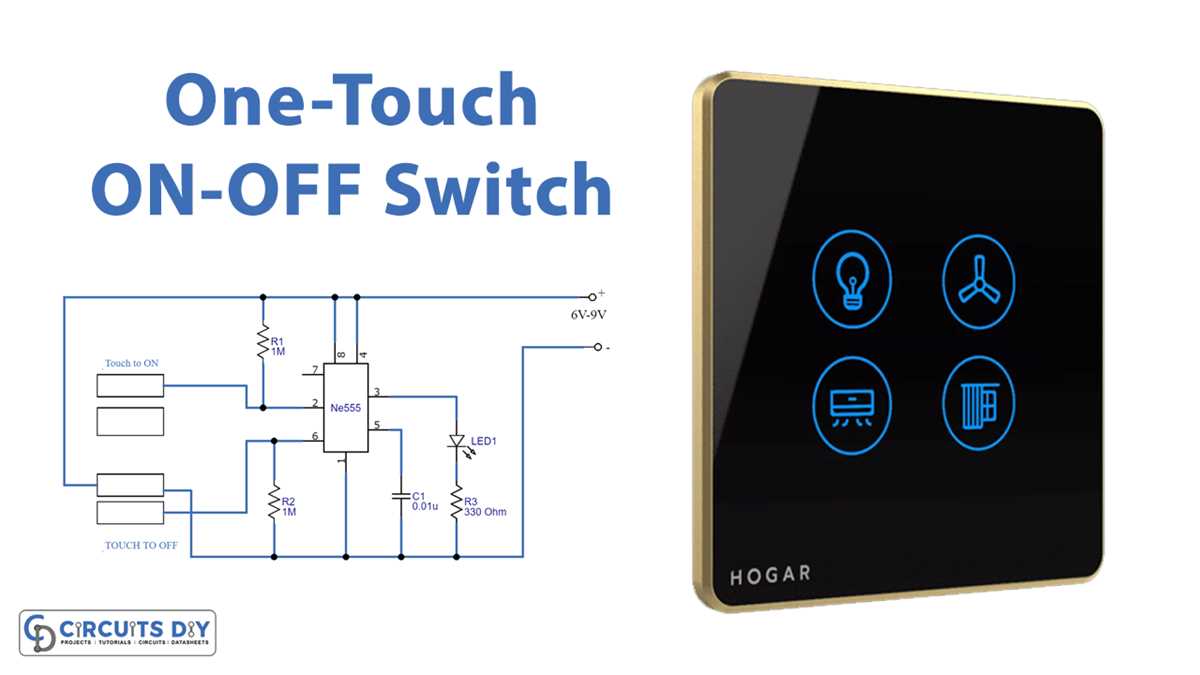

Simple One-Touch ON-OFF Switch Circuit Schematic Guide

For a reliable bistable flip-flop using minimal components, integrate a CD4013 dual D-type flip-flop in its most basic configuration. Power the IC with 5–15V DC, ensuring stable voltage regulation via a LM7805 if input exceeds 9V. Connect the SET and RESET pins (6 and 4) to ground through 10kΩ resistors to prevent floating inputs. The CLK pin (3) receives the trigger signal from a momentary pushbutton linked to V_CC via a 1kΩ pull-down resistor–this suppresses false toggles from contact bouncing.

Route the Q output (1) to a BS170 MOSFET or an equivalent N-channel device, selected for a maximum drain current of 500mA (sufficient for small relays or LEDs). Add a 1N4007 diode across the load to clamp inductive spikes if driving relays. For noise immunity, place a 0.1µF ceramic capacitor between V_CC and ground near the IC. Test with a 12V supply: a single press should alternate states, verified with a multimeter on output Q or an indicator LED.

Optimize for longevity by replacing the CD4013 with a 74HC74 if operating above 2MHz toggle rates, though most applications remain well below 10Hz. Avoid common pitfalls: omit decoupling caps only if the power source is laboratory-grade; otherwise, transient dips will corrupt the flip-flop’s state. For battery-powered designs, use a MC34063 buck converter to step down 12V to 5V efficiently–this extends runtimes by 30% compared to linear regulators.

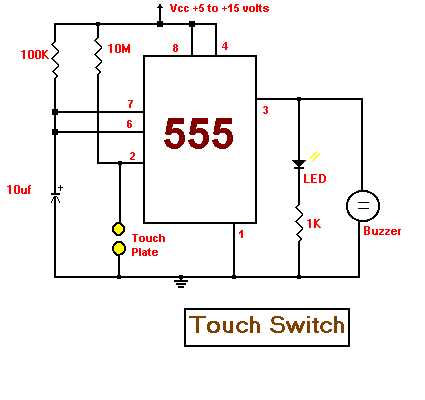

Single-Press Activation and Deactivation Schematics

Use a bistable multivibrator (flip-flop) IC like CD4013 for reliable toggling–apply a single pulse from a momentary button to alternate states without needing continuous power. Connect the pushbutton output to the clock input (CP) of the flip-flop; the Q output will switch between high and low with each press, eliminating mechanical wear.

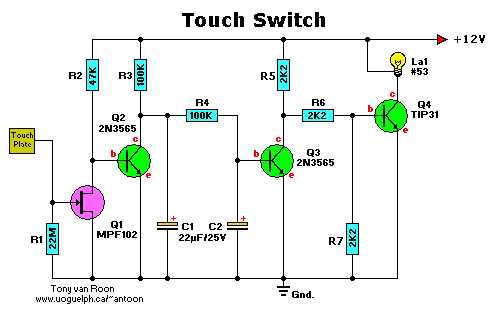

For minimal component designs, replace the flip-flop with a T-type configuration using two transistors (e.g., BC547) and a capacitor. Wire the capacitor between the button and base of the first transistor–each press discharges it, flipping the transistor pair’s output. Ensure the capacitor value (e.g., 1µF) matches the desired delay between presses to avoid accidental toggling.

• CD4013 tolerates 3–15V, making it adaptable for 5V microcontroller projects or 12V automotive setups.
• Add a 10kΩ pull-down resistor on the button input to prevent floating states.
• Debounce the button with a 0.1µF capacitor across its contacts to filter noise from mechanical contacts.

Low-power applications benefit from a CMOS flip-flop like 74HC74. Pair it with a Schmitt trigger inverter (e.g., 74HC14) to clean the button signal before clocking. This setup draws microamps in standby, ideal for battery-operated devices. Avoid TTL logic (e.g., 74LS74) if voltage drops below 4.5V–it becomes unreliable.

For direct microcontroller integration, use an interrupt-driven approach on a GPIO pin. Configure the pin with internal pull-up resistors and trigger on a falling edge. Code example for an AVR (e.g., ATmega328):

1. Set DDR register to input: DDRB &= ~(1
2. Enable pull-up: PORTB |= (1
3. Attach interrupt: PCICR |= (1
4. Toggle state in ISR: static bool state = 0; state = !state; digitalWrite(LED_PIN, state);

High-current loads (e.g., motors, relays) require a MOSFET or transistor as an output stage. Drive a logic-level MOSFET (e.g., IRLZ44N) directly from the flip-flop’s Q output–no additional amplification needed. For inductive loads, add a flyback diode (1N4007) across the load terminals to suppress voltage spikes.

Test all configurations with a logic probe or oscilloscope. Verify the flip-flop’s Q output toggles cleanly (no multiple transitions per press) and the button debounce capacitor eliminates noise. If using a microcontroller, confirm the interrupt fires exactly once per press–adjust the capacitor value if bouncing persists.

Key Parts Needed for a Single-Pulse Activation Mechanism

Select a momentary pushbutton with a contact rating matching your load–common choices include 50 mA for low-power designs or 10 A for heavier appliances. Avoid latching types, as they won’t release after activation, disrupting the toggle function.

Integrate a D-type flip-flop (e.g., CD4013) to store the binary state. This chip toggles its output on each pulse, ensuring the system alternates between energized and de-energized states without manual hold.

Pair the flip-flop with a power MOSFET (IRFZ44N or IRLB8743 for logic-level control). Size the transistor based on the load’s current draw–IRFZ44N handles up to 49 A at 55 V, while smaller loads may require a 2N7000 (200 mA). Ensure the gate threshold voltage (V_GS(th)) aligns with your control signal (typically 2–4 V).

Add a schottky diode (1N5817) across the inductive load’s terminals to suppress voltage spikes during deactivation. Standard diodes (1N4007) work but introduce slower recovery times, risking transient damage.

Include a 10 kΩ pull-down resistor on the flip-flop’s data input to prevent floating states. For noise immunity, place a 0.1 µF ceramic capacitor between the chip’s power pins, as close to the IC as possible.

For AC loads, substitute the MOSFET with a solid-state relay (e.g., Omron G3VM-61B1). These handle 1–2 A at 250 VAC with optical isolation, eliminating the need for snubber circuits. Ensure the relay’s control voltage matches the flip-flop’s logic output (typically 5 V).

Use 22 AWG stranded wire for signal paths to minimize resistance, and 18 AWG for power lines exceeding 5 A. For PCB designs, allocate at least 2 oz/ft² copper weight for traces carrying higher currents. Test the assembled setup with a multimeter’s continuity mode to verify clean toggling before connecting the final load.

Step-by-Step Wiring Process for the Momentary Button Installation

Begin by disconnecting the power source to prevent electrical hazards. Use a voltage tester to confirm no current flows through the wires before handling them.

Identify the input and output terminals on your control module. Typically, the input connects to the power supply, while the output links to the load–verify markings like L (live), N (neutral), or COM (common) to avoid mistakes.

Strip 5-7mm of insulation from each wire using wire strippers. Twist the exposed strands tightly to prevent fraying, ensuring a solid connection later.

Connecting the Power Supply

• Attach the live wire (usually brown or red) from the power source to the input terminal marked L or IN. Secure it with a screw or push-in connector.
• Connect the neutral wire (typically blue or black) to the corresponding terminal, often labeled N or left unmarked for neutral.
• If grounding is required, fasten the earth wire (green/yellow) to the ground terminal, usually indicated by a symbol (⏚) or the letter E.

For the load side, link the output terminal (OUT or LOAD) to the appliance or lighting fixture. Use a short length of wire if direct attachment isn’t feasible, ensuring all connections are insulated with electrical tape or wire nuts.

Integrating the Momentary Button

1. Locate the control terminals on the module–these may be labeled S1, TRIG, or BTN.
2. Run a pair of wires from these terminals to the pushbutton. Most modules require a normally open (NO) configuration, so the button should close the circuit when pressed.
3. Secure the button in a junction box or panel, ensuring it’s easily accessible but protected from accidental activation.

Double-check all connections for tightness and correct polarity. Loose wires or reversed terminals can cause malfunction or damage. Use a multimeter to verify continuity between the button and control terminals before restoring power.

Reconnect the power and test the setup by pressing the button. The linked device should toggle states with each press–if not, revisit wiring or consult the module’s datasheet for troubleshooting steps. For safety, enclose all exposed connections in a junction box or use a project case.

Common Mistakes to Avoid During Assembly

Incorrect soldering temperature causes cold joints or lifted pads. Use a controlled iron set to 300–350°C for lead-based solder and 350–400°C for lead-free. Apply flux to the pad before heating to improve wetting and prevent oxidation. Overheating damages components like transistors or ICs–limit contact to 2–3 seconds per joint.

Reversing polarity on electrolytic capacitors or diodes destroys them instantly. Double-check markings: capacitors often have a stripe indicating the negative lead, while diodes use a band for the cathode. Use a multimeter in continuity mode to verify connections before powering the device. Label wires during assembly to avoid misplacement.

Neglecting ground loops creates noise or erratic behavior. Connect all grounds to a single point (star topology) to minimize interference. Ferrite beads on signal lines suppress high-frequency noise from motors or relays. Keep high-current paths separate from sensitive signals–use thicker traces (minimum 1mm wide for 1A) for power lines.

Ignoring component tolerances leads to failure under load. For resistors, match the 5% or 1% variants to the schematic’s requirements. Check transistor pinouts (EBC vs ECB) for common packages like TO-92–manufacturer datasheets often differ. Test semiconductors with a diode tester before installation to confirm functionality.

Testing and Troubleshooting the Push-Button Control Module

Begin by verifying the voltage at the power input terminals with a multimeter. Set the device to DC voltage mode (20V range) and measure between the positive and negative supply lines. If the reading deviates more than ±0.2V from the nominal supply (e.g., 5V, 9V, or 12V), inspect the power source, wiring, or regulator for shorts, open circuits, or incorrect component values. A faulty capacitor (e.g., electrolytic smoothing cap) may cause unstable voltage–replace it if ESR exceeds 2Ω or capacitance drops below 80% of its rated value.

Use a logic probe or oscilloscope to check the signal at the control IC’s output pin (e.g., Q or OUT on a flip-flop like CD4013). Activate the button momentarily while observing the waveform. A healthy toggle action should produce a clean, single pulse with a rise/fall time under 50ns. If the output remains static or exhibits ringing (amplitude > 0.5V), suspect a faulty IC, improper debounce circuit (aim for R=10kΩ, C=100nF), or shorted transistor (e.g., 2N3904 with β

Symptom	Likely Cause	Diagnostic Step	Fix
No response on button press	Open circuit in button	Check continuity with multimeter (Ω mode) across button contacts	Clean contacts or replace button
Output toggles erratically	Insufficient debounce time	Measure RC time constant (τ = R×C); should be 1–5ms	Adjust R to 4.7kΩ or C to 220nF
Voltage sag on activation	Weak power supply	Load-test supply with a 100Ω resistor; drop >0.3V indicates issue	Upgrade regulator or add bulk capacitor (1000µF)
IC overheating	Short to VCC or GND	Power off, measure resistance between IC pins and rails (	Replace IC or trace shorted tracks

For intermittent operation, perform a “freeze spray” test. Cool individual components (IC, transistor, button) while monitoring the output–sudden restoration of function indicates a thermal failure. If the issue persists, inspect solder joints with a 10× magnifier for cold solder or hairline cracks. Reflow suspicious joints with a temperature-controlled iron (350°C, 2s max). When replacing semiconductors, match pinouts precisely (e.g., BC547 for 2N3904) and confirm datasheet values for V_CE (max) and I_C (max) to avoid immediate failure.

If the module drives a load (e.g., relay, LED), test under actual load conditions. A relay may fail to energize if the driving transistor lacks sufficient collector current–verify the resistor values feeding its base (e.g., 1kΩ for 10mA drive). For LEDs, ensure the current-limiting resistor (typ. 220Ω for 5V) is present; absence can destroy both the LED and the IC’s output transistor within 50ms. Use a dummy load (e.g., 1kΩ resistor) during initial testing to rule out load-related faults.
