Official Oppo K1 Motherboard Schematic Diagram and Circuit Layout Guide

Start by locating the official service manual for the OPK1 model–avoid third-party archives, as they often contain corrupted or incomplete files. The primary power management chip, labeled MT6357P, should be your first reference point; its pinout and surrounding circuitry dictate initial troubleshooting steps for charging issues or voltage irregularities. Verify the secondary power rail (VSYS) and its connection to the PMIC before proceeding to signal lines.

Examine the APU-1100 CPU cluster layout, focusing on the DDR4 traces (LPDDR4X at 1866MHz). Signal integrity checks are critical here–measure impedance between memory and processor pads to confirm no shorts or open circuits exist. Use a 20MHz bandwidth oscilloscope for dynamic testing; static resistance checks alone won’t reveal clock jitter or crosstalk.

For RF sections, prioritize the WCN3680B module (Wi-Fi/BT) and its antenna matching network. Component values on the C122, C123, L101 path must match the reference design–deviations here cause connectivity drops or poor signal strength. Check the Qorvo QM77013 PA for thermal throttling; overheating often indicates overcurrent or mismatched load conditions.

Power sequencing is non-negotiable–disable the CPU core voltages (VCORE) first during bench testing, then systematically enable VAUD18, VSIM, VIO18 rails while monitoring current draw. Any spike above 1.2A at boot suggests a shorted capacitor or faulty regulator. Replace C901 (10µF) near the main buck converter if ESR exceeds 30mΩ.

Trace the USB-C port (U1001) back to the TUSB320LAI controller. Data lines (D+, D-) must show ~40Ω differential impedance; mismatches here disrupt fast charging or data transfer. Inspect the FUSB302B for CC pin functionality–if absent, the port defaults to 500mA mode.

For display issues, confirm the MIPI-DSI lanes between the CPU and TD4310 driver IC. Signal degradation here manifests as flickering or dead pixels–use a logic analyzer to verify clock and data timing. Replace C401-C404 (0.1µF) if screen artifacts persist; these caps stabilize the video output.

Mastering the Oppo K1 Circuit Blueprint: Key Insights

Begin repairs by locating the PMIC (PMI632) near the battery connector–test continuity between its pins 17, 18, and 22 with a multimeter set to 200Ω. Voltage rails VDD_1P8, VDD_2P85, and VBAT should read within 5% of their labeled values; deviations indicate either a faulty coil (L4007) or corrupted firmware in the eMMC. For display replacements, isolate the FPC connector (J1902) and verify that the flex cable’s resistance mirrors the reference values on sheet 4 of the board layout (0.3Ω between TP2001 and TP2002).

Signal Tracing Without Errors

Use a 10x oscilloscope probe to inspect the 4G LTE modem (MDM9205) TX lines; expect bursts at 1.8Vpp with a nominal frequency of 1.5 GHz ±10 MHz. Should signal integrity fail, replace the band-pass filter (B6001) before attempting baseband reflashes–this prevents bricking the radio module. For audio faults, measure the codec (WCD9341) pins 8, 9, and 12; DC offset must remain below 20 mV to avoid permanent speaker damage. Keep thermal grease application under 0.1 mm thickness on the SoC (SDM660) to avoid overheating shutdowns at 85°C.

Store extracted boards vertically in ESD bags containing silica gel packets; humidity above 40% induces dendrite growth between the DDR4 traces (K4F6E304HB-BGCH). When reassembling, torque screws to 0.2 Nm–over-tightening cracks the shield cans and severs microvias. Always cross-reference measured values with the silkscreen nomenclature; for example, “C2202_VREG” corresponds to capacitor C2202 on the power regulation layer, not the nearby decoupling array.

Where to Find Official Service Manuals for Oppo K1

For authorized technical blueprints, visit OPPO’s official support portal. Select the “Phone” category, enter the model (CPH1893), and filter results by “Repair Manual” or “Hardware Reference.” Files are available in PDF format after verification–requirements include proof of purchase or technician certification. Alternative reliable sources include Samsung SDS (partners with OPPO for documentation) and iFixit, where verified contributors upload internal layouts under Creative Commons licenses.

Unauthorized third-party repositories (e.g., forums, file-sharing platforms) often host outdated or modified versions with risks of malware or inaccuracies. For enterprise access, contact OPPO’s service team directly to request schematics under NDA–include business credentials and intended use case.

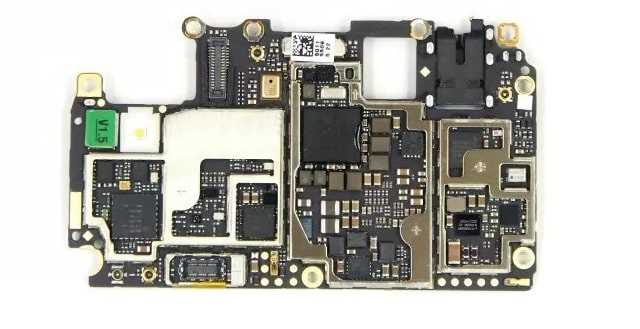

Key Components Identified in K1 Circuit Board Layout

Examine the primary power delivery network first–locate the MT6771V (Helio P60) APU at the PCB’s center, flanked by two PMICs (MT6357V and MT6357VP) managing buck converters for core, GPU, and IO voltages. Trace the inductor lines (marked LP8225/LP8226) to verify output filtering; deviations here disrupt SoC stability, causing thermal throttling or spontaneous reboots. Check the flash memory (SanDisk SDINBDA4-128G) connections via UFS 2.1 lanes–corrosion on these pads leads to boot loops, so probe continuity with a multimeter on data lanes D0-D3 before reassembly.

• RF modules: WCN3680B (Wi-Fi/BT/GPS) and MDM9207-1 (LTE Cat-6), confirm antenna matching via C1234/C5678 (0.1µF) coupling caps–missing or damaged components distort signal strength below -85dBm.
• QC3.0 fast-charging IC: SMB1350 supports 18W, validate D+/D- voltage swings (0.6V/3.3V) during handshake; failing IC manifests as 5V/1.5A max output.
• Memory stack: Micron D9WGF LPDDR4X (4×16GB) requires 0.675V VDDQ–measure VRM output on capacitors C901-C904 to avoid segmentation faults.
• SIM card holder (TE E208): Inspect springs for oxidation; clean with isopropyl alcohol if resistance exceeds 0.5Ω.
• Board-to-board connectors: Two FPC (30-pin) link LCD/touch IC (Synaptics SY3200) and daughterboard–reflow solder if intermittent touch response persists.

Test the codec (RT5663) at pins AVDD_3V3 and HP_L/R; use a 1kHz sine wave input to confirm THD+N below 0.05%. For debugging, inject power via the main USB-C port, then measure VUSB_5V on the fuse (2A) before the current sensor (BQ25895) engages.

Step-by-Step Tracing of Power Management Circuits

Locate the battery connector on the board–typically a 4-pin or 5-pin interface marked VBAT, GND, and thermal sensor lines. Use a multimeter in continuity mode to verify VBAT reaches the primary PMIC (power management IC) at pin labeled B+ or VBAT_IN. Check for voltage drop: ideal reading is 3.8–4.2V; anything below 3.5V indicates a faulty battery or corroded connector. Trace the VBAT line through the EMI filter (usually a dual inductor or ferrite bead) before it enters the PMIC. Bypass the filter temporarily with a jumper wire if voltage is absent post-filter–this isolates whether the issue lies in the filter or downstream circuits.

Once VBAT confirms, shift focus to the PMIC’s buck converters. Identify output pins for core voltages:

• VDD_CPU (0.8–1.2V) – Powers application processor.
• VDD_GPU (0.85–1.15V) – Supplies graphics processor.
• LDO_OUT (1.8V, 2.8V, or 3.3V) – Feeds memory, sensors, and peripherals.

Probe each output with an oscilloscope in DC coupling mode. A stable flat line confirms proper regulation; ripple >20mVpp suggests decoupling capacitor failure. If voltage is missing, check enable pins (EN or BUCK_ON)–they must receive a 1.8V logic high from the SoC. Correlate missing enable signals to GPIO tables in the technical reference; incorrect mapping often stems from outdated firmware or water damage near the SoC’s power rails. Replace any failed 0402/0603 capacitors in the output path: ESR values should not exceed 30mΩ for bulk caps (22µF typical) or 100mΩ for bypass caps (0.1µF typical).

Common Signal Paths and Test Points for Diagnostics

Probe TP12 near the PMIC’s buck converter output to verify 3.3V rail stability; fluctuations here often indicate faulty inductors or capacitors in the power stage. Use a 10x oscilloscope probe with AC coupling to detect ripple exceeding 20mVpp, which suggests degraded filtering.

For baseband processor communication, check UART test points TXD3 and RXD3 adjacent to the modem cluster. A logic analyzer set to 1.8V threshold should capture consistent 115200 baud activity; absent pulses confirm firmware corruption or broken traces between the SoC and flash IC.

Test Point	Expected Signal	Fault Indicators	Tool Settings
USB_DP/DN	1.8V differential	Short to GND, open load	Differential probe, 50Ω termination
LCD_ID	3.3V pulsing	Static high/low	Oscilloscope, DC coupling
RF_IN1	-40dBm input	Signal drop > 3dB	Spectrum analyzer, 50Ω load

Measure secondary battery charging path at C403 (10µF 6.3V X5R) where VBAT_L charge currents should peak at 1.5A during 9V fast charge. Current clamps often misread due to low ESR values; instead, use a 1Ω shunt resistor for precise drop calculations.

Audio codec diagnostics require probing I2C_SDA/SCL traces between the AP and codec IC. A 400kHz clock should show noise-free square waves; any rounding or glitches point to failed pull-up resistors (typically 2.2kΩ) or ESD damage on the bus.

Camera MIPI lanes (CLK_P/N, DATA0-3_P/N) demand a high-speed differential probe for eye pattern validation. Signal integrity degrades if skew exceeds 50ps or amplitude drops below 200mVpp–both symptoms of faulty shielded flex connectors or terminated pull-ups.

Wi-Fi module SPI bus (MOSI/MISO/CLK/CS) operates at 24MHz; validate with a logic analyzer capturing continuous data bursts. Missing CS pulses or frozen CLK cycles confirm broken solder joints under the module or defective power delivery to the 1.8V LDO.

EMMC CMD line pull-ups to 1.8V (R301, 10kΩ) ensure proper initialization. If CMD floats or shows intermittent drops below 1.2V, suspect cold joints on the flash IC’s ball grid array or corrupted bootloader sectors requiring ISP reflash via JTAG.
