Complete Guide to Designing and Analyzing PAL Circuit Schematics
Start by sourcing a phase-locked loop (PLL) chip–common models include the TDA8776 or MC44302. These components handle signal synchronization and are critical for stable color decoding. Avoid cheaper alternatives; their tolerance for noise and drift often leads to distorted output. Connect the PLL to a crystal oscillator (4.43 MHz for NTSC-derived systems) to ensure precise timing. Misalignment here degrades chrominance signals, causing washed-out colors or ghosting.
For luminance separation, use a bandpass filter centered at 3.58 MHz. A well-calibrated filter prevents cross-talk between brightness and color channels. If designing on a budget, pair a SAW filter (e.g., TDF100) with discrete LC components–this reduces costs while maintaining sharp roll-off characteristics. Ground the filter’s output through a 1 μF capacitor to block DC offsets that could bleed into video stages.
When laying out the board, prioritize short traces between the color demodulator and video amplifiers. Long paths introduce parasitic capacitance, which phase-shifts the signal. Use decoupling capacitors (0.1 μF ceramic) near every IC power pin; omit these, and high-frequency noise will corrupt low-level hues. For testing, inject a color bar pattern from a signal generator–adjust the PLL’s reference resistor until R-Y, B-Y, and G-Y outputs stabilize without flicker.
Power distribution demands attention: route +5V analog and +8V digital rails separately to prevent ground loops. A star-ground configuration at the regulator’s output minimizes interference. For critical sections like the chrominance processor, use a low-dropout regulator (e.g., LT1763)–linear power supplies outperform switching types here due to lower ripple. Verify all voltage rails with an oscilloscope before integration; transient spikes degrade color fidelity permanently.
Final debugging requires patience. Measure the burst gate output with a dual-trace scope–it should lock to the incoming subcarrier within 50 ms. If colors shift unpredictably, check the phase detector’s input capacitor (typically 2.2 nF); improper sizing here causes hue errors. For composite outputs, terminate unused ports with 75 Ω resistors to prevent reflections that manifest as horizontal streaks. Document every adjustment; minor tweaks often solve major artifacts later.

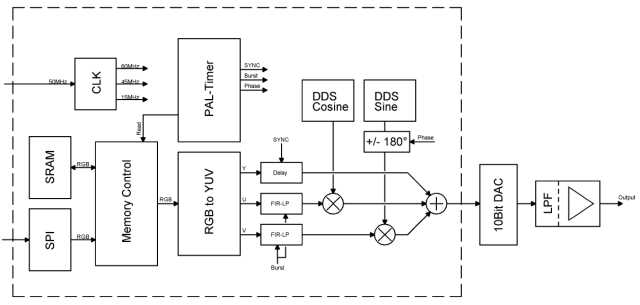

Building a Phase-Alternating Line Encoding System: Step-by-Step Wiring
Begin by identifying the core components for signal modulation: a color subcarrier oscillator (4.43361875 MHz for standard definition), a synchronous demodulator, and delay line matching the 64 µs scan period. Use a quartz crystal cut to ±10 Hz tolerance to maintain chroma phase stability. Position the oscillator near the video decoder IC–maximize trace symmetry to minimize parasitic inductance.
- For NTSC compatibility (if required), incorporate a 3.579545 MHz crystal with a switchable path via a double-throw analog mux.
- Bypass the oscillator power pin with a 0.1 µF capacitor in parallel with a 10 µF tantalum, placed within 2 mm of the pin.
- Route the subcarrier output through a 47 Ω series resistor to the chroma bandpass filter; verify impedance at 220 Ω ±5%.
Connect the delay line using twisted pair or coaxial cable, matched to the 1.3 kΩ differential impedance. Terminate the far end with a 1.2 kΩ resistor to ground; omit termination at the driver side to prevent reflections. Measure waveform rise time (target ≤50 ns) before feeding into the phase comparator. If ringing exceeds 15% of peak amplitude, reduce cable length by 3–5 cm increments.
Demodulator Precision Calibration
Align the reference burst gate timing to the back porch–adjust the one-shot multivibrator potentiometer until the burst window spans 4.8–5.2 µs, centered ±200 ns on the falling edge of horizontal sync. Use an oscilloscope with ≥100 MHz bandwidth for burst envelope verification; the envelope should decay
- Test chromium phase error by injecting a 75% color bar signal; acceptable deviation is ≤5° for consumer applications.
- Swap the delay line taps if hue shifts toward magenta or cyan–these pins typically connect U/V inputs in reverse order.
- Replace any electrolytic capacitors in the burst path with film types (1 µF, 100 V) to eliminate leakage-induced tint drift over 3000 hours.
- Add a 47 pF ceramic capacitor across the phase comparator’s feedback resistor to suppress 15.625 kHz harmonics that bleed into luminance.
Key Elements of a Programmable Array Logic Configuration and Their Graphical Representations

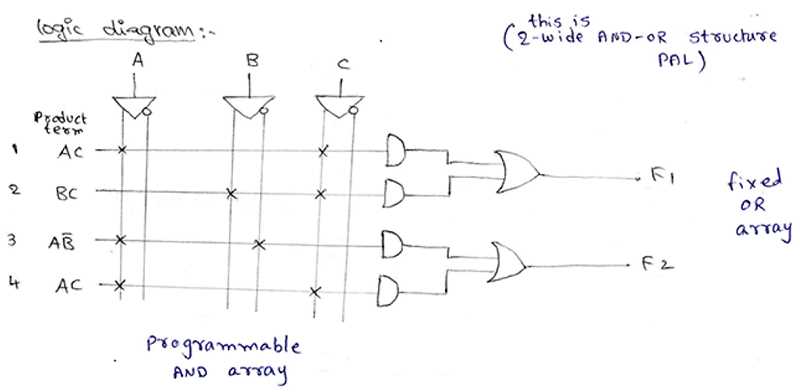

Start by identifying the core building blocks of a programmable logic array structure, as each has a distinct symbol and role in signal processing. The most critical component is the AND matrix, represented by intersecting lines with dots or crosses at junctions–these indicate fuse connections. Use a grid layout where inputs (or their complements) form rows, while product terms appear as columns. Always verify connectivity by tracing pathways; a missing dot may indicate an unintended open fuse.
Input and Feedback Lines
Primary inputs feed directly into the AND plane, typically shown as vertical or horizontal lines entering the matrix. Complementary signals (inverted via NOT gates) should be explicitly drawn as separate lines to avoid ambiguity. Feedback lines, often originating from output macrocells, loop back into the AND array–depict these with curved arrows or distinct color coding to differentiate them from primary inputs. Label each line with a unique identifier (e.g., I1, I2, FB1) to prevent misinterpretation during prototyping.
| Component | Symbol | Typical Function | Critical Check |
|---|---|---|---|
| AND Gate Junction | Filled circle or “X” at intersection | Creates product terms from inputs | Confirm all intended fusible links are present |
| OR Gate | Curved line merging multiple inputs | Combines product terms into sum terms | Verify input count matches design requirements |
| Exclusive-OR (XOR) | Curved line with “+” sign | Optional inversion for registered outputs | Check polarity control programming |
| Flip-Flop (D/T/JK) | Rectangle with clock/control pins | Stores output states; synchronizes signals | Ensure reset/preset pins are properly tied |
Macrocell outputs combine sum terms from the OR plane and manage signal routing. Represent these as rectangles with internal logic (e.g., D flip-flop, XOR gate) and external pins for output, feedback, or tri-state control. Add annotations for configuration bits–typically labeled “S0/S1” for output polarity or register bypass. For tri-state outputs, include an enable pin (OE) and depict it as a separate line with an arrow pointing toward the output buffer.
Clock and Control Signals
Clock inputs for registered outputs require dedicated lines, often shown as a triangle with a label (e.g., “CLK”). Route these separately from data signals to prevent glitches. Asynchronous reset/preset lines, if used, should be drawn with dashed lines and labeled “RST” or “PRE” to distinguish them. Always cross-reference the manufacturer’s datasheet–some devices mandate specific voltage levels for these pins during programming.
For fuse maps, use a tabular layout where rows list product terms and columns enumerate inputs. Mark programmed connections with “1” or “X,” and leave unprogrammed junctions blank. Example:
| Product Term | I1 | I1̅ | I2 | I2̅ |
|---|---|---|---|---|
| PT1 | X | X | ||
| PT2 | X | X |
Output buffers dictate signal strength and direction–represent these as inverters or non-inverting triangles with optional enable pins. For combinatorial paths, ensure no unintended high-impedance states exist by validating OE connections. During simulation, probe internal nodes with test vectors to confirm logical transitions; unexpected delays often trace back to incorrect fuse configurations or unrouted feedback loops.
Constructing a Fundamental Video Signal Processor: Wire-by-Wire Assembly
Begin by securing a BT.656 interface IC (e.g., TW2834 or similar) as the core decoding module. Place it on a breadboard with minimal trace interference, ensuring direct adjacency to the incoming composite video source.
Route the composite input through a 75-ohm termination resistor to match impedance standards. Connect this directly to the IC’s analog video input pin, labeled CVBS or VIN. Avoid long leads–keep wiring under 5 cm where possible to prevent signal degradation.
Attach a 27 MHz crystal oscillator between the designated clock pins (typically marked XTAL_IN and XTAL_OUT). Place two 22 pF capacitors between each pin and ground to stabilize oscillation. Verify clock output with an oscilloscope before proceeding.
Sync Separation and Chroma Demodulation
Connect the BT.656’s HSYNC and VSYNC outputs to GPIO pins on a microcontroller or FPGA for further processing. Use pull-down resistors (10 kΩ) to avoid floating states. For chroma decoding, ensure the C_IN pin receives the composite signal–this IC internally separates luma and chroma.
Power the IC with 3.3V regulated supply through its VDD pin, decoupling with a 0.1 µF ceramic capacitor (placed
For digital output, wire the BT.656’s ITU-R BT.656 parallel bus (8-bit YCbCr) to data latches or a frame buffer. Use short, shielded cables if signal must travel >10 cm–twisted-pair wiring reduces crosstalk. Terminate unused bus pins with 1 kΩ pull-ups or pull-downs to prevent erratic states.
Calibration and Validation Checks
Verify operation by injecting a color bar test signal into the composite input. Probe the Y, Cb, and Cr outputs with an oscilloscope–each channel should display distinct, stable waveforms (e.g., Y channel: staircase pattern; Cb/Cr: modulated color bursts). Adjust the crystal’s load capacitors if clock instability is observed.
For noise-sensitive applications, add a 0.47 µH ferrite bead in series with the power supply line to suppress high-frequency interference. Ground the IC’s AGND and DGND pins separately, joining them only at a single star-ground point to minimize loop currents.
