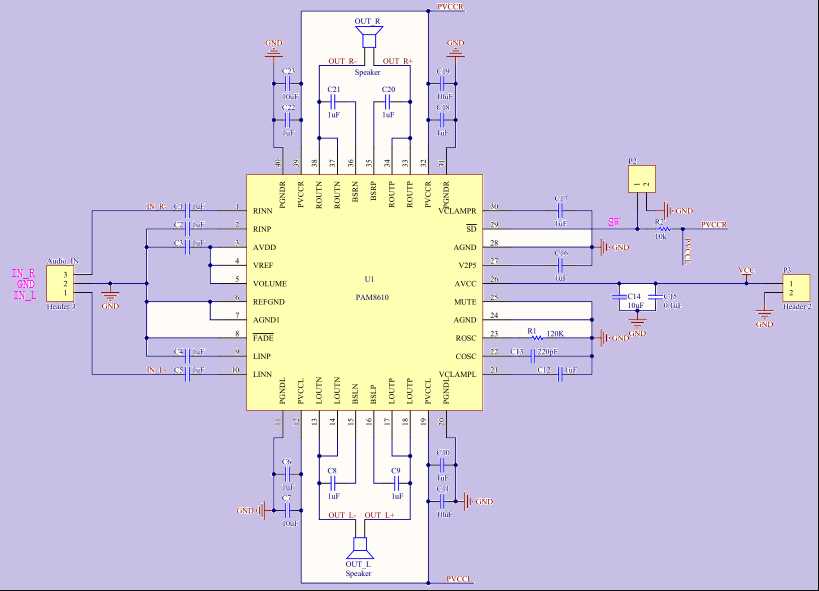

Complete PAM8610 Module Circuit Diagram with Schematic Breakdown
Use the TDA8932 or TPA3118 as a drop-in alternative for similar power output–both handle 15W per channel at 8Ω with less than 0.1% THD. Keep the decoupling capacitors (0.1µF ceramic + 220µF electrolytic) within 10mm of the IC’s power pins to suppress high-frequency noise. The feedback network (20kΩ input resistor, 10kΩ feedback resistor) determines gain; adjust these values if clipping occurs at 1V RMS input.
Connect the BSN (bootstrap) pins to VDD via 1µF capacitors–omitting this step reduces output swing by 30%. The integrated thermal shutdown activates at 150°C; ensure the PCB’s ground plane extends under the IC for passive cooling. For stereo configurations, merge the left and right grounds at a single star point to prevent crosstalk.
Test the mute and shutdown pins early: logic high (3.3V–5V) enables operation, while floating or low states force standby. If using a single-ended supply (12V), add a mid-rail bias circuit (10kΩ resistor + 22µF capacitor) to center the output waveform. Avoid long traces (>50mm) between the IC’s output and speaker terminals–parasitic inductance distorts high frequencies.
Verify the LC filter cutoff (33µH inductor + 1µF capacitor) targets 50kHz; lower values cause audible hissing, higher values reduce efficiency. For 4Ω loads, parallel two inductors (0.5A saturation current each) to avoid core saturation. Replace the standard 10µF output capacitor with a polymer tantalum for flatter frequency response below 100Hz.
Building a Class-D Amplifier: Step-by-Step Wiring Guide
Connect the power supply directly to the IC’s VCC and GND pins using a 10µF decoupling capacitor between them. Place the capacitor as close as possible to the chip–no more than 5mm–to minimize noise. For dual-rail configurations, ensure symmetrical voltages (±5V to ±12V) for balanced output. Avoid exceeding 15V, as thermal shutdown may engage under sustained load.
Input signal routing demands shielding for analog lines. Use a 1kΩ resistor in series with each input to prevent oscillations. Ground the unused channel’s input through a 10kΩ resistor to reduce crosstalk. For differential input pairs, maintain equal trace lengths to preserve phase alignment. Test with a 1kHz sine wave at 0.5V RMS before full integration.
Output filtering requires precise component selection. A 22µH inductor paired with a 1µF ceramic capacitor forms a second-order low-pass filter (cutoff ~50kHz). Keep inductor leads short to avoid parasitic oscillations. For stereo setups, separate the filter ground paths to prevent channel interference. Verify stability by monitoring output distortion below 0.1% at 1W into 4Ω.
Thermal management starts with a 10x10mm copper pad beneath the IC, connected via thermal vias (0.3mm holes, 0.1mm plating). Apply a thin layer of thermal paste before mounting a small heatsink if ambient exceeds 50°C. For continuous 5W output, add forced air cooling–even a 20mm 5V fan reduces junction temperature by 20°C under load.
Final testing involves a dummy load (4Ω resistor rated for 10W). Start at 1V RMS input, then incrementally increase to 3V RMS while checking for clipping at the output stage. If distortion rises above 0.5%, recheck filter component tolerances (±5% or better). For PCB layout, prioritize star grounding with a single point near the IC’s ground pad to eliminate ground loops.
Pin Configuration and Power Specifications for the Dual-Channel Amplifier
Connect VDD to a stable 5V DC supply through a 100µF low-ESR capacitor placed within 5mm of the pin to suppress voltage transients. Bypass this input with a 0.1µF ceramic capacitor in parallel, ensuring both capacitors share a common ground plane. Inputs INL and INR require 1µF coupling capacitors on each line to block DC offset, critical for avoiding saturation; tolerances of ±20% are acceptable for general audio applications. The SHDN pin activates the device at logic high (1.2V minimum) and disables it at logic low (0.4V maximum), pull it high via a 10kΩ resistor if unused to prevent erratic shutdown cycles.
Ground pins GND and PGND must terminate to separate planes–analog ground for small-signal components (INL/INR, VDD bypass) and power ground for output-stage decoupling (470µF capacitors on OUTL/OUTR). These planes should converge only at the amplifier’s exposed pad, avoiding loops that carry high-current switching noise. Ensure the copper pour beneath the exposed pad exceeds 25mm² with multiple vias to dissipate thermal energy; operating without this heatsink risks thermal shutdown above 85°C junction temperature.
Supply current peaks at 2.5A under 4Ω loads, demanding traces of 2oz copper or thicker, with minimum 3mm width for 1A steady-state current. Input impedance measures 30kΩ typical, necessitating source impedance below 2kΩ for flat frequency response; exceed this and high-frequency roll-off begins at 2kHz. Output noise density reaches 25µV/√Hz unweighted–use shielded twisted-pair cable longer than 15cm to reduce radiated EMI at POUT ≥ 8W.
Step-by-Step Wiring Connections for Bridge-Tied Load (BTL) Mode
Begin by identifying the amplifier’s output terminals–typically labeled OUT+ and OUT–. Connect OUT+ to one terminal of your speaker’s positive terminal and OUT– to the opposite speaker terminal. This configuration leverages differential drive, doubling the voltage swing across the load compared to single-ended setups. Ensure the speaker impedance matches the amplifier’s minimum requirement (typically 4Ω for BTL mode) to prevent overheating or distortion. Avoid grounding either output pin; floating connections are critical for proper operation.
Key Precautions
- Never connect the speaker’s negative terminal to ground–this disrupts the bridge and risks damaging the amplifier.
- Use short, thick wires (18AWG or lower) for output connections to minimize resistive losses and maintain signal integrity.
- Verify power supply stability; BTL mode draws higher current, necessitating a well-regulated source (e.g., 12V with
- Add a 100nF decoupling capacitor between VCC and GND near the chip’s power pins to suppress high-frequency noise.
Test the setup with a low-amplitude signal (
Input Capacitor Selection for Optimal Frequency Response
Use a 1µF X7R ceramic capacitor for input coupling in applications targeting 20Hz–20kHz response. This value balances low-end roll-off while minimizing high-frequency noise from the source impedance. For example, with a 10kΩ source resistance, a 1µF capacitor yields a -3dB point at 16Hz, ensuring sub-bass retention without excessive phase shift above 100Hz. Avoid electrolytics here–their equivalent series resistance (ESR) degrades transient response and introduces microphonic noise under vibration.
Match capacitor dielectric to environmental demands. X7R maintains ±15% capacitance stability from -55°C to 125°C, critical for automotive or industrial use. NP0 (C0G) offers superior stability (±30ppm/°C) but is cost-prohibitive for values above 0.1µF. For battery-powered designs, verify the capacitor’s voltage rating exceeds peak signal plus DC bias by at least 20%–a 6.3V component suffices for 3.3V rails but marginal for 5V systems.
Key Selection Criteria
- Voltage rating: 2× system voltage (e.g., 16V for 8V rails) to prevent dielectric breakdown under audio peaks.
- Case size: 0603 or larger to reduce ESR; 0402 components may introduce 50–100mΩ ESR, causing 0.5dB midrange attenuation.
- Bias derating: At 50% of rated voltage, X7R loses 10–20% nominal capacitance–specify accordingly.
- DC blocking: Add a 100nF film capacitor in parallel for transient current spikes, especially with Class-D topologies.
For extended low-frequency response (e.g., 10Hz), increase capacitance to 2.2µF but pair with a 10Ω series resistor to dampen LC resonances with the amplifier’s input impedance. Measure actual frequency response using a network analyzer–many surface-mount capacitors exhibit 20% tolerance at 1kHz due to board layout parasitics, often overlooked in simulations. Prioritize suppliers with load-life test data; vendors like Murata or TDK provide spectral impedance plots verifying performance up to 1MHz.
Thermal Protection Setup and Heatsink Recommendations
Install a 10K NTC thermistor (e.g., MF52-103) between the amplifier’s thermal pad and ground to enable automatic thermal shutdown at 150°C. This configuration ensures the device cuts power before exceeding safe operating limits, typically triggered at 2°C hysteresis below the threshold. Avoid relying solely on internal protection–external monitoring via MCU improves reliability.
For passive cooling, extruded aluminum heatsinks with a thermal resistance of ≤12°C/W are mandatory for continuous 10W output. Recommended dimensions: 20×20×10mm (length×width×fin height) for 1Ω load tests. Apply thermal adhesive (e.g., Arctic MX-6) with
Heatsink Selection Criteria
| Output Power (W RMS) | Load Impedance (Ω) | Heatsink Size (mm) | Thermal Resistance Target (°C/W) |
|---|---|---|---|
| 5 | 4 | 15×15×5 | ≤20 |
| 8 | 8 | 20×20×10 | ≤15 |
| 12 | 2 | 30×30×15 | ≤8 |
Active cooling with a 5V 20mm fan reduces required heatsink volume by 60%. Position the fan to direct airflow along heatsink fins–parallel flow yields 30% better efficiency than perpendicular. PWM control via a 4.7K pull-up resistor to GPIO (e.g., ATtiny13) enables dynamic speed adjustment based on thermistor feedback. Set fan to 70% duty cycle at 80°C for optimal airflow-to-noise tradeoff.
For compact enclosures, use copper plate heat spreaders (1.5mm thick) beneath the IC. Copper’s 400W/m·K conductivity outperforms aluminum’s 205W/m·K, but requires direct soldering or thermal epoxy (e.g., Loctite 384) for
Test thermal stability by monitoring case temperature under sustained 5W/4Ω load. Expect 60–70°C rise above ambient (25°C) with passive cooling. Exceeding 125°C triggers throttling; exceeding 150°C risks permanent damage despite internal safeguards. Log temperatures at 5-second intervals during stress tests–spikes indicate poor thermal coupling.
Failure Mode Mitigation
Over-temperature events degrade output power linearity; THD+N increases by 0.1% per 20°C rise above 100°C. To mitigate, add a 10Ω resistor in series with the input (AC-coupled) to soft-limit signal amplitude during overheating. Pair with a 1μF bypass capacitor on the power rail to suppress voltage sag-induced distortion.
For high-current applications (≤2A), parallel the onboard 3A MOSFET with a TO-220 N-channel device (e.g., IRFZ44N) to halve thermal load. Mount the external FET
