How to Design and Analyze Parallel Electric Circuits Step by Step
Use identical voltage sources across all branches to maintain consistent potential–a critical rule when arranging components side by side. If one branch contains a 9V battery, ensure every other branch matches it; mixing voltages introduces unpredictable current paths and risks component failure. Resistance behaves inversely: connect a 1KΩ resistor in one branch, a 2KΩ in another, and current splits proportionally. For precision, calculate total resistance via the reciprocal formula: 1/Rtotal = 1/R1 + 1/R2 + … + 1/Rn. This avoids guesswork in designs requiring balanced loads.
Short circuits pose major hazards. A single branch bypassing resistance (e.g., a direct wire across a resistor) redirects all current, potentially damaging connected devices. Always verify connections with a multimeter before powering the arrangement. For complex setups, label branches numerically–“Branch A,” “Branch B”–to streamline troubleshooting. CAD tools like KiCad or Fritzing simplify drafting; export netlists to validate connections before physical assembly.
Current divides inversely with branch resistance. In a two-branch setup with 10Ω and 20Ω resistors, the 10Ω path carries twice the amperage. This principle enables customized power distribution: adjust resistor values to prioritize specific components (e.g., high-power LEDs). Avoid overloading thin wiring (22 AWG or smaller) in high-current branches–heat buildup occurs rapidly. Apply Ohm’s Law to each branch individually: I = V/R, then sum branch currents to confirm total draw matches expectations.
Fuses or current-limiting resistors are non-negotiable in unregulated designs. A branch drawing 500mA through a 1/4W resistor exceeds power ratings quickly; switch to 1/2W or add a fuse for protection. For AC applications, capacitor values likewise split proportionally–ensure reactance calculations account for frequency dependence. Ground loops complicate multi-branch layouts; eliminate them by connecting all grounds at a single node.
Constructing Branched Wiring Schematics for Optimal Performance
Begin by sketching each load on its own horizontal line, ensuring all components share the same voltage source terminals. Avoid mixing resistive and inductive elements on identical branches without proper decoupling capacitors–this prevents unintended oscillations in sensitive devices. For instance, a branch supplying an LED array alongside a motor should include a 100nF ceramic capacitor across the motor leads to filter voltage spikes.
Key Branch Resistance Calculations
| Component | Resistance (Ω) | Branch Current (A) | Power Dissipation (W) |
|---|---|---|---|
| 220Ω Resistor | 220 | 0.0545 | 0.654 |
| 470Ω Resistor | 470 | 0.0255 | 0.306 |
| 1kΩ Potentiometer | 1000 | 0.012 | 0.144 |
Measure branch currents individually using a multimeter in series; sum these values to verify against the main supply amperage. Deviations exceeding 5% signal faulty connections, incorrect component ratings, or parasitic resistance in wiring. Use 18AWG or thicker wire for branches drawing over 2A to minimize voltage drops.
Isolate each branch with a dedicated fuse or PTC resettable fuse sized at 120-130% of expected current. This prevents cascading failures if a single load shorts–critical in high-current applications like automotive lighting clusters. Label all branches clearly, noting intended current and voltage tolerance, especially in prototype schematics where iterative modifications are common.
For AC-derived branched systems, synchronize all branches to the same phase using a single common neutral return path. Introduce a contactor or relay for each branch drawing over 10A to enable remote disconnection. Test under full load for at least 10 minutes to confirm thermal stability, particularly for resistive loads exceeding 5W.
Refer to IEC 60364 for branch conductor sizing guidelines; undersized wiring creates fire hazards. In dual-voltage systems (e.g., 12V/24V), segregate branches by voltage tolerance, using separate buses. Document each branch’s interactions during fault conditions–this accelerates troubleshooting if an intermittent short develops.

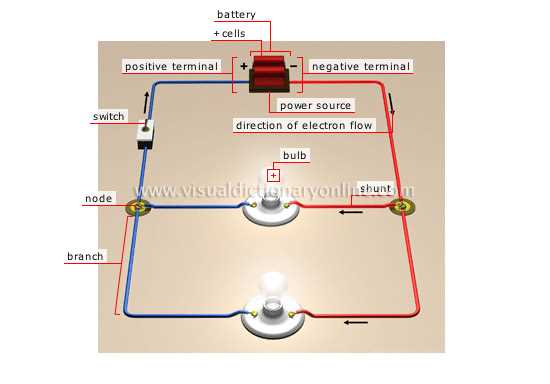

How to Spot Key Elements in a Multi-Branch Schematic
Start by tracing each branch back to a single shared power source–look for multiple pathways extending from the same two terminals. Identify junctions where the current splits; these points mark the start of independent legs. Label each node where wires diverge or merge, using numbering (e.g., Node A, Node B) to avoid confusion during troubleshooting.
Check for identical voltage drops across every branch; a multimeter reading should match the source voltage if all components are functional. If one branch shows lower voltage, inspect for unexpected resistance or faulty parts. Measure from the supply terminal to the ground on each leg to confirm consistency.
Common Parts to Recognize
- Resistors or loads: Equal resistance values indicate designed current division; mismatched values suggest imbalance.
- Switches: Toggle switches interrupt individual legs–flip each one to isolate issues without affecting others.
- LEDs or bulbs: All should glow with the same brightness if properly arranged; dimmer lights signal extra resistance or loose connections.
- Fuses: Check every fuse holder for burns or breaks–each branch often has its own protection.
Color-code wires during reconstruction: red for the main feed, black for ground return, and distinct colors (blue, yellow) for separate legs. This prevents crossed signals when reattaching components. Use cable ties to bundle matching wires, ensuring no stray strands touch adjacent legs.
Draw a quick sketch of the layout before disassembling. Note every branch’s path, including twists or loops that might indicate intended current flow adjustments. Photograph connections at difficult angles to replicate exact placements later.
Quick Verification Steps
- Set multimeter to continuity mode–probe between the supply terminal and ground; each branch should emit a beep.
- Remove one component at a time–observe if remaining legs maintain operation to isolate faults.
- Inspect solder joints visually–cold joints appear dull and grainy, proper joints smooth and shiny.
- Tap each part with an insulated tool–intermittent issues reveal loose internal contacts.
Replace test probes with alligator clips for hands-free voltage checks across multiple legs simultaneously. Record readings in a table for side-by-side comparison. Discrepancies highlight rogue resistance, while matching values confirm harmonious distribution.
How to Sketch a Branched Network Layout Manually
Gather these tools first: a pencil with sharp lead (0.5mm or finer), an eraser, a ruler marked in millimeters, and graph paper with 5mm grids. Avoid ink until the final version to prevent smudges.
Draw two horizontal lines 8cm apart–these form the main supply rails. Place the top rail 2cm below the paper’s edge; align the bottom rail parallel to it, ensuring both extend 15cm left and right of your central components.
Mark connection points along each rail every 2cm using small dots. These dots represent terminal joints for branches. Number them sequentially left to right to track placement accuracy.
Select three to five loads (resistors, bulbs, motors) of varying sizes. Position each load vertically between rails, spacing them evenly–no less than 3cm apart–centered beneath numbered dots. Sketch each load as a rectangle 1cm tall with labeled values inside (e.g., “100Ω,” “6V”).
For each load, draw vertical lines connecting its top and bottom terminals to the nearest dots on the rails. Use the ruler to keep lines straight and 90° to the rails; avoid diagonal shortcuts to prevent confusion.
Add switches beside each load using a 0.5cm gap in the vertical line. Indicate an open switch with a small circle at the gap’s midpoint; a closed switch bridges the gap with a short horizontal line. Label each switch (SW1, SW2) for clarity.
Introduce power sources at rail ends: a 9V battery symbol (two stacked rectangles, longer positive side) touching the top rail on the left, ground symbol (three descending lines) touching the bottom rail on the right. Polarity arrows point upward for positive, downward for ground.
Verify all branches: each load must have uninterrupted vertical paths to both rails. Darken lines with ink, erase construction dots, and double-check labeled values against component ratings. Grid alignment ensures readability at 50% scale photocopies.
Mastering Combined Load Across Multiple Pathways
Use the reciprocal formula for precise calculations: 1/Rtotal = 1/R1 + 1/R2 + … + 1/Rn. For two branches, simplify further: Rtotal = (R1 × R2) / (R1 + R2). Forget approximations–this method delivers exact values, critical for ensuring stable current distribution in precision instruments.
Resistors with equal values halve with each added path. Three 100Ω components yield 33.3Ω. Four drop to 25Ω. Memorize this pattern for quick troubleshooting, especially in symmetrical layouts where uniform current sharing is essential. However, mixed values demand full formula application–never assume linearity.
Measure individual paths first before calculating. A 20% tolerance resistor may skew results; verify with a multimeter. For complex networks, break into smaller segments: solve clusters, then combine outcomes. Example: two branches of 40Ω each behind a 60Ω segment? First merge the 40Ω pair (20Ω), then add the 60Ω via reciprocal sum.
Current division rules dictate lower values bear heavier loads. A 10Ω path will conduct 6x more current than a paired 60Ω one. Account for power ratings–exceeding them risks failure even if combined load stays within limits. Verify with P = I²R for each branch, not just total dissipation.
Software tools like SPICE simulate automatically, but manual checks prevent blind trust errors. Discrepancies between theoretical sums and real-world readings often trace to overlooked parasitic effects or faulty components. Always cross-validate calculations against measured voltages across each segment–Ohm’s Law remains the final arbitrator.
