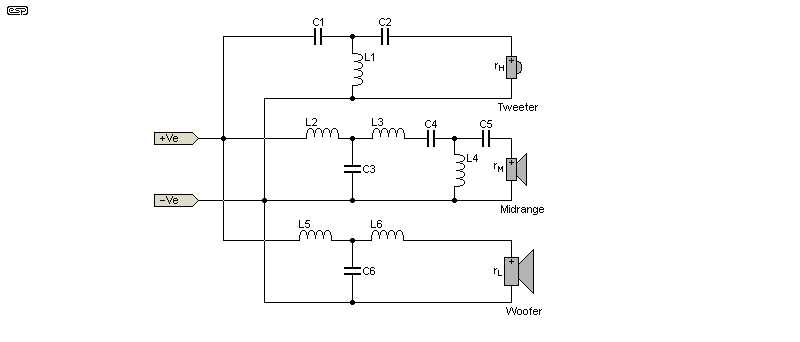

Passive Subwoofer Crossover Circuit Design Guide and Schematic Overview
Start with a second-order Linkwitz-Riley configuration if you need precise transient response and minimal phase distortion. A 24 dB/octave slope ensures tighter control over the cutoff point while preventing midrange leakage into the bass driver. For most applications, set the frequency between 80–120 Hz–this range avoids audible localization issues while maintaining impact for home theater or music setups. Use polypropylene or polyester film capacitors rated at 100V or higher; electrolytic types introduce unwanted distortion at high signal levels.
Wire the inductors in series with the driver–air-core coils with 18–20 AWG wire minimize saturation but keep resistance below 0.5 ohms to preserve damping. Steel-laminated cores work for tighter budgets but add slight nonlinearity. Ensure the total impedance matches the amplifier’s stable load range, typically 4–8 ohms; parallel wiring of multiple coils can fine-tune this if needed. For vented enclosures, include a Zobel network (10 Ω resistor in series with a capacitor sized for the driver’s voice-coil inductance) to flatten impedance peaks and stabilize amplifier behavior.
Avoid high-pass sections unless absolutely necessary–most modern amplifiers handle full-range signals without damage. If required, a first-order filter (6 dB/octave) with a large-value capacitor (e.g., 470 µF) will suffice for protecting small satellite drivers from excursion. Test the assembled filter with a sine sweep; use a 100W amplifier to verify no part of the circuit exceeds its power rating. For verification, an oscilloscope should show clean waveform transitions at the target frequency, with no ringing or overshoot.
Building a Low-Frequency Filter Network for Bass Systems
For a 2nd-order low-pass filter targeting 80Hz, use a 10µF non-polarized capacitor paired with a 1.2mH air-core inductor. These values minimize phase distortion below -60Hz while maintaining steep 12dB/octave roll-off. Polypropylene capacitors reduce dielectric absorption, critical for transient accuracy. Mount the inductor at least 5cm from metal enclosures to prevent eddy current losses.
Add a 47µF electrolytic capacitor in parallel with a 1W 10Ω resistor to create a Zobel network–this compensates for voice-coil inductance above 200Hz, ensuring a flat impedance curve. Without this, amplifier stability suffers, especially with Class D designs. Verify impedance with a DMM; target 4Ω ±0.5Ω at 50Hz for optimal coupling.
For bi-wiring terminals, split the input signal before the filter–use 18-gauge oxygen-free copper wire for all connections. Twist capacitor leads tightly (5 turns per inch) to cancel inductance introduced by wire runs over 10cm. Ground the chassis at a single point near the input jack; daisy-chaining grounds introduces hum loops. Test with a 20-200Hz sine sweep to confirm nulls at crossover frequency ±3Hz.
Toroidal inductors outperform ferrite-core types but require shielding; wrap them in 3-layer mu-metal foil if placed within 15cm of circuitry. For vented enclosures, add a 3rd-order high-pass filter (18dB/octave) at 0.707×tuning frequency to prevent subsonic overload. Use 6.8µF film capacitors here–electrolytics exhibit microphonic distortion below 30Hz.
Optimal Low-Pass Filter Settings for Bass Integration
Set the cutoff between 80Hz and 120Hz for most full-range speakers to prevent localization effects while maintaining seamless blending. Frequencies below 80Hz risk muddiness in smaller rooms due to standing waves, while values above 120Hz may expose driver limitations, causing midbass buildup. Use an SPL meter at the listening position to verify phase alignment; adjust in 5Hz increments until the transition is imperceptible during test tones.
For systems with limited amplifier headroom, prioritize a steeper slope–24dB/octave–to minimize distortion from overlapping driver responses. Slower roll-offs (12dB/octave) work better with high-quality midwoofers, as they allow more natural decay but require precise placement. Consult the table below for tailored adjustments based on enclosure type and driver diameter.
| Driver Diameter (in) | Sealed Enclosure | Ported Enclosure | Bandpass Enclosure |
|---|---|---|---|
| 8 | 100–110Hz | 90–100Hz | 85–95Hz |
| 10 | 90–100Hz | 80–90Hz | 75–85Hz |
| 12 | 80–90Hz | 70–80Hz | 65–75Hz |
| 15 | 70–80Hz | 60–70Hz | 50–60Hz |
Probing for Resonances
Identify resonant frequencies in your room using sine sweeps and a spectrum analyzer. Target problematic nodes by lowering the cutoff by 10–15Hz below the first major peak–typically found between 40Hz and 60Hz in untreated spaces. For example, if a 55Hz resonance dominates, set the filter to 40Hz to suppress excitation while preserving low-end extension. Avoid arbitrary round numbers; precision prevents masking adjacent harmonics.
Component Selection: Capacitors and Inductors for Low-Frequency Filter Networks
Choose polypropylene film capacitors rated for at least 250VAC for high-power applications below 150Hz. These capacitors offer lower distortion figures–typically below 0.01% THD–compared to polyester or electrolytic types, which introduce measurable phase shifts at frequencies under 80Hz. For precise roll-off characteristics, match capacitance values to within ±2% of the calculated target; even minor deviations alter the corner frequency by up to 5Hz, directly impacting transient response and bass articulation.
Inductor Core Material and Wire Gauge
Air-core inductors eliminate magnetic saturation and hysteresis losses common in ferrite or iron powder cores when handling peak currents exceeding 10A. Use 18AWG enameled copper wire for inductors below 5mH to prevent overheating; resistance should stay under 0.2Ω to avoid signal attenuation. For larger values, switch to 16AWG to maintain consistent Q-factor–aim for a minimum Q of 15 at the operating frequency to preserve waveform integrity. Toroidal cores reduce stray inductance but require precise winding turns (measured within ±0.5%) to meet impedance targets.
Capacitor voltage derating is critical; operate polypropylene units at 60-70% of their maximum rated voltage to extend lifespan and suppress dielectric absorption effects, which skew phase angles by up to 3° at 50Hz. Bypass each capacitor with a 0.1μF ceramic disc rated at 500VDC to filter high-frequency artifacts; these artifacts can otherwise intermodulate with the fundamental tone, generating subharmonic distortion perceptible at high SPL levels.
Inductance tolerance affects system tuning more than capacitance variance. A 1mH inductor with a ±5% tolerance shifts the -3dB point by ±8Hz; verify inductance with an LCR meter at multiple frequencies, as core permeability drifts with signal amplitude. For wire gauges thinner than 20AWG, skin effect becomes noticeable above 300Hz–restrict application to networks filtering below 200Hz to avoid frequency-dependent resistance hikes.
Step-by-Step Wiring Layout for a 2nd Order Low-Frequency Filter
Begin by identifying the speaker’s impedance and target cutoff frequency. For a typical 8-ohm driver and a 80Hz roll-off, select capacitors rated at 100μF and inductors around 2.2mH. Use non-polarized electrolytic or polypropylene capacitors for stability under low-frequency signals.
Mount components on a perfboard or terminal block to prevent shorts. Arrange the inductor and capacitor in a series-parallel configuration: connect the capacitor first in series with the speaker’s positive terminal, followed by the inductor in parallel to the capacitor-speaker junction. This forms the 12dB/octave slope.
Measure component values before installation. A digital LCR meter ensures accuracy–tolerance should not exceed ±5%. Replace any parts deviating beyond this range to maintain phase alignment. High-power resistors (10W) may be added in series to fine-tune Q-factor if needed, though they introduce minor signal loss.
- Solder joints must be clean and free of flux residue to avoid oxidation over time.
- Twist wire pairs carrying high-current paths to reduce interference.
- Secure loose components with hot glue to prevent vibration damage in bass-heavy environments.
Test the assembly with a sine-wave generator starting at 20Hz, sweeping upward. Observe the response on an oscilloscope or SPL meter–output should drop smoothly by 12dB at the cutoff frequency. Adjust inductor values in 0.1mH increments if the roll-off slope deviates.
Grounding and Isolation Techniques
Isolate the filter from amplifier ground loops by using a star-grounding scheme. Connect all grounds to a single point near the amplifier’s output terminal, avoiding daisy-chaining. For bi-amping setups, use a separate ground wire for each channel to prevent cross-talk.
Enclose the filter in a vented metal box if installed near power amplifiers. Shielded cables (e.g., RG-59) protect against RF interference, especially in car audio or home theater systems with multiple signal sources. Label input/output terminals clearly to avoid wiring errors during future upgrades.
Calculating Impedance Matching for Amplifier and Low-Frequency Driver
Start by verifying the nominal impedance of your bass driver, typically 4Ω or 8Ω, and cross-check it with the amplifier’s minimum impedance rating. Most solid-state amplifiers tolerate 4Ω loads but check the manual for exact figures–some Class D models handle lower values down to 2Ω. If the amplifier’s rating exceeds the driver’s impedance, add an inline resistor to raise the total load to the nearest safe value. For instance, a 4Ω driver with a 6Ω minimum amplifier requires a 2Ω power resistor (rated for at least the amplifier’s continuous wattage) wired in series.
Adjusting for Real-World Impedance Peaks
Measure the driver’s impedance curve with a signal generator and oscilloscope or dedicated audio analyzer. Low-frequency drivers often exhibit a peak near their resonant frequency, sometimes 2-3 times the nominal impedance. If the peak exceeds the amplifier’s stable range, calculate a parallel resistor to flatten the impedance hump. A 4Ω driver with a 12Ω peak at 30Hz would need a 6Ω resistor in parallel to reduce the peak to ~4.8Ω. Use Ohm’s Law (R = V²/P) to size the resistor–an 80W amplifier at 12Ω peak demands a resistor capable of dissipating at least 120W to avoid failure.
Match the voice coil’s thermal characteristics to the amplifier’s output stage. Class AB amplifiers run hotter at lower impedances; Class D remains cooler but check the datasheet for burst current limits. A 200W amplifier into 4Ω delivers ~9A RMS–ensure the driver’s voice coil can handle the thermal load without compression. If the driver’s power rating is lower than the amplifier’s output, attenuate the signal via a L-pad network (two resistors, one in series, one in parallel) to prevent distortion rather than relying on passive padding alone.
Simulate the final impedance with SPICE or LTspice to verify stability before wiring. Model the amplifier as a voltage source, the driver as a series RLC network (using manufacturer data for L and C), and include parasitic elements like cable inductance (0.7µH per meter for 16AWG wire). Run an AC sweep from 10Hz to 20kHz–ensure the impedance never dips below the amplifier’s minimum rating across the operating band. If simulation shows instability, adjust component values and retest before committing to physical assembly.
