Key Principles for Optimizing PCB Design and Circuit Diagrams in Electronics

Place decoupling capacitors within 2mm of every power pin on high-speed ICs. Ignoring this rule leads to voltage ripple exceeding 50mV, causing unstable operation in mixed-signal systems. For microcontrollers, maintain a 10nF ceramic capacitor per VDD pin with X7R dielectric–other materials introduce excessive ESR at frequencies above 1MHz.

Assign ground planes on both sides of the board for multilayer stacks. A single uninterrupted plane reduces inductance to under 0.5nH/cm, critical for >50MHz signals. Vias stitching planes should be spaced no farther than 5mm apart–wider spacing creates resonant loops measurable with a spectrum analyzer between 100MHz-500MHz.

Trace impedance-controlled paths at 50Ω ±10%. Use 0.1mm width per 0.1mm dielectric thickness for FR-4 (Er=4.3) on 1oz copper. Deviations beyond this tolerance reflect >10% of signal amplitude, degrading rise times in LVDS interfaces by 30% or more. Test coupons should accompany every batch for TDR verification during fabrication.

Separate analog and digital ground pours with a star point at the power source. Connecting grounds elsewhere forms unintended return paths, injecting 1kHz-10kHz noise into sensitive amplifiers. A 1Ω resistor or ferrite bead isolates sections, but values above 10Ω introduce instability in op-amp feedback loops.

Label critical nets with 0.8mm soldermask-defined text near termination points. Ensure silkscreen ink withstands 260°C reflow temperatures–consumer-grade alkyd resins peel during assembly, obscuring traceability. Use IPC-2221B class 3 standards for bare-board inspections, targeting 99.7% defect-free acceptance via AOI.

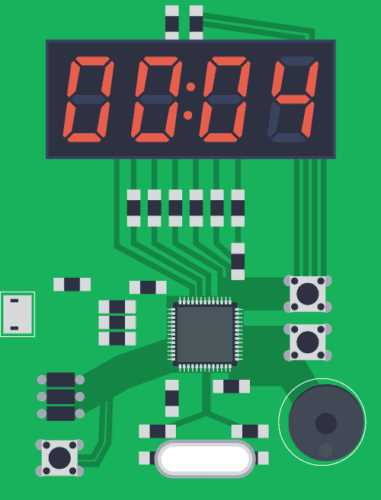

Creating Precision Electronic Layouts

Start by dividing your schematic into functional blocks–power regulation, signal processing, and I/O interfaces–before translating it into a physical layout. This segmentation prevents signal overlap and reduces noise coupling. For high-frequency components (e.g., RF modules), keep traces as short as possible and avoid 90° angles; use 45° miters or smooth curves to minimize reflections.

Assign bypass capacitors (e.g., 0.1µF ceramic) directly adjacent to each IC’s power pins, placed on the same layer as the component if possible. For multilayer boards, route power and ground planes on adjacent inner layers to maximize capacitance and reduce EMI. A 10nF capacitor near connectors can suppress high-frequency transients from external cables.

Trace Width and Spacing Rules

Use a trace width calculator based on current requirements: 10 mils (0.254mm) for signal traces under 500mA, 20 mils (0.508mm) for 1A, and wider for higher currents. For differential pairs, maintain consistent spacing (e.g., 10 mils for LVDS) and avoid crossing ground plane splits to preserve impedance matching (typically 100Ω). Keep analog and digital traces separated by at least 20mm to prevent crosstalk.

For thermal management, allocate copper pours under high-power components like voltage regulators. A 2oz copper layer can dissipate ~1W/cm² without additional heatsinks. Use thermal vias (12–15 mils diameter, plated) to connect top-layer pads to inner or bottom layers, spaced no more than 1.5mm apart for efficient heat transfer.

Grounding Strategies

Implement a star grounding topology for mixed-signal boards. Connect analog, digital, and power grounds at a single point–usually near the power input–to prevent ground loops. For sensitive analog circuits (e.g., ADCs), route a dedicated ground return path isolated from digital ground until the central connection point.

Validate your layout with DRC (Design Rule Check) before fabrication. Set minimum clearance rules (e.g., 6 mils for general traces, 10 mils for high-voltage) and verify pad-to-trace spacing. Use Gerber viewers to inspect for unintended shorts or open circuits, especially in fine-pitch components (e.g., BGA packages with 0.5mm pitch).

For manufacturability, add fiducial marks (1mm diameter bare copper pads) near QFN or BGAs to assist pick-and-place machines. Include a silkscreen legend with component designators, polarity indicators, and board version. Export Gerber files in RS-274X format and include a drill file with plated/non-plated hole distinctions.

Test prototypes with an oscilloscope to verify signal integrity. Probe critical nets (e.g., clock signals, power rails) for ringing or overshoot; if present, adjust termination resistors (e.g., 22Ω–50Ω series resistors) or increase trace spacing. For EMC compliance, add ferrite beads to I/O lines and ensure shielding enclosures make proper contact with chassis ground.

Choosing the Right Schematic Capture Tool for Your Project

For most engineering tasks under 1,000 components, KiCad outperforms paid alternatives in both speed and reliability. The tool’s hierarchical sheet system reduces clutter by allowing net labels to span across pages without manual connections, while its built-in SPICE simulation engine handles transient analysis without requiring third-party plugins. The latest 8.0 release introduced native differential pair routing and automated length matching, features typically reserved for high-end software costing thousands. Teams transitioning from enterprise tools report a 30-40% reduction in schematic entry time after a one-week learning curve, primarily due to intuitive shortcuts and customizable toolbar layouts.

When selecting a tool, evaluate these critical factors:

Feature	KiCad	Altium Designer	Eagle	OrCAD
Cross-platform support	✔️ (Linux/Windows/macOS)	✖️ (Windows only)	✔️ (Limited macOS)	✖️ (Windows only)
Cost for commercial use	$0	$7,295/year	$820/year	$2,500/year (base)
Multi-sheet hierarchy	✔️ (Unlimited)	✔️ (Limited by license)	✔️ (20 sheets max)	✔️ (Advanced license required)
Built-in simulation	✔️ (SPICE)	✖️ (Requires add-on)	✖️ (Requires third-party)	✔️ (PSpice, separate purchase)
Custom BOM generation	✔️ (Python scripting)	✔️ (Limited templates)	✖️	✔️ (Additional cost)

For high-volume manufacturing projects exceeding 5,000 components, Altium Designer justifies its cost through strict variant management and real-time supply chain integration with Octopart and IHS Markit. The tool’s ActiveBOM module reduces procurement errors by automatically flagging components with long lead times or obsolete status, while its cloud collaboration feature allows geographically dispersed teams to work concurrently on the same schematic. However, users report stability issues with projects exceeding 1 GB file size, requiring frequent saves and version control through Git to avoid data corruption. Open-source alternatives like QUCS excel in RF schematic work, offering Smith Chart plots and S-parameter analysis without additional licenses, though they lack native footprint libraries.

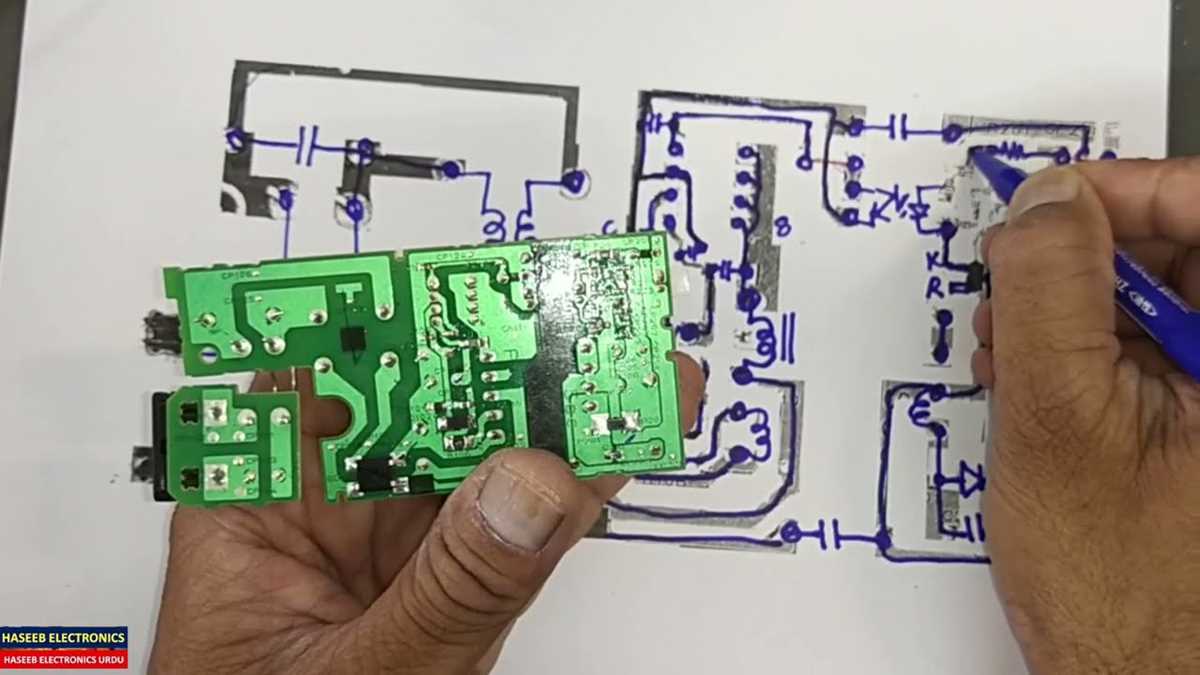

Key Steps to Convert Schematic Plans into Functional Board Artwork

Export the netlist first–verify every connection matches the intended electrical flow before proceeding. Use tools that support netlist import directly to avoid manual entry errors. Cross-check node names, pin assignments, and component values against the original schematic; discrepancies here propagate through later stages and complicate debugging.

• Assign footprints immediately after netlist validation–select standardized packages that conform to manufacturer datasheets.
• Group critical signal paths early to minimize crossing traces; analog signals, high-speed lines, and power rails should occupy distinct layers.
• Set clearance rules based on fabrication tolerances–typically 0.2mm for standard boards, tighter for HDI processes.

Place components in logical clusters: regulators near input connectors, decoupling capacitors adjacent to active devices, and analog circuitry isolated from digital switching. Keep thermal reliefs for power components in mind–ensure ample copper area for heat dissipation without obstructing planned signal routes. Rotate parts to align with signal flow direction to reduce trace length.

Route the highest priority nets first–clock signals, differential pairs, and sensitive analog traces. Use 45-degree angles instead of 90 to limit signal reflection and maintain controlled impedance. Assign ground pours on at least one layer to reduce electromagnetic interference; stitch vias should connect pours across layers at regular intervals (≤10mm spacing).

Run design rule checks at each milestone–verify minimum trace width, spacing, annular ring compliance, and drill-to-copper clearance. Export Gerber files in RS-274X format and cross-validate with Gerber viewers; omit aperture lists to prevent fabrication mismatches. Include fabrication notes specifying layer stack-up, solder mask expansion (0.1mm typical), silkscreen legend requirements, and surface finish preferences (ENIG, HASL, or OSP).

1. Generate drill files separately for plated and non-plated holes; specify tolerances (±0.05mm).
2. Include a fabrication drawing with board outline dimensions, datums, tooling holes (φ3.2mm standard), and panelization instructions.
3. Add test points for critical signals–place on 2.54mm grid for automated probing compatibility.
4. Review final artwork under single-layer transparency mode to spot hidden shorts, opens, or silk-screen overlaps.

Frequent Schematic Errors and Practical Fixes

Neglecting power rail decoupling near integrated components causes voltage fluctuations and erratic behavior. Place 0.1μF ceramic capacitors within 2mm of each IC’s power pin, paired with a 10μF tantalum capacitor at the board’s power entry point. Verify traces between capacitors and pins are shorter than 10mm to suppress high-frequency noise. Skipping this step in op-amp or microcontroller layouts leads to intermittent resets or signal distortion.

• Overlooking ESD protection pads on connector pins invites static damage. Add bidirectional TVS diodes (e.g., SMAJ5.0A) rated 20% above supply voltage to USB, HDMI, or GPIO lines. Select clamp voltage below the component’s absolute maximum rating.
• Failing to define exact footprint dimensions for custom parts results in misalignment during assembly. Cross-check manufacturer land pattern specifications (IPC-7351) against CAD library values before finalizing libraries. Tolerances tighter than ±0.1mm prevent solder bridges.
• Labeling nets inconsistently complicates debugging. Prefix all nets with logical blocks–e.g., “PWR_VCC_5V” instead of “VCC”–and use identical net names across hierarchical sheets to ensure synchronization.

Using single-thickness lines for ground returns increases resistive losses. Replace narrow traces with polygons poured beneath signal paths, keeping copper thickness above 0.5oz for currents exceeding 1A. Stitch polygons to chassis ground via via arrays spaced at least 1mm apart to reduce loop inductance.

Ignoring thermal relief patterns on through-hole pads leads to soldering difficulties. Apply 4-6 spokes of 0.2mm width around each pad, ensuring spokes connect to wide copper zones rather than thin traces. For components dissipating >2W, verify thermal resistance calculations against datasheet limits; supplement with poured copper planes extending 5mm beyond pad boundaries.

1. Leaving redundant nodes unconnected wastes board space and confuses reviewers. Terminate unused op-amp outputs or microcontroller GPIOs with defined states: either pull-down (10kΩ–100kΩ) or pull-up, matching expected logic thresholds. Mark these terminations clearly in netlists.
2. Assuming default simulation parameters mirrors real-world behavior is hazardous. Calibrate SPICE models to manufacturer-provided corner-case data, especially rise/fall times and output impedance. Run transient analyses at 1.2× nominal supply voltage for margin verification.
3. Avoid placing high-speed differential pairs adjacent to switching regulators. Separate LVDS or USB traces by at least 3mm from inductors or MOSFETs switching >1MHz. Route pairs with matched 90Ω (±5%) impedance, maintaining equal trace lengths within 0.2mm.
