Design and Build Your Own pH Meter Circuit Step-by-Step Guide
For reliable pH readings between 0 and 14, pair an operational amplifier with a gain of at least 1000x and a high-impedance probe–specifically a glass electrode with a resistance above 10^9 ohms. Use a dual-supply configuration (±5V or wider) to avoid signal clipping near extreme pH values, where drift becomes noticeable. A 16-bit ADC (e.g., AD7793) ensures resolution finer than 0.01 pH units, critical for detecting subtle shifts in buffered solutions.
Isolate the sensing element from noise by routing the coupling path through a guarded trace on a PCB, reducing stray capacitance below 1 pF. Add a 10kΩ resistor in series with the probe to prevent oscillations when connecting or disconnecting the electrode. A temperature sensor (e.g., PT100) must be integrated directly into the sample container–ambient fluctuations of 5°C can skew readings by up to 0.2 pH units.
Calibrate with precision buffers: pH 4.01 (potassium hydrogen phthalate) and pH 7.00 (phosphate) at 25°C. Use a two-point algorithm correcting for the electrode’s non-linear response below 3 and above 10. For stability, implement a software low-pass filter with a 0.1 Hz cutoff, smoothing fluctuations from electrochemical noise without lagging rapid equilibration phases.
Power the analog front-end from a low-noise LDO (e.g., LT3045) bypassed with 10µF tantalum capacitors at both input and output. Ground the shield of coaxial probe cables at a single point near the amplifier input to suppress common-mode interference. Test the assembly with a 1kHz sine wave injected into the input–total harmonic distortion should remain below 0.1% for accurate measurements.

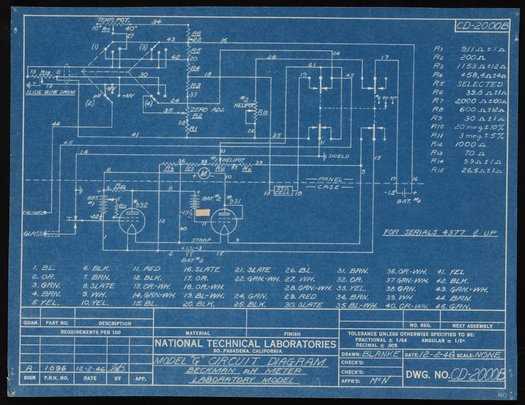

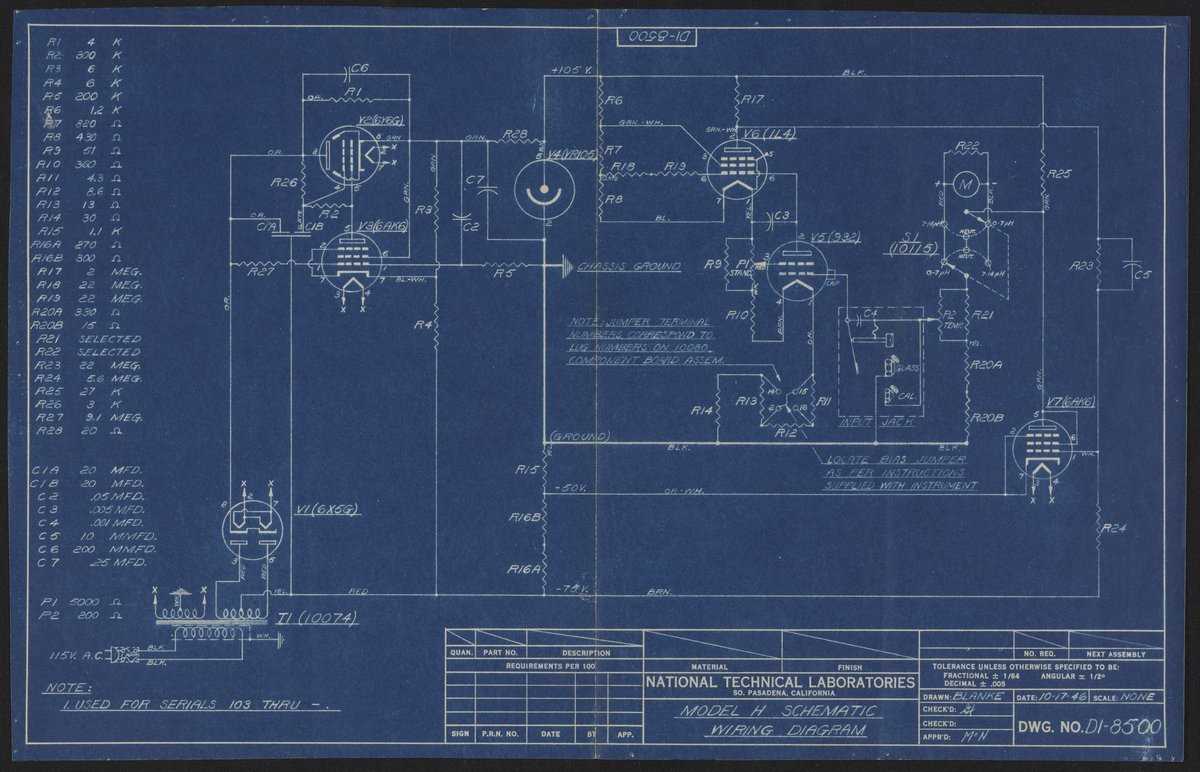

Building a Precision pH Measurement Setup
Select a high-impedance operational amplifier like the TL072 for signal conditioning–its 10¹² Ω input impedance minimally loads probes. Combine it with a 4.7 µF coupling capacitor to block DC offsets from reference electrodes while allowing AC signals below 3 Hz. For calibration, use two-point linearization with 4.01 and 6.86 pH buffer solutions; plot millivolt output against pH values to derive slope and offset via y = mx + b.
- Use a 3-wire probe configuration with separate reference and measuring electrodes to eliminate ground loops.
- Add a 10 kΩ potentiometer across the op-amp’s feedback loop to adjust gain (
- Include a 0.1 µF bypass capacitor between the amplifier’s power rails and ground to suppress high-frequency noise.
- Choose silver/silver-chloride reference cells over calomel variants for lower temperature hysteresis (±0.003 pH/°C).
Arrange components in a 4-layer PCB stackup: signal traces on the top layer, ground plane beneath, power distribution on the third, and additional shielding on the bottom. Keep trace lengths under 2 cm between the probe connector and input stage to reduce stray capacitance. Copper pours around sensitive nodes should connect to analog ground via 22 nF capacitors, not direct vias.
Implement a 16-bit ADC with a maximum input range of ±2.5 V–this yields 76 µV resolution, sufficient for 0.01 pH increments. For temperature compensation, integrate a 10 kΩ NTC thermistor in a resistive divider, sampling its voltage with a secondary ADC channel. Apply the Steinhart-Hart equation in firmware to correct probe output in real time.
- Test the finished assembly by submerging the probe in stirred 0.01 M HCl (pH 2.00); measured voltage should stabilize within 30 mV of expected value.
- Verify isolation by measuring leakage current between probe and grounding electrode–values above 1 nA indicate compromised shielding.
- Replace op-amp sockets annually; thermal cycling degrades contact resistance, introducing nonlinear drift.
- Store probes in low-conductivity KCl solution; drying alters junction potentials by up to 0.2 pH units.

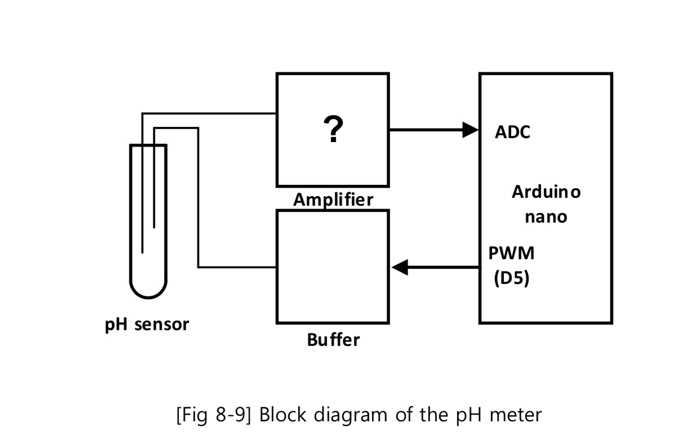

Core Elements for Building a pH Sensing Setup
Start with a high-impedance operational amplifier like the TL072 or CA3140–critical for interfacing with the probe without signal degradation. The sensor’s output impedance exceeds 100 MΩ, so a buffer stage with an input impedance of at least 1 TΩ ensures minimal loading. Match the amplifier’s bias current to less than 10 pA to avoid offset errors; bipolar op-amps with JFET inputs reduce drift over time.
Select a glass electrode with a known slope response–typically 59.16 mV/pH at 25°C. Calibration demands at least two buffer solutions (e.g., pH 4.00 and 7.00); check temperature coefficients (0.003 pH/°C for neutral buffers) and correct readings accordingly. For high-precision work, use a three-point calibration (add pH 10.00) and verify linearity. Storage requires 3M KCl solution; never let the sensor dry out, as irreversible damage to the hydrated gel layer occurs within hours.
| Component | Key Specification | Recommended Model/Value |
|---|---|---|
| Op-Amp | Input Impedance >1 TΩ | TL072, OPA129 |
| Probe | Slope: 55–60 mV/pH | Hanna HI-1131, Sensorex S200 |
| ADC | 16-bit resolution, ±200 mV range | ADS1115, MCP3421 |
| Temperature Sensor | Accuracy ±0.1°C | DS18B20, PT1000 |
A differential analog-to-digital converter (ADC) with 16-bit resolution captures the millivolt signals–target a range of ±200 mV for full-scale pH 0–14 coverage. Connect the probe’s reference junction to the ADC’s ground through a 1 MΩ resistor to stabilize readings; avoid ground loops by isolating digital and analog grounds at a single point. Implement software compensation for temperature: use a dedicated IC like the DS18B20 or PT1000, with polynomial coefficients (e.g., ET = E25°C + 0.198(T–25) for glass probes).
Power the setup from a regulated dual-rail supply (±5V to ±12V); linear regulators (LM317/LM337) outperform switch-mode for noise-sensitive applications. Add a 0.1 µF ceramic capacitor across op-amp power pins to suppress high-frequency interference. For portable designs, lithium cells with a low-dropout regulator (LDO) extend runtime–prioritize LDOs with
Step-by-Step Assembly of a pH Sensor Interface

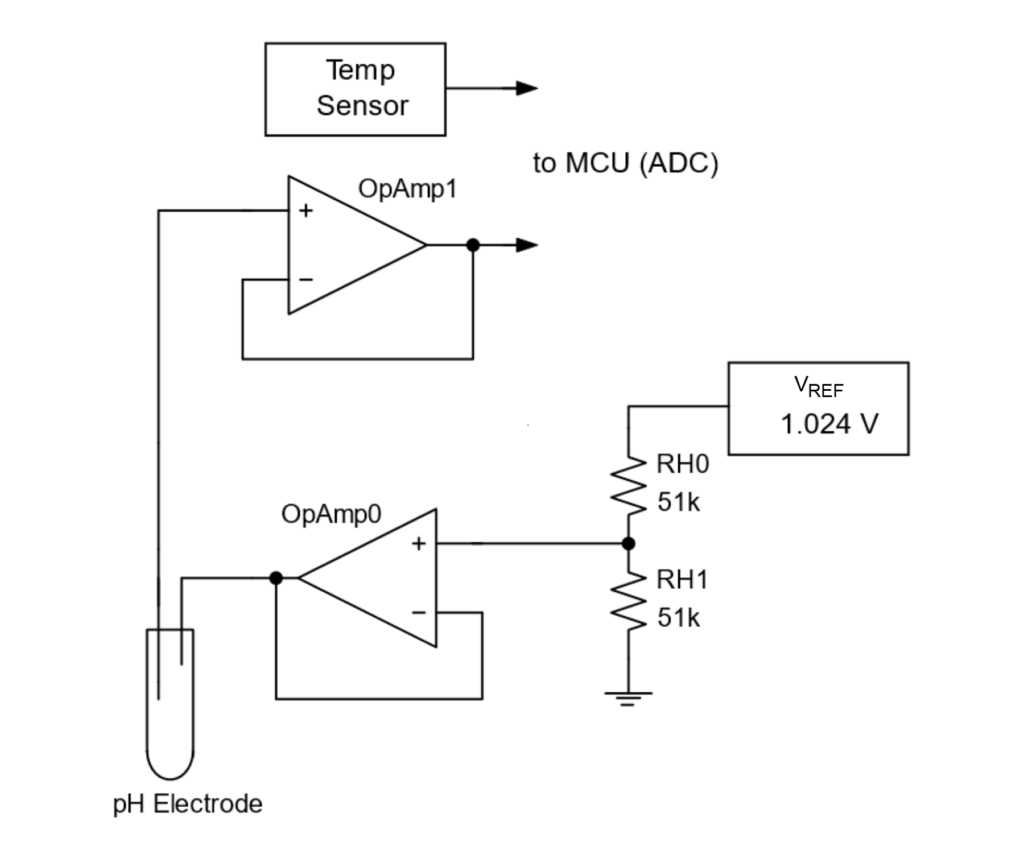

Select a high-impedance operational amplifier like the TL072 or LMC6001 to condition the probe’s microvolt signal without loading it. Solder the inverting input of the op-amp directly to the probe’s glass electrode terminal, ensuring a shielded coaxial connection to minimize noise pickup. Connect the non-inverting input to a stable reference voltage–use a 2.5V precision voltage reference IC like the REF3325 for consistent baseline readings across 0–14 pH.
Build a temperature compensation network using a 10kΩ NTC thermistor (B-value 3950) placed in thermal contact with the sample. Wire the thermistor in a voltage divider with a 10kΩ 0.1% precision resistor, then feed the output into a second op-amp configured as a non-inverting amplifier with a gain of 2.3. This adjusts the pH reading slope (59.16 mV/pH at 25°C) based on measured temperature, correcting deviations down to ±0.1°C.

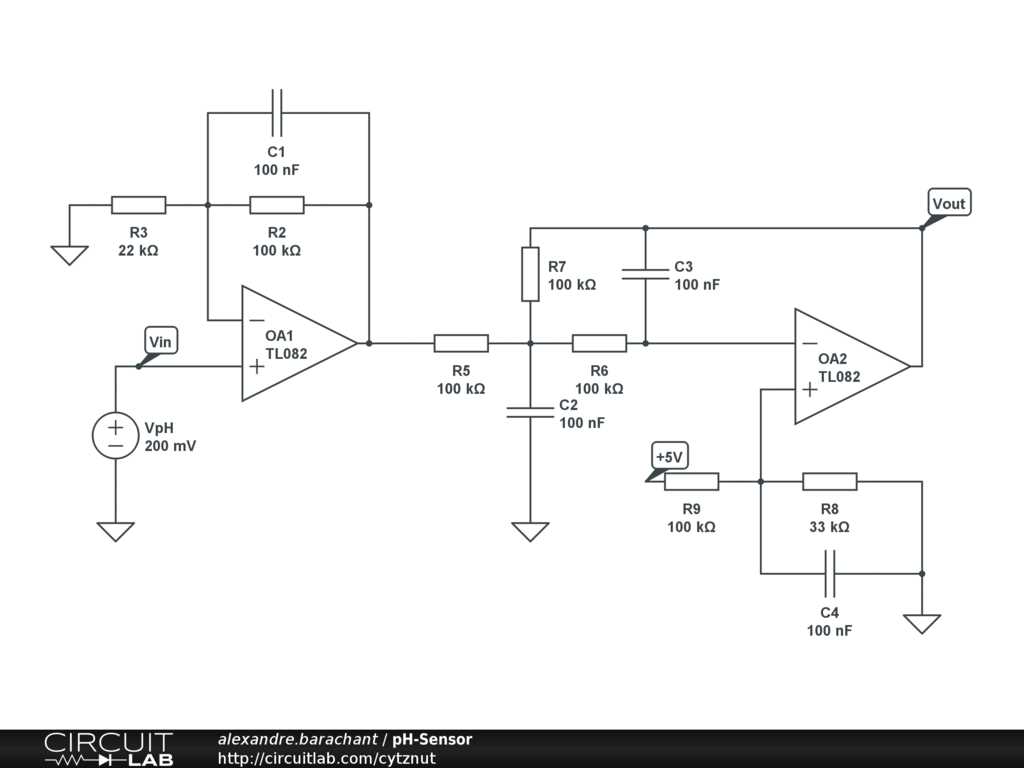

Add a low-pass RC filter (10kΩ resistor + 1µF ceramic capacitor) immediately after the signal conditioning stage to reject 50/60Hz power-line interference. Ground the capacitor’s free end to the analog ground plane, not the digital ground, to prevent high-frequency noise from coupling into the sensitive probe signal. Calibrate the system by immersing the probe in pH 4.01 and 7.00 buffer solutions, adjusting trimpots on the op-amp stages to zero error at both calibration points.
Precision Signal Conversion
Route the filtered analog output into a 16-bit ADC like the ADS1115, configuring its programmable gain amplifier to a full-scale range of ±2.048V. Set the ADC’s data rate to 128 samples per second–higher rates introduce noise, while lower rates degrade response time. Use a regulated 3.3V supply for both the ADC and op-amps, decoupling each IC with a 0.1µF capacitor placed within 2mm of the power pin.
Final Integration and Validation
Transmit ADC readings via I2C to a microcontroller–STM32F103 or ESP32–using 4.7kΩ pull-up resistors on the SDA/SCL lines. Program the controller to apply a two-point calibration curve, storing slope and offset values in EEPROM. Validate the assembled interface by measuring pH 10.01 buffer; deviation should not exceed ±0.05 pH. Shield the entire analog section in a grounded metal enclosure to eliminate electrostatic interference from nearby equipment.
Calibrating the pH Probe for Reliable Measurements
Rinse the electrode with distilled water before and after each calibration to remove residual buffer or sample traces. Use a laboratory-grade wash bottle with a fine stream to prevent contamination. Tap the probe gently against a clean tissue to dislodge water droplets, but avoid wiping the glass membrane–even slight scratches distort readings. Store the electrode in a 3M KCl solution when not in use; drying out degrades the reference junction and sensor response.
Perform two-point calibration using pH 4.00 and 7.00 buffer solutions first, followed by a third point at pH 10.00 for expanded range accuracy. Immerse the probe fully in the buffer, ensuring no air bubbles cling to the glass bulb. Stir the solution at a consistent 60 RPM–swirling too fast introduces temperature gradients, while stagnant liquid causes sluggish stabilization. Wait at least 30 seconds after the display stabilizes to confirm the reading matches the buffer’s certified value within ±0.02 units.
Temperature Compensation Adjustments
Set the temperature compensation to manual mode if ambient conditions fluctuate beyond ±2°C during measurement. Buffer solutions below 15°C increase viscosity, slowing ion migration; above 30°C, the slope deviates from Nernstian linear response. For precise work, equilibrate buffers and samples at 25°C in a thermostatic bath. ATC (Automatic Temperature Compensation) probes reduce error but require separate calibration–verify the thermistor’s accuracy with a traceable digital thermometer before relying on automated corrections.
Replace aging buffers every 4 weeks, even if unopened; carbon dioxide absorption from air alters pH 7.00 and 10.00 solutions by up to 0.05 units monthly. Store buffers at 4°C in tightly sealed borosilicate bottles–polyethylene leaches additives. Discard any buffer showing turbidity, precipitation, or microbial growth. Never reuse buffer from calibration for storage; cross-contamination shifts subsequent readings by -0.1 to -0.3 pH.
Electrode Maintenance for Long-Term Stability
Soak the electrode in 0.1M HCl for 10 minutes if response time exceeds 15 seconds–protein or lipid fouling causes drift. For stubborn deposits, use a pepsin-HCl solution (1 g/L pepsin in 0.1M HCl) for 5 minutes, then rinse thoroughly. Never soak in deionized water longer than 2 minutes–it dissolves the internal KCl gel, increasing junction potential error. Replace the electrode if the slope drops below 92% after cleaning; irreversible aging reduces sensitivity.
Check electrode asymmetry potential monthly by measuring pH in a fresh 7.00 buffer–values outside 6.98–7.02 indicate junction clogging or depleted internal solution. Refillable models require replenishment with saturated KCl (3.8M) every 6 months; air bubbles in the reference chamber create erratic jumps. Single-junction probes offer faster response but degrade twice as fast as double-junction designs–match the probe type to application throughput.
Log calibration data in a lab notebook: date, buffer lot numbers, slope percentage, and measured offset at pH 7.00. A downward trend in slope (e.g., 98% → 95%) signals electrode aging; plan replacement when slope falls below 90%. Store probes vertically, cap filled with storage solution, away from strong acids or alkalis. Never expose the glass membrane to organic solvents–acetone, ethanol, or DMSO alter the hydrated gel layer, causing irreversible sensitivity loss within hours.
