Understanding Phasor Representation in Pure Capacitive AC Circuits

To analyze a system where a capacitor governs energy storage, measure the voltage V and current I simultaneously. The current through the component leads the voltage by exactly 90 degrees. This phase displacement remains constant regardless of frequency, but amplitude relationships change. Use an oscilloscope to capture waveforms–align the vertical scale for voltage (volts/division) and current (amperes/division) to ensure proportional plotting. Failing to normalize these scales distorts the graphical representation, making phase evaluation inaccurate.

Plot the voltage vector horizontally as a reference. The current vector must point upward perpendicular to this baseline. Any deviation beyond ±1 degree signals measurement error or unintended resistive effects. For precise results, subtract stray resistance from circuit traces–even 0.1 Ω alters phase alignment in low-impedance setups. Double-check probe compensation and ground connections; uncompensated probes introduce parasitic capacitance, skewing the 90-degree relationship.

Apply Kirchhoff’s laws to confirm vector sums. In networks with multiple capacitors, sum individual currents algebraically while maintaining the 90-degree phase shift. Verify calculations against an impedance meter–discrepancies exceeding 2% indicate overlooked parasitic inductance or dielectric losses. For high-frequency applications (above 1 kHz), account for skin effect and proximity effect, which reduce effective capacitance and shift the phase angle.

Derive the component’s reactance using X_C = 1/(2πfC). Match this value against the oscilloscope’s V/I ratio–mismatches reveal incorrect capacitance values or frequency errors. If phase angle drifts over time, suspect temperature-dependent dielectric changes; stabilize ambient conditions (±1°C) before retesting. Document every adjustment in the plot legend to maintain traceability.

Visualizing Current-Voltage Behavior in Ideal Condenser Networks

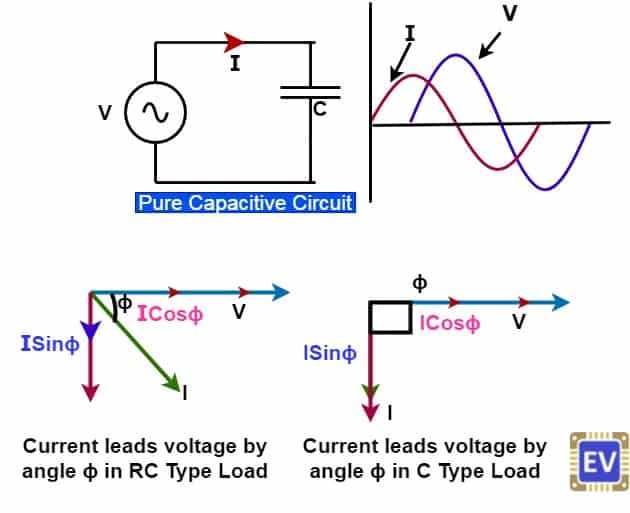

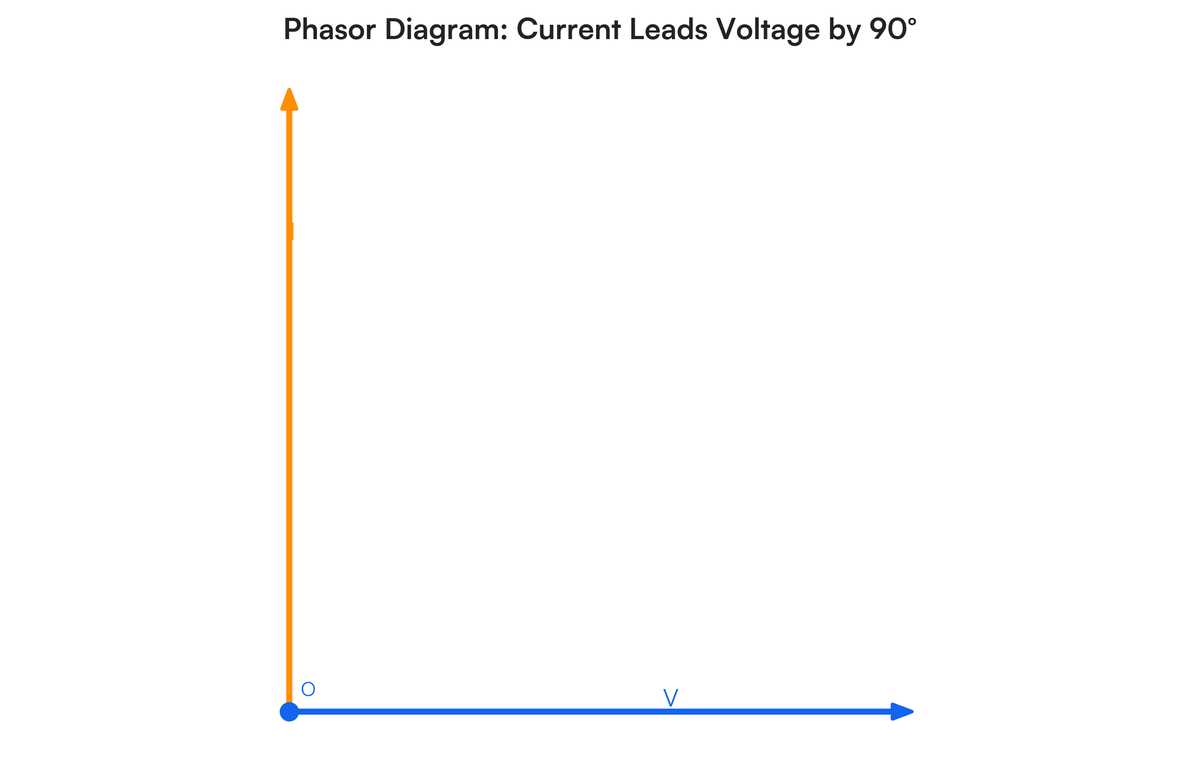

Position the voltage vector horizontally as the reference axis–its angle fixed at 0°. The current vector will then lead by 90°, pointing vertically upward in standard polar plots. This orthogonal arrangement directly reflects the condenser’s inability to store energy in phase with the applied voltage.

Scale both vectors to represent peak values (not RMS) for clarity in transient analyses. For a 10 µF condenser under 120 V_peak at 60 Hz, compute the peak current using:

Parameter	Symbol	Value	Calculation
Capacitance	C	10 µF	Given
Angular frequency	ω	377 rad/s	2π × 60 Hz
Reactance	XC	265 Ω	1/(ωC)
Peak current	Ipeak	453 mA	120 V / 265 Ω

Verify the 90° phase shift experimentally: apply a dual-channel oscilloscope with voltage probes across the condenser and a 1 Ω series resistor to measure current. Adjust the time base to display at least one full cycle; the current trace will crest 2.65 ms (90° at 60 Hz) before the voltage trace.

For multi-frequency systems, overlay separate vector plots. A 10 µF condenser at 50 Hz yields:

Frequency	Reactance	Phase Angle
50 Hz	318 Ω	+90°
1 kHz	15.9 Ω	+90°
10 kHz	1.59 Ω	+90°

Note the invariant phase angle despite reactance changes.

Use rotating vectors for transient studies: represent DC charging with a decaying current vector (initial 90° magnitude) that collapses exponentially toward zero while maintaining its +90° orientation relative to the rising voltage vector.

In mixed networks, subtract the condenser’s current vector from inductive components using vector addition. A 10 mH coil in parallel with the same 10 µF condenser at 60 Hz creates a net vector of 125° lagging–critical for filter design.

Practical Representation

Plot vectors on engineering graph paper with 1 cm = 100 mA or 50 V scales. For 3D visualizations (time-domain sweeps), stack sequential plots with time increments of 0.5 ms to reveal envelope behavior during amplitude-modulated signals.

Essential Elements of a Condenser-Dominated Electrical System

Select capacitors with low equivalent series resistance (ESR) and minimal dielectric absorption to minimize energy losses. Film types like polypropylene or ceramic variants with X7R/X5R temperature coefficients offer stability under 1kHz operation.

Ensure the applied voltage never exceeds 70% of the capacitor’s rated value to prevent dielectric breakdown. For example, a 50V-rated unit should operate at 35V or below to maintain longevity in AC applications.

Match the reactive power of the condenser to the system’s requirements using Q = V² / X_C, where X_C is the capacitive reactance. A 10µF element at 60Hz yields ~265Ω of reactance; verify calculations against load demands.

Use non-polarized capacitors in AC paths to avoid polarity-induced failure. Electrolytic types are unsuitable unless bidirectional voltage is guaranteed, which is rarely achievable in practical designs.

Minimize stray inductance by keeping lead lengths under 1cm or using surface-mount packages. A 5mm excess wire adds ~5nH of inductance, distorting phase relationships at frequencies above 10kHz.

Incorporate a resistor (typically 1Ω–10Ω) in series with the condenser to dampen transient oscillations during switching. Omit this only in precision timing circuits where phase purity is critical.

Verify the temperature derating curve of the chosen capacitor. Most Class 2 ceramics lose 30% capacitance at 125°C; derate accordingly if ambient conditions exceed 85°C.

Terminate the circuit with a high-impedance load (e.g., >1MΩ) to prevent phase shift deviations. Low-impedance loads (

Building a Vector Representation for Reactive Load Analysis

Begin by sketching a reference axis representing the voltage waveform at 0°. This serves as the baseline for all subsequent elements. Ensure the scale accounts for peak values–if the system operates at 10V RMS, convert it to peak (≈14.14V) for accurate placement. Draw the voltage vector horizontally, labeling it clearly with amplitude and phase (0°).

• Select a capacitor value and calculate its reactance: XC = 1/(2πfC). For 50Hz and 100µF, XC ≈ 31.83Ω.
• Determine the current amplitude: I = V/XC. At 10V RMS, this yields ≈0.314A RMS (≈0.444A peak).
• Position the current arrow perpendicular to the voltage, leading by 90°. Use a protractor to maintain precision; even minor deviations distort phase relationships.
• Label both vectors with:
  1. Magnitude (peak/RMS as per your convention).
  2. Phase angle (current at +90°).
  3. Frequency (e.g., “50Hz”) to contextualize calculations.

Verify orthogonality–voltage and current must form a perfect right angle. Any tilt indicates misalignment, often due to incorrect reactance assumptions or rounding errors. Overlay a grid template if manual drafting introduces inconsistencies. For dynamic validation, trace vectors on graph paper, then rotate the diagram 90° counterclockwise; current should now align horizontally, confirming its lead phase. Record all measurements in a table for reproducibility:

Component	Magnitude (Peak)	Phase Angle	Frequency Dependence
Voltage	14.14V	0°	Constant
Current	0.444A	+90°	f↑ → XC↓ → I↑

Voltage and Current Phase Relationship in Capacitors

Connect a capacitor to an AC source and measure the waveforms simultaneously–current leads voltage by 90 degrees. This lag arises because the capacitor’s stored charge resists instantaneous changes, causing the voltage to build gradually while current peaks first. Use an oscilloscope to verify this: the current sine wave will cross zero a quarter-cycle ahead of the voltage. For 50 Hz AC, this translates to a 5 ms delay between peaks.

Key Parameters Affecting Phase Shift

• Capacitance (C): Larger values increase phase separation. A 10 µF capacitor at 60 Hz shows a more pronounced lead than a 1 µF unit under identical conditions.
• Frequency (f): Higher frequencies reduce the effect. At 1 kHz, the 90° shift persists, but transient response times shrink proportionally to 1/(f·C).
• Dielectric material: Polypropylene capacitors exhibit closer-to-ideal behavior than electrolytic types, which introduce small resistive losses (

To exploit this relationship in filter design, pair capacitors with resistors or inductors. A first-order high-pass filter uses the 90° lead to attenuate low frequencies: cut-off occurs at f_c = 1/(2πRC). For R = 1 kΩ and C = 100 nF, f_c = 1.59 kHz. Verify performance by sweeping frequencies and monitoring output amplitude–phase shift remains 45° at f_c.

Practical Troubleshooting

1. Unexpected phase errors? Check for parasitic inductance in leads (
2. Distorted waveforms often indicate saturation in associated amplifiers. Use op-amps with bandwidths >10× the signal frequency.
3. For precise timing applications (e.g., phase-locked loops), calibrate with a known reference capacitor–tolerance impacts accuracy (±2% typical for X7R ceramics).

Calculating Phase Angle and Reactance Values in AC Systems

Measure the voltage across the capacitor and the current flowing through it using an AC multimeter. For a component with 10 microfarads capacitance at 50 Hz, calculate the capacitive opposition by applying X_C = 1/(2πfC). Substitute the values: 1 divided by (2 × 3.1416 × 50 × 10 × 10^-6), yielding approximately 318.3 ohms. Verify this by comparing it with the impedance magnitude obtained from |Z| = V/I, where V and I are RMS readings.

Determine the phase shift between voltage and current waveforms by connecting an oscilloscope. The voltage lags the current by exactly 90 degrees in an ideal scenario, represented mathematically as θ = -90°. For precise angle measurement, identify the zero-crossing point of the current signal and measure the time delay (Δt) to the voltage zero-crossing. Convert this delay into angular displacement using θ = (Δt/T) × 360°, where T is the signal period (20 ms for 50 Hz).

Adjust calculations for non-ideal components where resistance may coexist. Combine capacitive reactance and resistance using vector addition: Z = R – jX_C. The resultant phase angle deviates from -90° according to θ = arctan(-X_C/R). For example, a resistor of 100 ohms paired with the earlier 318.3-ohm reactance yields θ ≈ -72.5°.

Select appropriate test frequencies based on application requirements. Higher frequencies reduce reactance–at 1 kHz, the same 10 microfarad capacitor presents only 15.9 ohms of opposition. Conversely, DC measurements (f = 0 Hz) result in infinite reactance, confirming open-circuit behavior. Use this frequency dependence to verify component specifications against datasheet values.

Cross-reference calculated reactance with manufacturer data to identify tolerances. A 10% tolerance on a 10 microfarad capacitor implies reactance variations between 286.5 and 350.1 ohms at 50 Hz. Factor in temperature effects–dielectric properties may shift reactance by ±5% over a 0–85°C range.

Implement calculations in circuit simulation software prior to hardware testing. Enter component values and compare simulated phase angles against theoretical predictions. Discrepancies exceeding 2% typically indicate parasitic inductance in leads or measurement errors from instrument bandwidth limitations.
