Step-by-Step Photoelectric Sensor Wiring Guide with Circuit Diagrams

Start by identifying the sensor’s power requirements–most industrial optical devices operate on 24VDC, but check the datasheet for exact values. Use shielded twisted pair cable (AWG 18-22) to reduce noise interference, especially in environments with heavy machinery or variable-frequency drives. Ground the shield at one end only, typically at the controller, to prevent ground loops.

Connect the emitter and receiver in a 3-wire configuration: +V (power), 0V (ground), and signal/output. For PNP outputs, the signal wire pulls high (sourcing), while NPN sinks current to ground. Verify the output type before wiring–misconnection risks damaging the device.

Install a 24V zener diode (1N4749A) across the input terminals of sensitive controllers to clamp voltage spikes. For long cable runs (>10m), add a pull-up or pull-down resistor (1-10kΩ) to stabilize signal integrity. Test continuity with a multimeter before powering up; resistance should read near infinite in one direction (emitter-receiver gap) and low in the opposite (aligned state).

For fail-safe operation, wire a normally closed (NC) relay in series with the sensor’s output. This ensures the system halts if the sensor loses power or alignment. Calibrate detection range using a non-reflective target (e.g., matte black material) at the sensor’s rated distance; adjust sensitivity via potentiometer if available.

Label all terminals with heat-shrink tubing to prevent misconnections during maintenance. Secure cables with cable ties every 30cm and avoid sharp bends (minimum bend radius: 8× cable diameter). For outdoor installations, use IP67-rated connectors and apply dielectric grease to prevent corrosion.

Optical Sensor Connection Guide

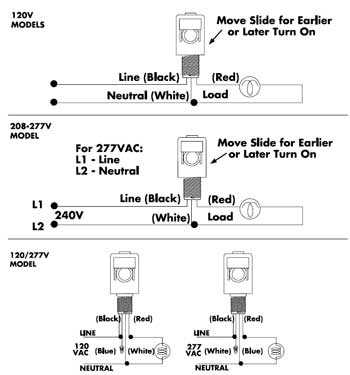

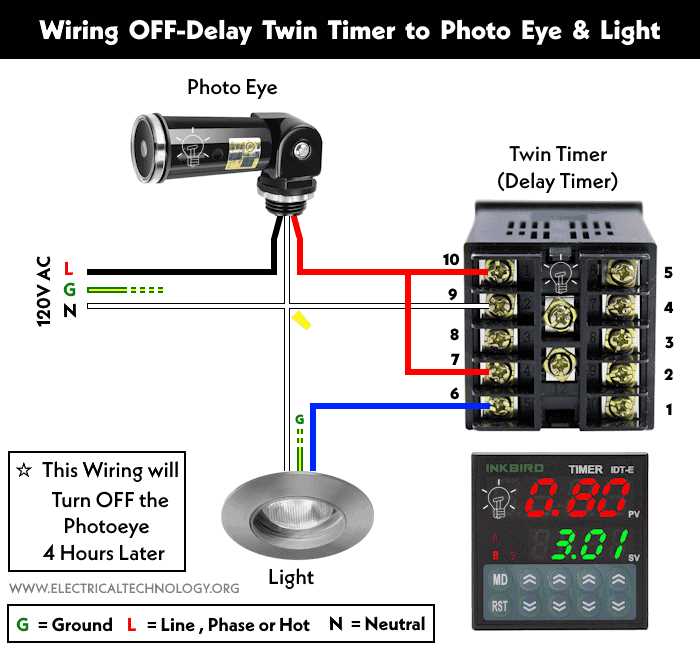

For a DC-powered reflective sensor system, connect the emitter and receiver leads directly to a 12V–24V power supply with polarity marked: brown (+) and blue (–). Add a 220Ω current-limiting resistor in series with the emitter LED to prevent burnout at 20 mA max. For AC-powered units (100V–240V), wire the black lead to neutral and the red lead to live; ground the chassis via the green/yellow terminal. Always verify matching voltage ratings–mismatches risk irreversible circuit damage within 30 seconds of energizing.

Component	Terminal Color	Voltage Range	Max Current (mA)
Emitter LED	Brown (+), Blue (–)	12–24V DC	20
Receiver Phototransistor	White (C), Black (E)	5–30V DC	50
AC Input	Red (L), Black (N)	100–240V AC	N/A

Use shielded twisted pair (STP) cable for runs exceeding 10 meters to minimize interference; the shield should terminate at a single chassis ground point–never loop it. For sinking (NPN) output configurations, wire the load between the sensor’s output (white) and positive supply; for sourcing (PNP), connect the load between output (white) and ground. Test continuity with a multimeter before powering–shorts between output and power leads will immediately destroy the internal switching transistor.

Selecting the Right Optical Sensor for Your Automation Needs

Begin by evaluating detection range requirements. Short-range sensors (under 500 mm) suit conveyor gaps or precision positioning, while long-range models (up to 20 m) handle large-scale logistics or parking barriers. Check datasheets for “operating distance” specs–manufacturers list both maximum range and recommended working distance, often at 70-80% of maximum to ensure reliability. Ambient light tolerance is critical; industrial models with modulated infrared (880-940 nm) resist interference from sunlight up to 100,000 lux.

• For reflective models: Target reflectivity affects performance. Matte surfaces (reflectivity <20%) require sensors with higher LED output and adjustable sensitivity. Polished metal or retroreflective tape (>90% reflectivity) works with standard models but may need background suppression for cluttered environments.

For through-beam types: Fiber-optic variants handle tiny parts (down to 0.1 mm) with response times <500 µs, while standard through-beam pairs suit objects >5 mm. Consider beam diameter–narrow beams (2-3 mm) detect small items but need precise alignment, while wide beams (10-20 mm) tolerate misalignment better.

Environmental conditions dictate housing choices. IP67-rated sensors withstand washdowns in food processing, while IP69K handles high-pressure steam cleaning. For extreme temperatures (-40°C to +70°C), avoid plastic housings; stainless steel or nickel-plated aluminum resists corrosion. In explosive zones, opt for ATEX/IECEx-certified models with intrinsically safe circuits instead of standard PNP/NPN outputs.

1. Match output type to your PLC: Sinking (NPN) inputs require sourcing sensors, while sourcing (PNP) needs sinking outputs. Some DC 3-wire sensors offer both, but AC 2-wire models simplify installation by eliminating polarity concerns.
2. Dynamic applications need fast response: Roller sorting systems require <1 ms response, while pallet detection tolerates 2-5 ms. For high-speed lines (>1 m/s), choose sensors with continuous carrier frequencies (20-30 kHz) to avoid missed signals.
3. Wired vs. wireless: Long cable runs (>100 m) introduce voltage drop; use sensors with separate power supply terminals or remote amplifiers. Wireless models (900 MHz or 2.4 GHz) suit mobile equipment but add 5-10 ms latency.

Calibration adjustments prevent false triggers. Teach-in functions let you set dynamic thresholds by sampling actual targets, while potentiometer dials allow manual adjustments. For color-sensitive tasks (e.g., label detection), RGB sensors with wavelength-specific filters (625 nm red, 530 nm green) outperform monochromatic models. Always test sensor pairs in situ–ambient noise levels can exceed datasheet assumptions by 30-40%.

Step-by-Step Guide to Connecting Power Supply to an Optical Sensor

Identify the sensor’s voltage requirements by checking its specifications–most industrial models operate on 12V–24V DC, while compact units may use 5V. Locate the power input terminals on the device: these are typically labeled +V (positive) and GND (ground) or − (negative). Use a multimeter to verify the output of your power adapter or supply unit matches the sensor’s rated voltage before proceeding, as mismatches can damage the component. For direct DC connections, strip 6–8mm of insulation from the wire ends and twist the strands tightly to prevent short circuits.

Secure and Test the Connection

Insert the prepared wires into the corresponding terminals and tighten the screws firmly–loose connections cause intermittent faults. For daisy-chained setups, ensure the total current draw does not exceed the power supply’s amperage rating (calculate by summing each sensor’s current requirements). Power on the circuit and observe the sensor’s LED indicator: a steady light confirms correct polarity, while flickering or no illumination signals reversed polarity or insufficient voltage. If errors persist, disconnect power and re-check all connections, referencing the manufacturer’s pinout diagram to rule out miswiring.

Output Configurations: NPN vs PNP Sensor Setups

Always verify the controller’s input requirements before selecting an output type. NPN (sinking) configurations connect the load to the positive supply, pulling the signal low when active–ideal for PLCs or microcontrollers expecting a grounded state. PNP (sourcing) setups supply voltage to the load, driving the signal high when triggered, compatible with devices needing a positive voltage input. Mismatching these can damage components or cause intermittent failures.

For NPN outputs, ensure the sensor’s common (0V) is tied to the controller’s ground. A typical 24V DC setup uses a pull-up resistor (1–10kΩ) between the signal line and +24V to prevent floating states. Without this, noise may falsely trigger inputs. PNP outputs require no pull-up but demand the controller’s input be referenced to the same ground as the sensor’s supply. Isolation modules (e.g., optocouplers) are recommended if grounds differ to avoid ground loops.

Key Voltage and Current Specifications

NPN sensors often support lower current loads (≤200mA) due to internal transistor limitations. Exceeding this risks thermal damage or erratic behavior. PNP units typically handle higher currents (≤400mA) but check datasheets–some industrial models exceed 500mA. Always derate current by 20% for continuous operation to extend sensor lifespan. For inductive loads (relays, solenoids), add flyback diodes (1N4007) for NPN or varistors for PNP to suppress voltage spikes.

Voltage drop across outputs varies by model. NPN sensors may leak ≤2V when saturated; ensure the controller’s minimum input voltage tolerance exceeds this. PNP sensors can drop ≤1.5V at full load–verify the controller’s logic high threshold (e.g., 18V for a 24V system) isn’t compromised. For sensors with adjustable sensitivity/contrast, recheck these values after calibration, as changes affect output characteristics.

Practical Deployment Scenarios

In high-speed applications (e.g., packaging lines), NPN outputs reduce latency for devices interpreting low signals (e.g., encoders). Use shielded twisted-pair cables (STP) for runs >5m to minimize EMI. For PNP setups in noisy environments (welding cells, motors), pair the sensor with a line driver or use differential signaling (e.g., RS-422) to reject common-mode noise. Always test with an oscilloscope during commissioning to confirm signal integrity at the expected switching frequency.

When integrating with analog systems (e.g., 4–20mA loops), NPN outputs often pair better with current sinks, while PNP suits sourcing transducers. For safety circuits (emergency stops, light curtains), PNP’s fail-safe nature (default high) is preferred–confirm the logic aligns with your safety relay’s requirements. For bidirectional current flow applications (e.g., battery monitoring), select sensors with complementary outputs (NPN/PNP) or use an H-bridge driver.

Troubleshooting begins with verifying power supplies–NPN sensors need stable ground; PNP requires clean positive voltage. Check for voltage sag under load, especially with long cable runs. Inspect for short circuits, which permanently damage outputs in PNP setups, or open circuits, which disable NPN sensors. Logical errors (e.g., inverted signals) often stem from mismatched sourcing/sinking–swap output types if the controller allows reconfiguration.

For modular systems, standardize on one output type to simplify spare parts inventory. Mixed setups require extra documentation (e.g., color-coding cables) to prevent miswiring. In retrofit projects, prioritize compatibility over cost–adapters (e.g., PNP-to-NPN converters) add complexity and potential failure points. Always bench-test sensors with a load resistor (e.g., 2.2kΩ) before field installation to validate output behavior under real-world conditions.
