Simplified Photoelectric Effect Diagram and Core Principle Explanation

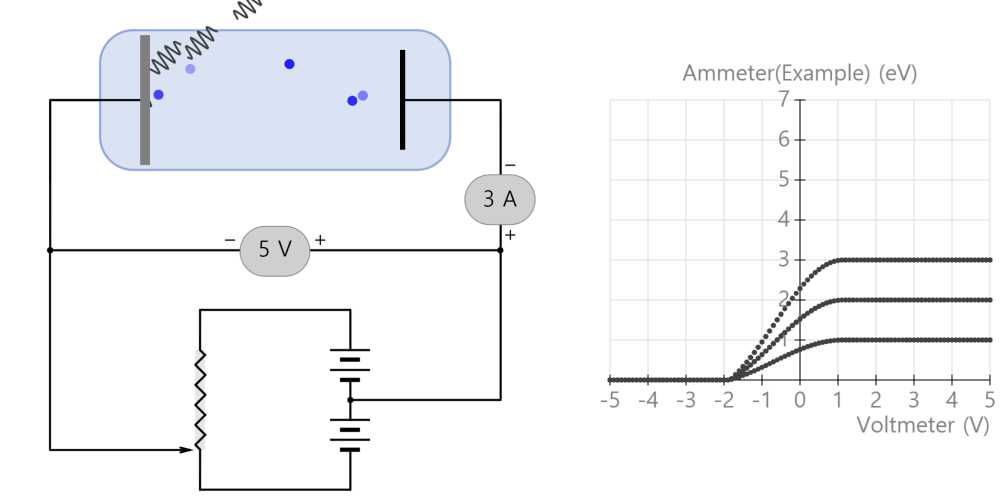

Begin with a clear representation of the vacuum chamber containing the cathode (typically a metal plate) and anode (a wire or grid). Ensure the cathode connects to a negative voltage source (battery or power supply) while the anode links to a positive terminal with a galvanometer or ammeter to measure current flow. Position the light source–preferably a monochromatic LED or laser (400–700 nm range for common metals)–at a fixed distance (10–20 cm) from the cathode, angled to maximize exposure.
Label all critical elements: incident light, emitted electrons, voltage potential, and current path. Use arrows to indicate electron movement from cathode to anode, ensuring the arrow thickness reflects relative current intensity under varying light frequencies. For metals like zinc (Zn) or cesium (Cs), note the threshold frequency (e.g., Zn ≈ 8.8 × 1014 Hz) and depict a cutoff where current ceases below this value.
Include a circuit legend with precise voltage values (e.g., –5 V to +5 V) and resistance (graph adjacent to the setup, plotting current vs. light frequency, with a sharp rise at the threshold frequency. For advanced diagrams, add a secondary light source (variable wavelength) to demonstrate the independence of electron energy from light intensity, contrasting with the linear current increase under higher intensity.
Verify dimensions: cathode-anode spacing (2–5 cm), light spot size (1–2 cm diameter), and wire gauge (22–24 AWG). Annotate material properties (work function, φ = hν0) and equations: KEmax = hν – φ, emphasizing how photon energy (hν) dictates emitted electron kinetic energy. Avoid common pitfalls–misaligned light paths, incorrect voltage polarity, or omitting ground connections–which distort results.
For reproducibility, calibrate the light source’s power output (μW/cm²) using a photodiode sensor and correlate it to measured current (nA to μA range). Highlight the stopping potential (V0 = KEmax/e) by reversing anode voltage until current drops to zero, marking this on the voltage axis of your graph. This dual approach–visual layout plus quantitative annotations–ensures clarity for experimental validation.
Visual Representation of Quantum Light-Matter Interaction

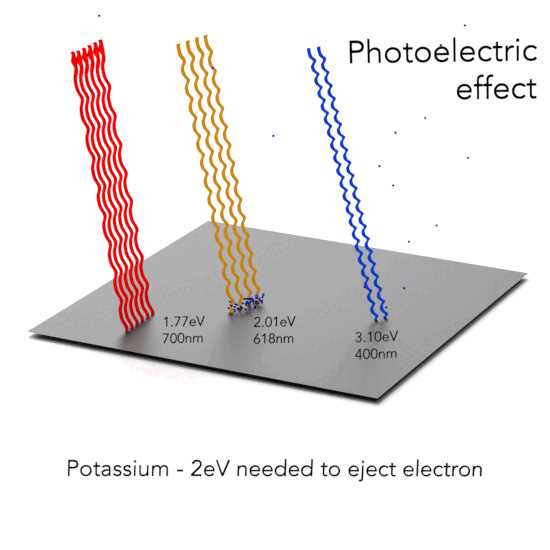

To accurately depict this quantum phenomenon, arrange key components in strict spatial hierarchy: an incident photon source (monochromatic light, 300–800 nm wavelength range) positioned above the target metal surface (Caesium, work function ~2.14 eV recommended), with a clean evacuated chamber (pressure ≤10-6 Pa) isolating the setup. Position the anode (+V) and cathode (-V) vertically, separated by ≤3 cm, ensuring parallel alignment to maintain uniform electric field strength (1–5 V/cm optimal). Include a spectral filter (bandwidth ≤10 nm) before the light reaches the surface to control photon energy precision–critical for validating Einstein’s equation: Ek = hν − φ, where Ek is emitted electron kinetic energy, hν photon energy, and φ material work function.
- Use a quartz window (transmission ≥90% for UV) to minimize photon absorption losses.
- Connect electrodes to a picoammeter (sensitivity ≤1 pA) via low-noise coaxial cables (shielded, ≤1 Ω/m resistance) to detect photocurrent thresholds with minimal interference.
- Label photon flux (I = 1015 photons/s·cm²) and electron emission angles (0°–60° incidence) directly on the diagram for immediate reference.
- Avoid graphical clutter: omit decorative elements; prioritize functional annotations (e.g., “Iph ∝ Intensity“) over artistic embellishments.
- For advanced setups, superimpose an energy band diagram alongside, correlating photon wavelength (λ, nm) to electron emission potential (Vstop); example: 400 nm light → 0.92 Vstop for Na (φ = 2.75 eV).
Core Elements of a Light-Emission Testing Apparatus
Use a monochromatic light source with adjustable wavelength–ideally a tunable laser or a mercury-vapor lamp with narrowband filters–to ensure precise photon energy control between 2.0 and 5.0 eV. Low-pressure mercury lamps, when paired with 254 nm or 436 nm interference filters, provide predictable energy outputs (±0.05 eV) critical for accurate threshold measurements. Avoid broadband sources like incandescent bulbs; their spectral spread skews energy-dependent readings.
Select a target material with a clean, oxide-free surface–alkali metals (e.g., potassium or cesium) or zinc-coated electrodes work best. Evacuate the chamber to pressures below 10−6 Torr to prevent surface contamination and gas-phase collisions that dampen electron emission. For cathodes, deposit metals via thermal evaporation at rates of 0.5–1.0 nm/s to achieve uniform films ≤50 nm thick, maximizing yield without introducing sub-surface scattering losses.
Position a positively biased anode (typically a nickel or gold mesh) ≤5 mm from the cathode to capture emitted electrons. Apply a variable potential (0–10 V) to create a uniform electric field, ensuring minimal distortion at the cathode surface. Measure current using a picoammeter with ≤10−14 A resolution; shield all cables with mu-metal to block stray electromagnetic interference. For energy analysis, insert a retarding-grid analyzer between anode and cathode, sweeping bias from 0 to 5 V in 0.1 V steps to map electron kinetic energy distributions.
Keep ambient light below 1 lux during operation–cover the setup with an opaque shroud or operate in a darkroom. Calibrate photon flux with a silicon photodiode (350–1100 nm range, ±2% accuracy) placed at the same optical path length as the target. For pulsed experiments, sync the light source with a 10 ns rise-time photodetector to gate electron collection within a 50 μs window, isolating prompt emission from delayed secondary effects.
Building a Light-Sensing Circuit: Practical Assembly
Select a cadmium sulfide (CdS) photoresistor with a dark resistance above 1MΩ and a light resistance below 10kΩ for optimal sensitivity. Position it perpendicular to the light source to maximize exposure while avoiding direct glare from ambient sources. Solder the legs to 22-gauge solid-core wires using rosin flux–oxidation impairs response.
Connect the photoresistor in series with a 10kΩ precision resistor to form a voltage divider. Power the circuit with a regulated 5V DC supply–fluctuations above ±0.1V distort readings. For stability, use a ceramic capacitor (0.1µF) across the power rails near the divider to filter noise from nearby motors or switching loads.
Attach the divider’s output to an operational amplifier (OA) like the LM358 configured as a non-inverting buffer with a gain of 1. This isolates the sensor from loading effects while preserving signal integrity. Ground the OA’s negative input directly; even minor offsets (2–5mV) skew measurements.
Wire the OA’s output to an analog input of a microcontroller set to 10-bit resolution. Configure the ADC reference to the internal 1.1V bandgap for consistent readings across temperature variations. Avoid external references unless calibrated–uncompensated drift exceeds 1%/°C.
Program the microcontroller to sample at 1kHz with a 50-sample rolling average. Discard outliers exceeding ±3σ to eliminate transient spikes from fluorescent lighting. Translate the averaged value to light intensity using a lookup table–nonlinearity worsens below 1lux if using linear scaling.
Mount the entire assembly on a copper-clad board with 1oz thickness for grounding. Keep high-impedance traces under 1cm in length; longer paths act as antennas for 50/60Hz interference. Shield the sensor area with a 3D-printed hood if operating in environments with variable ambient light.
Frequent Errors in Illustrating Light-Emission Principles
Misaligning the incident ray angle leads to distorted interpretations. Correct representations should show the beam striking the surface at a sharp, measurable tilt–typically 30°–45° from the perpendicular. Avoid drawing oblique lines without precise labeling; failing to specify angles confuses energy transfer calculations.
Ignoring Spectral Characteristics
Omitting wavelength details in visuals skews analysis. Label emitted electrons with their corresponding energy thresholds (e.g., sodium: 2.28 eV, cesium: 2.14 eV). Many overlook color-coding rays by frequency; green (530 nm) and blue (450 nm) beams yield different outcomes–clarify this distinction.
Neglecting work function symbols (Φ) or placing them inaccurately hides critical data. The symbol should sit adjacent to the metallic plate, not floating above it. Also, ensure electron trajectories aren’t depicted as straight lines; they curve under voltage influences–account for retarding potential in collector-electrode spacing.
Determining Minimum Excitation Frequency from Experimental Setup
To extract the cutoff frequency from your experimental layout, measure the stopping potential (V0) for multiple incident light wavelengths (λ). Plot V0 against 1/λ–the x-intercept of the linear regression gives the inverse of the threshold wavelength (λ0). Use the relation f0 = c/λ0, where c is the speed of light (2.998 × 108 m/s). Ensure λ is in meters for consistent units.
For rapid verification, reference the material’s work function (φ) data in the table below. Cross-check calculated f0 values with known φ-to-frequency conversions (f0 = φ/h), where h is Planck’s constant (6.626 × 10-34 J·s). Discrepancies beyond 5% suggest measurement errors in V0 or λ.
| Material | Work Function (eV) | Calculated Cutoff Frequency (Hz) |
|---|---|---|
| Sodium | 2.28 | 5.51 × 1014 |
| Zinc | 4.31 | 1.04 × 1015 |
| Copper | 4.7 | 1.13 × 1015 |
When adjusting light sources, prioritize monochromatic outputs. Laser diodes or filtered arc lamps reduce spectral broadening, which distorts V0 readings. For ultraviolet ranges, use quartz or MgF2 optics–glass absorbs wavelengths below 350 nm. Record ambient temperature: thermal expansion alters cathode-anode spacing, introducing errors in V0 up to 0.2% per °C.
