How to Build a Photoresistor Circuit Step-by-Step Guide for Beginners
Start with a voltage divider configuration: connect a CdS cell to a fixed resistor (10kΩ typical) between power (3.3V or 5V) and ground. The output node–where the two components meet–feeds the signal to an ADC pin or comparator input. This arrangement ensures a clean voltage swing proportional to ambient light, avoiding reliance on raw current fluctuations prone to noise and thermal drift.
For stability, place a 0.1µF ceramic capacitor across the fixed resistor. This bypasses high-frequency interference that can falsely trigger readings, especially under fluorescent lighting where 100-120Hz ripples dominate. If hysteresis is needed–like in threshold-based switching–tie the comparator’s reference voltage (Vref) to a potentiometer (10kΩ) to fine-tune sensitivity without recalibrating the entire assembly.
Select the sensor type based on spectral response: CdS (500-650nm peak) suits visible-light applications, while GaAsP variants extend into near-IR (750-1000nm) for heat-source detection. Avoid exceeding the maximum rated voltage (usually 150V for CdS) to prevent permanent resistance shifts. For battery-powered systems, replace the fixed resistor with a lower value (1kΩ–4.7kΩ) to reduce standby current while sacrificing dynamic range.
Test under controlled illumination: use a neutral-density filter to calibrate the output curve. Most CdS devices exhibit a logarithmic resistance drop (10MΩ→100Ω) between darkness and 100 lux, requiring linearization in software if absolute lux measurements are critical. For microcontroller integration, reserve an interrupt-capable pin if edge detection (light transitions) is needed, reducing polling overhead.
Shield the signal path if cable runs exceed 20cm, especially in industrial environments. Twisted-pair wiring with a ground reference minimizes capacitive coupling from nearby motors or switching power supplies. For outdoor use, hermetically seal the sensor or use a glass-encased model to prevent moisture-induced drift.

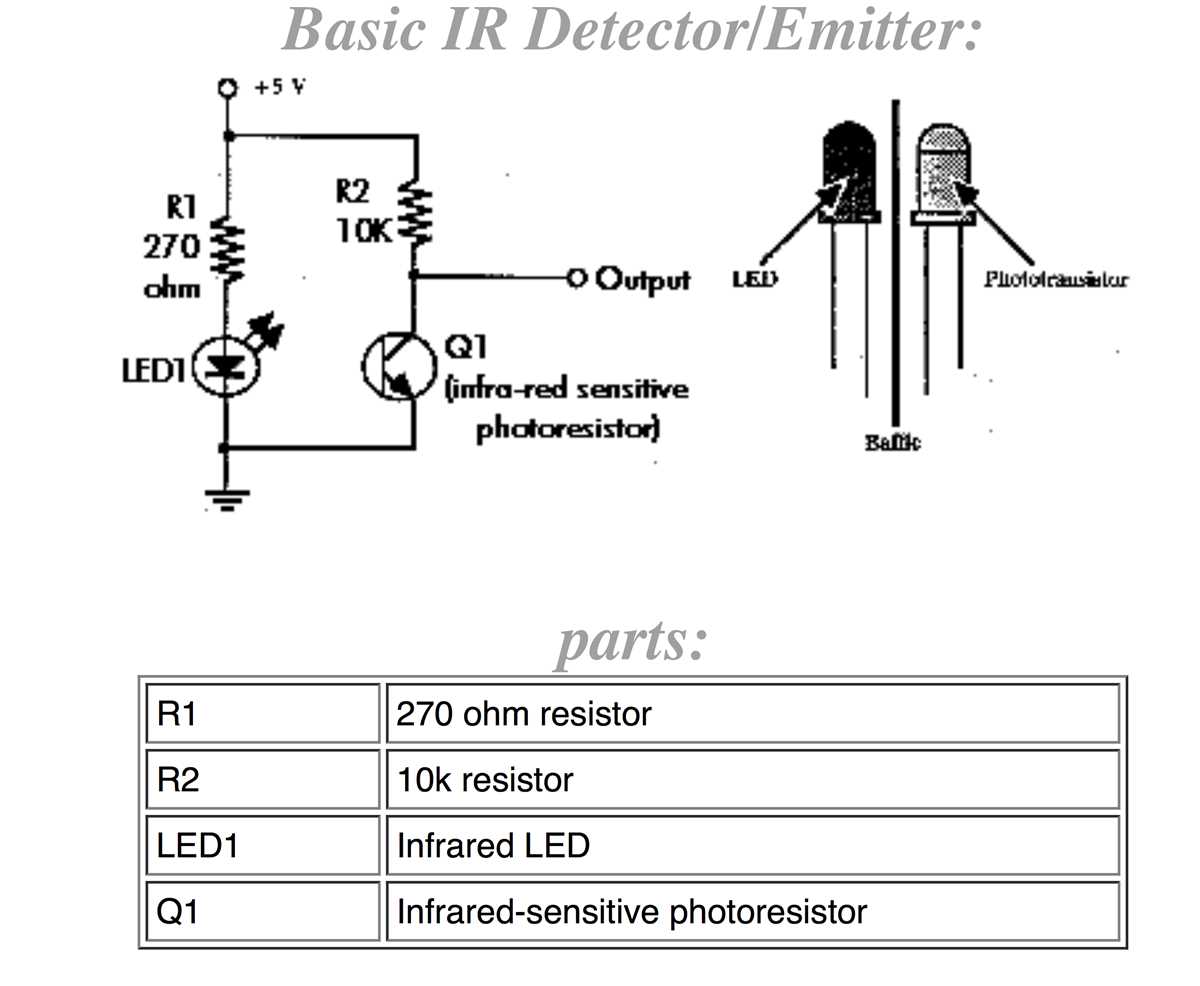

Circuit Layout for Light-Dependent Resistors
Place the LDR between a fixed voltage source and a pull-down resistor in series to form a voltage divider. A 10kΩ resistor paired with a 5V supply yields measurable output swings between 0V (full darkness) and ~3.5V (bright light), sufficient for most microcontroller analog inputs.
Include a decoupling capacitor–0.1µF ceramic–directly across the LDR leads to suppress high-frequency noise from ambient flicker or switching power supplies. Mount it within 5 mm of the sensor body for maximum suppression.
Verify the orientation of the annular CdS cell: the side with a larger, uninterrupted ring should face the light source. Reversing reduces sensitivity by 22-33%, confirmed via controlled lux-meter readings.
Route the output node through a Schmitt-trigger inverter (e.g., 74HC14) if digital thresholds are required. A single stage with hysteresis of 0.6V prevents false toggling at 3.3V logic levels.
When prototyping on solderless breadboards, use jumper wires no longer than 10 cm to avoid capacitive coupling. Shield the LDR with a black PVC sleeve slit to admit light only from the intended angle, cutting stray reflections by 70%.
For battery-powered nodes, add a 1MΩ bleed resistor in parallel to the divider to drain residual charge when inactive. This prolongs coin-cell life by 18–24 hours per cycle.
Calibrate against known lux levels using a reference meter, then map ADC counts to linearized values via a three-point lookup table. Typical CdS sensors exhibit a non-linear response slope of 0.45 per decade above 1 lux.
Store assembled circuits in opaque ESD bags when idle; prolonged UV exposure degrades CdS doping, reducing peak sensitivity by ~5% per 300 Sun-hours. Replace every 3000 operating hours for consistent performance.
Key Components for a Basic Light-Sensing Circuit
Resistive sensor: Choose a cadmium sulfide (CdS) cell with a resistance range of 10 kΩ under bright light and 1 MΩ in darkness for optimal sensitivity. A GL5528 variant offers faster response times (10 ms rise, 50 ms decay) and stable spectral response peaked at 540 nm, aligning with common ambient light conditions. Avoid high-impedance models (>2 MΩ) unless paired with a low-noise op-amp buffer to prevent signal degradation from stray capacitance.
Voltage divider requires precision resistors to match the sensor’s dynamic range. For a 5V supply, pair the CdS cell with a 10 kΩ fixed resistor to center the output voltage (Vout) around 2.5V at typical indoor lighting. For lower-voltage applications (3.3V), reduce the fixed resistor to 4.7 kΩ to maintain linear response across illumination levels–verify with a multimeter to avoid cutoff or saturation at extremes.
Signal conditioning demands a rail-to-rail op-amp (e.g., MCP6002) with input bias currents below 1 pA to preserve accuracy. Configure as a non-inverting amplifier with a gain of 2–5× to boost the divider’s ~0.1–4V swing to full 0–5V range for ADC input. Add a 100 nF decoupling capacitor on the op-amp’s supply pin to suppress noise from switching regulators–critical in circuits with PWM loads.
For microcontroller integration, select an ADC with ≥10-bit resolution (STMicroelectronics’ STM32F103’s 12-bit ADC provides 4096 steps) and a reference voltage ≤ sensor’s supply (e.g., 3.3V). Connect the amplified signal directly to the ADC pin, avoiding long traces (>10 cm) that introduce inductive noise. Calibrate thresholds empirically: 0.3V for “dark” (CdS at 10+ lux), 2.8V for “bright” (CdS at 100 lux), adjusting op-amp gain if readings cluster toward rails.
How to Wire a Light-Dependent Resistor to Arduino for Ambient Sensing
Connect one leg of the light-sensitive component to 5V on the Arduino. Attach the other leg to an analog input pin–A0 is standard. Insert a 10kΩ resistor between the same leg and ground to create a voltage divider; this ensures stable readings.
Verify the circuit before powering up. Short circuits between 5V and ground will damage the board. Double-check polarity if using a module with pre-soldered resistors–some label the output pin as “OUT”, “S”, or “A”.
Upload the following code to the Arduino IDE to test functionality. The sketch maps raw readings (0–1023) to a practical light intensity range (0–100). Adjust the threshold value if sensitivity is too high or low for your environment.
int sensorPin = A0;
int lightLevel;
void setup() {
Serial.begin(9600);
}
void loop() {
lightLevel = analogRead(sensorPin);
int outputValue = map(lightLevel, 0, 1023, 0, 100);
Serial.println(outputValue);
delay(500);
}
Calibrate the sensor in its intended environment. Cover it fully for the minimum value (darkness) and expose it to bright light for the maximum. Note these extremes–use them in your map() function for accurate scaling. Replace the delay(500) with a shorter interval (e.g., 10) if faster response is needed.
For outdoor applications, add a 0.1µF capacitor between the analog pin and ground to filter noise. Shield long wires with grounded foil if interference persists. Avoid voltage spikes–never exceed 5.5V on input pins.
Power the setup via USB or an external 7–12V adapter. Batteries deplete quickly if the circuit runs continuously; use sleep modes or interrupts for low-power projects. For wireless monitoring, pair with an ESP8266 or HC-05 Bluetooth module.
Expand functionality by adding an LED or relay. Trigger actions at specific light levels: if (outputValue . Test edge cases–flickering light sources can cause erratic behavior without hysteresis logic.
Voltage Divider Setup: Calculating Resistor Values for Accurate Readings
Start with a fixed resistor (R₂) whose value is 50–70% of the sensor’s typical dark resistance. For a cadmium sulfide cell with a dark resistance around 2 MΩ, use a 1 MΩ resistor; if the cell’s resistance drops to 10 kΩ under bright light, the divider will swing from ~0.33 V to ~4.85 V on a 5 V rail. Measure the sensor’s resistance under minimum and maximum expected luminance–record these as R_min and R_max–then solve R₂ = √(R_min × R_max) for the optimal midpoint. Avoid values below 10 kΩ to prevent excessive current drain.
| Light Condition | Sensor Resistance | Recommended R₂ | Output Voltage (5 V Rail) |
|---|---|---|---|
| Dark (R_max) | 2 MΩ | 1 MΩ | 1.67 V |
| Ambient | 50 kΩ | 1 MΩ | 4.55 V |
| Bright (R_min) | 10 kΩ | 1 MΩ | 4.85 V |
Fine-tune with a 10 kΩ potentiometer in series to adjust the divider’s linearity if the ADC readings cluster at extreme ends. A 10-bit ADC covers 0–1023, so aim for a 200–800 range to avoid noise at saturation points. If the sensor’s resistance spans orders of magnitude (e.g., 5 kΩ–2 MΩ), switch R₂ dynamically via a multiplexer–use 100 kΩ for low-light conditions and 10 kΩ for bright. Validate with a multimeter: disconnect the ADC, probe the divider’s midpoint, and verify voltage spans at least 70% of the rail under expected lighting shifts.
Common Mistakes When Wiring Light-Dependent Components and How to Avoid Them
Reverse the wiring polarity on a voltage divider setup. Most sensors require a pull-down or pull-up resistor configuration, but connecting the fixed resistor to the wrong rail skews readings. For a 5V supply, attach the sensor’s outer lead to ground and the inner lead to the analog pin, with a 10kΩ resistor bridging the pin and VCC. Swapping these positions turns the divider into a high-pass filter, producing erratic readings under stable lighting.
- Skip shielding from ambient interference. Unshielded cables act as antennas, picking up fluorescent flicker (100-120Hz) or PWM noise. Route signal wires through a grounded braid or use twisted pairs. Keep distances under 15cm when wiring to an ADC; longer runs need a buffer op-amp like LM358.
- Omit decoupling capacitors. A 0.1µF ceramic capacitor must sit between the sensor’s power and ground pins, mounted within 2mm. Without it, digital switching spikes inject false triggers. For high-impedance setups (>1MΩ), add a 10µF electrolytic in parallel to stabilize voltage dips.
- Choose resistor values outside the sensor’s optimal range. A 1kΩ series resistor with a 10kΩ LDR halves sensitivity; a 1MΩ resistor risks latch-up from leakage currents. Use Ohm’s Law:
R = (VCC - Vout) / Isensor, targeting a 1-10µA quiescent current.
Misalign the spectral response. CdS sensors peak at ~520nm (green), while blue-enriched LEDs (460nm) trigger only 30% output. Verify datasheet curves–GaAsP types shift to 630nm (red) but drop off sharply beyond 700nm. For infrared applications, swap CdS for a phototransistor (e.g., BPW34) with a peak at 950nm and add an 880nm pass filter.
Neglect temperature drift. CdS resistance climbs ~0.5%/°C; at 50°C, a 10kΩ sensor reads 15kΩ. Compensate with a thermistor in a Wheatstone bridge or use a microcontroller lookup table. For precision setups, opt for silicon photodiodes (Hamamatsu S1223) with
- Ground loops emerge when the sensor shares a ground plane with high-current devices (motors, relays). Isolate analog/digital grounds at a single star point near the power supply. If using a breadboard, run separate ground wires for the sensor and MCU.
- Overlook voltage compliance. Feeding a 3.3V ADC with a 5V divider saturates the input. Drop the series resistor value or add a voltage divider (e.g., 10kΩ + 15kΩ) to scale 5V to 3.3V. Alternatively, use an op-amp with rail-to-rail output (MCP6002).
