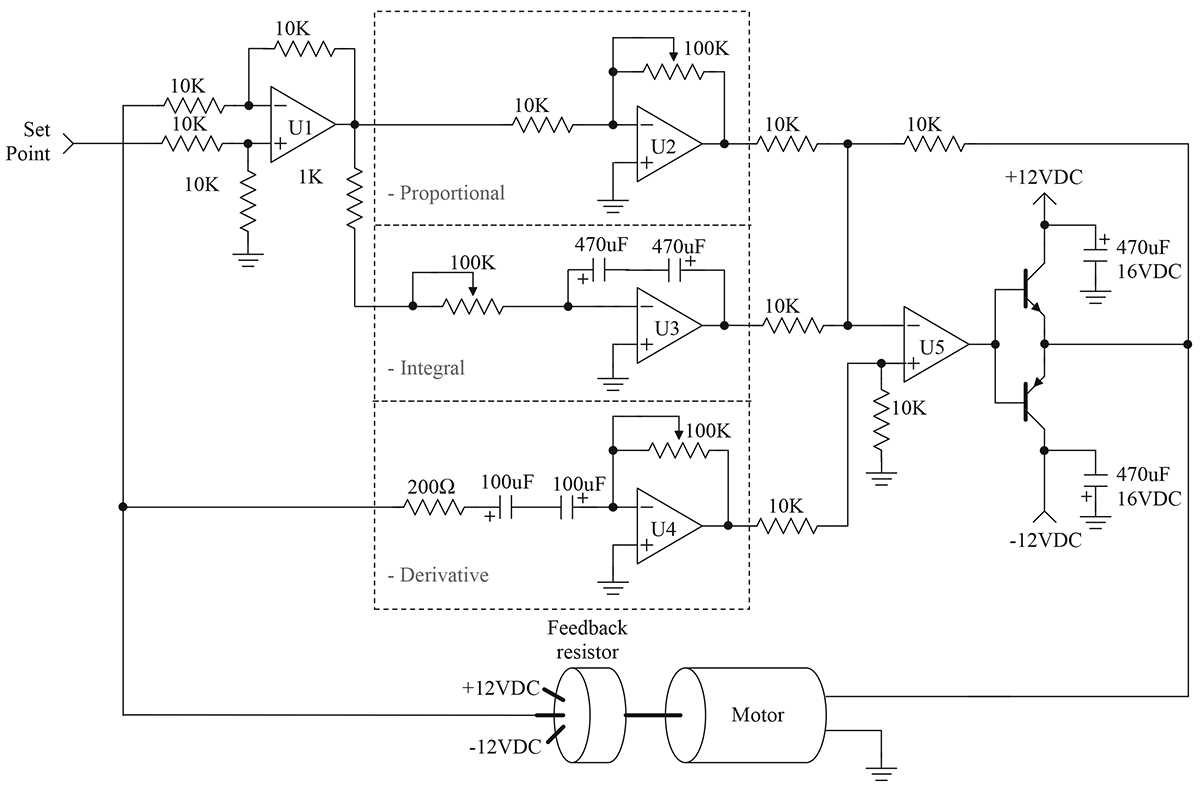

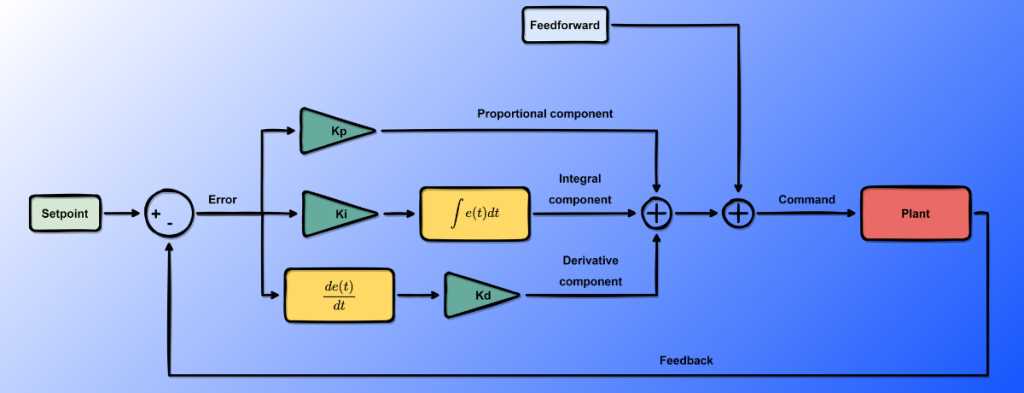

Understanding PID Controller Circuit Design with Detailed Schematic Breakdown
Begin with a proportional stage using an operational amplifier like the LM358 or TL072. Configure the non-inverting input to receive the process variable–temperature, motor speed, or position–via a sensor outputting 0–5V. The inverting input connects to a reference voltage, set by a potentiometer spanning the full signal range. Output scaling depends on resistor ratios (Rf/Rin); for a 0–10V output with 0–5V input, use 10kΩ for Rin and 20kΩ for Rf. Ensure the op-amp’s supply matches your system: single-ended 12V or dual ±12V.
Integrate the reset function by placing a 1µF polypropylene capacitor between the op-amp output and its inverting input. Select a capacitor with low leakage (≤0.1%/1000h) to prevent drift. Add a 10kΩ resistor in series with the capacitor to limit charging current and avoid windup during saturation. For processes requiring anti-windup, include a schottky diode (e.g., 1N5817) parallel to the integrator capacitor, oriented to clamp negative spikes but permit normal operation.
Derive the rate response using a high-pass filter on the error signal. Route the process variable through a 0.1µF ceramic capacitor followed by a 10kΩ resistor to ground. This creates a time constant (τ = RC) around 1ms–adjust R to 47kΩ for slower systems (τ = 4.7ms). Feed the filtered signal into a second op-amp stage wired as a differentiator: capacitor to inverting input, resistor to output. For noisy environments, add a 220pF capacitor across the differentiator’s feedback resistor to attenuate frequencies above 1kHz.
Sum the three signals with a summing amplifier. Use equal resistors (e.g., 10kΩ) for each branch to maintain unity gain unless specific scaling is needed. Power the summing stage from the same supply rail as the sensors–isolate analog ground from digital ground at a single point near the power regulator. For systems exceeding 2A actuator current, buffer the final output with a TIP120 Darlington transistor or IRF540 MOSFET, driven directly by the summing stage. Calibrate by adjusting the reference potentiometer until the steady-state error reaches zero under nominal load.
Building a Closed-Loop Regulator: Step-by-Step Circuit Design
Start with a differential amplifier as the error detector–use an LM358 op-amp with a gain of 10k/1k (Rf/Rin). Connect the setpoint voltage to the non-inverting input and the feedback signal to the inverting input. Ensure the feedback sensor (e.g., 10k thermistor for temperature, 0.1Ω shunt for current) has a linear response within the operating range. Add a 1nF capacitor between the op-amp’s output and inverting input to reduce high-frequency noise, but keep it below 100nF to avoid sluggish reaction.
For the integral term, cascade a second op-amp configured as an integrator. Choose a 1μF polyester film capacitor and a 1MΩ resistor to achieve a 1-second time constant. Place a 10kΩ resistor in parallel with the capacitor to prevent wind-up at startup. The output of this stage feeds into a summing amplifier alongside the proportional and derivative signals. Use precision resistors (0.1% tolerance) for all summing nodes to maintain accuracy.
Derivative action requires a high-pass filter–use a 10kΩ resistor and a 100nF capacitor on the error signal before feeding it into a third op-amp. Add a 10kΩ bleed resistor in parallel with the capacitor to prevent output saturation during abrupt setpoint changes. The cutoff frequency should be 5-10 times the system’s bandwidth; for a 1Hz mechanical system, aim for 5-10Hz.
- Ground all unused op-amp sections to minimize interference.
- Use a single-point ground star configuration for the analog section to reduce noise coupling.
- Power the circuit from a split ±5V supply; bypass each rail with 0.1μF ceramic capacitors placed within 2cm of each op-amp.
- Add a MOSFET or Darlington pair at the output stage if driving inductive loads; include a flyback diode (1N4007) and a 1kΩ gate resistor.
Test the circuit with a triangular waveform generator (1Hz, 1Vpp) as the setpoint. Monitor the response with an oscilloscope–adjust the proportional gain first, then fine-tune integral and derivative terms in 20% increments. For a DC motor speed regulator, typical values are 2.5 for proportional gain, 0.5 for integral gain, and 0.2 for derivative gain (normalized to the summing resistors). Final adjustments should target a 10-90% rise time of 2-3 seconds and less than 5% overshoot.

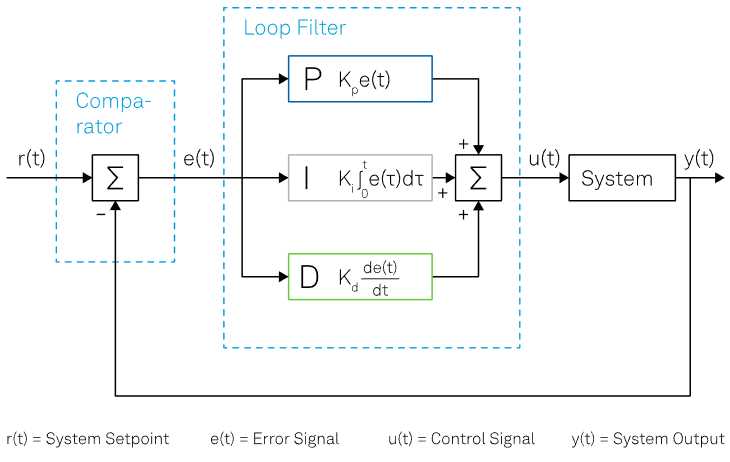

Key Elements and Notation in a Proportional-Integral-Derivative Regulator Layout
Begin by identifying the error signal path–the core of any closed-loop compensation system. Represent this with a subtractor circuit (commonly a differential amplifier) where the setpoint (reference voltage or desired state) and feedback (process variable) converge. Use a standard op-amp symbol with two input lines: non-inverting (+) for the setpoint and inverting (-) for the feedback. Label these inputs clearly to avoid confusion during troubleshooting or simulation. Add a ground reference if the setpoint is a fixed voltage, ensuring proper scaling for real-world signals (e.g., 0-10V or 4-20mA ranges).
Integrate the integrator stage using an op-amp with a capacitor in the feedback loop. Select component values based on the system’s time constants: a 1µF capacitor paired with a 100kΩ resistor yields a 0.1-second time constant, suitable for slow processes like temperature control. Place a resistor in series with the capacitor to limit integral windup, especially in systems with saturation limits. Add a reset switch (e.g., a push-button or transistor) across the capacitor to discharge it rapidly during startup or fault conditions, preventing overshoot.
For the derivative term, opt for a high-pass filter configuration using an op-amp, capacitor, and resistor. A 10nF capacitor with a 10kΩ resistor provides a 0.1ms response time, ideal for damping rapid disturbances like flow fluctuations. Avoid using the derivative directly on noisy signals–always pre-filter the input with a low-pass stage to prevent erratic output spikes. In analog designs, derivate action can also be approximated by placing a resistor in parallel with the feedback capacitor of the proportional stage, though this sacrifices tunability.
Combine the three terms–proportional, integral, and derivative–using a summing amplifier. Use individual op-amps for each term if precise independent tuning is required, or a single multi-input summing amplifier for compact designs. Ensure proper gain scaling: proportional gain typically dominates (e.g., 1-10x), while integral and derivative gains are fractions (0.1-1x). Include trimmer potentiometers (e.g., 10kΩ) for fine adjustments, allowing on-the-fly calibration without reworking component values. Label each gain stage distinctly (e.g., Kp, Ki, Kd) to streamline troubleshooting.
Finalize the circuit with output conditioning: an emitter-follower (unity-gain buffer) for low impedance drives or a power amplifier if the load exceeds the op-amp’s current limits (typically 20-50mA). For industrial actuators (e.g., valves or heaters), include an H-bridge or transistor driver capable of handling the required voltage/current (e.g., 24V at 2A). Add flyback diodes for inductive loads (e.g., relays or motors) to protect against voltage spikes. Always test with a dummy load before deployment–observe step responses on an oscilloscope to verify stability and absence of oscillations.

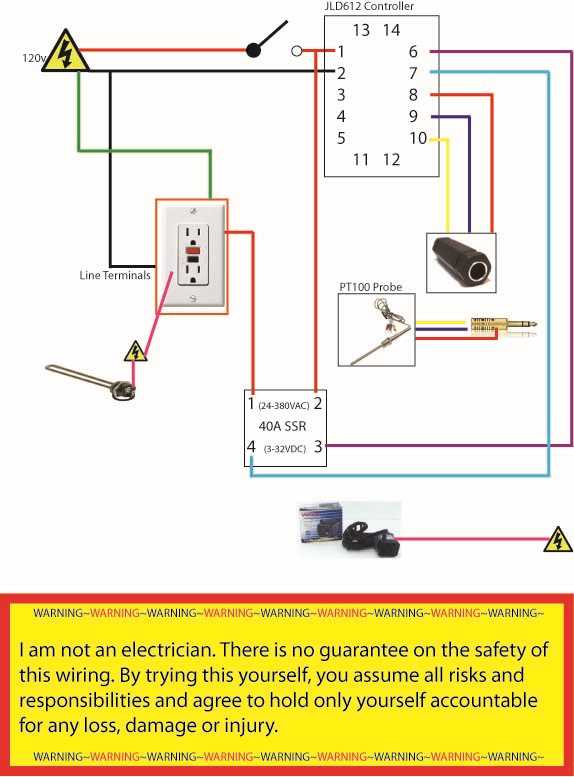

Step-by-Step Wiring of a Proportional-Integral-Derivative Regulator in Analog Circuits
Begin by securing a precision operational amplifier rated for at least ±12V supply, such as the TL072 or OP27, to handle signal conditioning without distortion. Verify its common-mode rejection ratio exceeds 80dB to minimize noise interference during feedback loops.
Connect the reference input to a stable voltage source between 0V and the supply rail, using a voltage divider if fine-tuning is required. Ensure the divider resistors (e.g., 10kΩ and 22kΩ) have a tolerance of 1% or better to avoid drift in the setpoint.
Signal Path Assembly
- Sensor input: Wire the feedback signal directly to the inverting input of the first op-amp, using shielded twisted-pair cable for lengths over 10cm to reject electromagnetic interference. A 100nF ceramic capacitor across the sensor output filters high-frequency noise.
- Proportional gain: Place a resistor (e.g., 47kΩ) in the feedback path of the first stage to set the proportional action. Adjust this value later by monitoring overshoot in transient response–higher resistance increases sensitivity but risks instability.
- Integral stage: Link the first op-amp’s output to a second amplifier through a 1MΩ resistor, with a 1µF film capacitor bridging the output to the inverting input. This configuration enforces a 1-second time constant for error accumulation; shorter intervals require smaller resistors/capacitors.
Avoid capacitor types like electrolytic in the integral path–their leakage current disrupts steady-state accuracy. Use polypropylene or polyester film capacitors instead, preferably with a 5% tolerance.
Derivative Term Integration
For systems requiring predictive damping, insert a third op-amp between the first and second stages. Feed the feedback signal through a 10kΩ resistor into this amplifier’s non-inverting input, then connect a 100nF capacitor from its output to ground. The output should then pass through a 22kΩ resistor into the summing junction of the integral stage. This introduces phase lead, counteracting lag in mechanical or thermal loads.
Test the circuit by applying a 1Hz square wave to the reference input while observing the regulator’s output on an oscilloscope. Ideal response shows minimal overshoot (
Power supply decoupling is non-negotiable: mount 10µF tantalum capacitors directly at each op-amp’s power pins, plus 100nF ceramics in parallel, to suppress transient voltages. Isolate analog and digital grounds at the power entry point to prevent ground loops.
Document each resistor and capacitor’s purpose on the board itself–e.g., label “Kp=47k” or “Ti=1M/1µF”–to simplify troubleshooting. For critical applications, etch calibration trimmers (e.g., 25kΩ multiturn potentiometers) in place of fixed resistors to allow post-installation tuning.
