Complete Pioneer AVH 4200NEX Wiring Guide and Color Code Diagram
For precise installation, use the harness pinout for model 4200 matching your vehicle’s factory connectors. Identify the power, ground, speaker, and auxiliary wires by color codes first–this avoids signal interference. Connect the yellow (B+) wire to a 12V constant source with a 15A fuse, and the red (ACC) wire to an ignition-switched circuit. Ground the black wire directly to the chassis near the stereo, ensuring no paint or rust blocks conductivity.
Speaker outputs follow this pairing: gray (front left +), gray/black (front left –), white (front right +), and white/black (front right –). For rear outputs, use green (rear left +), green/black (rear left –), purple (rear right +), and purple/black (rear right –). Verify each connection with a multimeter–correct polarity prevents speaker damage and distorted audio.
For the parking brake bypass, splice the pink wire to a dash light circuit or use a switch. The blue/white (power antenna) activates an amp–connect it only if your system includes an amplifier; otherwise, cap it with electrical tape. SDARS modules (SiriusXM) require the orange/white data line–consult your satellite tuner’s manual for compatibility.
Trim panels must secure wires to prevent rattling. Bundle excess lengths with zip ties or split loom tubing, avoiding sharp edges that could fray insulation. Test all functions–power, volume, balance, fader, USB, Bluetooth–before finalizing the dashboard assembly. For steering wheel controls, use a compatible adapter (ASWC-1 or Metra Axxess) wired to the light blue data input.
Connecting the Multi-Media Receiver: Step-by-Step Wiring Instructions
Start by matching the colored cables from the head unit’s harness to your vehicle’s wiring adapter. The yellow 12V constant power wire (B+) must connect to the battery terminal or a fused circuit with uninterrupted voltage–use a 15A fuse within 18 inches of the battery to prevent shorts. The red ignition-switched wire (ACC) should link to a source that energizes only when the key is in the “ON” or “ACC” position, ensuring the device powers down with the engine.
Ground the black wire (GND) to a bare metal chassis point near the installation site–scratch off paint or corrosion to expose clean metal and secure with a ring terminal. For the speaker outputs, pair the white ( front-left +), white/black (front-left –), gray (front-right +), and gray/black (front-right –) wires to the corresponding door or dash speakers. Verify impedance matches (4 ohms typical) before finalizing connections to avoid distortion or overheating.
Connect the purple (rear-right +), purple/black (rear-right –), green (rear-left +), and green/black (rear-left –) wires to the rear speakers or amplifier inputs, maintaining polarity consistency across all channels. If integrating a factory amplifier, identify the data bus wires (e.g., CAN/LIN) using a multimeter–these vary by vehicle make and require a bypass module for seamless communication.
For auxiliary components, strip 8mm of insulation from the blue/white remote turn-on lead and attach it to the amplifier’s trigger wire to enable simultaneous power-up. Test all connections with a voltage tester before reassembling dash panels–observe startup sequence and audio clarity, adjusting EQ settings if needed to compensate for vehicle acoustics.
Locating the Correct Harness Connections for Your Multimedia Unit
Start by matching the color-coded pins on the rear panel with the vehicle’s harness adapter. The 16-pin ISO connector splits into two rows: A (upper) for power and ignition, B (lower) for speaker outputs. Pin A4 (yellow) delivers constant 12V, A7 (red) handles accessory power, and A5 (black) grounds the system. Verify connections with a multimeter–voltage should read 12V on A4 even when the engine is off, while A7 should only activate with the key in the “ACC” position.
Critical Pin Assignments
| Pin | Function | Wire Color (Standard) | Verification Method |
|---|---|---|---|
| A4 | Battery (+12V) | Yellow | Multimeter: 12V constant |
| A7 | Accessory | Red | Voltage present only in ACC/ON |
| B1/B2 | Front Left (+/-) | White/White-Black | Tone test: Audio output |
| B5/B6 | Rear Left (+/-) | Gray/Gray-Black | Tone test: Audio output |

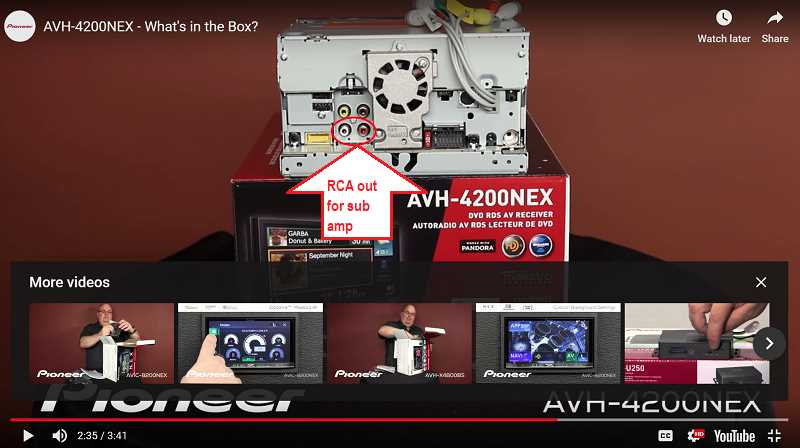

For aftermarket amplifiers, locate the 4-pin RCA harness–left/right channels use separate connectors, typically red (right) and white (left). The blue/white remote turn-on wire (pin A6) triggers external devices by sending 12V when the unit powers on. If the system lacks sound, check B-pins for reversed polarity; swap +/- if speakers produce faint or distorted audio. Always secure connections with solder or crimp connectors–tape alone degrades within months.
Step-by-Step Power and Ground Wire Installation for Reliable Performance
Select an 8-gauge or thicker power lead for the head unit’s main connection to the vehicle’s battery terminal. Secure the ring terminal with a dedicated bolt directly onto the battery’s positive post–avoid tapping into existing fuse blocks or accessory circuits to prevent voltage drop. Apply dielectric grease to the terminal before tightening to 12–15 lb-ft (16–20 Nm) to ensure corrosion resistance and sustained conductivity.
Ground Wire Placement and Preparation
Identify a bare metal surface within 18 inches (45 cm) of the head unit’s mounting location–strip away paint, undercoating, or rust down to the chassis steel. Use a star washer between the ground lug and chassis to create a gas-tight connection; this prevents oxidation under vibration. Secure the 8-gauge or thicker ground lead with a self-tapping bolt rated at minimum M6 (¼”) and torque to 10–12 lb-ft (14–16 Nm). Test continuity with a multimeter–resistance should read less than 0.1 ohms.
Route the power lead through a grommeted firewall pass-through, avoiding sharp edges, moving components, or heat sources like exhaust manifolds. Maintain a 3-inch (7.5 cm) separation from signal cables (RCA, USB, or speaker wires) to prevent electromagnetic interference. Secure the wiring every 12 inches (30 cm) with nylon zip ties or loom tubing–do not use electrical tape, as it degrades under heat and vibration.
Install an ANL or mini fuse holder no more than 7 inches (18 cm) from the battery terminal. Match the fuse amperage to the gauge: 40A for 8-gauge, 60A for 4-gauge. Verify voltage at the head unit’s power input with the engine off (12.6V) and running (13.8–14.4V)–readings outside this range indicate poor connections or insufficient alternator output. If voltage drops below 12V during operation, recheck all terminals for corrosion or loose fasteners.
For vehicles with start-stop systems, add a 100A isolation relay between the battery and power lead. Trigger the relay’s coil from an ignition-switched source to prevent parasitic drain when the engine shuts off. Use 14-gauge wire for the relay control circuit and terminate it at a fused (10A) accessory output to avoid overloading the vehicle’s electrical system.
Rear Camera and Parking Brake Integration: Connecting Safety Systems for Head Units
Connect the reverse camera’s video feed to the designated yellow RCA input on the multimedia system’s harness. Use a shielded coaxial cable (RG-59 or better) with a characteristic impedance of 75 ohms to prevent signal degradation–twist excess length into a 2-3 cm coil to reduce interference. For parking brake detection, splice the unit’s violet/white wire into the brake pedal switch circuit; ensure a 12V signal is present only when the pedal is depressed and the transmission is in park. Test continuity with a multimeter before finalizing connections–the incorrect wiring will disable video playback restrictions or reverse camera activation.
- Confirm the camera’s ground wire (typically black) is bolted to the chassis using a star washer for corrosion resistance.
- Route the brake signal wire away from high-current cables (alternator, ignition) to avoid induced voltages.
- Adjust the camera’s dynamic parking lines via the display settings: calibrate distance markers using a measured 1m reference object on level pavement.
- If the system requires a manual brake signal override for testing, bridge violet/white to a 12V source temporarily–but remove this jumper before road use.
Diagnosing Connection Problems in Multimedia Head Unit Setups
Start by verifying the ground connection before proceeding. A weak or disconnected ground often mimics power supply failures, causing intermittent operation or complete shutdowns. Use a multimeter to measure resistance between the ground terminal and the vehicle chassis–values above 0.2 ohms indicate corrosion or poor contact. Sand the chassis contact point to bare metal and secure the ground cable with a stainless-steel bolt to prevent future oxidation.
Check the fuse integrity in both the main harness and accessory lines. Many installs overlook the secondary fuse near the battery, leading to unexplained power drops. Remove the fuse and inspect the filament; if broken, replace it with the exact amperage specified in the installation manual–typically 15A for primary circuits and 10A for subwoofers. Avoid using higher-rated fuses, as they risk damaging the system’s internal circuitry.
Inspect RCA cables for signal integrity. Poorly shielded or damaged RCA lines introduce noise, distortion, or complete signal loss. Unplug each RCA connector and examine the contacts for bent pins or dirt. Test continuity with an audio cable tester or bypass the head unit’s amplifier by connecting RCAs directly to external speakers. If static persists, reroute cables away from power wires, maintaining a minimum 10cm separation to prevent electromagnetic interference.
Verify the parking brake bypass if video playback fails. The unit’s security feature disables video unless the parking brake is engaged. Disconnect the parking brake wire (typically pink) from the harness and ground it temporarily for testing. If video resumes, ensure the parking brake switch is functional or consider installing a bypass module–though check local regulations, as disabling safety locks may violate regulations in some regions.
Test the reverse signal wire (usually purple) if the backup camera fails to activate. Connect a 12V test light between the reverse wire and ground; the light should illuminate when the vehicle is shifted into reverse. If not, trace the wire to the transmission switch or the fuse box, checking for breaks or incorrect connections. Some vehicles require tapping into the reverse light circuit rather than the transmission switch.
Examine USB ports for power delivery issues. If devices charge slowly or fail to sync, measure voltage at the port’s terminals; it should read 5V within a 0.2V tolerance. Clean the USB port’s contacts with isopropyl alcohol and a soft brush to remove oxidation. For persistent problems, check the USB cable’s internal wires with a multimeter–frayed or broken conductors are a common culprit, requiring cable replacement.
Reset the system if all connections check out but display or touchscreen anomalies persist. Disconnect the battery for 30 minutes to clear temporary glitches. Upon reconnection, recalibrate the touchscreen via the unit’s service menu. If touch sensitivity remains erratic, inspect the control board for loose ribbon cables or damaged solder joints–addressing these typically requires professional servicing to avoid voiding warranties.
