Complete Pioneer Car Stereo Wiring Color Codes and Connection Guide

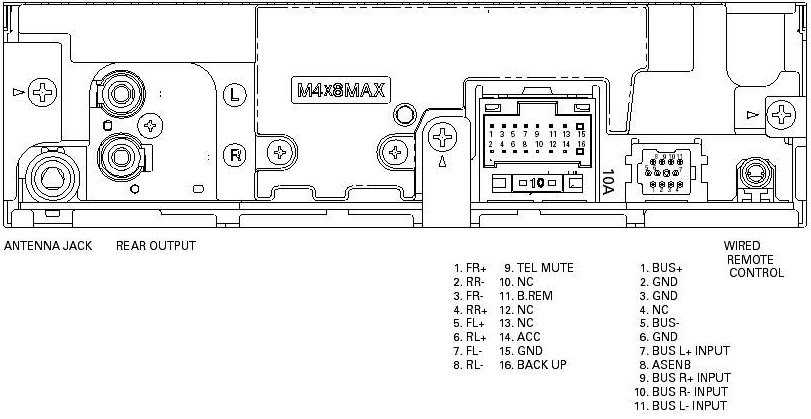

Identify the color-coded leads in the vehicle’s factory connector before attaching any aftermarket components. The standard ISO layout for most models includes yellow (constant 12V+), red (ignition-switched 12V+), black (ground), blue-white (remote turn-on), gray (front right +), gray-black (front right –), white (front left +), white-black (front left –), purple (rear right +), purple-black (rear right –), green (rear left +) and green-black (rear left –). Cross-check these with the legend supplied in your head unit’s manual to prevent reversed polarity.

Use a multi-meter on DC voltage setting to confirm each circuit behaves as expected. Probe the yellow wire while the ignition is off–it should show 12–14 volts; the red wire should drop to near zero. If readings deviate, trace back to the fuse block or ignition relay. Skipping this step often leads to dead headlights, premature battery drain, or blown fuses within minutes of power application.

Strip no more than 6 mm of insulation from each lead, crimp insulated butt connectors rated for at least 18 AWG, then apply heat-shrink tubing over the joint. Avoid twisting wires or soldering inside the dash–vibration and heat cycles can fracture joints. Secure the harness away from moving pedals and sharp edges with nylon ties every 10 cm.

Affix the head unit’s ground wire directly to bare metal chassis ground; paint or powder coating must be scraped away to ensure continuity below 0.2 ohms. Ground loops manifest as persistent hissing or engine whine through the speakers, particularly when the tachometer signal fluctuates.

Connect the blue-white remote antenna lead to the amplifier’s remote input, not to the battery. Triggering an external device off battery voltage overloads the circuit and risks damaging the internal fuse link. Test the setup by inserting the key, turning to ACC, and verifying the device powers on promptly without flickering LEDs or intermittent dropouts.

Essential Connections for Aftermarket Audio Systems

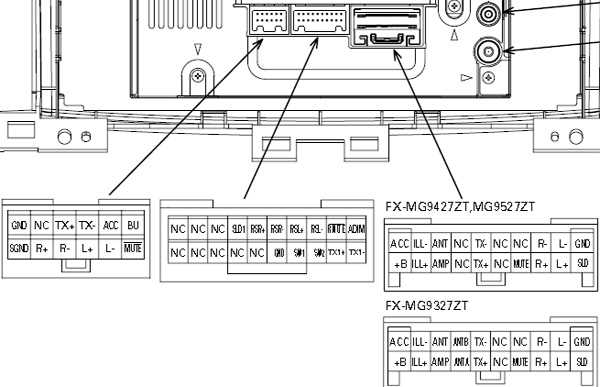

Begin by locating the vehicle’s main harness behind the factory head unit. Most modern cars use a 12-pin ISO connector, though some Asian models split it into two 8-pin plugs. Match the aftermarket device’s color-coded leads to the corresponding wires–constant 12V (yellow), ignition-switched 12V (red), ground (black), and speaker outputs (gray/white for front right, violet/white for rear right, green/white for front left, brown/white for rear left).

• Yellow wire: connects to battery via fuse (10A–15A) for memory retention.
• Red wire: links to ignition switch to power the unit only when the key is on.
• Black wire: must attach to chassis ground–scratch paint to bare metal for solid contact.
• Speaker wires: twist pairs (positive/negative) to prevent interference; avoid letting bare ends touch.

Use a multimeter to verify voltage before connecting. Set to DC 20V scale; probe the yellow wire–should read battery voltage (~12.6V). Ignition wire must show 0V key-off, 12V key-on. Ground wire must read 0V against chassis. Speaker wires should register 4–8 ohms continuity. If readings deviate, trace the factory harness for blown fuses, corroded terminals, or incorrect taps.

For amplifiers, identify the remote turn-on lead (blue/white stripe). Connect it to the aftermarket deck’s corresponding output–this triggers the amp to power on with the head unit. Bridge the amp’s power cable directly to the battery using 4-gauge wire; route ground to chassis at least 18 inches from the battery to avoid alternator noise. Cap all unused wires with heat-shrink tubing to prevent shorts.

1. Disconnect the vehicle’s negative battery terminal before splicing.
2. Route power wires away from signal cables–keep at least 12 inches apart to minimize hum.
3. Secure all connections with solder and heat-shrink tubing; electrical tape degrades over time.
4. Reconnect the battery, then test each function–volume, balance, fader, subwoofer output–before reassembling dash panels.

If the display dims or the system resets while driving, check the alternator’s voltage output (should be 13.8V–14.4V). Low voltage suggests a weak battery or faulty regulator. For persistent noise, install a ground loop isolator between the head unit and amplifier inputs. Always consult the vehicle’s service manual for model-specific pinouts–some luxury cars use CAN bus for audio control, requiring a separate interface module.

Identifying Correct Wire Colors for In-Dash Audio Systems

Start by locating the yellow constant power lead–this supplies 12V regardless of ignition state and must connect directly to the battery via a fuse. Black remains universal as the ground connection, but verify its thickness against the positive wires to prevent voltage drops.

Red typically handles accessory power, requiring ignition-on activation, while orange or orange-striped wires often manage illumination dimming. Confusion between these two can disable backlighting or drain the battery if misrouted. Test with a multimeter: red should read 12V only when the key is in the “on” position.

Common Wire Functions and Variations

Color	Primary Function	Potential Variations	Critical Note
Yellow	Battery constant (+12V)	May have thin white stripe	Always fuse within 18 inches of battery
Blue/White	Antenna remote turn-on	Solid blue or blue with red stripe	Outputs 12V when unit powers on
Purple	Rear right speaker (+)	Sometimes violet or dark purple	Pair with purple/black for complete circuit
Green	Rear left speaker (+)	Light green or green/white	Never connect to green/black directly

Speaker wiring follows a predictable pattern but varies by model year. Front-left outputs usually appear as white or gray, while front-right pairs use gray or violet. The negative strand for each channel carries a complementary stripe–white with black for front-left, gray with black for front-right. Never combine positives and negatives across channels.

Some units integrate steering wheel control wires, identifiable by their slim gauge and unique colors like brown with a yellow stripe or pink with blue. These require a specialized adapter for full functionality; ignoring them risks damaging the interface module.

Parking brake and reverse trigger wires (if equipped) appear as light green with white or solid pink. These enable video playback restrictions or backup camera activation–double-check vehicle wiring diagrams before connecting to avoid triggering warning systems.

Aftermarket harness adapters simplify installations but occasionally mislabel wires. Cross-reference the adapter’s color codes with the head unit’s factory standard using an ohmmeter: each speaker wire should show 2-8 ohms resistance when probed against its negative counterpart.

For systems with amp turn-on delays, locate a pink wire with a black stripe–this often controls relay-based power delivery. Incorrect connections here cause erratic behavior, including sudden shutdowns or blown fuses during startup.

Step-by-Step Guide to Hooking Up Your Audio Head Unit Power Leads

Disconnect the vehicle’s negative battery terminal before handling any electrical connections to prevent short circuits or damage to components. Use a 10mm wrench for most standard terminals.

Identify the constant 12V (yellow), switched 12V (red), and ground (black) cables on the harness using the color-coded guide provided with your device. Double-check the manual–some models may have variations like blue or orange wires for illumination or antenna control.

Strip 5-7mm of insulation from each wire using a precision stripper, avoiding nicked conductors which can cause intermittent connections. Twist the copper strands lightly to prevent fraying before crimping.

Match the head unit’s harness to the vehicle’s adapter or direct wiring. Use a test light to confirm power presence on the yellow wire (constant) and red wire (ignition-dependent) before proceeding. The black wire should show continuity to the chassis–verify with a multimeter (0 ohms).

Crimp butt connectors or solder joints for permanent installations. Heat-shrink tubing over soldered connections prevents corrosion; apply a heat gun until the adhesive seals completely. Avoid electrical tape for long-term durability.

Route cables away from moving parts, sharp edges, and heat sources like exhaust manifolds. Secure loose wires with zip ties every 15-20cm to prevent rattling or damage from vibration.

Reconnect the battery terminal and test all functions: power-on, volume, and accessory integration (USB, steering controls). If the unit powers off immediately, recheck the red wire connection–it should rely on the ignition switch, not constant power.

For amplified systems, ensure the blue/white remote turn-on lead connects to the amplifier’s corresponding input. Failure to do so will result in no sound output despite the head unit working correctly.

Diagnosing Faults in Car Audio Component Connections

Check ground path integrity first–loose or corroded chassis attachments produce hum, distortion, or intermittent operation. Scrape paint from grounding points, secure with star washers, and torque to 12-15 Nm to ensure low-impedance contact. Measure resistance between negative speaker terminal and vehicle frame; values above 0.1 ohms indicate poor conductivity requiring rework.

Verify power feed continuity with a multimeter set to DC voltage. At the head unit’s harness, confirm 12 volts constant on yellow and 12 volts accessory on red wires while ignition is on. Fluctuations below 11 volts suggest insufficient alternator output, undersized cable gauge, or parasitic drain–trace voltage drop back to the battery using a load test.

Inspect speaker leads for short circuits or open loads. Disconnect all connectors, then measure each wire’s resistance to ground and between pairs. Infinite resistance confirms an open circuit; zero resistance reveals a direct short. Common failure points include frayed harnesses near door hinges and pinched cables behind dash panels–insulate repairs with adhesive-lined heat shrink tubing, avoiding electrical tape.

Signal Path and Remote Turn-On Anomalies

Blue/white remote turn-on wire supplies 3-5 volts to amplifiers when head unit is activated. Absence of voltage here prevents power-on sequence–probe the pinout with ignition on and verify continuity back to the radio’s control circuit. If present but amplifier remains off, check fuse ratings and replace with slow-blow types matching the system’s inrush current (typically 15-20A for Class D modules).

Subwoofer output issues often stem from mismatched impedance or faulty low-pass filters. Calculate total load impedance by combining voice coil configurations (e.g., dual 4-ohm coils wired in parallel yield 2 ohms). Ensure crossover settings match the amp’s stable impedance range; clipping at high volumes indicates insufficient power delivery or improper gain staging–adjust levels using test tones at 75% of maximum volume.

Interference and Noisy Circuits

Eliminate alternator whine by routing RCA cables away from power wires, maintaining 15 cm separation, and using twisted-pair shielded leads. Ground shield braids at a single chassis point near the amplifier; avoid daisy-chaining. If noise persists, insert a ground loop isolator rated for 20 kHz bandwidth before the amplifier’s input stage.

Flickering displays or erratic button response usually tie to unstable voltage regulation. Install a dedicated 5V buck converter for modern touchscreen interfaces, ensuring input ripple under 100 mVp-p. For older analog units, check voltage regulator outputs (often 7805 or equivalent) for thermal stress–replace if heatsink mounting tabs show discoloration or excessive warmth.

Factory integration adapters may introduce signal degradation. Bypass the adapter’s pass-through circuits if audio quality suffers, splicing direct harness connections instead. Confirm compatibility with the vehicle’s CAN bus protocol–some models require resistor packs or firmware patches to prevent data errors causing mute or shutdown events.
