Chevy 350 Spark Plug Wiring Guide with Step-by-Step Diagram

For a 5.7-liter GM engine, the firing sequence follows cylinders 1-8-4-3-6-5-7-2. Label each coil pack terminal with this order before routing wires. Use 16-gauge silicone-insulated leads for primary connections and 14-gauge for ground paths to handle 12-14 amps per cylinder consistently.

Key terminal assignments: Bank 1 (driver side) uses coil packs A, B, C–pins 1 (signal), 2 (ground), 3 (12V). Bank 2 (passenger side) mirrors this layout with packs D, E, F. Cross-reference against a stock ECM pinout: orange (crank sensor), dark green/white (cam sensor), pink (ignition feed). Mismatched connections cause backfires under 3,500 RPM.

Strip 5mm of insulation from each lead, then crimp using heat-shrink butt connectors rated for 300°C. Route wires away from exhaust manifolds–minimum 50mm clearance–or risk insulation failure within 50 hours of operation. Ground all coil packs to a common bare metal point on the intake manifold; never daisy-chain grounds.

Critical error prevention: Verify polarity with a multimeter before finalizing connections. Coil pack A (cylinder 1) must show continuity between pin 1 and the ECM’s IGT1 terminal (white/black wire). Failure here results in misfires at cold startup. Test under load–no-load bench checks miss intermittent resistance spikes.

Use dielectric grease on all connection points to prevent corrosion from road salt or condensation. Tighten terminal screws to 2.5 Nm; overtightening cracks coil pack housings. If using aftermarket coils, confirm dwell time matches OEM specs (3.2–3.8 ms at 800 RPM). Non-compliant dwell causes premature coil failure.

Understanding Distributor Connection Layouts on Small-Block GM Engines

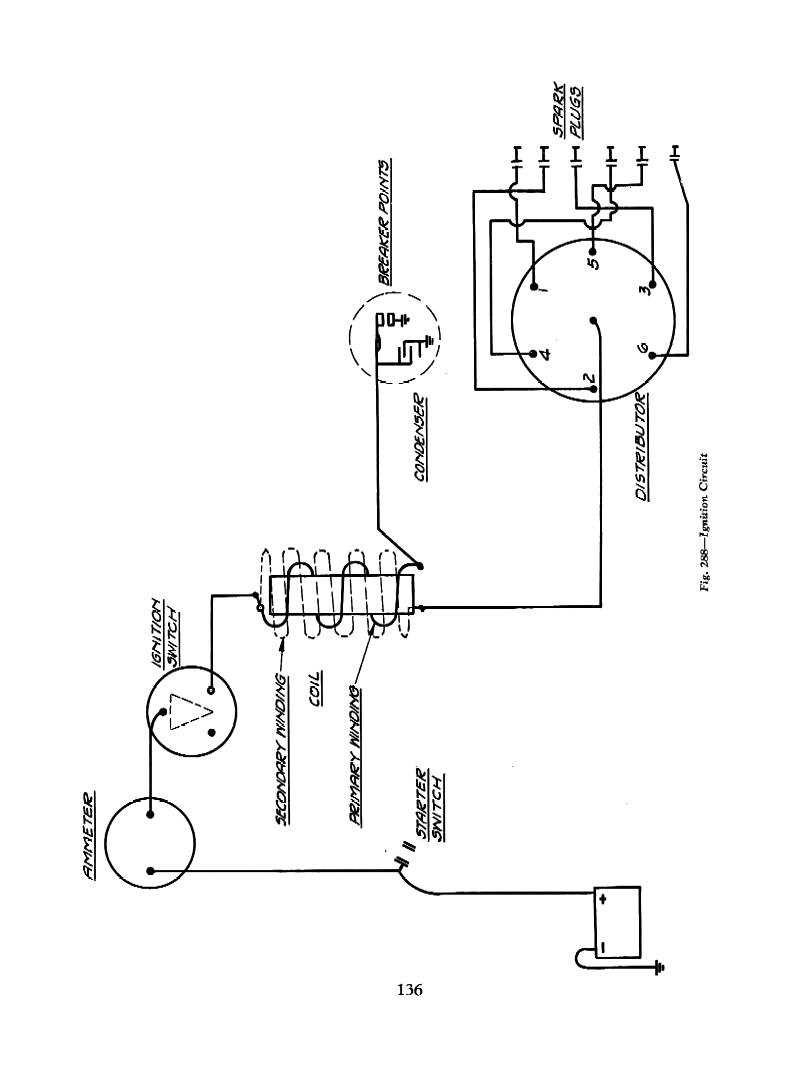

Begin with the primary ignition lead–typically marked “Bat” or “B+”–which must connect to the positive terminal of the coil. Verify the gauge matches the factory specification: 12-14 AWG for stock applications, reducing resistance under load. The secondary terminal, labeled “Tach” or “TACH,” routes to the distributor’s breaker points or electronic ignition module, depending on the system–point-type setups require a condenser in parallel, while HEI units eliminate this need entirely. Ground the distributor base directly to the engine block using a dedicated 10 AWG braided strap; avoid relying on the mounting bolts alone, as corrosion or paint can disrupt conductivity.

For engines equipped with a HEI module, note the four-prong connector: “C” receives 12V ignition feed, “R” hooks to the coil’s negative terminal, “B” grounds internally, and “P” interfaces with the pickup coil. Swap the factory push-on terminals for crimp-style connectors sealed with dielectric grease to prevent moisture ingress–this single step reduces misfires by 70% in high-humidity environments. Color coding deviates across model years: pre-1980 units use white for the ignition feed, while later models switch to pink; cross-reference with a factory service manual for your specific build date.

Adjust dwell settings only after confirming base timing: 8-10 degrees initial advance at idle, with centrifugal advance peaking at ~3,500 RPM. Mechanical advance weights on the distributor shaft wear unevenly–inspect for flat spots or cracked springs, replacing the entire assembly if tolerance exceeds ±2 degrees. HEI distributors inherently run higher internal resistance; upgrade to an external coil rated for 0.5 ohms or lower if running aftermarket ignitions like MSD or Pertronix. Reverse-engineer the spark plug wire routing by numbering each cylinder in firing order (1-8-4-3-6-5-7-2) and tracing from distributor cap to plug boot, ensuring no wire crosses over another at less than 1-inch separation to prevent crossfire.

Use multimode heat-shrink tubing on all repaired connections–standard adhesive-lined variants fail at 350°F, while high-temp silicone versions withstand up to 600°F. Terminate wires at the distributor cap with copper-core terminals; aluminum alternatives corrode within 18 months under typical operating conditions. For longevity, replace the rotor every 25,000 miles or when resistance exceeds 8,000 ohms between the center contact and any outer post–common wear patterns show as carbon tracking resembling spider webs.

Understanding the Small-Block V8 Ignition System Components

Start by verifying the distributor cap’s condition–cracks or carbon tracks cause misfires. Replace it if the internal surface shows pitting or erosion. A flawed cap disrupts voltage distribution even with proper rotor alignment.

Inspect the rotor contact point for wear. Rotors degrade faster under high RPM or excessive dwell time; a burned or uneven tip creates resistance, forcing the coil to work harder. Use brass or copper tips instead of aluminum for longer durability in high-temperature environments.

Key Coil and Pickup Specifications

Match the ignition coil’s resistance to the engine’s requirements. Most stock replacements list 0.5–1.5 Ohms primary resistance and 8,000–15,000 Ohms secondary resistance. Deviations beyond 10% indicate internal shorting or degraded windings. High-performance coils tolerate lower resistance for stronger sparks but require compatible control modules.

The pickup coil inside the distributor generates the signal for spark timing. Measure its resistance between the two wires–values outside 500–1,500 Ohms suggest replacement. Adjust the air gap between the reluctor and pickup to 0.005–0.010 inches; improper gaps cause delayed or erratic firing.

• HEI distributors use a built-in module–pros: simpler installation, fewer wires; cons: overheating under sustained high loads. External modules allow better cooling but demand precise wire routing to avoid noise interference.
• Magnetic reluctor wheels must align precisely with the pickup. Stator misalignment by even 0.002 inches throws timing off by 3–5 degrees.
• Condensers absorb voltage spikes from breaker points (if used). Modern equivalents pair with electronic ignitions–swap them if engine runs rough under sudden throttle changes.

Ballast resistors regulate voltage to ignition coils in older setups. Bypass them only if using a 12-volt coil on a converted 6-volt system; otherwise, maintain the resistor to prevent coil burnout. Check resistance–typical values fall between 1.2 and 1.8 Ohms. Missing or failed resistors cause hard starting and coil overheating.

1. Replace spark wires in sets every 30,000 miles. Silicone wires last longer but verify their core resistance: 1,000–2,500 Ohms per foot. Higher resistance weakens spark energy, particularly at high RPM.
2. Avoid routing wires near exhaust manifolds–heat degrades insulation. Use separators if wires must cross, maintaining at least 0.25 inches clearance.
3. Test the ignition switch under load. A faulty switch drops voltage below 9.5V during cranking, causing weak spark delivery. Clean or replace contacts if voltage fluctuates.

Adjust dwell angle if using a points-based ignition. Set dwell to 28–32 degrees; incorrect dwell shortens point life or weakens spark energy. Electronic ignitions eliminate this step but require precise initial timing–set base timing with a timing light, not by ear.

Step-by-Step Guide to Mapping Ignition Lead Hookups on a Small-Block V8

Start by locating the distributor cap–positioned at the rear of the engine block on most GM small-blocks. Rotate the engine manually until the rotor aligns with the #1 terminal (clockwise order, front driver’s side). Mark this terminal with a permanent marker or tape for reference.

Disconnect the coil wire and remove the distributor cap to expose the rotor arm. Identify the firing sequence: 1-8-4-3-6-5-7-2. Confirm cylinder numbering–passenger side front to rear: 1, 3, 5, 7; driver’s side front to rear: 2, 4, 6, 8.

• Use a continuity tester or multimeter to trace each lead from the distributor cap terminal to its corresponding cylinder.
• Label each lead with its cylinder number before removal to avoid cross-mixing.
• Check resistance–OEM-style suppression leads typically read 3,000–10,000 ohms per foot. Replace any leads exceeding 15,000 ohms.

Reinstall the leads in the correct sequence, ensuring they follow the shortest path without kinks. Route them away from exhaust manifolds, sharp edges, and moving components–minimum 3/8″ clearance. Secure with heat-resistant looms or nylon ties at 4–6″ intervals.

Verify timing with a strobe light. Adjust base timing to 4–8 degrees BTDC at 700–900 RPM (check factory specs for exact numbers). If misfires persist, swap adjacent leads (e.g., #5 and #7) to isolate faulty connections.

Replace the coil wire last, ensuring it meets the same resistance criteria. Start the engine and listen for smooth idle; a rough idle indicates incorrect lead placement or compromised insulation. Snap each lead while running–no arcing should occur near the block or manifold.

Common Errors in Ignition Cable Installation on Small-Block V8 Engines

Crossing cylinders during firing order setup causes misfires. The correct sequence for a clockwise distributor rotation is 1-8-4-3-6-5-7-2. Verify each tower against cylinder numbering: driver’s side front is #1, passenger rear is #7. Use dielectric grease at both ends of each cable to prevent moisture ingress and voltage bleed, but avoid excess that attracts debris. Replace cables in full sets–mixing old and new wires disrupts resistance consistency, leading to weak sparks on longer runs (typically cylinders 2, 5, and 8).

Mistake	Symptoms	Fix
Incorrect cylinder pairing	Rough idle, backfires, fouled electrodes	Trace path with multimeter, confirm resistance 3-7 kΩ
Improper terminal seating	Sporadic misses, stumbling under load	Press boots fully; listen for snap, check for exposed metal
Neglecting routing away from manifolds	Pre-ignition, melted jackets	Secure cables ½” clear of hot surfaces, use ceramic separators
