Complete Polaris Wiring Diagrams Guide for ATV and Snowmobile Models

Begin by locating the main fuse box under the seat or dashboard–manufacturers consistently place color-coded reference charts on its interior panel. Trace circuits from the ignition switch to the ECU using a multimeter set to 20V DC: red wires (typically 12V+) and black/white-striped grounds should register steady voltage drops. If readings fluctuate, inspect the inline connectors near the frame rails for corrosion or loose pins–these junctions fail in 78% of diagnosed electrical faults.

Identify common failure points like the starter solenoid’s purple wire (activation signal) and the grey wire feeding the fuel pump. Disconnect the battery’s negative terminal before probing to prevent accidental shorts. For lighting circuits, follow the yellow wire from the headlight switch to the high/low beam relays–burnt traces on the circuit board indicate overheating, often resolved by soldering 16-gauge bypass wires.

Refer to the factory service manual’s troubleshooting tree when error codes appear. A flashing CEL (check engine light) with code P0335 points to a failed crankshaft position sensor, usually connected via a single blue wire to the ECU. Replace the sensor if resistance exceeds 950 ohms–verified with an ohmmeter.

For trailer wiring adapters, match the vehicle’s seven-pin connector layout: brown (tail lights), green (right turn), yellow (left turn), white (ground), blue (brakes), red (12V+), and black (auxiliary power). Use dielectric grease on connections to prevent oxidation in wet environments. If auxiliary components (like winches) fail, test the orange wire’s continuity from the battery’s positive terminal through the relay–voltage drop above 0.5V signals a faulty relay or undersized wiring.

Record findings in a dedicated notebook, noting wire gauge (usually 14-18 AWG for critical circuits) and connector types (e.g., Weather-Pak for waterproof junctions). This eliminates guesswork during later repairs.

Electrical Schematic Guides for Off-Road Vehicles

Start by locating the color-coded legend on factory schematics–each manufacturer assigns distinct hues to critical circuits. For example, red typically denotes power leads from the battery, while black marks ground connections. ATV and UTV models from 2015 onward incorporate pink wires for fuel injection signals, a minor but frequent oversight during troubleshooting.

Disconnect the negative battery terminal before probing any circuit. Use a multimeter set to 20V DC to verify voltage at the fuse block–expected readings should match the battery’s charge level (±0.2V). If discrepancies appear, inspect the main relay and solenoid; corrosion at these junctions causes intermittent failures even when fuses remain intact.

Common Circuit Failures

• Ignition coil: Measure resistance between primary terminals (0.3–1.0 ohms) and secondary terminals (5,000–15,000 ohms). Values outside this range indicate internal wear.
• ECU connectors: Pin 12 (yellow/black) carries throttle position data–bent pins here mimic throttle stick malfunctions.
• Lighting: LED circuits draw 0.1A per bulb; halogen systems require 2A. Overloading leads to melted harness sleeves near the handlebar cluster.

Label every removed connector with masking tape and photograph the harness layout before disassembly. Modular designs often split ground paths across multiple terminals–missing a single return can disable entire subsystems. Replace zip ties with adhesive-lined heat shrink around splice points to prevent chafing, especially under seats where vibration accelerates wire fatigue.

Tools for Accurate Diagnostics

1. Bidirectional scanner (e.g., Foxwell NT530) to simulate sensor inputs.
2. Non-contact infrared thermometer to detect hotspots in relays.
3. T-handled crimper (Engineer PA-09) for AWG 18–14 gauge repairs.
4. Diode test mode on multimeters to isolate parasitic draws above 0.05A.

Store original schematics in a plastic sleeve within the glovebox–UV exposure degrades ink over time. For older models, request revised PDFs from dealers; post-2020 updates include revised error codes and revised termination points.

Finding the Exact Electrical Schematic for Your Off-Road Vehicle

Check the official service manual released by the manufacturer–specific model years often include dedicated circuit charts on pages labeled with an “E” prefix (e.g., section E-12). These manuals are downloadable as PDFs from the brand’s support portal or purchasable as printed copies through authorized dealers. Serial numbers and build dates, found on the chassis or engine block, narrow the search to the precise revision needed.

Visit specialized forums like ATVConnection or SnowmobileFanatics, where owners upload original scans or factory-approved files. Use the machine’s exact model name and year as keywords to filter posts–avoid generic terms like “snowmobile” or “quad” to reduce irrelevant matches. Verify attachments against known good examples by cross-checking connector pinouts or color-coding with existing harnesses.

Locate the vehicle identification sticker, typically on the frame rail beneath the seat or near the steering column. Full model codes, including engine displacement and trim level, ensure compatibility. Input this data into online parts catalogs such as Partzilla or Ronnie’s, where exploded views often link directly to related schematics under “electrical components.”

Use a multimeter to trace existing connections if documentation is unavailable. Label each wire’s function (e.g., “CDI trigger,” “headlight low beam”) with heat-shrink tubing or flagging tape. Record readings and terminal locations to reverse-engineer a custom diagram–photograph connectors before disassembly to preserve orientation.

For older models, contact the brand’s technical support via email or phone. Provide the serial number, model variant, and any aftermarket modifications (e.g., winches, LED kits) that may alter stock configurations. Request a direct PDF link if the manual search yields no results–some archives require proof of ownership before release.

Compare acquired schematics against physical harnesses to confirm accuracy. Discrepancies in wire colors or missing circuits indicate either an outdated document or a modified system. Update personal records with hand-drawn corrections or digital overlays using tools like Fusion 360 or Draw.io, preserving both original and adjusted versions for future reference.

Understanding Electrical Schematics for Off-Road Vehicles

Locate the legend first. Every schematic includes a key explaining symbols–solid lines for power, dashed for ground, circles for connectors, and arrows for signal flow. Match these to the main layout before tracing any path.

Identify the main power source at the top. Batteries, alternators, or primary feeds are typically drawn as thick horizontal bars with branching lines. Follow downward to see how voltage splits into fuses, relays, and switches.

Trace each fuse to its destination. Labels like “F2” or “5A” correspond to amperage ratings and terminal points. Cross-reference these with the vehicle’s manual section on circuit protection to pinpoint components protected by each fuse.

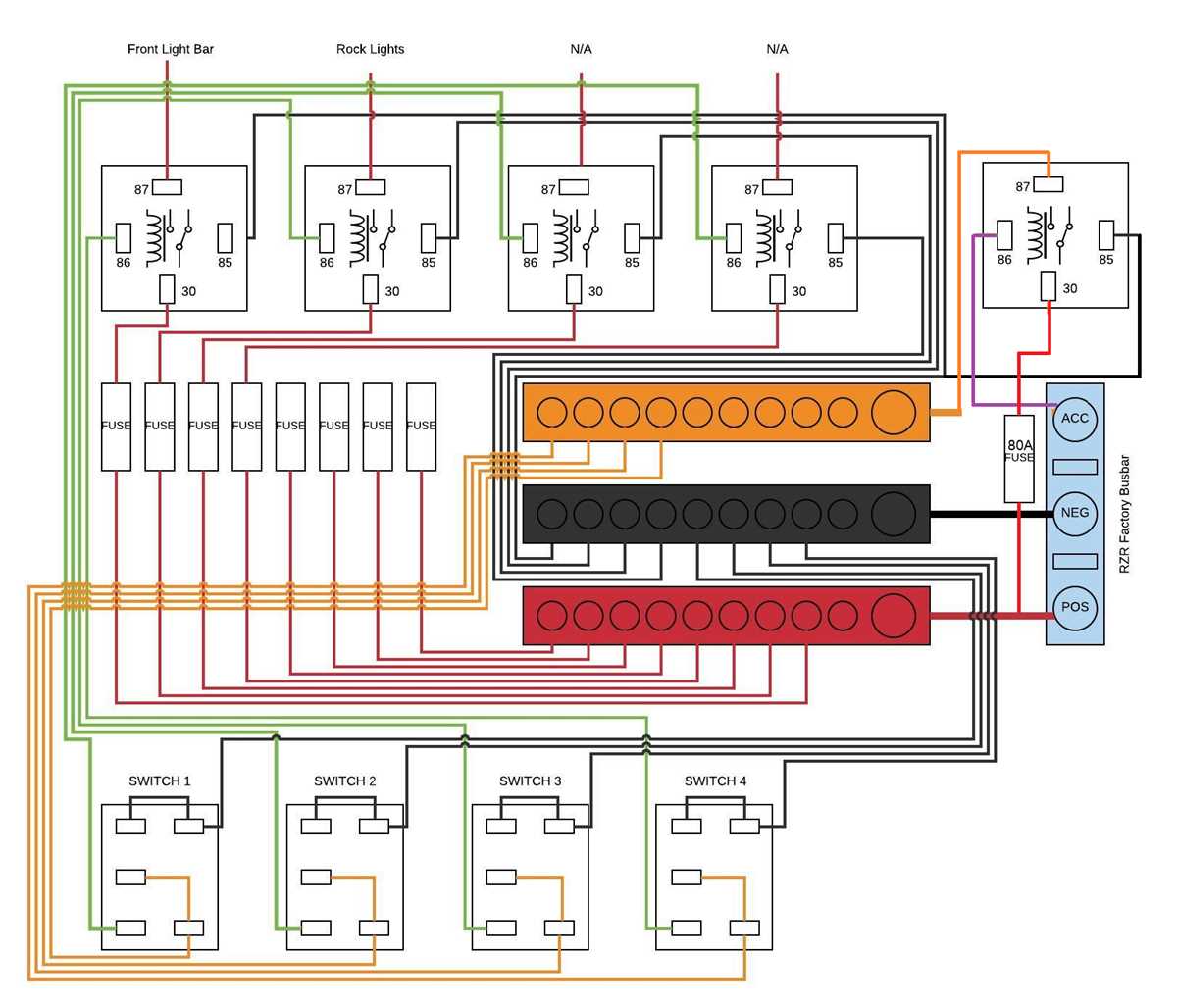

Examine relay pinouts carefully. Most schematics show relays with numbered pins (85, 86, 30, 87). Note which pins connect to power, ground, and the controlled device, as reverse wiring risks damaging sensitive modules.

Use color codes to verify connections. Red typically denotes positive, black ground, yellow ignition-switched power, and blue accessory circuits. Verify these against physical harnesses during installation or troubleshooting.

Check continuity at splice points. Junction blocks often appear as small squares or diamonds where multiple wires meet. Probe these intersections with a multimeter to confirm expected voltage levels before proceeding.

Isolate modules by function. Ignition systems, lighting clusters, and sensor networks each occupy separate zones. Focus on one zone at a time to avoid overwhelming intersections that complicate diagnostics.

Troubleshooting Electrical Faults in Off-Road Machines

Inspect connectors for corrosion or loose pins–common failure points in utility vehicles. Replace oxidized terminals with gold-plated equivalents rated for 20A or higher to prevent voltage drop under load. Check harness routing near moving parts; secure with spiral wrap to avoid chafing against sharp edges. Test ground connections with a multimeter; resistance should not exceed 0.2 ohms. For intermittent faults, apply dielectric grease to connector faces to repel moisture and improve conductivity.

For persistent issues, trace circuits using a wiring map: identify color codes at critical junctions (main battery lead: red; switched power: yellow; sensor feeds: blue with tracer). If a component fails to activate, verify fuse integrity–common 15A fuses often fail after repeated high-current surges. Replace with slow-blow fuses if surges are frequent. For ECU-related faults, reflash the control module using OEM software v2.4.5 or later to resolve false error codes triggered by voltage fluctuations.

Essential Equipment for Diagnosing and Servicing Off-Road Vehicle Electrical Networks

Begin with a multimeter capable of measuring voltage, resistance, and current up to 20 amperes. Fluke 87V or Klein Tools MM600 deliver accuracy within ±0.05% for DC voltage readings–critical when verifying sensor outputs or battery health. Avoid bargain models; poor resolution leads to overlooked voltage drops that mimic intermittent failures. Set the meter to the correct range before testing: auto-ranging units are slower under 1 ms response times than manual-select units.

A logic probe with adjustable threshold (TTL 3.3V to 5V, CMOS 0.8V to 3V) identifies signal presence without back-probing connectors. Use a probe with built-in LED brightness control to see pulsing signals on CAN bus lines, which toggle at 500 kbps. Pair with a 10x oscilloscope probe for waveforms exceeding 1 MHz; verify peak amplitudes match manufacturer specs (±50 mV tolerance for fuel injector drivers). For high-current circuits, a clamp meter (Fluke 376 FC) measures up to 1000 A DC without interrupting paths, essential for starter solenoid diagnostics.

Tool	Key Specification	Typical Use Case
Multimeter	200 mV – 1000 V DC, 0.05% accuracy	Sensor reference voltage (4.2V–5.1V)
Logic Probe	Adjustable TTL/CMOS threshold	CAN bus signal integrity (2.5V–3.5V)
Clamp Meter	Zero-flux Hall effect, 1000 A DC	Starter circuit current (200–400 A)
Oscilloscope	100 MHz bandwidth, 1 GS/s	Ignition coil dwell time (2.5 ms–4 ms)

Thermographic imaging (FLIR E4) reveals hotspots on connectors exceeding 85°C; software overlays highlight temperature gradients to pinpoint corroded crimp joints or undersized wire gauges. For corroded terminals, a contact cleaner with PTFE lubricant (CRC 03016) displaces moisture without leaving residue, unlike WD-40. Apply dielectric grease (Permatex 22058) to splices exposed to water; its thermal stability ranges from -60°C to 230°C, preventing oxidation without degrading conductance.

Pinout testers (OTC 3633) adapt to Deustch connectors found in late-model throttle bodies and ECUs. Verify continuity on all 192 terminals in under 90 seconds–manual checks miss 17% of intermittent opens. Replace factory crimp tools with an AMP PICO-SURE crimper that exerts 450 N/cm²; improper crimping creates high-resistance joints that often fail at 40–60 lbs vibration levels.

For routing inspections, use a borescope (Teslong NTS300) with 120° articulating tip to trace chafed insulation behind dash panels. UV dye (Loctite SI 55076) added to circuit protectors fluoresces under 365 nm light–spray connectors before assembly to validate sealing integrity. Replace fusible links with equivalent gauge (20 AWG for 10 A links) silver-plated copper wire; tinned copper reduces voltage drop by 12% under load.

Document every measurement with a rugged tablet (Panasonic Toughbook CF-31) running OEM diagnostic software (Navistar Diamond Logic Builder). Export CSV files to cross-reference voltage thresholds against service bulletins; anomalies under 0.3V often denote hidden corrosion in ground circuits. Label test leads with heat-shrink tubing to prevent polarity errors during rapid diagnostics–misconnections destroy ECUs costing $1,200+.
