Power Commander 3 Wiring Guide with Complete Connection Schematic
Before proceeding with the installation, ensure the ignition is off. Disconnect the negative terminal of the battery first–this prevents accidental shorts during wiring. Locate the engine control module (ECM) harness; it’s typically beneath the seat or inside the fairing, depending on the motorcycle model. Identify the injectors’ wires–these are usually grouped in pairs, color-coded, and terminate in a single connector. Use a multimeter to confirm voltage and resistance before splicing.
For throttle position sensor (TPS) calibration, the interface requires a dedicated harness adapter. Connect the gray wire to the TPS signal output, verifying it matches the factory voltage range (usually 0.5V at idle, 4.5V at wide-open throttle). The black wire grounds to the chassis–avoid shared grounds with high-current circuits like headlights or ignition coils to prevent signal noise.
Fuel pump control integration varies by bike. On models with returnless fuel systems, tap into the fuel pump relay trigger wire (often pink or purple). Use a 1N4007 diode inline to prevent backfeed into the relay coil. For V-twins, the oxygen sensor wires (white and black) must be intercepted before the stock ECM; failure risks triggering a check engine light.
Leave the interface’s red wire disconnected until final testing. Once all connections are secured, reattach the battery negative terminal and power up the ignition–without starting the engine–to verify no error codes appear. If the bike stalls or runs erratically, revisit the injector wires for crossed connections or poor grounding.
Mapping the Fuel Management Module Installation Pathway
Connect the module’s red harness to the motorcycle’s 12V ignition source–typically a switched circuit delivering consistent voltage when the key activates. Bypass fusebox taps; instead, splice into a wire feeding the ECU, ensuring load compatibility–minimum 5A capacity. Yellow and black wires (ground) attach directly to the battery negative terminal, avoiding chassis grounds prone to interference. Test continuity with a multimeter before finalizing connections to prevent voltage drops across corroded contacts.
For throttle position sensor (TPS) integration, identify the signal wire–usually a 0.5V–4.5V variable output–on the bike’s harness. Connect this to the module’s white input, using a 1K ohm resistor inline if the signal fluctuates erratically. RPM input requires tapping the ignition coil’s negative terminal or pulsing wire; verify pulse width with an oscilloscope to confirm 5V–12V square waves at idle. Avoid solderless connectors near moving parts–they loosen under vibration, causing intermittent failures.
Wideband oxygen sensor calibration starts with locating the pre-cat O2 sensor. Extract the signal wire (typically gray or blue) post-catalytic converter, using a grounded shielded cable to prevent EMI. Route this to the module’s green input, maintaining a 1:1 signal-to-voltage ratio–ensure the sensor’s heater draws no more than 2A from the module’s auxiliary output. Log AFR data during a 2,500–4,000 RPM sweep to detect lean spikes, then adjust fuel tables in 5% increments.
Relay control for auxiliary devices–like nitrous or cooling fans–requires a dedicated 30A fused circuit. Wire the module’s purple output to a Bosch SPDT relay, triggering at 80% duty cycle for staged activation. Keep relay coils below 100mA draw; exceeding this risks overheating the module’s internal transistors. For sequential fuel systems, synchronize injector timing by tapping the camshaft sensor signal–consult service manual pinouts, as Yamaha’s 5V peak differs from Honda’s 12V logic.
Before sealing connections, apply dielectric grease to plug terminals and wrap harnesses in abrasion-resistant loom–UV-resistant nylon or polyethylene reduces heat degradation. Secure routing away from exhaust manifolds and wheels; use nylon zip ties every 10cm for strain relief. Validate the setup with a three-stage test: key-on without start (module powers up), idle (stable AFR), and wide-open throttle (fuel map tracks RPM without hesitation). Document resistance readings across all inputs–acceptance range is 0.1–0.3 ohms for signal integrity.

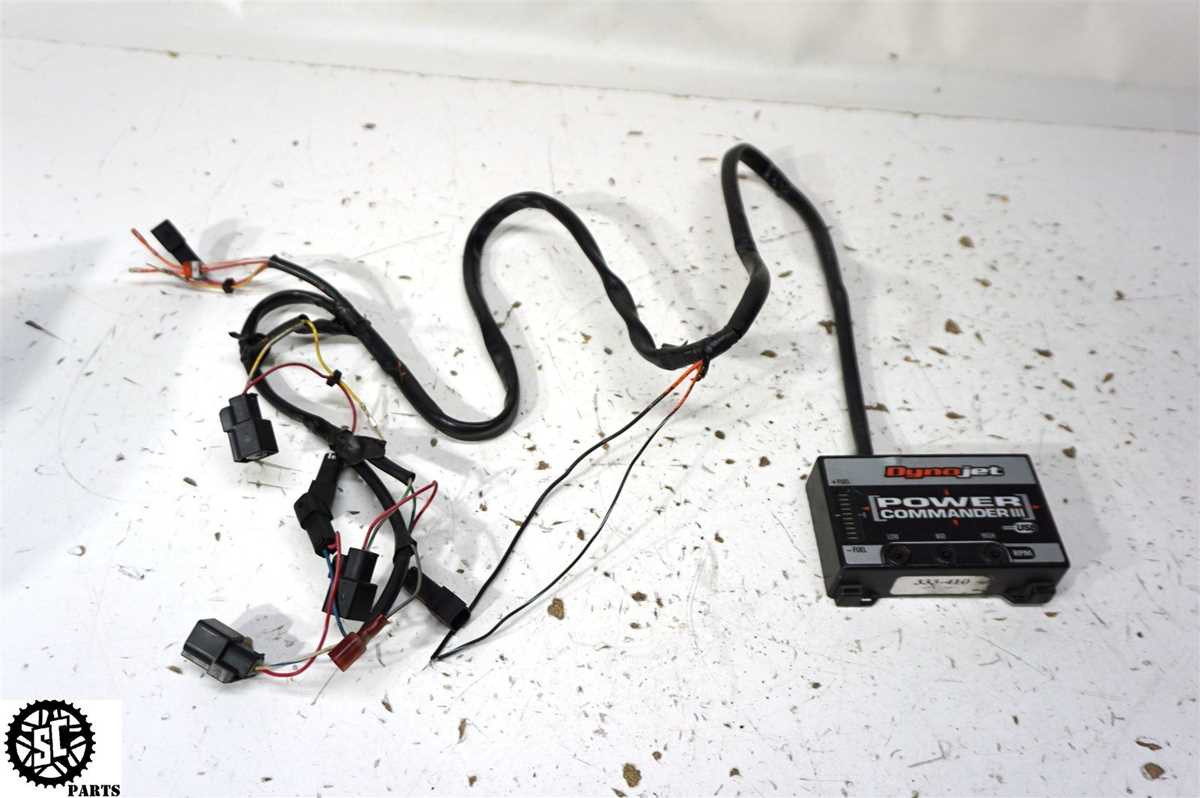

Identifying Key Connection Points on the PC3 Module
Locate the harness plug at the rear of the interface box–this is the primary entry point for all sensor and actuator linkages. The connector houses 14 pins, typically labeled sequentially from A to N, but verify against your model’s documentation as some variants use alphanumeric designations.
Pin A (usually black) delivers chassis ground; attach it directly to the engine block or battery negative terminal with a minimum 16-gauge wire. Avoid daisy-chaining with other components–corrosion or loose connections here will cause erratic calibration.
Identify the throttle position sensor (TPS) input (often pin B or C) by referencing the OEM wiring color codes–a solid brown or purple wire is common on most sportbikes. Confirm the signal type (analog 0-5V) with a multimeter; a faulty TPS will skew fuel mapping regardless of adjustments.
Critical Inputs for Accurate Tuning
- O2 Sensor (Pin D/E): Connects to the stock narrowband sensor output. Bypass if upgrading to a wideband controller, but ensure the module’s firmware supports standalone AFR logging.
- Injector Trigger (Pin F/G): Tap into the primary injector signal wire–locate the pair exiting the ECU, not the branch to individual cylinders. Incorrect splicing here will result in cylinder-specific misfires.
- Ignition Timing (Pin H): Reserved for models with programmable ignition; verify compatibility before routing, as aftermarket coils may require additional resistors.
Route the MAP sensor line (pin J) to the intake manifold with vacuum-resistant silicone tubing–no longer than 30cm to prevent signal lag. Pressure variations beyond ±2kPa will invalidate baseline readings, so secure all clamps tightly.
For data logging, prioritize the serial output (pin K/L). Use shielded twisted-pair cable (22-gauge) to minimize interference from ignition noise. Terminate the connection with a DB9 or JST plug matching the tuner’s software interface–most laptops require a USB-Serial adapter.
Validation Steps Before First Startup
- Recheck all pin assignments against the factory service manual–OEM diagrams often reverse the labeling for left/right side components.
- Power the system with a switched 12V source (ignition key-on only) to pin M. Avoid constant battery power, as this drains the internal battery and resets learned fuel trims.
- Test continuity between pin N (auxiliary ground) and the main ground (pin A)–resistance should read less than 0.5 ohms. Higher values indicate oxidation or inadequate crimping.
Label each wire with heat-shrink tubing and document the installation–skipping this step complicates troubleshooting during seasonal storage or component upgrades.
Step-by-Step Guide to Splicing Leads into a Motorcycle’s Engine Control Module
Locate the ECU beneath the seat or side panel–most sport bikes house it near the battery compartment. Disconnect the negative terminal first to prevent shorts. Strip 5mm of insulation from the target harness wires (throttle position: yellow/red; RPM signal: blue/white; ground: black/green) using a precision wire stripper–avoid nicking the copper strands. Twist the exposed ends tightly before soldering to ensure solid conductivity. Apply heat-shrink tubing before joining; slide it down post-solder to insulate the connection thoroughly. Crimp a female spade terminal onto the module’s input wires if the aftermarket tuner requires plug-and-play compatibility–verify pinout against the bike’s service manual to confirm signal polarity.
Critical Connection Checklist
| Wire Color (Standard) | Function | Splicing Method | Voltage Range |
|---|---|---|---|
| Yellow/Red | Throttle Position Sensor | Solder + Heat-Shrink | 0.5–4.5V |
| Blue/White | Tachometer Signal | Crimp Spade Terminal | Pulse (0–12V) |
| Black/Green | Chassis Ground | Twist + Solder | 0V |
Route all splices away from moving parts or exhaust headers; use loom tubing to protect against abrasion. Reconnect the battery and probe each junction with a multimeter–throttle sensor output should rise smoothly under twist grip rotation. If voltage stutters, re-examine solder joints for cold spots or stray wire strands bridging contacts. Secure excess wire length with zip ties near the ECU bracket to prevent interference with suspension travel or steering locks.
Common Installation Errors and Preventive Measures
Always verify ground connections first–loose or shared grounding points create voltage fluctuations that skew sensor readings. Use a dedicated point on the chassis, sanded clean of paint, and tightened to 12-14 Nm. Avoid daisy-chaining multiple components into a single ground; instead, route each wire directly to the chassis. Multimeter testing between ground and battery negative should show less than 0.1 ohms resistance. Higher readings indicate corrosion or insufficient contact surface.
Sensor Cable Misrouting
Route throttle position, air temperature, and fuel pressure cables away from ignition coils, spark plug wires, and alternator outputs. Maintain a minimum 10 cm separation from high-voltage sources; electromagnetic interference induces false signals, particularly at idle. Secure cables with non-conductive zip ties every 15 cm, avoiding sharp edges on metal brackets. Twisting paired signal leads (red-black, green-white) reduces noise pickup by 30%. Test for signal integrity by monitoring real-time values during engine start; erratic jumps confirm interference.
Incorrect voltage tap selection leads to calibration drift. Connect the red input lead to the fuel injector positive terminal, not the ignition switch or fuse box–these sources carry transient spikes during cranking. Use a dedicated relay if tapping from battery-positive, fused at 10A. Measure the voltage before finalizing the tap: 12.6V at rest, dropping no lower than 11.8V during cranking. Anything below introduces a lean bias in fuel trims.
Oxygen sensor extensions must match the original wire gauge–typically 22 AWG for heated sensors and 20 AWG for narrowband. Splicing dissimilar gauges alters resistance, delaying voltage response by 80-120 milliseconds. Crimp connectors with insulated butt splices and seal with adhesive-lined heat shrink; solder alone weakens under vibration. Confirm sensor continuity with a scan tool in closed-loop mode–slow switching indicates compromised wiring.
Short Circuit Prevention
Inspect harness insulation for chafing before final installation; exposed conductors cause intermittent shorts that burn fuse links without triggering diagnostics. Route harnesses through factory grommets or protective sleeves, avoiding moving parts like suspension arms or chain drives. Apply dielectric grease to connector pins to repel moisture–corrosion increases contact resistance by 2-3 ohms per pin. After installation, measure voltage drops across each connection: anything exceeding 0.2V indicates a high-resistance fault requiring re-termination.
