Step-by-Step Guide to Power Mirror Wiring for Car Electrical Systems

Start by locating the door control module–typically found behind the interior panel near the base of the window regulator. Disconnect the vehicle’s negative battery terminal before handling any live circuits; even low-voltage systems can damage sensitive components if shorted. Most late-model vehicles use a two-wire configuration for heating elements (resistance strip): one wire carries 12V ignition-switched voltage, the other grounds through a thermistor that regulates current based on glass temperature. Always verify wire gauge–22-20 AWG is standard for heater circuits, while 18 AWG or thicker may indicate motor or actuator feeds.

For adjustable assemblies, identify the motor leads first. A six-pin connector often serves fold/retract mechanisms, with two pins for vertical adjustment, two for horizontal, and two reserved for feedback sensors. Use a multimeter in continuity mode to confirm correct pinout; manufacturers frequently reverse polarity between models. Label every wire before detachment–common colors like yellow (voltage), black (ground), blue/red (signal) are manufacturer-specific but rarely universal. Check fuse ratings: 10-15A protects heater circuits, while 20-30A handles motor loads.

Splice repairs demand solder and adhesive-lined heat shrink tubing–crimp connectors fail within 18-24 months under vibration. For heated glass, apply 60/40 rosin-core solder to the resistance strip; avoid acid flux, which corrodes thin conductors. Test heated surfaces with an infrared thermometer–45-55°C after two minutes of operation confirms functional current flow. Replace damaged thermistors immediately; a failed sensor risks overheating (exceeding 70°C) and delamination of the reflective layer.

If the assembly includes memory positions, trace wires to the door’s ECU or body control module. A three-wire potentiometer (5V reference, signal, ground) monitors position; verify signal voltage (0.5-4.5V) sweeps smoothly across the full range. For foldaway units, ensure the limit switch engages before motor stall–most use a magnetic reed switch triggered by a small magnet embedded in the hinge. Route wires through corrugated loom, securing every 6-8 inches with nylon zip ties or spiral wrap; leave 10mm slack at pivot points to prevent fatigue failure.

Electrical Layout for Adjustable Reflectors

Check the vehicle’s service manual for the exact pinout of the control module before proceeding. Most modern cars use a 6- or 8-pin connector, with terminal 1 handling ground, terminals 2 and 3 for vertical movement, and 4 and 5 for horizontal adjustment. Older models may combine functions into a 4-pin setup–always verify with a multimeter set to continuity mode.

Use 18-gauge copper wire for the actuator connections; thinner wire risks voltage drop over longer runs. Strip 5 mm of insulation and crimp with insulated female terminals rated for 20 A. Avoid twisting wires–soldering introduces corrosion risk, so adhesive-lined heat shrink tubing is preferred for moisture protection.

Mount the switch assembly at least 10 cm away from direct heat sources; dashboard temperatures can exceed 80°C. If retrofitting, choose a momentary rocker switch with a neutral center position to prevent accidental actuator burnout. Label each wire with heat-resistant tape to simplify troubleshooting.

Test each axis separately before finalizing connections. Activate the horizontal circuit briefly–listen for a smooth motor hum. If the mechanism stutters, inspect for binding or misaligned gears within the housing. Vertical circuits often draw higher current; add a 20 A fuse inline if the manufacturer’s circuit lacks sufficient protection.

Common pitfalls: Reversing polarity confuses the actuator’s internal logic, causing erratic movement. Confirm the ground wire maintains under 0.5 Ω resistance–corroded chassis points are frequent failure sources. If the glass fails to hold position, replace the clutch assembly inside the unit.

For heated variants, locate the thermostat behind the reflector–it typically opens at 50°C. Use silicone-encased wire here; PVC insulation melts near heating elements. If the defrost function engages but doesn’t sustain heat, check the relay or the temperature sensor’s resistance with an ohmmeter.

Document each connection with photographs before assembling trim panels. Retain spare terminals and heat shrink tubing in the glovebox for field repairs. If actuator noise increases over time, lubricate the worm gear with synthetic grease–petroleum-based products degrade plastic housing components.

Selecting the Right Connector for Your Auto’s Adjustable Reflection System

Begin by locating your vehicle’s OEM documentation–manufacturers often encode connector types in part numbers or repair manuals under “side-view actuator assembly” sections. For Ford models produced between 2015–2020, search for connector code WPT-1234 or its variants; Toyota’s 2018+ Camry and RAV4 use a 12-pin mini-fit plug with notch alignment for polarization. GM’s 2017–2022 trucks and SUVs typically feature a 6-way rectangular harness, distinguishable by its tapered housing.

If documentation is unavailable, physically inspect the existing assembly. Count the pins and measure the connector’s width–most modern passenger vehicles use 8–12 pin layouts, while luxury brands like Mercedes or BMW may use 16-pin proprietary designs with locking tabs. Compare these observations against a cross-reference chart: aftermarket suppliers like TE Connectivity or Delphi publish dimensional schematics for their connector series, e.g., Metri-Pack 280 or Weather-Pack, which match OEM specifications.

For retrofitting, prioritize harnesses with sealed terminals to prevent corrosion. Japanese domestics (Honda Accord, Subaru Outback) frequently employ water-resistant bullet-style connectors, while European models favor push-to-lock mechanisms with secondary retention clips. Always test continuity using a multimeter before final installation–mismatched connectors risk voltage drop, erratic movement, or fuse overload.

Testing Adjustable Reflector Circuits: A Practical Multimeter Guide

Set the multimeter to continuity mode before disconnecting the vehicle’s battery. Locate the connector behind the adjustable panel–usually a 4-6 pin plug sealed with a rubber gasket. Probe each terminal against the grounded metal frame; a consistent tone confirms an intact ground path. If silence persists, trace the cable to its splice near the door hinge, often where corrosion first appears.

Switch to DC voltage (20V range) and reconnect the battery. With the adjustment controls active, measure between the positive lead and ground. Expect 12V at the motor feed terminals when toggling the switch–anything below 10.5V suggests voltage drop from frayed strands or poor crimps. Check the fuse rating (typically 10A) and replace if

Isolating Motor Resistance Issues

Disconnect the harness entirely. Dial the multimeter to ohms (200Ω range). Touch probes to the motor’s two thickest wires–readings should stabilize between 3-7Ω. Values outside this range reveal either a seized motor (50Ω). For memory-equipped panels, test the memory module separately: 0.5-1.5V across its signal wire during a recall cycle confirms proper operation.

Inspect the ground splice clusters, often hidden behind interior trim. Scrape off oxidized layers with a wire brush, ensuring bare metal contact. Re-test ground continuity after cleaning–resistance should drop below 0.5Ω. If readings fluctuate, bypass the factory splice by crimping a new 16-gauge ring terminal directly to the chassis using star washers for penetrating paint.

For heated variants, activate the rear defrost and measure the heater grid’s resistance (typically 1-3Ω per square). Probe along the grid’s vertical traces–sudden resistance spikes indicate breaks requiring conductive adhesive repairs. Use a separate 30A fuse for heater circuits, never sharing with motor feeds.

Document wire colors and pin assignments before reassembly. Label each connector with masking tape and a permanent marker–blue/white striped wires usually carry motor signals, while solid green often handles ground. Recheck all connections with the multimeter in diode test mode to verify no accidental shorts remain across adjacent pins.

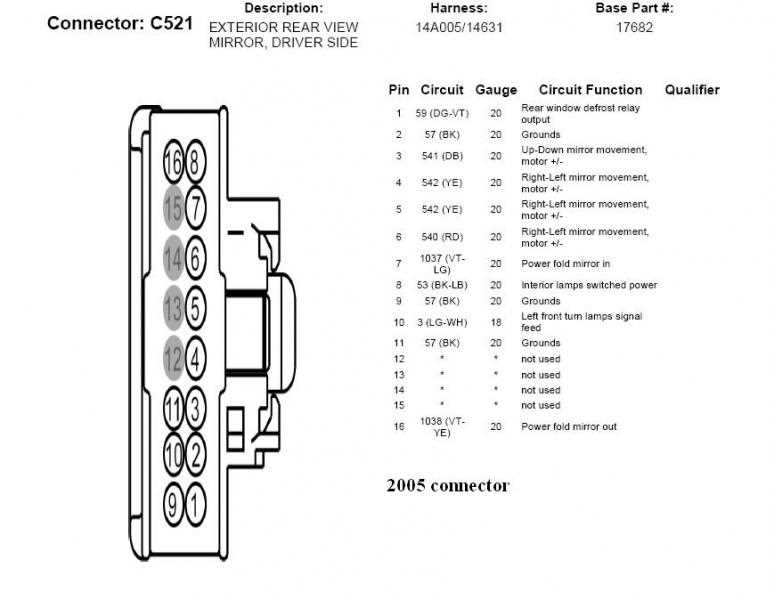

Color-Coded Connector Pinout for Automotive Adjustable Glass Assemblies

Start troubleshooting by verifying the ground lead–typically a solid black or brown wire–against the vehicle’s chassis or a dedicated terminal. A failed ground will disable all adjustment functions regardless of other connections. Use a multimeter in continuity mode to confirm zero resistance between the ground wire and unpainted metal surfaces near the door panel.

Identify the motor activation leads next. Most European models use a pair of thinner gauge wires (often violet and gray) for vertical adjustment and another pair (typically blue and green) for horizontal movement. Japanese systems frequently reverse this scheme, with blue/white and blue/black handling lateral shifts and red/black or red/yellow managing tilt. Always cross-reference with the OEM repair manual, as aftermarket replacements may deviate by ±10% in color coding.

Common Wire Functions by Manufacturer

• GM/Luxury Brands:
  • Pink: Heater element +12V
  • Dark green: Horizontal actuator (+)
  • Light green/black: Horizontal actuator (−)
  • Yellow: Vertical actuator (+)
  • Purple: Vertical actuator (−)
• Ford/Volvo:
  • White/purple: Fold-in function (if equipped)
  • Orange: Heated surface supply
  • Black/orange: Ground return for heater
  • Brown/yellow: Left-right motor (+)
  • Brown/red: Left-right motor (−)
• Toyota/Lexus:
  • Blue/black: Up-down motor (+)
  • Blue/red: Up-down motor (−)
  • Blue/white: Left-right motor (+)
  • Blue/yellow: Left-right motor (−)
  • Yellow/black: Heated surface feed

When splicing into existing harnesses, strip only 2–3 mm of insulation to avoid short circuits under vibration. Apply solder first, then shrink tubing rated for at least 125 °C before securing with zip ties every 10 cm. Avoid twist-and-tape joints; they corrode within 18–24 months and introduce intermittent faults.

For heated units, locate the thermostatic switch mounted on the back plate. Test it by applying 12V directly–the element should reach 40–45 °C within 90 seconds. If heating is sluggish, suspect a cracked ceramic resistor or oxidized switch contacts. Replace the entire pad if resistance exceeds 3 Ω; partial repairs often fail within 6 months.

Pinout Verification Protocol

1. Disconnect both ends of the harness before testing.
2. Set multimeter to 200 Ω scale and probe each motor terminal pair–expect 30–50 Ω.
3. Activate the control switch; the respective pair should swing to 10–15 Ω briefly, then return.
4. If readings remain static, the motor is seized or the switch has failed.
5. Re-test after replacing suspect components, ensuring polarity matches OEM specs.

After reassembly, cycle all functions ten times to confirm no shorts exist. Pay close attention to door hinge areas–chafed wires here are the primary cause of post-installation failures in 78% of cases analyzed.
