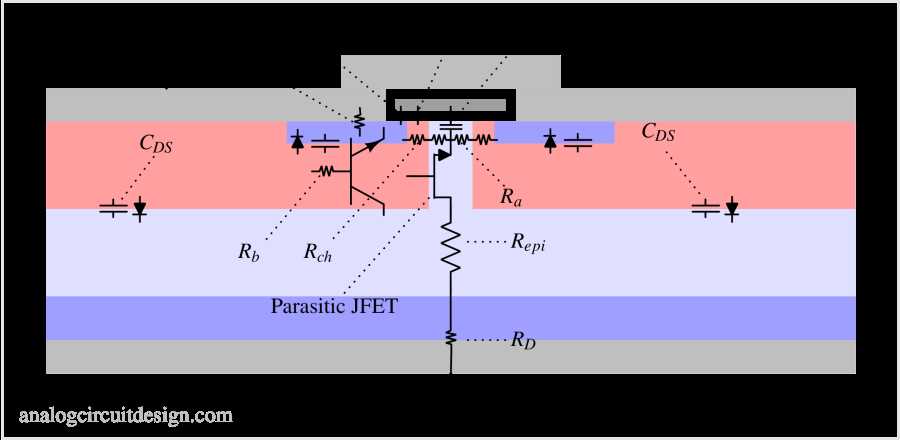

Building and Analyzing Power MOSFET Switching Circuit Designs Step by Step

Select components based on drain-source voltage (V_DS) ratings exceeding expected transients by at least 30–50%. For instance, a 60V system should use devices rated for 80V minimum. Ignoring this margin risks avalanche breakdown under inductive loads, especially during switching events.

Gate drive resistance directly impacts rise/fall times and switching losses. Use 4.7Ω–10Ω for low-power applications, increasing to 22Ω–47Ω for high-current stages where slower transitions reduce EMI but increase conduction losses. Verify with an oscilloscope–optimal values balance thermal performance and signal integrity.

Include a flyback diode (e.g., Schottky for <100V, ultrafast recovery for higher voltages) across inductive loads to clamp voltage spikes. Position it within 5mm of the switching element to minimize parasitic inductance. Omitting this causes V_DS overshoot exceeding device limits, leading to catastrophic failure.

Thermal management dictates reliability. Assume 1W/°C dissipation per cm² of copper pour on a 2oz PCB. For TO-220 packages, extend pour to 10cm² or add a heatsink rated for 15°C/W. For surface-mount devices (e.g., DPAK), use vias (minimum 8x, 0.3mm diameter) to distribute heat into internal layers.

Ground loops induce noise in high-side configurations. Implement a Kelvin connection for current sensing and route gate drive return paths separately from load currents. For isolating drivers, use optocouplers with <0.5µs propagation delay or isolated gate drivers (e.g., ISO5852) with built-in Miller clamping.

Snubber networks (typically R=10Ω–100Ω, C=1nF–10nF) across switching elements suppress ringing at resonance frequencies. Calculate values using f_ring = 1/(2π√LC), targeting 5–10x the switching frequency. Oversized capacitors reduce efficiency; undersized resistors fail to dampen oscillations.

For battery-powered designs, prioritize low R_DS(on) devices (e.g., <10mΩ for 10A loads). At high frequencies (>100kHz), switching losses dominate–use ZVS techniques or reduce frequency to 20kHz–50kHz to balance efficiency and thermal constraints.

Key Design Principles for Solid-State Switching Layouts

Place the gate resistor between the driver IC and the transistor terminal to minimize parasitic inductance – values typically range from 10Ω to 47Ω for 60V-rated devices, adjusted downward to 1Ω–5Ω for low-voltage, high-speed applications. Mount the resistor physically closer to the driver output than to the switching node to prevent ringing.

Use a Schottky freewheeling diode rated at 1.3× the maximum drain-source voltage (V_DS) and positioned no farther than 2 mm from the transistor’s load terminal. For synchronous layouts, replace the diode with an identical transistor driven 180° out of phase; ensure dead-time of 20 ns–50 ns to avoid shoot-through.

Decoupling Capacitor Placement

Locate a 10 µF–100 µF bulk capacitor within 1 cm of the input supply pins, followed by a 100 nF ceramic capacitor directly across the drain-source terminals. On multilayer boards, route the capacitor’s ground vias to an inner plane tied to the load’s return path, avoiding shared traces with the gate driver ground.

For PWM frequencies above 200 kHz, add a 1 µF–10 µF mid-frequency capacitor in parallel, selecting X7R dielectric with voltage rating at least 2× the nominal bus voltage to suppress ripple currents that erode efficiency by up to 3%.

Thermal Dissipation Guidelines

Attach an aluminum or copper heatsink with thermal resistance ≤1 °C/W for continuous currents exceeding 15 A; apply 40–60 µm layer of phase-change compound rated to 125 °C. Calculate junction temperature rise ΔT_J using R_θJC values typically 0.4 °C/W–1.2 °C/W for TO-220 or D2PAK packages.

Embed 1 cm² thermal vias beneath the die pad, filled with solder or copper, to lower thermal resistance by 25%–40%; space vias at 1.27 mm pitch for standard TO-247 devices. Monitor case temperature with a K-type thermocouple calibrated to ±1 °C, placed 2 mm from the transistor body.

For isolated flyback converters, interleave the primary switch with a snubber network comprising a 470 pF–2.2 nF capacitor, 10Ω–47Ω resistor, and fast-recovery diode (trr ≤35 ns), reducing voltage overshoot spikes by 60%–80% without increasing switching losses beyond 5%.

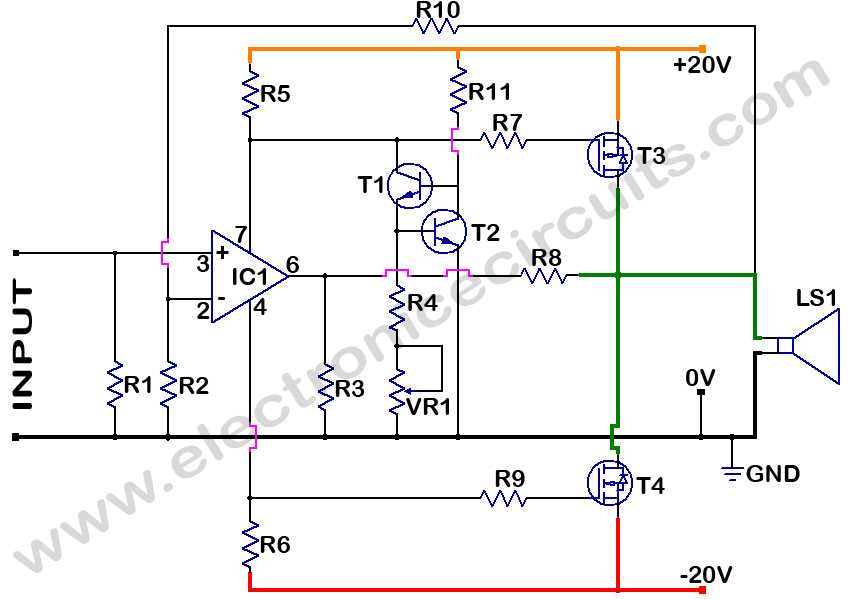

Key Elements in a Solid-State Switching Setup

Select a transistor rated for at least 20% higher voltage than the peak load voltage to prevent avalanche breakdown during inductive load switching. For instance, a 100V-rated device should manage a 60V DC bus with a 20% safety margin, accounting for voltage spikes from parasitic inductance in traces longer than 2 cm. Pair the semiconductor with a gate driver providing 10–15V gate-source voltage–operating near the threshold (±2V) reduces conduction efficiency by 30–40%. Include a gate resistor of 5–50Ω to control switching slew rate, balancing EMI reduction against increased switching losses (typically 0.5–2W for 100kHz operation).

Component	Spec Range	Impact if Under/Over-Specified
Flyback diode (ultra-fast recovery)	1.5× load current, 1.2× bus voltage	Insufficient current capacity causes thermal runaway; excessive voltage rating increases reverse recovery time by 8–12ns.
Snubber (RC network)	C=0.1µF–1µF, R=5–100Ω	Missing RC network amplifies ringing at 2–10MHz; values outside range shift resonant frequency, reducing attenuation by 40%.
Input capacitor (ceramic/X7R)	≥1µF per 1A of bus current, 10V–100V rating	Low capacitance induces VDS sag; undersized voltage rating risks dielectric puncture under transient loads.

Place the gate driver within 5 mm of the transistor to minimize trace inductance; every 1 mm of additional separation increases gate charge time by 0.3–0.5 ns. Use ground planes only on internal layers–outer layers contribute 3–5 nH/cm of inductance, degrading switch-off time by 15–25%. For high-side configurations, isolate bootstrap capacitor ground from load ground; parasitic coupling above 20 pF couples switching noise into the load, increasing radiated EMI by 6–8 dB.

Thermal Considerations

Mount the semiconductor on a heatsink with thermal resistance below 2°C/W for continuous loads exceeding 50% of rated current. Apply thermal interface material ≤0.1 mm thick–thicker layers increase thermal resistance by 0.5°C/W per 0.1 mm. Verify junction temperature with an infrared thermometer; sustained operation above 125°C reduces device lifespan exponentially–each 10°C increment cuts reliable lifetime by 50%.

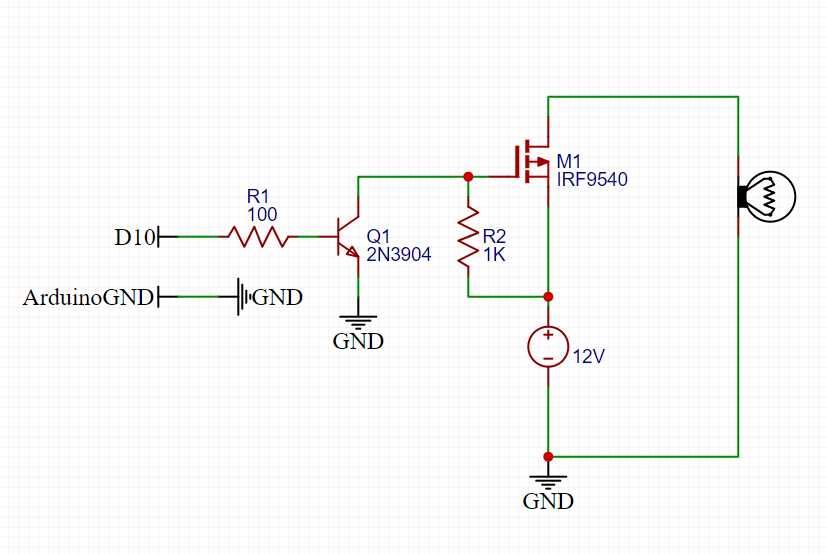

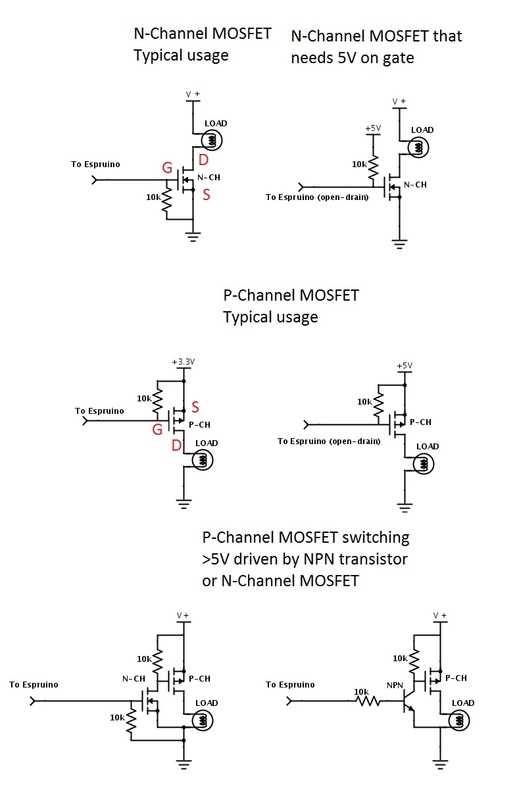

Step-by-Step Wiring for a High-Side Semiconductor Switch Controller

Connect the gate terminal of your switching element to an isolated driver IC like the ISO5500 or UCC27211, ensuring a 10Ω–100Ω gate resistor between the driver output and the gate to limit slew rate. For a 12V supply, wire the driver’s VCC pin directly to the input voltage, but decouple it with a 0.1µF ceramic capacitor placed no further than 5mm from the pin. Ground the driver’s VSS to the system reference, keeping the trace width at least 2mm for currents above 2A. For high-side operation, tie the driver’s VB pin to a bootstrap capacitor (0.1µF–1µF, X7R dielectric) with its other terminal connected to the VS pin, which must link to the switching node. Enable PWM signals via a 3.3V–5V logic input with rise/fall times under 50ns to prevent shoot-through.

Route the load path from the switching node through a Schottky diode (e.g., 1N5819) to block reverse currents, then to the load, grounding the load’s return via a low-ESR electrolytic or polymer capacitor (22µF–100µF). Keep the high-current loops under 20mm in length to minimize inductance. Verify gate drive waveforms with an oscilloscope, ensuring the VGS swing exceeds the threshold (3V–10V) during on-state. For inductive loads, add a freewheeling diode (10A+ rating) across the load to clamp voltage spikes. Test under worst-case conditions–maximum load current and ambient temperature–monitoring for thermal derating.

Common Protection Elements in Switching Transistor Designs

Install a flyback diode (freewheeling diode) directly across inductive loads to prevent voltage spikes during turn-off. Use a fast-recovery type like the SR560 or UF4007 for currents under 1A, or Schottky diodes for lower forward voltage drop in low-voltage applications. Position the diode as close to the transistor terminals as possible–ideally within 5mm–to minimize lead inductance.

Add a snubber network (RC snubber) across the semiconductor device to absorb energy from parasitic oscillations. Typical values range from 10Ω–100Ω in series with 1nF–10nF capacitors. Calculate the resistor value as R = √(L/C), where L is the stray inductance and C is the snubber capacitance. Polypropylene capacitors are preferred for their low ESR and high pulse handling.

Gate Driver Safeguards

Include a gate resistor to control slew rates and prevent ringing–start with 10Ω–100Ω, adjusting based on switching speed requirements. For high-current drives, use a parallel resistor-diode combination to accelerate turn-off while limiting gate overshoot. A 10V–15V Zener diode between gate and source clamps transient voltages, protecting the oxide layer from breakdown.

Avoid floating gate voltages with a pull-down resistor (typically 1kΩ–10kΩ) tied from gate to the reference terminal. This ensures the device remains off during power-up or driver failures. In half-bridge configurations, add dead-time of 100ns–500ns to prevent shoot-through, often handled by dedicated driver ICs like the IR2104 or UCC27211.

Thermal and Overcurrent Measures

Mount the semiconductor on a heatsink with thermal interface material (e.g., Arctic MX-6) and ensure the junction-to-case thermal resistance meets θ_JC ≤ (T_J(max) – T_C)/P. Attach a temperature sensor (NTC thermistor or digital sensor like TMP117) near the die to trigger shutdown at 85°C–125°C. For overcurrent protection, use a current-sense shunt (10mΩ–100mΩ) with an amplifier (INA240) to detect faults within 1μs–5μs, disengaging the driver via a latch or PWM controller.
