Complete Guide to Designing a Power Pack Circuit with Schematics
Start with a lithium-ion battery array configured in a 3S2P layout (11.1V nominal) for projects requiring sustained output. This setup balances voltage stability and current capacity, handling peak loads up to 20A without voltage sag. Ensure each cell’s charge state is monitored via a BMS (Battery Management System) with active balancing–passive balancing wastes energy and reduces lifespan by 15-20% over 500 cycles. Connect the BMS directly to the charging input and load terminals, isolating grounds to prevent interference.
For the charging module, use a synchronous buck converter with an input range of 12-24V and adjustable output (4.2V per cell). The TPS54302 (Texas Instruments) is ideal here–its 95% efficiency at 2A load minimizes heat dissipation, eliminating the need for bulky heatsinks. Add a Schottky diode (1N5822) on the output to prevent reverse current during power-down scenarios. Fuse the input at 3A slow-blow to protect against overcurrent from unstable sources like car voltage regulators.
Regulation demands a low-dropout linear regulator (LDO) like the LT1963A for sensitive components (MCUs, sensors). Pairing it with the buck converter creates a dual-stage system: the buck handles bulk energy delivery, while the LDO (<300mV dropout) ensures noise-free 5V output. Use ceramic capacitors (X7R dielectric, 22µF minimum) at both regulator inputs/outputs to suppress transient spikes–MLCCs outperform electrolytics here by 3x lifespan and lower ESR.
Integrate a load-sharing IC (e.g., LTC4412) if dual inputs (battery + USB) are needed. This prevents backfeeding into the USB port, violating the USB 2.0 spec’s 500mA limit. For connectivity, include a MOSFET switch (Si2302) controlled by a GPIO pin to toggle peripherals without vampire draw–idle current drops below 2µA. Copper pours on the PCB should be 2oz/ft² minimum for traces carrying >5A, with thermal vias stitching to a ground plane to avoid hotspots.
Test the schematic with an electronic load (e.g., Maynuo M98) before finalizing. Simulate worst-case scenarios: 40°C ambient, 80% charge state, and 5A continuous draw. Voltage ripple should stay under 50mVpp; if exceeded, add a pi-filter (22µH inductor + 10µF capacitor) to the LDO’s output. Documentation should include ESR charts for all capacitors, as aging increases ripple linearly after 2,000 hours of operation.
Designing a Robust Energy Module Blueprint
Begin with a lithium-ion cell arrangement configured in a 3S2P layout for optimal balance between capacity and voltage output. Use a 10A fuse between the battery terminals and the charging controller to prevent overcurrent damage. A TP4056 IC paired with DW01A protection (essential for cutoff at 2.4V per cell) ensures safe charging cycles without manual monitoring.
Incorporate a buck-boost converter (LM2596 or MT3608) to maintain stable 5V output under variable loads–adjust the feedback resistors to 30kΩ and 12kΩ for precise regulation. Place ceramic capacitors (22µF input, 47µF output) near the converter to reduce ripple to under 50mV peak-to-peak. For higher current applications, replace the converter with a synchronous variant like TPS63000 for 90%+ efficiency.
Route traces carrying 2A+ currents with a minimum width of 2.5mm on a 1oz copper PCB to avoid resistive losses. Thermal vias under the MOSFET (AO3400A) improve heat dissipation–space them 1mm apart, filled with solder. Add a 10kΩ NTC thermistor near the battery pack to trigger shutdown at 60°C via the microcontroller’s ADC input.
For load distribution, use a low-side current sensor (INA199) calibrated to 50mV/A to measure discharge rates. Connect the sensor’s output to a comparator (LM393) with a 1.2V reference–this flags abnormal draws exceeding 8A. Parallel MOSFETs (SI2302) driven by a gate driver (MIC4422) handle peak loads without voltage sag; decouple the gate driver’s power pins with 0.1µF capacitors.
A dedicated ATtiny85 monitors battery state and controls a bi-color LED (red/green) for status–solid green indicates healthy charge, blinking red warns of impending cutoff. Firmware should implement coulomb counting with a 16-bit timer to track energy consumption, compensating for temperature effects via lookup tables. For isolation, optocouplers (PC817) separate logic and load circuits to prevent ground loops.
Test the completed schematic with a bench supply emulating a 12.6V source under 0.1C, 0.5C, and 1C discharge rates. Verify transient response by toggling a 2Ω load on/off at 5Hz–the output voltage should recover within 200µs with no oscillations. Finalize the layout with a ground plane split between analog and digital sections, stitching them at a single point near the battery’s negative terminal.
Core Elements for Building a Reliable Energy Supply Unit
Select a transformer with a voltage rating matching your load requirements, typically a step-down type for low-voltage applications. For a 12V output, use a 230V/12V AC unit, ensuring the secondary winding can handle at least 1.5 times the expected current draw–e.g., 2A for a 1A load. Toroidal transformers reduce electromagnetic interference and improve efficiency by minimizing leakage flux.

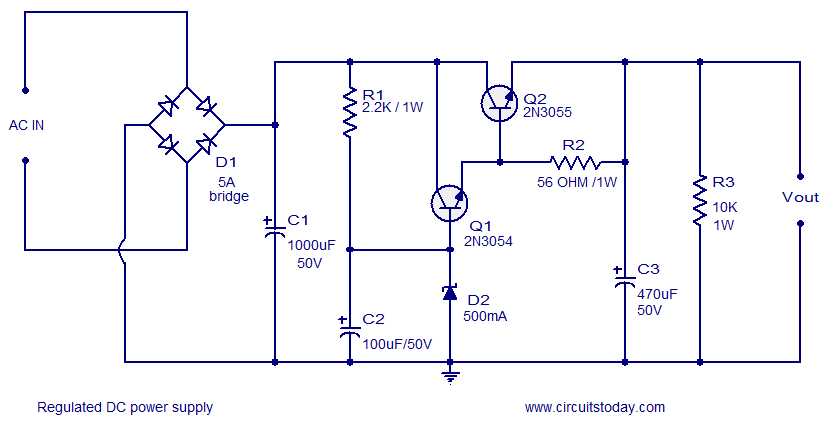

Rectification and Smoothing Essentials
Bridge rectifiers (e.g., KBPC3510) offer full-wave conversion with minimal voltage drop compared to single-diode configurations. Position a smoothing capacitor directly after the rectifier–values between 1000µF and 4700µF per ampere of load stabilize DC output, but oversizing increases inrush current risk. For precise regulation, pair this with a low-ESR capacitor to filter high-frequency noise.
Linear regulators like the LM7812 provide stable output with simple implementation but dissipate excess energy as heat. Calculate heatsink size using the formula: θSA = (TJ(max) – TA) / PD – θJC – θCS, where θSA is the heatsink-to-ambient thermal resistance. Switching converters (e.g., LM2596) reduce waste but require inductors–use a 33µH coil for 1A loads at 50kHz.
Protection and Auxiliary Features
Fuses must match the maximum input current rating; for a 1A system, a 1.5A slow-blow fuse protects against sustained overloads. Add a 1N4007 diode across the transformer’s primary to clamp back-EMF during power-off transients. For reverse polarity protection, a Schottky diode (e.g., 1N5822) prevents damage with lower forward voltage drop than standard silicon types.
LED indicators (20mA, 2V) monitor operational status–place a 220Ω resistor in series to limit current. If adjusting output, include a 10kΩ potentiometer for fine-tuning, but ensure it’s rated for the full load current. For variable supplies, feedback loops should use precision resistors (1% tolerance) to maintain accuracy within ±5%.
Enclosures must provide ventilation if linear regulation is used–plastic cases work for low-dissipation designs, while aluminum extrusions suit high-current setups. Ground the chassis to the negative rail to minimize noise coupling, and separate high-voltage and low-voltage sections with a physical barrier or PCB cutout to prevent arcing.

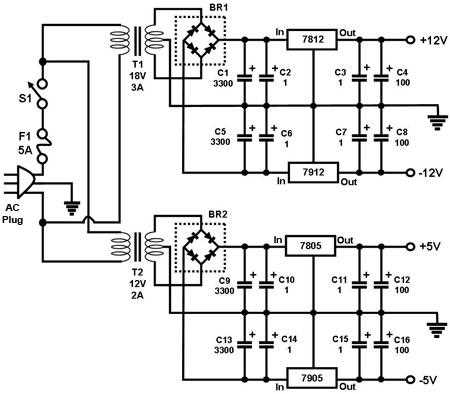

Step-by-Step Wiring of a Transformer-Based Energy Unit Assembly
Begin by selecting a transformer rated for your target output voltage and current. A 12VAC secondary winding transformer with a 2A rating suits most low-voltage setups. Verify the primary winding matches your local mains frequency (50Hz or 60Hz) to prevent overheating or inefficiency. Label all wires immediately to avoid confusion: primary (input), secondary (output), and ground.
Mount the transformer on a non-conductive base, securing it with screws or adhesive padding. Strip 5mm of insulation from the secondary leads using wire strippers, then crimp or solder a 2-pin connector to each end for modularity. For DC output, attach a full-wave bridge rectifier–four diodes arranged in a diamond configuration–ensuring correct polarity: AC inputs on opposite corners, DC outputs aligned with your load’s requirements.
Connect the rectifier’s output to an electrolytic capacitor (1000µF–4700µF, 25V) to smooth voltage ripples. Observe polarity: the capacitor’s negative lead must align with the rectifier’s cathode terminal. Add a 100nF ceramic capacitor in parallel to suppress high-frequency noise. For voltage regulation, incorporate a linear regulator (e.g., LM7805) if stable 5VDC is needed–input to the regulator’s IN pin, output from OUT, with a heatsink if currents exceed 500mA.
Fuse the primary side with a slow-blow fuse (0.5A–1A) to protect against surges. Wire a switch between the mains and transformer primary, using 18AWG stranded wire for flexibility under load. Terminate all connections with insulated terminal blocks or solder joints covered in heat-shrink tubing to prevent short circuits. Test continuity with a multimeter before energizing–probe each node sequentially to confirm correct wiring.

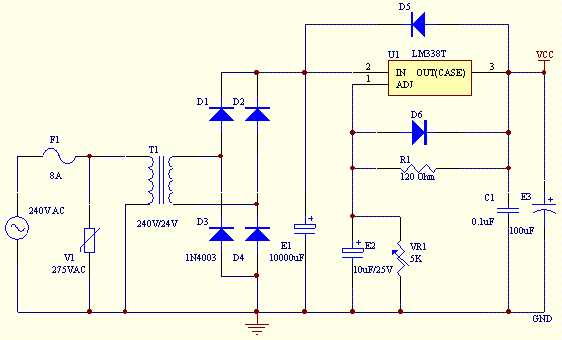

For adjustable output, substitute the fixed regulator with a variable IC (LM317). Connect a 240Ω resistor between OUT and ADJ pins, then pair it with a 5kΩ potentiometer to set voltage (1.25V–37V range). Ground the potentiometer’s wiper to the ADJ pin for stable reference. Always verify output voltage under load–no-load measurements can deceive–and derate components by 20% to account for thermal stress over time.
Determining Capacitor Values and Voltage Specifications for Energy Modules
Select capacitors with a voltage rating at least 20% higher than the maximum operating voltage of the system. For a 12V setup, use 16V or higher capacitors to prevent dielectric breakdown under transient spikes. Common electrolytic capacitors fail at 1.3× their nominal rating, so oversizing is critical for reliability in pulse-heavy loads. Film capacitors, while more stable, still require a 15% buffer for safety.
Calculate required capacitance using the formula: C = (I × Δt) / ΔV, where I is the load current in amperes, Δt is discharge duration in seconds, and ΔV is allowable voltage sag. For a 5A load with 100ms hold-up time tolerating a 1V drop, the calculation yields C = (5 × 0.1) / 1 = 0.5F (500,000µF). Practical designs round up to the nearest standard value–here, 560,000µF. For high-frequency applications, reduce ESR by paralleling smaller capacitors rather than using a single large unit.
Voltage ripple imposes additional constraints. In buck converters operating at 50kHz, target ripple below 50mVpp. The ripple current through the capacitor dictates its RMS current rating, calculated as IRMS = Iout × √[(Vout/Vin) × (1 − Vout/Vin)]. For a 12V to 5V converter at 2A output, IRMS = 2 × √[(5/12) × (1 − 5/12)] ≈ 1.05A. Ensure the capacitor’s datasheet specifies ripple current capacity exceeding this value. Polymer capacitors often handle 3–5× higher ripple than aluminum electrolytics for the same package size.
| Load Current (A) | Hold-Up Time (ms) | ΔV = 0.5V | ΔV = 1V | ΔV = 2V |
|---|---|---|---|---|
| 1 | 10 | 20,000µF | 10,000µF | 5,000µF |
| 3 | 50 | 300,000µF | 150,000µF | 75,000µF |
| 10 | 20 | 400,000µF | 200,000µF | 100,000µF |
Temperature derating curves dictate performance adjustments. Electrolytic capacitors lose roughly 30% capacitance at −25°C and exhibit increased ESR at elevated temperatures. For 85°C-rated components, operate at ≤70°C to maintain specified lifetime. Film capacitors offer better stability but require derating for voltage: a 400V film capacitor should not exceed 320V in continuous use. Always cross-reference derating curves in datasheets to avoid premature failure.
Inrush current protection necessitates additional capacitance. A 10A inrush lasting 5ms with a 10V clamp requires C = (10 × 0.005) / 10 = 5,000µF. Low-ESR tantalum capacitors are preferred for high inrush scenarios due to their ability to absorb transient energy without degradation. For applications with repeated pulses, ceramic capacitors rated for X7R or X8R dielectric minimize capacitance loss under DC bias, though they lack the bulk energy storage of electrolytics.
