How to Build a Reliable 12V Power Supply Circuit with Schematics
For a stable low-voltage source, use a bridge rectifier paired with a capacitor input filter. A 1N4007 diode bridge handles up to 1A continuous current; for higher loads, substitute with a KBPC2510 (25A). Input smoothing requires a capacitor of at least 2200µF per ampere–calculate exact values using C = (I × Δt) / ΔV, where Δt is the ripple period (8.3ms for 60Hz) and ΔV is the acceptable ripple (≤0.5V).
Regulation demands an LM7812 or LD1085V12 linear regulator for simplicity. The LM7812 requires a minimum 14.6V input to maintain 12V output (dropout: 2V). For efficiency, a buck converter like the XL4015 reduces losses–configure it with a 100µH inductor and 22µF output capacitor for 3A capability. Heat dissipation mandates a heatsink for linear regulators: θJA = (Tj_max – Ta) / P, where θJA is the thermal resistance, Tj_max is 125°C, Ta is ambient (25°C), and P is power dissipation.
Protection components are non-negotiable. Fuse the input at 125% of maximum load–for 5A, use a 6.3A slow-blow fuse. Add a TVS diode (P6KE16A) across the output to clamp transients to 16V. Reverse polarity protection requires a P-channel MOSFET (IRF9540N) with a 10kΩ gate resistor; this avoids voltage drops inherent in diode solutions. Ground loops? Isolate analog/digital grounds and connect them at a single point near the reservoir capacitor.
Testing validates performance. Measure output under load: a 3.3Ω resistor draws ~3.6A, stressing the regulator. Use an oscilloscope to check ripple–set the vertical scale to 0.2V/div and sweep to 10ms/div. If ripple exceeds 100mV, increase capacitance or add an LC filter (10µH + 100µF). For adjustable voltage sources, an LM317 with a 240Ω resistor (R1) and potentiometer (R2) allows fine-tuning: Vout = 1.25 × (1 + R2/R1).
Designing a Reliable 12VDC Circuit Layout

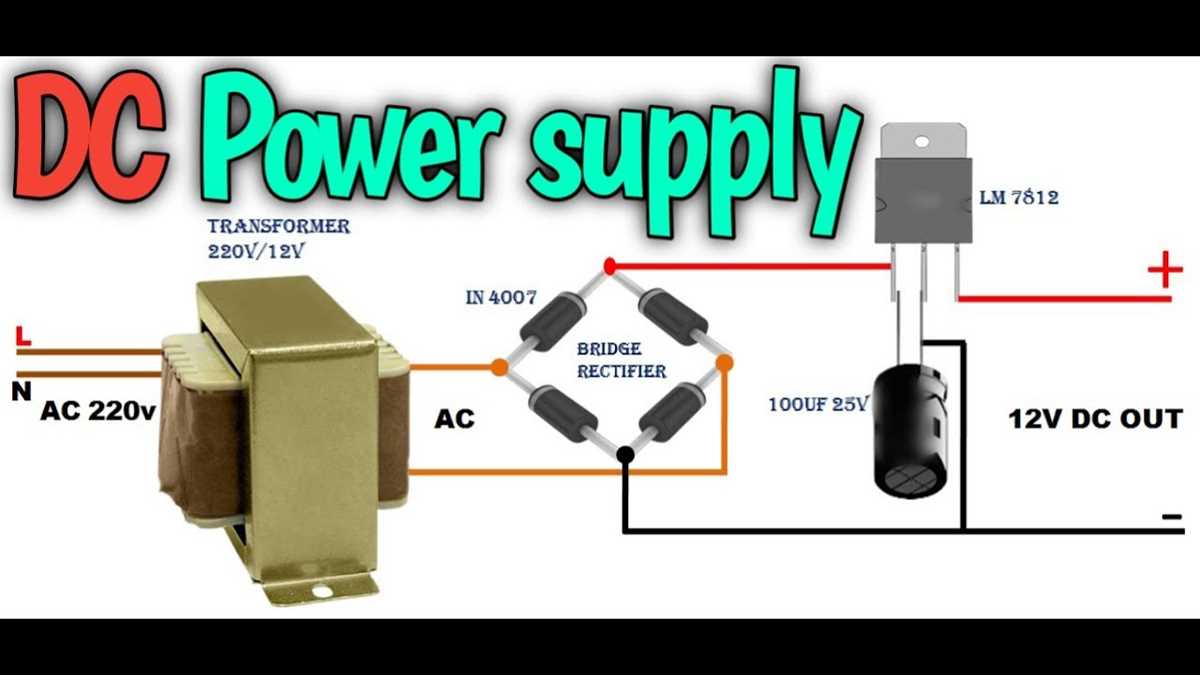

Begin with a linear voltage regulator like the LM7812 for simplicity and stability, especially if noise sensitivity is critical. Ensure the input voltage from the transformer exceeds the output by at least 2.5V to maintain regulation under load. For example, a 15-18VAC secondary winding on the transformer converts to roughly 21-25VDC after rectification–sufficient headroom for the regulator.
Incorporate a bridge rectifier (e.g., GBU4J) before the smoothing capacitor to handle AC-to-DC conversion efficiently. Follow this with a 1000µF–4700µF electrolytic capacitor to reduce ripple; larger values improve transient response but increase inrush current. Add a 0.1µF ceramic capacitor across the output terminals to suppress high-frequency noise.
- Load Considerations: Calculate peak current (e.g., 1A for LEDs, 3A for motors) and derate components by 20% to avoid thermal stress. For inductive loads, include a flyback diode (1N4007) to protect against voltage spikes.
- Thermal Management: Mount the regulator on a heatsink if dissipating >1W. A TO-220 package with a 5°C/W heatsink can handle ~10-15W depending on ambient temperature.
- Fusing: Use a slow-blow fuse (e.g., 2A) on the primary side to guard against transformer overload. Place a PTC resettable fuse (5A) near the output for short-circuit protection.

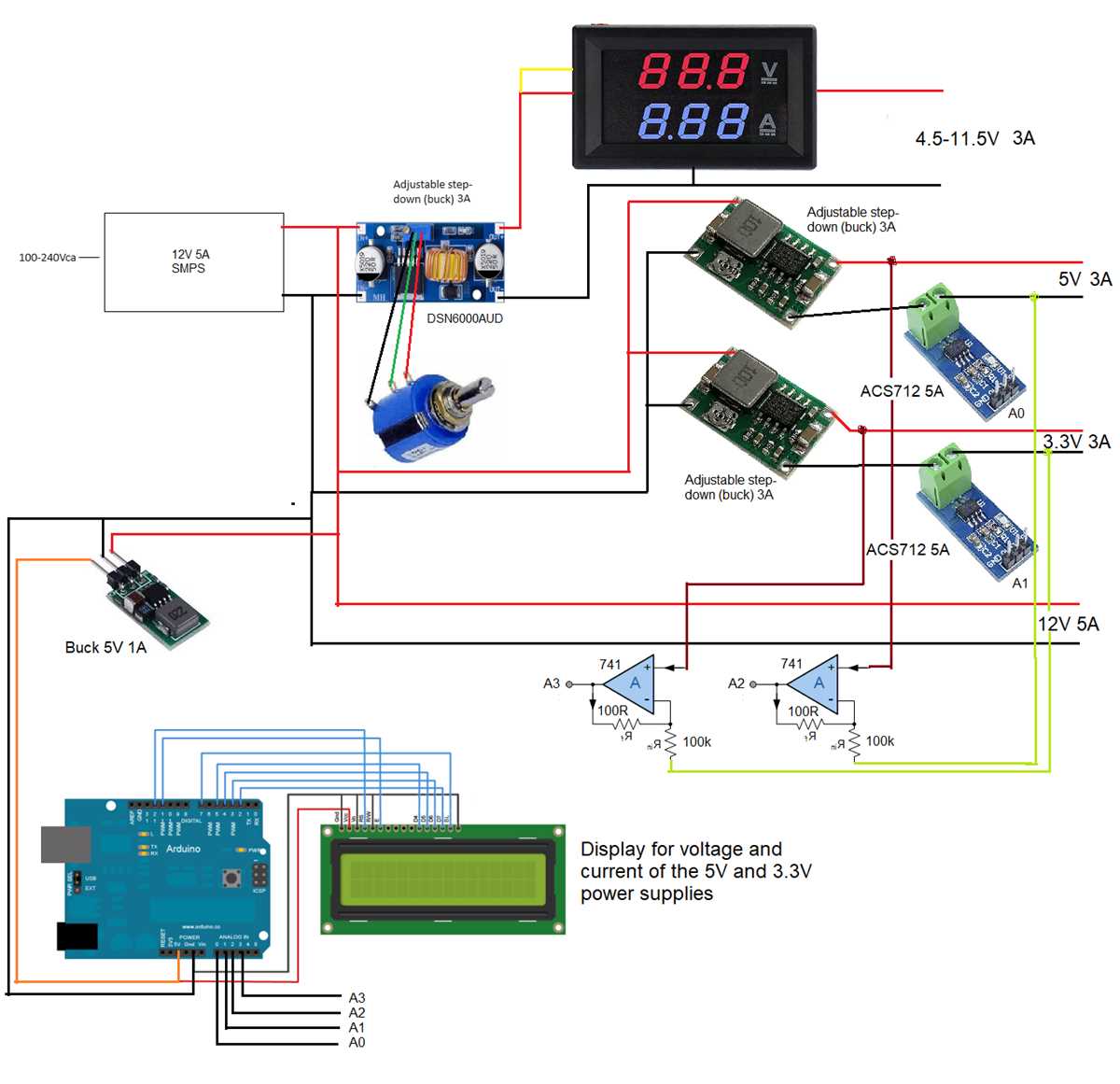

For switched-mode alternatives, consider a buck converter module (e.g., MP2307) with >90% efficiency. These require precise component selection: a 22µH inductor, Schottky diode (SB560), and low-ESR capacitors (470µF) for stability. Adjust the feedback resistor network to achieve 12VDC ±2% tolerance under variable loads.
Test the layout under worst-case conditions: cold start, maximum load, and high ambient temperature. Measure ripple (target LC filter (100µH + 470µF) or a transient voltage suppressor (P6KE15A) for surge protection. Document all component values and test results to streamline troubleshooting.
Core Elements for Building a DC Source Converter

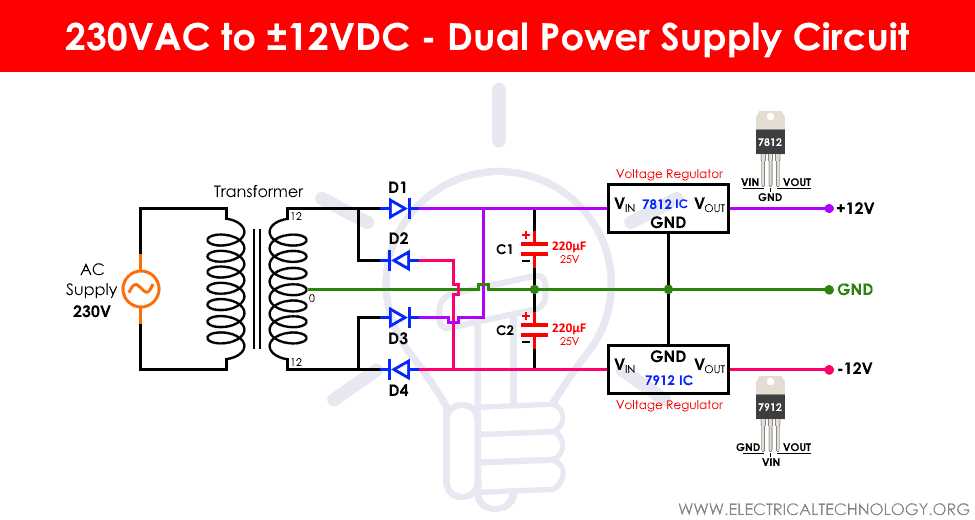

Begin with a 230V AC to low-voltage transformer (e.g., 18V center-tapped) rated at least 1A to ensure stable primary-to-secondary isolation and sufficient current delivery. Avoid undersized models–thermal derating at 30% load capacity is critical for longevity.
Select a bridge rectifier (KBPC2510 or equivalent) or four discrete diodes (1N4007) with a surge rating of 50V minimum. For high-efficiency designs, Schottky diodes (SB560) reduce forward voltage drop to ~0.4V but require heatsinking above 1A continuous current.
Incorporate a reservoir capacitor sized for ripple suppression: 2200µF 25V for 1A output, scaling linearly (e.g., 4700µF for 2A). ESR below 0.3Ω prevents excessive voltage sag during transients. Bulk electrolytics should be paralleled with 0.1µF ceramics to filter high-frequency noise.
Voltage regulation demands either a linear regulator (LM7812) or switching IC (LM2596). The trade-offs:
| Component | Efficiency | Heat Output | Complexity |
|---|---|---|---|
| LM7812 (Linear) | 40-60% | High (TO-220 heatsink required) | Low (3-pin design) |
| LM2596 (Switching) | 80-90% | Minimal (no heatsink for <3A) | Moderate (inductor, diode, feedback loop) |
For switching regulators, add a 100µH inductor (e.g., Murata 1422450C) with saturation current exceeding peak load by 20%. Output capacitors (2x 470µF low-ESR) stabilize regulation under dynamic loads. Include a 0.1µF bypass cap near the IC’s input and output to prevent oscillation.
Step-by-Step Assembly of a Linear 12V Voltage Regulator
Select a toroidal transformer with a secondary winding rated at 15V AC and 2A minimum. Mount it on the chassis using insulating washers to prevent shorts, securing it with a single M4 bolt centered in the core window. Verify the AC output with a multimeter before proceeding–any deviation beyond ±0.5V warrants replacement. Solder the transformer leads directly to a bridge rectifier (KBPC2510 or equivalent) without using intermediate wires; keep traces under 30mm to minimize voltage drop. Install a 4700µF electrolytic capacitor (50V rating) within 10mm of the rectifier outputs, observing polarity strictly. A 0.1µF ceramic disc capacitor placed in parallel acts as a high-frequency noise filter–solder it directly to the capacitor’s terminals to reduce trace inductance.
Component Placement and Thermal Considerations
Position the linear regulator (LM7812) on a heatsink with a thermal resistance not exceeding 5°C/W. Apply a pea-sized amount of thermal paste evenly, then torque the mounting screw to 0.5Nm–excessive pressure distorts the die, while insufficient contact causes overheating. Input and output capacitors (10µF tantalum or 22µF electrolytic) must sit within 15mm of the regulator’s pins; longer distances invite oscillations. Add a 1N4007 diode across the regulator’s input/output terminals (cathode to input) to protect against reverse voltage spikes during power-down. Test the DC output at full load (1A) with a dummy resistor (12Ω, 25W)–ripple should not exceed 50mV peak-to-peak. If ripple exceeds this threshold, double the output capacitance or add a 10µH choke in series with the load.
Frequent Pitfalls in Low-Voltage DC Circuit Design
Overlooking transient protection is one of the most critical errors. A 12V regulator circuit without a properly sized TVS diode or capacitor across the input risks failure from voltage spikes. Industrial environments often generate 50V surges; ignoring this exposes semiconductors to premature burnout. Place a 16V TVS diode directly across the input terminals, not downstream of fuses or relays, to ensure immediate clamping.
Incorrect component ratings create cascading failures. Using a 25V electrolytic capacitor in a design with nominal 12V output but 16V peaks stresses dielectric layers beyond their 20% derating margin. Replace with 35V-rated parts. Similarly, choosing a 1A bridge rectifier for a 3A continuous load violates the 80% rule–opt for 4A components to handle thermal cycling without derating.
Ground loops disrupt stability in multi-stage designs. Connecting the negative terminal of a switching regulator directly to the system ground without a dedicated star point introduces millivolt-scale noise, corrupting analog signals. Isolate high-current return paths from control circuitry. For PCBs under 10cm, use a solid ground plane; larger boards demand segmented grounds with single-point ties.
Thermal Neglect in Passive Components
Resistors dissipate energy as heat, yet designers often undersize them. A 1W metal film resistor mounted horizontally on a PCB with no airflow reaches 85°C at half its rated load. For 1.5W dissipation, select at least 3W-rated parts with ceramic substrates. For axial resistors, orient perpendicular to airflow or increase clearance to neighboring components by 5mm.
- Voltage divider resistors should split power 70/30 to balance heat distribution. A 5kΩ/10kΩ pair sharing 12V dissipates 29mW and 14mW–reversing values increases thermal stress on the smaller resistor.
- Inductors in SMPS circuits saturate if core material mismatches switching frequency. A ferrite core rated at 100kHz performs poorly at 500kHz, causing 30% power loss. Verify AL values against datasheets and simulate with tools like LTspice before prototyping.
- Heatsinks for TO-220 regulators require thermal paste with conductivity above 3W/m·K. Budget 1°C/W per cm² of contact area; pad thickness exceeding 0.2mm reduces effectiveness.
Layout Mistakes That Compromise Safety
Creepage and clearance distances violate IEC 60950 standards when high-voltage traces run near low-voltage nodes. A 3mm gap between a 24V input and a 3.3V trace invites arcing under 80% humidity. Maintain 8mm spacing for primary-secondary separation; Class II devices mandate 12mm. Use slots or insulation barriers if space constraints prevent compliance.
- Feedback traces routed near switching nodes pick up noise, causing loop instability. Keep traces under 10mm long; for longer runs, twist pairs or shield with a grounded pour. Capacitors placed more than 30mm from IC pins act as antennas, requiring bulk decoupling at both ends.
- Fuse placement matters–position it before the smoothing capacitor. A fuse after the cap lets inrush current bypass protection, risking 50A surges through a 2A fuse. Fast-blow fuses react too aggressively to transient loads; use slow-blow models with 20% derating for capacitive circuits.
Neglecting load dynamics invites failures. A 12V battery charger designed for resistive loads fails when connected to a 5Ah sealed lead-acid battery due to gassing thresholds. Simulate load steps: motor drives exhibit 10x nominal current during start-up; test with electronic load profiles mimicking real-world dV/dt conditions. Failure to model ESR of cables (typically 0.1Ω/m for 18AWG) leads to 0.5V droop in 5m wiring runs.
